Cervelo

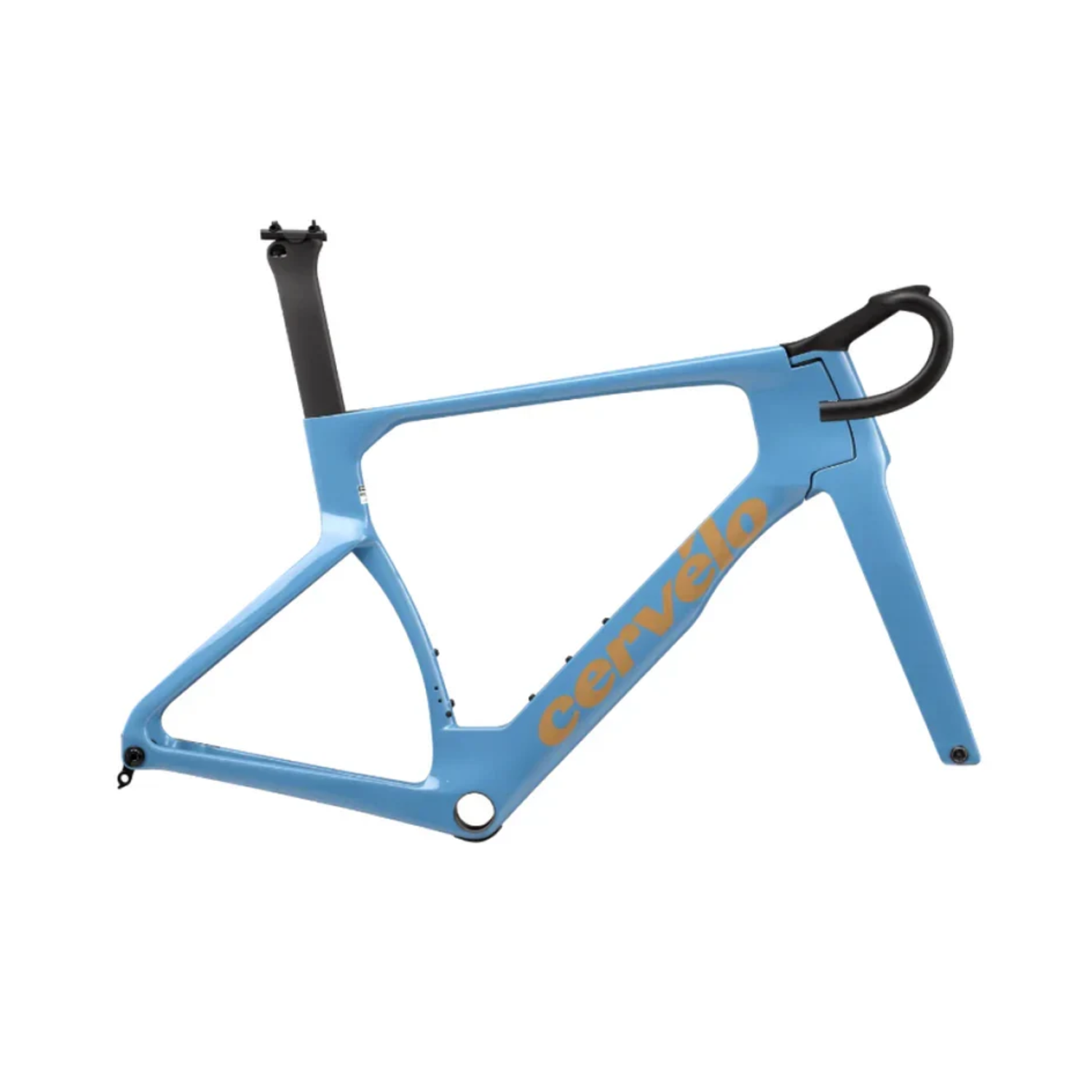

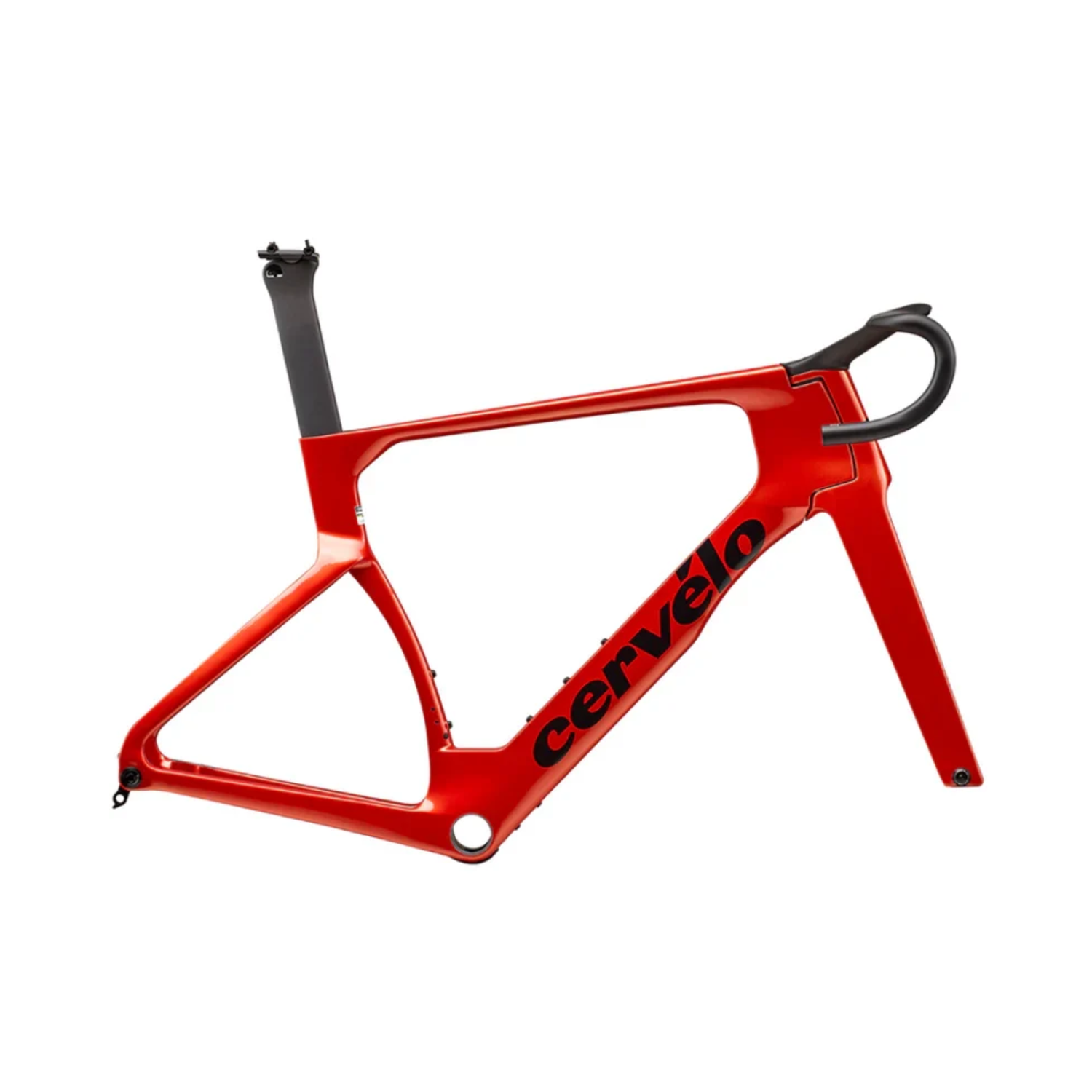

Cervelo S5 Frameset

Race-Developed Aerodynamics with Integrated Carbon Control

Reduced Aero Drag
Lighter Race Platform
Balanced Cockpit Control

₹575,999

Earn 11518 points paying online Details

Color: Carnelian

Size

Not sure it fits your bike? Ask TBA Guide WhatsApp us

Check delivery estimate

Frame geometry per size. Cervelo does not publish rider heights for the S5.

Size	Stack (mm)	Reach (mm)	Top Tube (mm)	Head Tube (mm)
48	496	367	520	69
51	519	376	535	87
54	542	384	550	109
56	565	392	565	130
58	588	401	581	157
61	608	409	595	178

The Cervelo S5 Frameset is engineered for high-speed road racing, powerful sprints and fast breakaways. Its aerodynamic carbon design helps reduce drag while retaining confident handling across demanding race conditions.

Refined Carbon Race Platform: The updated S5 carbon frame and Bayonet fork feature deeper aerodynamic profiles while reducing overall system weight. Refined tube shaping improves airflow without compromising stiffness or efficient power transfer.

Integrated One-Piece Cockpit: The Cervelo HB19 carbon cockpit creates a clean, streamlined front end with internal cable routing. Its race-focused shape supports aerodynamic positioning while providing the stiffness needed for hard accelerations and precise steering.

Ready for Electronic Drivetrains: The frameset is designed exclusively for electronic groupsets and uses Cervelo’s BBright press-fit bottom bracket standard. It also includes the aerodynamic SP34 carbon seatpost for a cohesive race-ready setup.

The Cervelo S5 Frameset provides an advanced aerodynamic foundation for building a personalised, competition-focused road bicycle.

Specifications

Intended Use	Road Racing
Frame	Cervelo S5 Carbon
Fork	Cervelo All-Carbon Bayonet S5 Fork
Headset	FSA SL IS2, 1-1/8" 36°x45° / 1-3/8" 36°x45°
Handlebar and Stem	Cervelo HB19 Carbon, One-Piece
Handlebar Width	36 cm at Hoods / 40 cm at Drops, Size 48
Stem Length	80 mm, Size 48
Seatpost	Cervelo SP34 Carbon
Seatpost Offset	0 mm, Size 48
Bottom Bracket	BBright Press-Fit

Drivetrain Compatibility	Electronic Drivetrains Only
Brake Compatibility	Flat-Mount Hydraulic Disc
Front Thru Axle	Cervelo Aero, M12x1.5mm, 122mm Length
Rear Thru Axle	Cervelo Aero, M12x1.0mm, 169mm Length
Maximum Tyre Clearance	34 mm
Wheel Size	700C
Color	Carnelian, Lupine
Size	48
Included Accessories	Front Computer/Accessory Mount and Rear Accessory Mount

Features

Reduced Aero Drag: Refined frame shaping supports efficient speed during racing and fast road rides.
Lighter Race Platform: Updated construction reduces system weight without compromising handling stability.
Balanced Cockpit Control: Narrower hood positioning improves aerodynamics while wider drops aid descending.
Responsive Power Transfer: Stiff carbon construction supports acceleration, sprinting and high-speed efforts.
Wider Tyre Clearance: Supports tyres up to 34 mm for improved comfort and road versatility.
Clean Integrated Build: Internal routing and the one-piece cockpit create a streamlined appearance.

Technologies

Asymmetric Aero Profiling: Shaped seat tube and rear-wheel integration help maintain smoother airflow through the bike.
HB19 Plus-Four Cockpit: Hood width is 4 cm narrower than the drops to balance aerodynamic positioning and control.
Bayonet S5 Fork: Full-carbon fork construction improves front-end stiffness and aerodynamic efficiency.
Optimised Carbon Layup: Revised materials and hardware make the current S5 system 124 g lighter than its predecessor.
