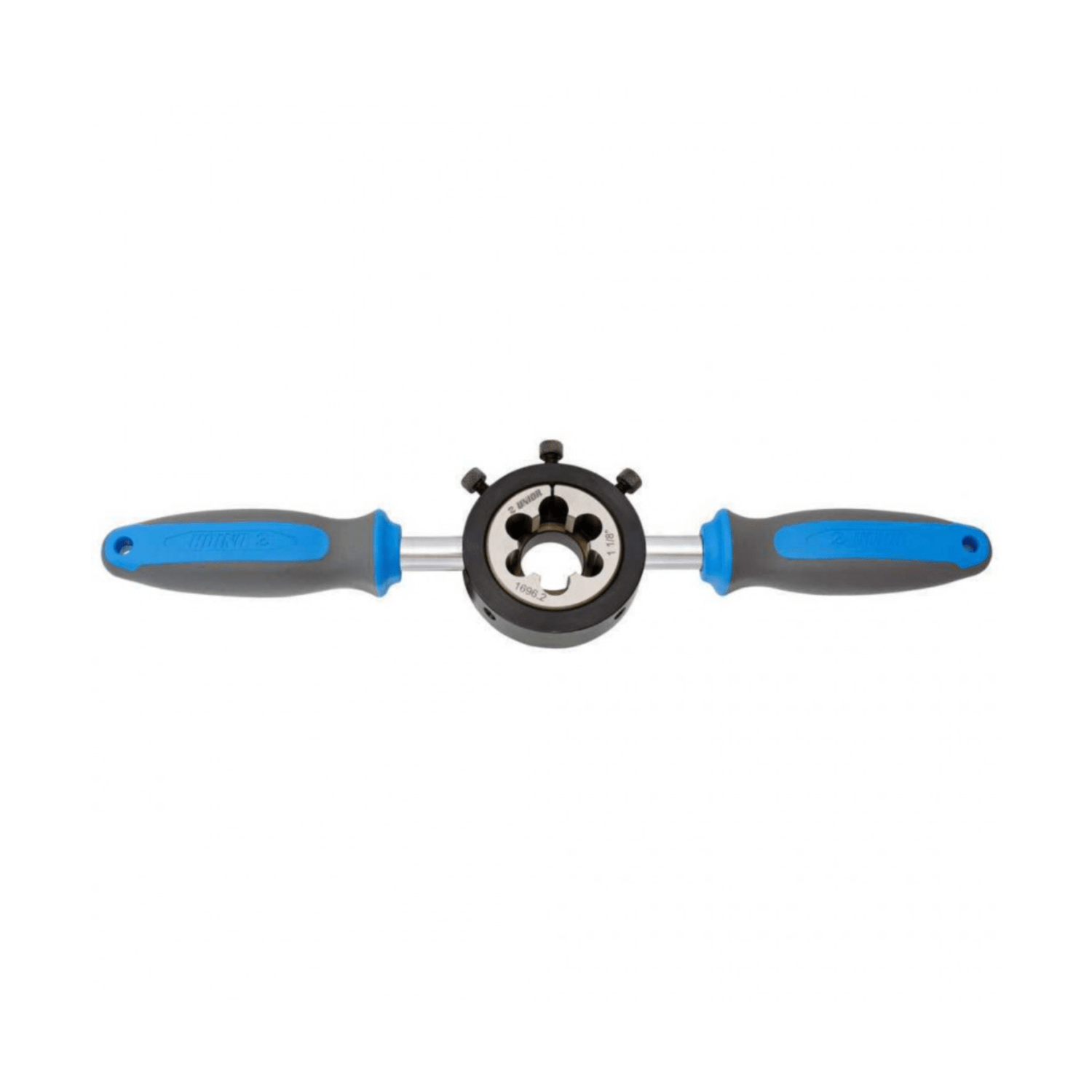

Unior 1696 Fork Threading Tool - 1"

616074
₹15,777

Estimated Shipping Widget will be displayed here!

How To Use
  1. Check Steerer: Use only on compatible 1" non-chromed threaded steerer tubes.
  2. Align Tool: Position the tool on the steerer tube at a 90° angle.
  3. Apply Cutting Grease: Use cutting grease before cutting or chasing threads.
  4. Cut or Chase Threads: Turn the tool steadily to cut new threads or refresh existing threads.
  5. Inspect Finish: Clean the area and check thread quality before headset installation.

Fork Threading Tool For Precise 1-Inch Steerer Service

Overview

The Unior 1696 Fork Threading Tool is designed for working on 1" threaded fork steerers, helping mechanics cut new threads or refresh existing threads with better control.

Cuts and Chases Threads: This tool can be used to create new threads or chase old threads on compatible non-chromed steerer tubes. It is useful during fork replacement, frame restoration, or classic bike service.

Correct 1" x 24 TPI Size: The tool is made for 1" x 24 TPI threading, which is commonly found on older threaded fork systems. Matching the correct thread size is important before use.

Stable and Controlled Use: Unior recommends using the tool at a 90° angle to the steerer tube and applying cutting grease when cutting threads. The ergonomic handle helps transfer force smoothly during workshop use.

The Unior 1696 Fork Threading Tool - 1" is a specialist tool for accurate threaded fork steerer service on compatible bicycles.

Features
  • Thread Cutting Use: Designed for cutting new threads on compatible 1" threaded fork steerer tubes.
  • Thread Chasing Support: Helps refresh or clean existing steerer threads for accurate headset installation.
  • Non-Chromed Steerer Fit: Intended for use on steerer tubes that are not chromed.
  • Controlled Cutting Setup: Tool should be used at a 90° angle with cutting grease for cleaner thread formation.
  • Workshop Handle Grip: Ergonomic heavy duty double component handle supports better force transfer during use.

Specifications
  • Product Code: 616074
  • Thread Size: 1" x 24 TPI
  • Application: Cutting and Chasing Fork Steerer Threads
  • Steerer Compatibility: Non-Chromed 1" Threaded Steerer Tubes
  • Material: Special Tool Steel
  • Handle: Ergonomic Heavy Duty Double Component Handle
  • Length: 370 mm
  • Weight: 1100 g
