Unior 1695MB1 Crank Saver - Pedal Thread Repair and Insert Kit

626979
₹20,159

Estimated Shipping Widget will be displayed here!

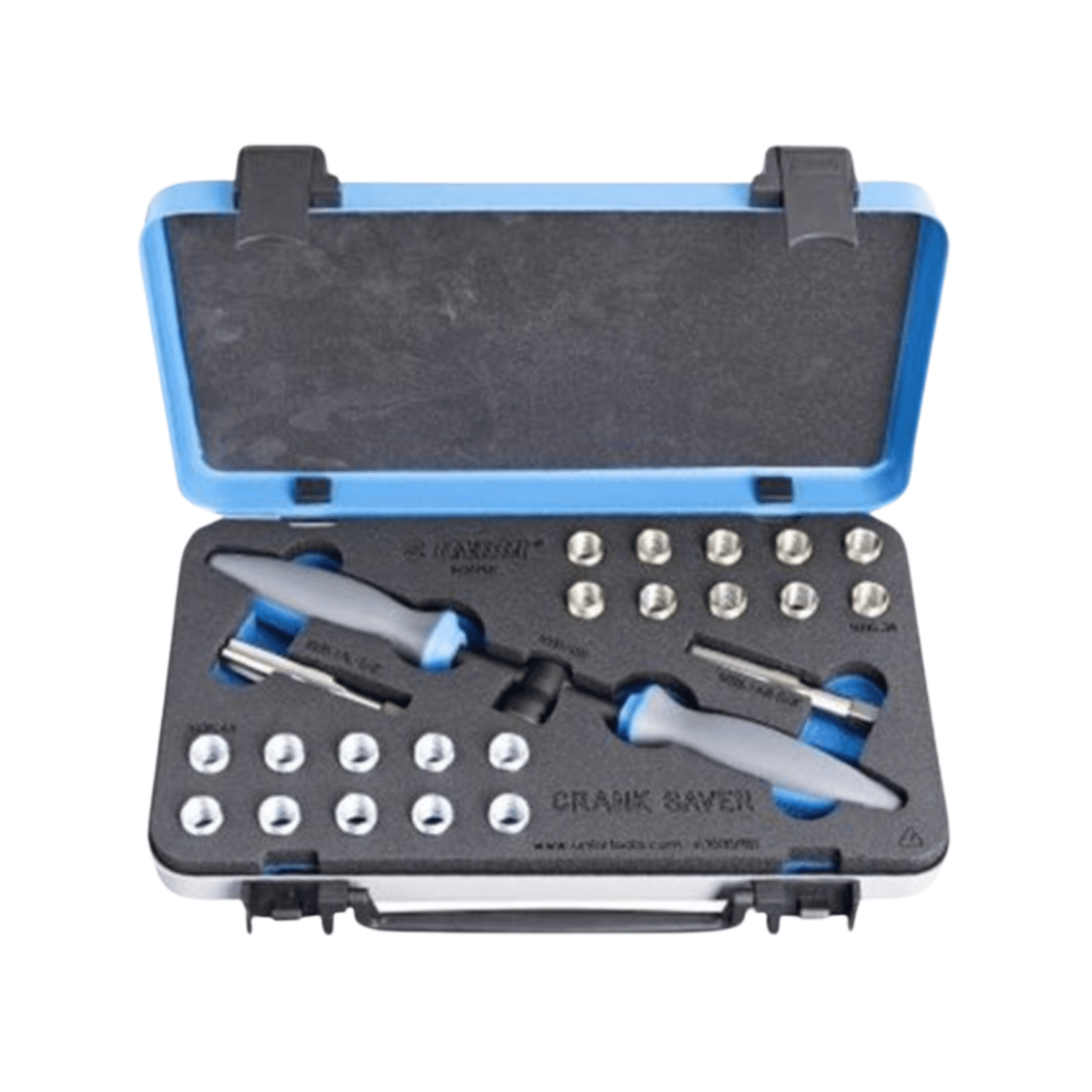

In the Box

1x Tap Handle
1x Left Pedal Reamer and Tap 5/8" x 24 TPI
1x Right Pedal Reamer and Tap 5/8" x 24 TPI
10x Left Pedal Thread Insert 5/8L x 24
10x Right Pedal Thread Insert 5/8 x 24
1x Metal Box with SOS Foam Trays

How To Use

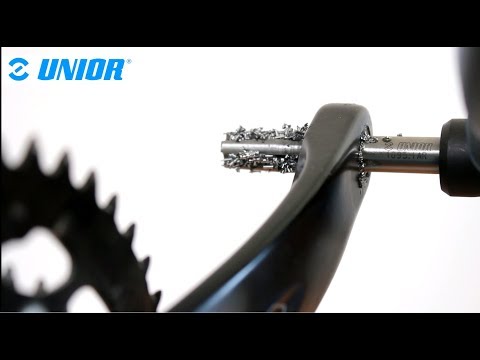

  1. Ream Threads: Use the left or right reaming tap to create oversized 5/8" x 24 TPI threads in the crank arm.
  2. Clean Threads: Thoroughly clean and degrease the newly cut threads before fitting the insert.
  3. Apply Thread Locker: Apply thread locker to the outside of the correct pedal thread insert.
  4. Install Insert: Thread the insert into the crank arm until it is seated correctly.
  5. Fit Pedal: Install the pedal into the insert and allow the thread locker to cure as required.

Pedal Thread Rescue Kit For Damaged Crank Arms

Overview

The Unior 1695MB1 Crank Saver Kit is designed to repair damaged or stripped pedal mounting threads, helping save crank arms that may otherwise need replacement.

Oversized Thread Cutting: The kit uses reaming taps to create oversized 5/8" x 24 TPI threads in the crank arm. This prepares the damaged pedal thread area for a secure repair insert.

Insert-Based Crank Repair: After cleaning the new threads, the insert is fitted into the crank arm using thread locker. The pedal can then be installed into the insert, restoring proper pedal fitment.

Useful Workshop Solution: This kit is especially helpful for bike shops and serious mechanics handling cross-threaded or damaged crank arms. It offers a practical way to repair threads instead of replacing the crank.

The Unior 1695MB1 Crank Saver - Pedal Thread Repair and Insert Kit is a specialist solution for restoring compatible crank arms with damaged pedal threads.

Features
  • Stripped Thread Repair: Helps repair damaged pedal mounting threads and save crank arms from replacement.
  • Oversized Tap System: Reaming taps create oversized 5/8" x 24 TPI threads for secure insert installation.
  • Left And Right Fit: Includes dedicated repair parts for both left and right crank arm pedal threads.
  • Thread Locker Ready: Insert installation uses thread locker for a secure and lasting repair.
  • Organized Metal Case: Supplied in a metal box with cut-out SOS foam trays to keep every piece in place.

Specifications
  • Product Code: 626979
  • Thread Size: 5/8" x 24 TPI
  • Application: Stripped Pedal Thread Repair
  • Storage: Metal Box with Cut-Out SOS Foam Trays
  • Set Quantity: 5 Pcs
