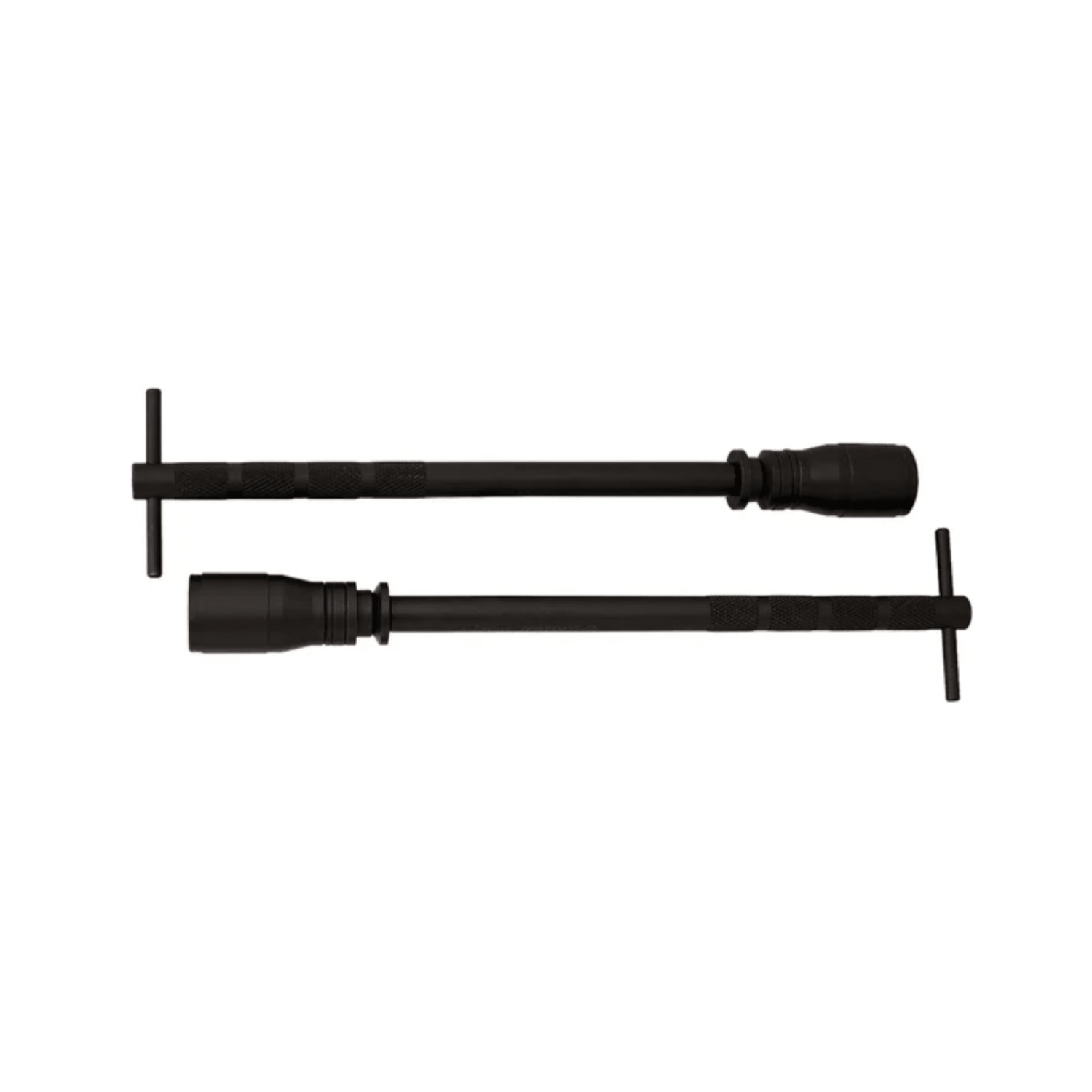

Unior 1692/4 Dropout Alignment Gauges

618412
₹6,675

Estimated Shipping Widget will be displayed here!

How To Use
  1. Install Gauges: Fit each gauge into the frame or fork dropouts like a wheel axle.
  2. Bring Faces Together: Move the gauge faces toward each other to check whether they meet flush.
  3. Read Alignment: A visible gap, offset, or uneven contact shows twist, splay, or non-parallel dropout alignment.
  4. Correct Carefully: On steel frames, apply controlled pressure through the gauge handle in the needed direction.
  5. Re-Check Often: Re-measure after each correction and repeat gradually until both gauge faces align correctly.
  6. Avoid Carbon Bending: Do not attempt to bend carbon dropouts; use the tool for diagnosis only on carbon frames.

Paired Dropout Gauges For Accurate Frame Alignment

Overview

The Unior 1692/4 Dropout Alignment Gauges are designed to check whether the frame or fork dropouts are parallel, square and properly aligned before wheel installation.

Helps Diagnose Wheel Fit Issues: Misaligned dropouts can cause poor wheel tracking, brake rub, shifting issues, or uneven hub bearing load. These gauges help identify the problem clearly before further adjustment.

Paired Gauge Design: The tool is used as a pair, with each gauge fitted into the dropouts like an axle. When the two faces are brought together, the gap shows whether the dropouts are aligned or need correction.

Useful For Steel Frame Correction: For minor misalignment on steel frames, the gauges can also provide controlled leverage for correction. For aluminium, carbon, or titanium frames, manufacturer guidance should be followed.

The Unior 1692/4 Dropout Alignment Gauges are a specialist workshop tool for accurate frame and fork dropout inspection and alignment.

Features
  • Dropout Alignment Check: Helps inspect whether frame or fork dropouts are parallel, square, twisted, or splayed.
  • Paired Gauge Design: Two gauges install like wheel axles and meet face-to-face to reveal alignment errors clearly.
  • Steel Frame Correction: Can help correct minor steel dropout misalignment using controlled leverage.
  • Diagnostic Workshop Tool: Useful when tracking issues, brake rub, or repeated hanger problems are hard to solve.
  • Full Rear-End Workflow: Pairs well with hanger alignment tools for complete rear dropout and drivetrain alignment service.

Specifications
  • Product Code: 618412
  • Operation: Paired Gauges Installed into Front and Rear Dropouts
  • Compatibility: Most Modern Frame and Fork Dropouts
  • Recommended Workflow: Use before Hanger Alignment and Final Drivetrain Adjustment
