Unior 1683/5A Crown Race Setter

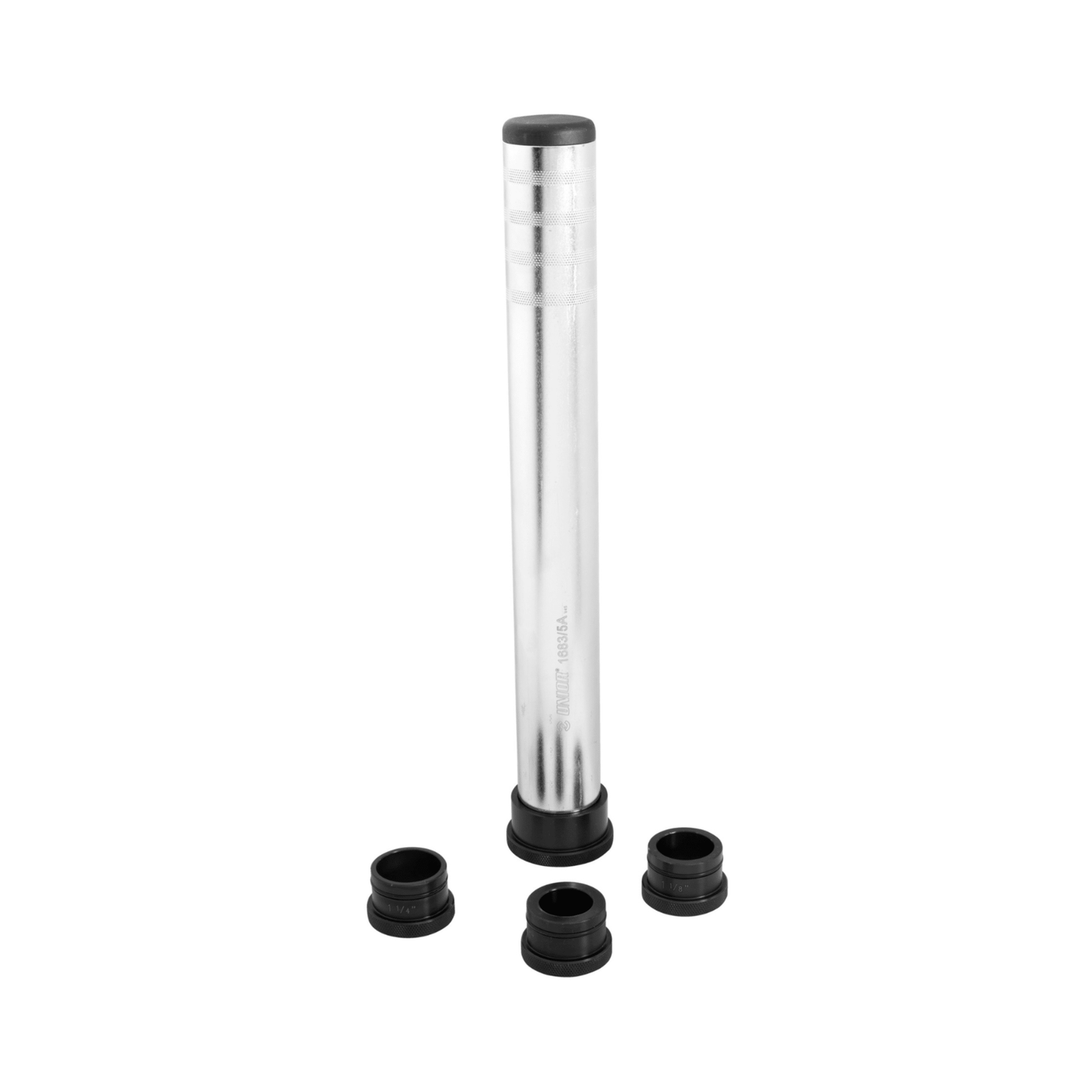

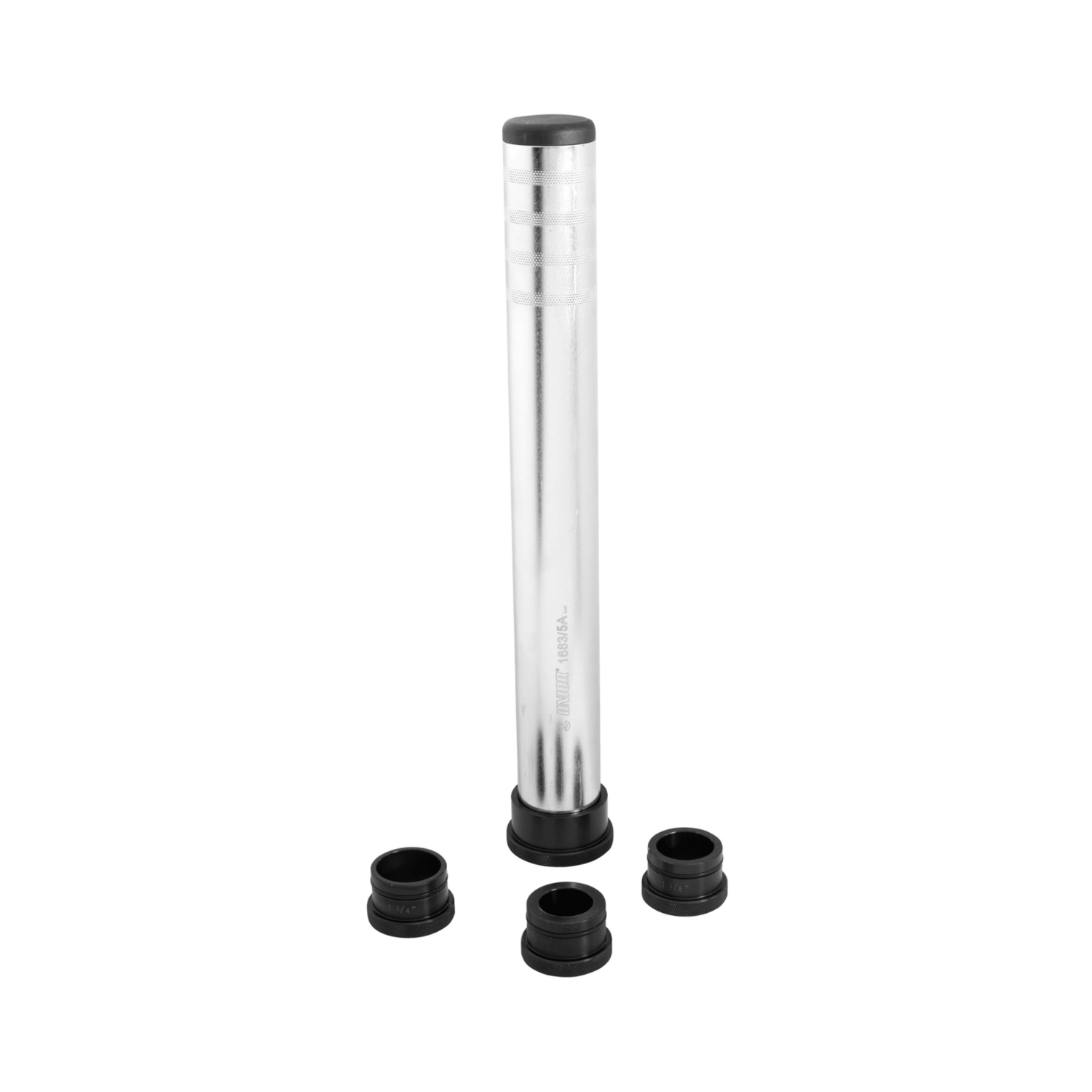

Name: Unior 1683/5A Crown Race Setter
Brand: Unior
SKU: 626268
Price: 8457.0 INR
Availability: InStock

Crown Race Setter For Square Fork Installation

₹8,457

Delivery estimateEnter your pincode for delivery dates

Free shipping over ₹2,000Delivered across India
100% genuineAuthorised dealer, manufacturer warranty
Cash on deliveryOn orders up to ₹20,000
Secure checkoutUPI, cards and net banking

Not sure about size or compatibility? Ask TBA Guide WhatsApp us

The Unior 1683/5A Crown Race Setter is designed for installing crown races onto fork steerer tubes with better accuracy and reduced risk of component damage.

Interchangeable Adapter Sizes: The tool includes adapters for 1", 1-1/8", 1-1/4" and 1-1/2" steerer tube sizes. Each adapter is selected based on the steerer seat dimension for a proper and secure fit.

Safe Component Support: The adapters are designed to guide the crown race evenly into place, helping protect the fork, crown race and headset parts during installation. This makes the process cleaner and more controlled.

Works With Longer Steerers: The tool is compatible with steerer tubes up to 380 mm in length. It is used together with a hammer, with Unior recommending their Dead Blow Hammer 819A for best results.

The Unior 1683/5A Crown Race Setter is a reliable workshop tool for safe, accurate and efficient crown race installation.

Product details

Specifications

Product Code: 626268
Material: Premium Plus Carbon Steel
Compatible Crown Race Sizes: 1", 1-1/8", 1-1/4", 1-1/2"
Maximum Steerer Tube Length: 380 mm
Recommended Hammer: Unior 819A Dead Blow Hammer

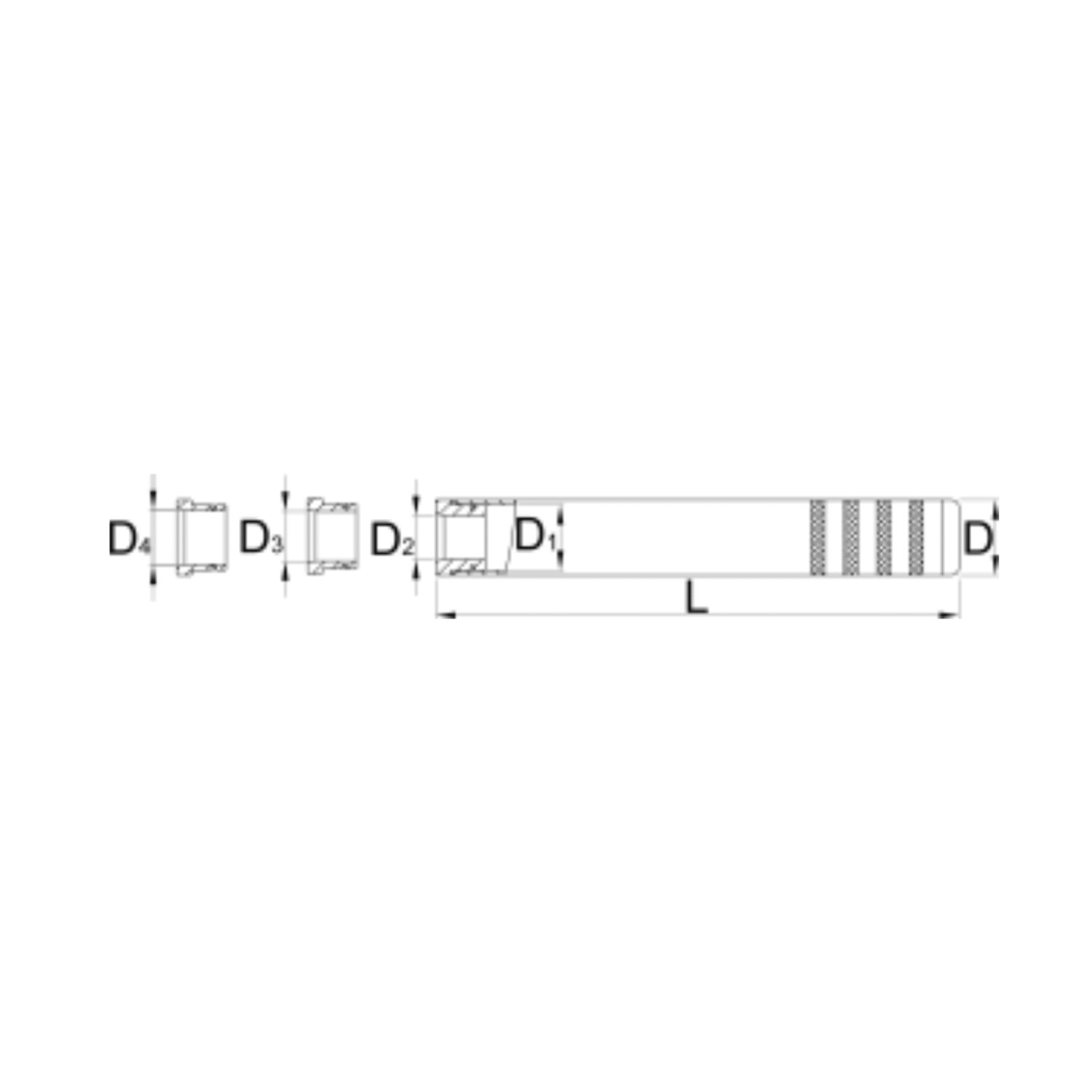

Diameter (D1): 1"
Diameter (D2): 1-1/8"

Diameter (D3): 1-1/4"
Diameter (D4): 1-1/2"
Length (L): 319 mm
Diameter (D): 46 mm
Surface Finish: Tube Zinc Plated according to ISO 2081 Fe/Zn8/B, Inserts Blackened to Standard DIN 50938
Weight: 2070 g

Features

Accurate Race Seating: Helps drive the crown race squarely onto the fork crown for proper headset preload.
Four Size Coverage: Includes adapters for 1", 1-1/8", 1-1/4" and 1-1/2" crown race sizes.
Long Steerer Support: Compatible with steerer tubes up to 380 mm, including modern MTB and hybrid forks.
Hammer-Driven Use: Designed for use with a hammer; Unior recommends the 819A Dead Blow Hammer.
Durable Steel Build: Premium plus carbon steel construction with zinc-plated tube and blackened inserts.

What's in the box

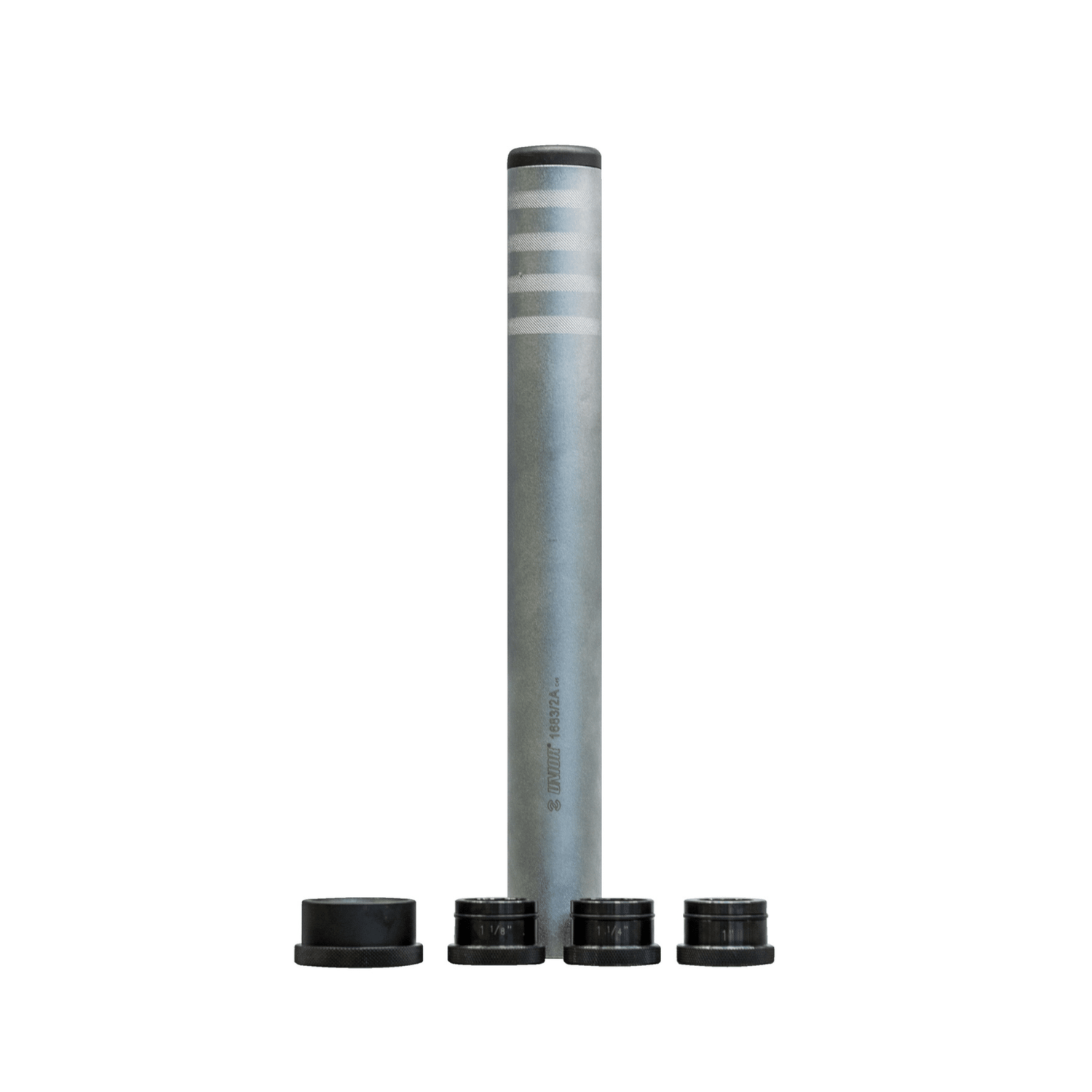

1x Crown Race Setter Main Tube (1683/5A)
4x Crown Race Adapter 1", 1-1/8", 1-1/4", 1-1/2"
