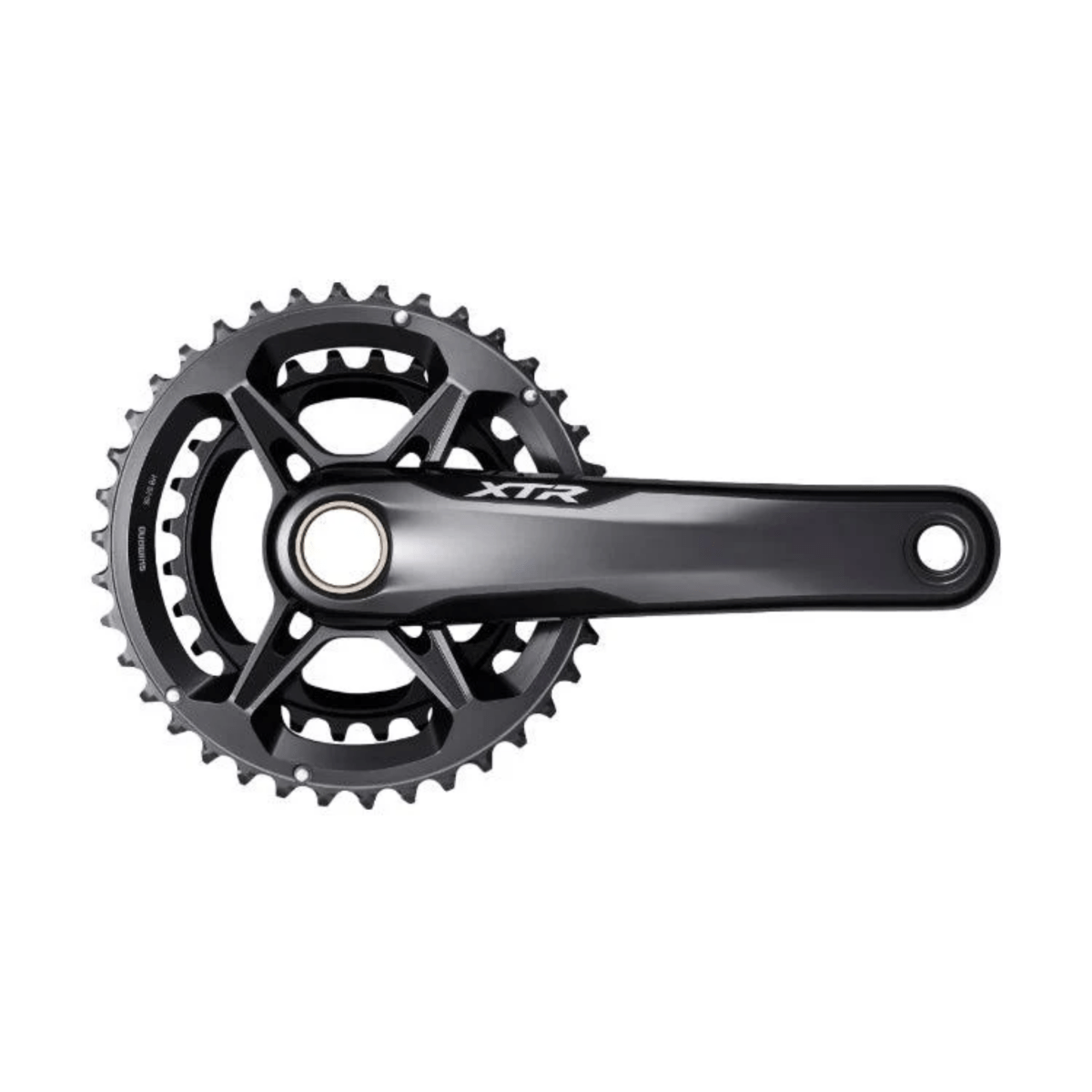

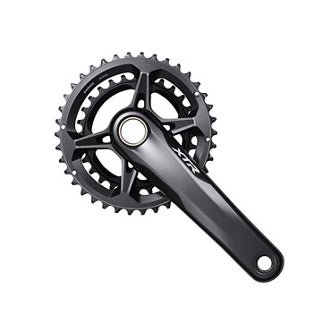

Shimano XTR FC-M9100-2 2x12-Speed Front Chainwheel

IFCM91002CX88
₹51,230
Length
Size

Estimated Shipping Widget will be displayed here!

Precision XTR Double Crankset

Overview

The Shimano XTR FC-M9100-2 crankset is the pinnacle of precision engineering, designed for competitive mountain biking and technical trail riding. Delivering smooth, reliable shifting for 2x12-speed systems, it ensures top performance under the most demanding conditions.

Direct Mount Chainring System: Built with an innovative direct mount system, this crankset features chainrings with a specialized tooth profile to improve chain retention. The optimized 38-28T chainring combination offers versatile gearing for both climbing and high-speed descents.

Narrow Q-Factor for Efficient Pedaling: With a narrow 162mm Q-factor, the FC-M9100-2 crankset ensures a comfortable and efficient pedaling stance. Its 48.8mm chainline ensures compatibility with modern drivetrains and maintains seamless power transfer.

Flexible Fit Options: Available in crank arm lengths of 165mm, 170mm, and 175mm, the FC-M9100-2 is adaptable to a variety of rider preferences and frame geometries. It supports both 142mm thru-axle and 135mm QR setups, making it ideal for modern cross-country and trail bikes.

Constructed with four gear arms and a lightweight design, this XTR crankset balances strength and weight for superior performance. The absence of a chain guard underscores its sleek and professional aesthetic, catering to riders who demand functionality and style.

Features

  • Direct Mount Chainring System: Specialized tooth profile improves chain retention and power transfer; 38-28T combination for versatile gearing.
  • Efficient Pedaling Stance: Narrow 162mm Q-factor ensures comfort and optimal power output for technical trails and climbs.
  • Flexible Fit Options: Available in 165mm, 170mm, and 175mm crank lengths; supports 142mm thru-axle and 135mm QR setups.
  • Durable and Lightweight: 4-arm spider construction with Hollowtech II technology for exceptional stiffness and reduced weight.
  • Advanced Chainline: 48.8mm chainline ensures drivetrain compatibility and smooth operation with modern MTB frames.

Technology

  • Hollowtech II: Enhances stiffness and strength while minimizing weight; integrated design for superior power transfer and pedaling stability.
  • HG Chain Design For Hyperglide+: Delivers improved chain retention, efficient shifting and smoother transmission on rough terrain.

Specifications

  • Model No: FC-M9100-2
  • Series: XTR
  • Color: Series Color
  • Rear Speeds: 12 (Front Double)
  • Compatible Chain: HG 12-speed
  • Chain Line (mm): 48.8
  • O.L.D.|Thru (mm): 142
  • O.L.D.|QR/Nut (mm): 135
  • P.C.D. (mm): Direct
  • Spider/Gear Arms: 4
  • Chainring Combination: 38-28T
  • Q-Factor (mm): 162
  • Crank Arm Length (mm): 165, 170, 175
  • Optional Chain Guard|Without Chain/Bash Guard: Yes
  • Hollowtech II: Yes
  • Compatible Bottom Bracket|Outboard: Yes
  • Recommended Bottom Bracket|Threaded (Normal): SM-BB93
  • Recommended Bottom Bracket|Press-Fit: SM-BB94-41A
  • Threaded Bottom Bracket Shell Width (mm): 68, 73
  • Crank Fixing Screw Included: Yes
  • Average Weight (g): 597
