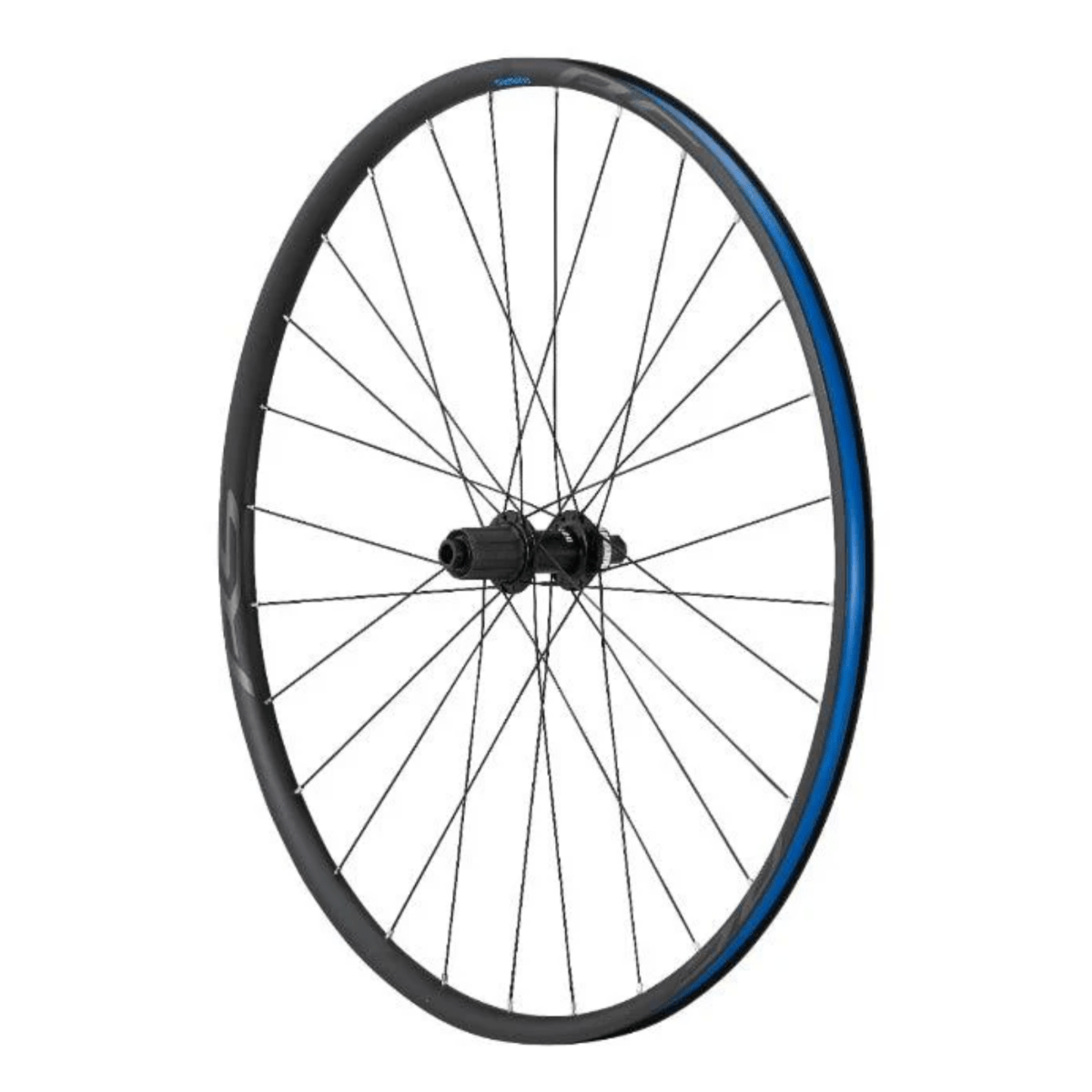

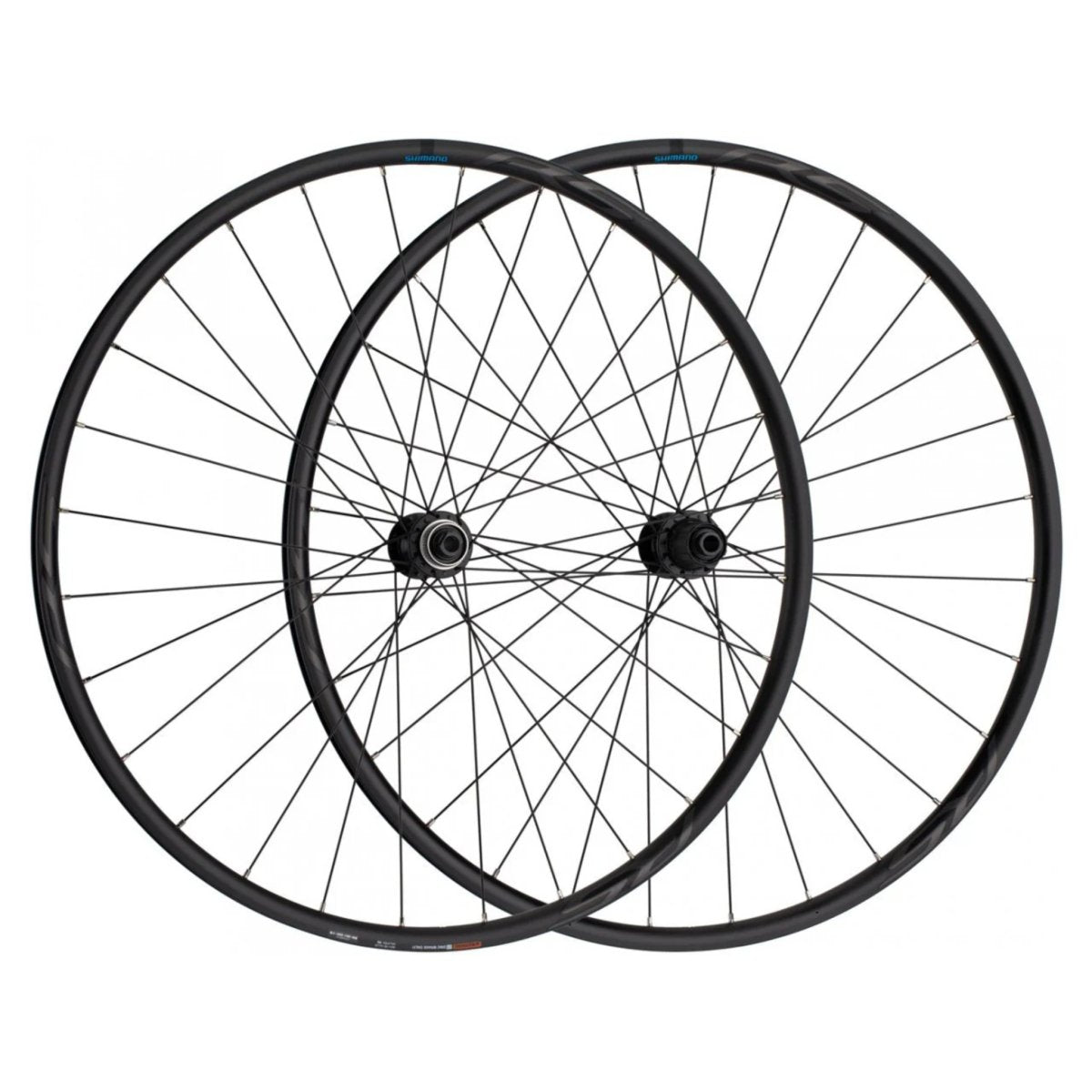

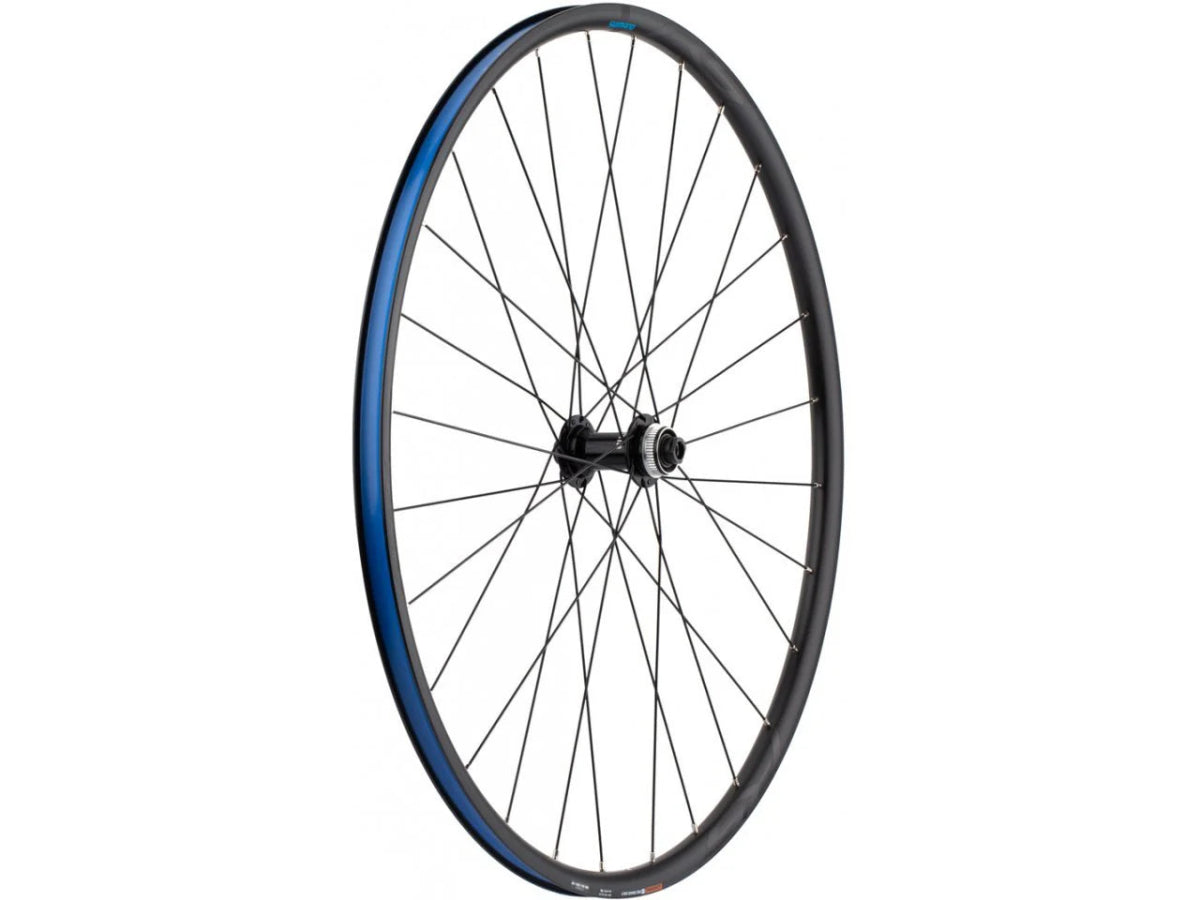

Shimano WH-RS171-CL-700C Clincher Center Lock Disc Brake Wheelset
Reliable and Versatile Road and Gravel Wheelset
- Durable and Lightweight Design
- Center Lock Disc Brake Compatibility
- Modern Drivetrain Compatibility
Shimano WH-RS171-CL-700C Clincher Center Lock Disc Brake Wheelset - Pair is backordered and will ship as soon as it is back in stock.
Pairs well with
Shimano WH-RS171-CL-700C Clincher Center Lock Disc Brake Wheelset - Pair is backordered and will ship as soon as it is back in stock.
The Shimano WH-RS171-CL-700C Wheelset is a reliable and versatile option for road and gravel riders. Designed for performance and durability, it features a lightweight clincher rim, Center Lock disc brake compatibility, and seamless integration with modern drivetrains.

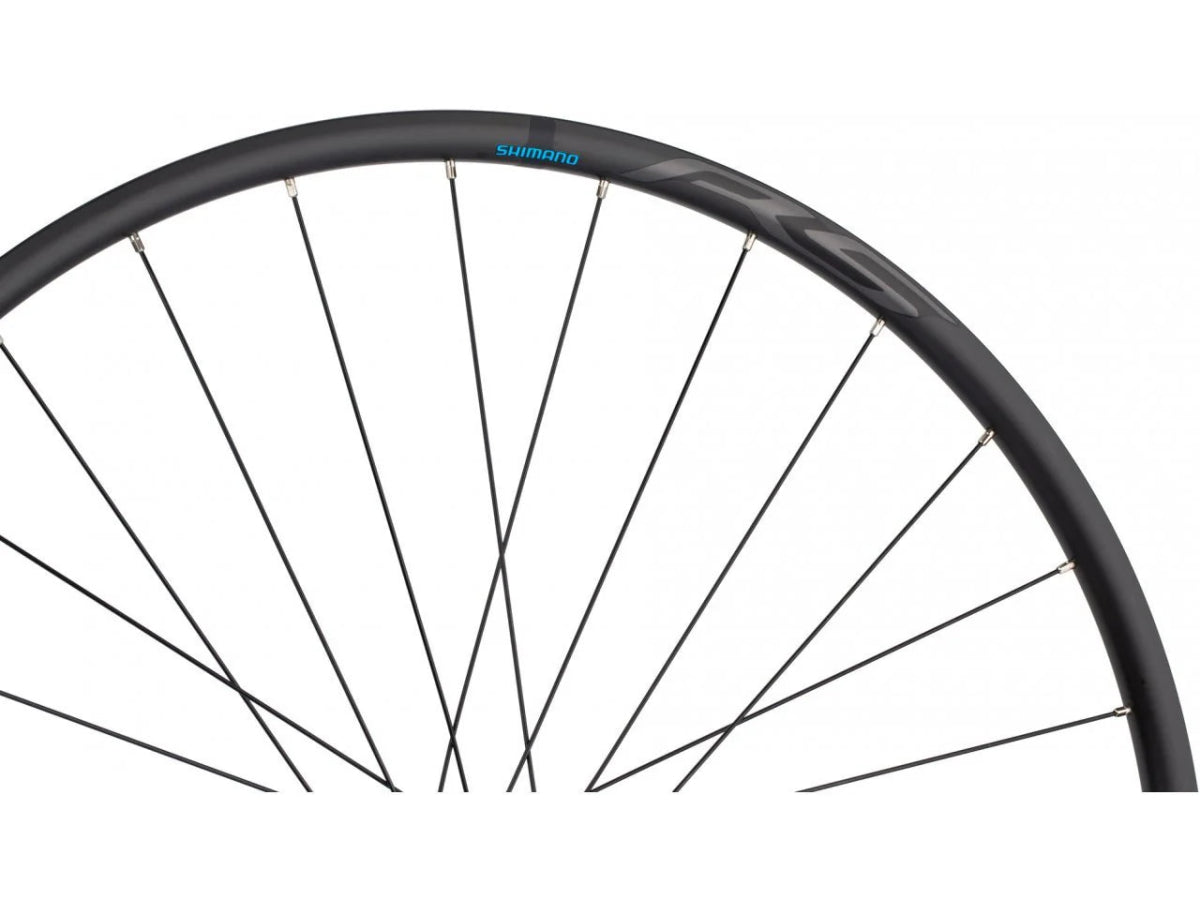

Durable and Lightweight Design: The WH-RS171 features a robust aluminum clincher rim designed for 700C tires. With 28 spokes in both the front and rear wheels, the wheelset ensures strength and durability while maintaining a lightweight profile for efficient riding.

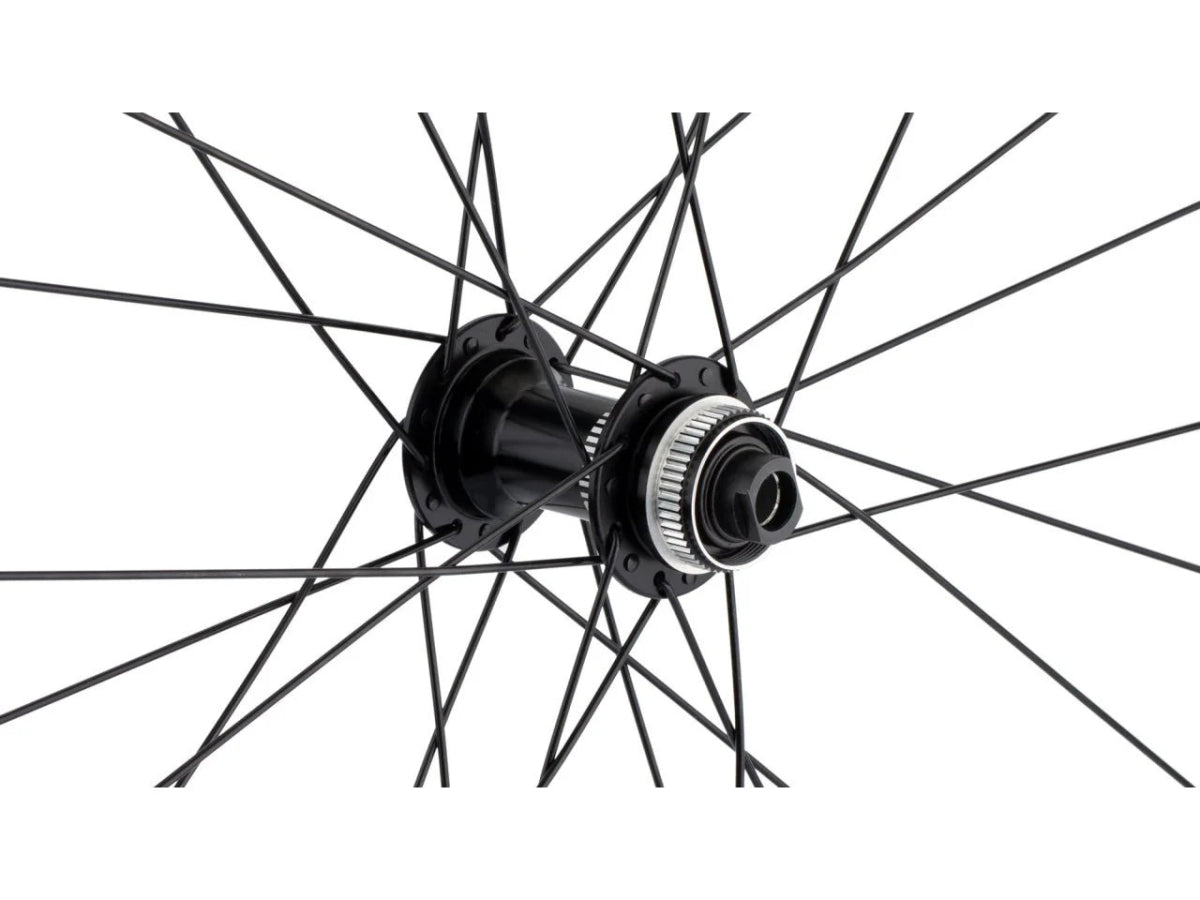

Center Lock Disc Brake Compatibility: Engineered for Center Lock disc brakes, the WH-RS171 provides consistent and powerful braking performance in all conditions. The design ensures easy rotor installation and secure attachment.
Optimized for Modern Drivetrains: The wheelset is compatible with 10- and 11-speed drivetrains, making it a versatile choice for road cyclists and gravel enthusiasts. Its design ensures smooth performance across various riding styles and conditions.

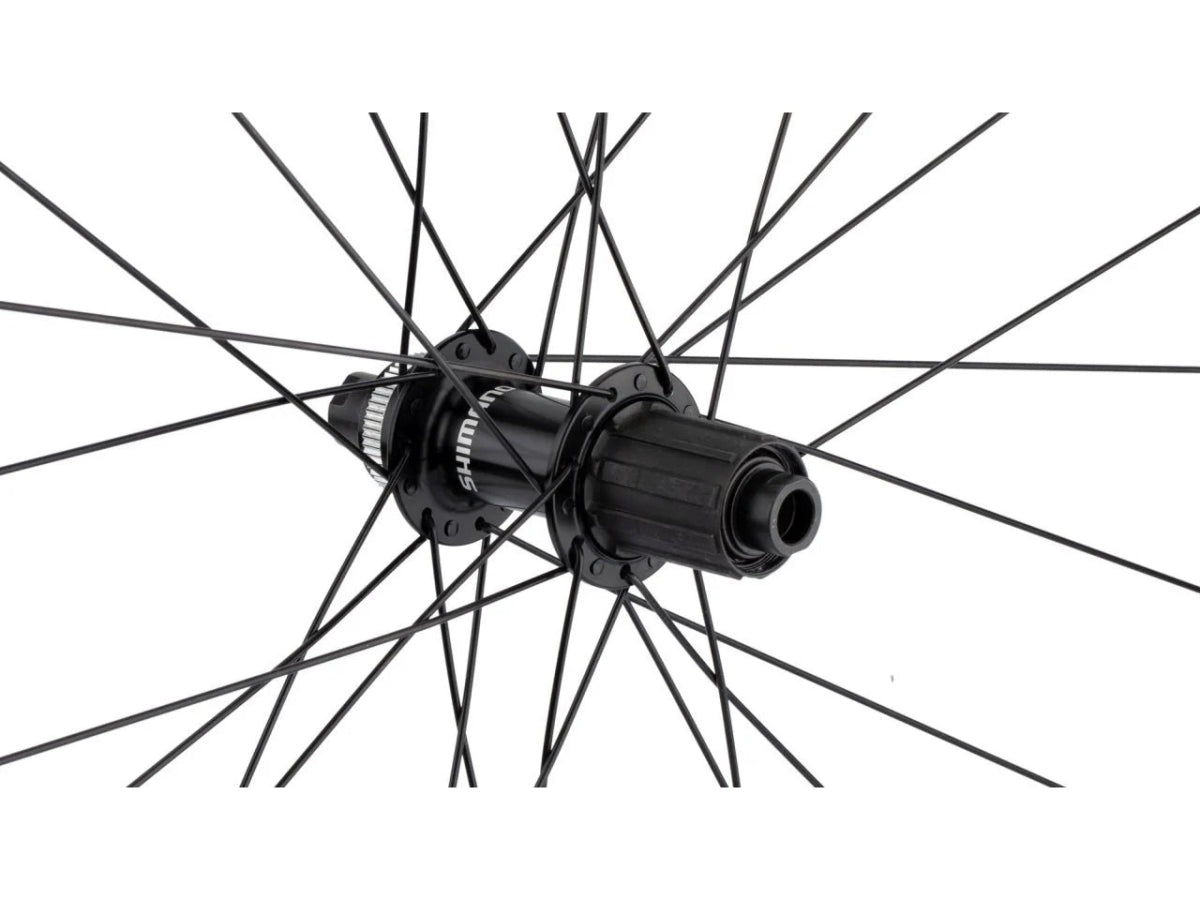

E-Thru Axles for Stability: Featuring 12mm E-Thru axles and a 100mm front and 142mm rear hub spacing, the WH-RS171 ensures a secure and stable connection to the frame. This enhances power transfer and handling precision.
The wheelset comes pre-fitted with rim tape, simplifying the setup process. It’s ready to handle the demands of clincher tires for an efficient and hassle-free riding experience.
Specifications
Specifications
| Series | Shimano |
|---|---|
| Model No | WH-RS171-CL-F12-700C & WH-RS171-CL-R12-700C |
| Model Name | WH-RS171-CL |
| Specification | F12-700C / R12-700C |
| Color|Hub Shell | Black |
| Front/Rear | Front / Rear |
| Brake Type | Center Lock Disc Brake |
| Rear Speeds | Rear: 11/10* (*Adapter is needed to use a 10-Speed Cassette) |
| O.L.D. (mm) | Front: 100, Rear: 142 |
| Wheel Size | 622 x 19C (700C) |
| Tire Type | Clincher |
| Recommended Tire Size | 28-622 - 42-622 |
| Rim Height (mm) | 19 |
| Rim Internal Width (mm) | 19 |
| Rim External Width (mm) | 24.6 |
| Rim Joint | Sleeve |
| Requires Rim Tape | Yes |
| Spokes Number | 28 |
| Spokes | Diameter: 2 mm |
| Axle Fixing Method | 12 mm E-THRU |
| Thru Axle (Length x Inner Diameter; mm) | Front: 100 x 12, Rear: 142 x 12 |
| Spline Type|HG Spline L (Road 12/11-Speed): Yes (Rear) | |
| Engagement Type | Pawl Ratchet (Rear) |
|---|---|
| Bearing|Cup | Polish |
| Bearing|Cone | CBN |
| Disc Mount|Center Lock | Yes |
| Disc Mount|140 mm Disc Brake Rotor Compatible: Yes | |
| Seal|Hub | Contact |
| Seal|Freehub Body | Contact (Rear) |
| Internal Grease Sleeve | Yes |
| Rim Material | Aluminum |
| Rim Finish | Anodized |
| Spoke Material | Stainless Steel |
| Spoke Finish | Black |
| Nipple Material | Brass |
| Nipple Finish | Silver |
| Freehub Body Material | Steel (Rear) |
| Hub Shell Material | Aluminum |
| Hub Shell Finish | Anodized |
| Reflectors|JIS/CPSC | Cateye RR-550-WUW SW |
| Reflectors|AS | Cateye RR-550-WUA SW |
| Reflectors|DIN | Cateye RR-317-WUA SW |
| Compatible Spoke Protector (Rear) | CP-FH08 (23T-28T 11-Speed), CP-WH41 (23-30T 10-Speed), CP-WH12 (32T 11/10-Speed) |
| Average Weight (g) | Front: 897, Rear: 1098 |
