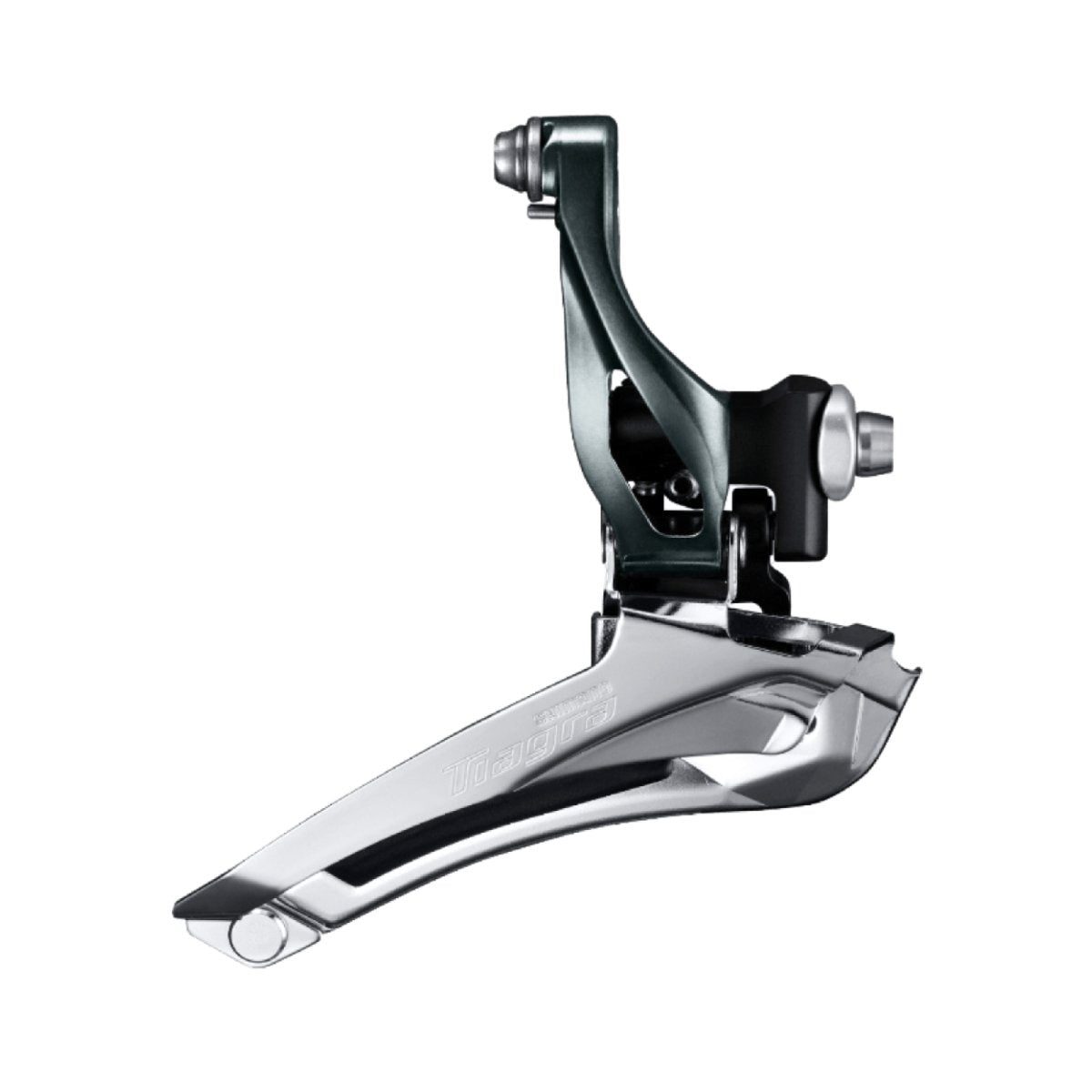

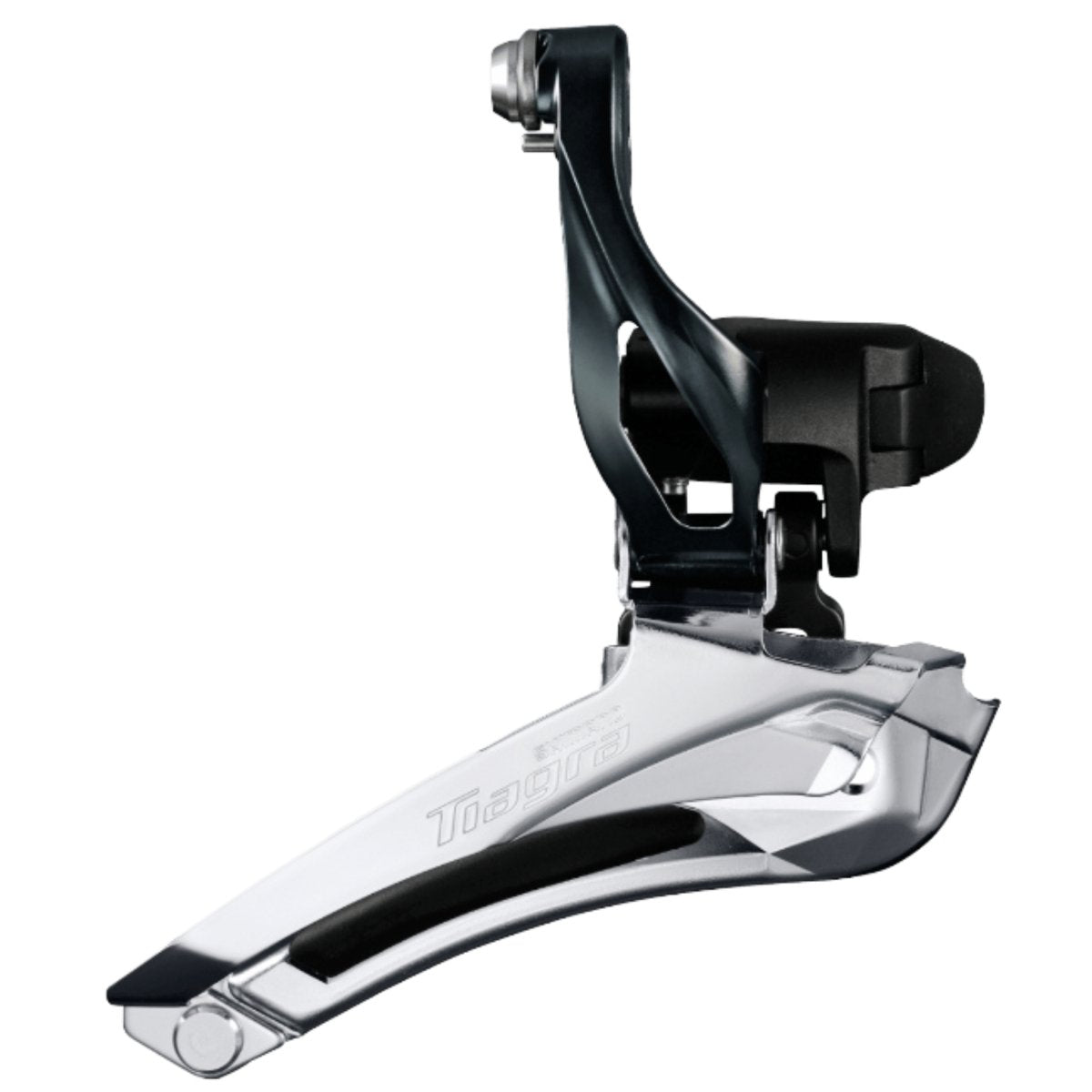

Shimano Tiagra FD-4700 Front Derailleur 10 Speed
Shimano Tiagra FD-4700 Front Derailleur 10 Speed - Brazed-On is backordered and will ship as soon as it is back in stock.
Sign up to be the first to know when the product is back in stock
Achieve Precision and Reliable Shifting with Shimano Tiagra FD-4700 Front Derailleur
Shimano Tiagra - Front Derailleur - (Brazed-On & Clamp Band)Â Mount - Road - 2x10-speed
Upgrade your cycling performance with the Shimano Tiagra FD-4700 Front Derailleur, designed to deliver smooth and accurate gear changes for 2x10-speed drivetrains. Featuring a longer lever arm, this front derailleur ensures a light and effortless action at the shift lever, providing a superior cycling experience.
Smooth and Precise Shifting:Â Experience the joy of seamless gear transitions with the Shimano Tiagra FD-4700 Front Derailleur. The longer lever arm creates a light and responsive shift action at the shift lever, resulting in precise and reliable shifting across a 16T capacity.
Compatible Mount Options:Â The Tiagra FD-4700 Front Derailleur is available in both brazed-on and clamp band mount options, offering versatile compatibility with various road bikes. Choose the mount type that suits your bike's frame and enjoy a secure and stable installation.
Durable and Reliable Build:Â Engineered with Shimano's commitment to quality, the Tiagra FD-4700 Front Derailleur is built to withstand the demands of regular cycling. Count on its durability and reliability to perform consistently, ride after ride.
Sleek and Efficient Design:Â The Shimano Tiagra FD-4700 Front Derailleur boasts a sleek and efficient design that enhances your bike's overall aesthetics. Enjoy the combination of form and function as you conquer every road or trail with style.
Effortless Installation, Instant Improvement:Â Upgrade your front shifting setup effortlessly with the Shimano Tiagra FD-4700 Front Derailleur. With straightforward installation and precise adjustments, you can instantly improve your bike's shifting performance and elevate your cycling experience.
Compatible with 2x10-Speed Drivetrains:Â Designed specifically for 2x10-speed drivetrains, the Tiagra FD-4700 Front Derailleur ensures optimal compatibility and smooth shifting. Whether you're climbing steep hills or sprinting on flats, enjoy consistent and efficient gear changes.
Specifications
Specifications of Shimano Tiagra FD-4700 Front Derailleur 10 Speed
|
Model No |
FD-4700-F | FD-4700-B |
|---|---|---|
| Series | Tiagra 4700 Series | Tiagra 4700 Series |
| Color | Series Color | Series Color |
| Remarks | - | * 28.6 mm Clamp band: 31.8 mm w/ Adapter |
| Front Speeds | 2 |
2 |
| Rear Speeds | 10 |
10 |
| Compatible Chain | HG-X 10-speed, CN-HG500 | HG-X 10-speed, CN-HG500 |
| Action|Down Swing | Yes | Yes |
| Mount_Brazed-On | Yes | - |
| Mount|Clamp Band (mm)|28.6 | - | X * |
| Mount|Clamp Band (mm)|31.8 | - | Yes |
| Mount|Clamp Band (mm)|34.9 | - | Yes |
| Chain Line (mm) | 43.5 | 43.5 |
| Chainstay Angle (deg.) | 61-66 | 61-66 |
| Top Gear Teeth | 46-52T | 46-52T |
| Total Capacity | 16T | 16T |
Technology
Technology of Shimano Tiagra FD-4700 Front Derailleur 10 Speed
HG-X
HG-X Chain:
Further evolution of shifting performance
A directional mountain bike specific 10-speed HG-X chain means smoother shifts, lighter weight and greater overall performance.
HG-X directional chain: Outer side is optimized for front shifting and inner side is optimized for rear shifting.
Special 10-speed Chain for MTB:
- Designed for MTB riding conditions: High • torque pedaling and muddy conditions.
- Durable: Lightweight holes on the link plate are filled.
- Mud shedding: Consistent shifting performance under muddy conditions.
- HG-X chain is not compatible with other road 10-speed systems.
