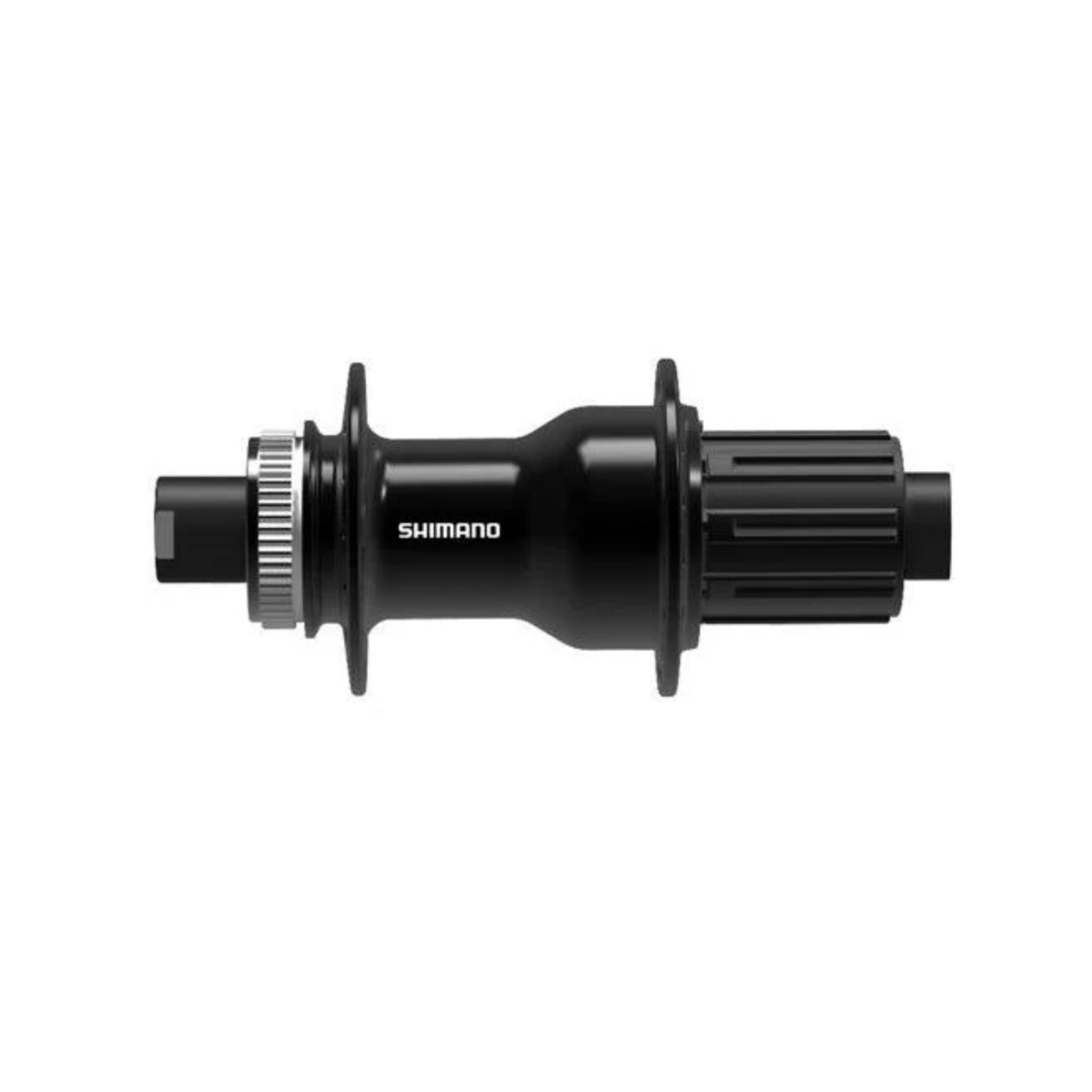

Shimano FH-TC500-HM Center Lock Disc Brake 8-11-Speed Thru Axle Rear Freehub

EFHTC500HMB
₹3,230
Holes

Estimated Shipping Widget will be displayed here!

Trail-Ready 8-11-Speed Thru Axle Rear Freehub with Center Lock

Overview

The Shimano FH-TC500-HM rear freehub is built for riders seeking consistent and dependable performance on the trails. Its robust construction ensures smooth and stress-free operation across various riding conditions.

Quick and Easy Rotor Installation: Thanks to Shimano's Center Lock system, installing disc brake rotors is quick, precise, and secure. The spline mount and lock ring mechanism simplify setup, allowing more time on the bike and less in the workshop.

Lightweight and Stiff Design: Featuring a 12 mm E-THRU thru-axle system, the FH-TC500-HM provides enhanced stiffness and stability. This ensures improved power transfer while keeping the weight low for better efficiency on climbs and descents.

Advanced Sealing for Longevity: The hub incorporates Labyrinth and Contact Sealing, offering excellent protection against dust, dirt, and water. This design enhances durability and reduces maintenance needs, keeping your hub running smoothly over time.

With an Over Locknut Dimension (O.L.D.) of 142 mm, this freehub is compatible with a wide range of 8-11-speed drivetrains, making it ideal for riders looking to upgrade or replace their rear hub for modern trail setups.

Features

  • Simple and Reliable Performance: Ensures dependable trail performance with a straightforward and durable design.
  • Easy Rotor Installation: Center Lock spline mount and lock ring simplify disc brake rotor setup and removal.
  • Stiff and Lightweight Construction: 12 mm E-Thru skewer system provides optimized rigidity and weight balance for improved handling.
  • Advanced Sealing System: Labyrinth and contact sealing protect internal components from dirt and water for long-lasting performance.
  • Wide Compatibility: Supports O.L.D. 142 mm spacing and works seamlessly with #13 and #14 spokes.

Technologies

  • Center Lock: Simplifies rotor installation using a spline mount and lock ring, ensuring quick setup, secure fixing, and improved braking precision and rigidity.
  • E-Thru: Enhances rigidity and weight balance with a reliable thru-axle system, minimizing suspension distortion and improving control during sharp, high-speed turns.

Specifications

  • Model No: FH-TC500-HM
  • Series: Shimano
  • Color: Black
  • Color|Hub Shell: Black
  • Brake Type: Center Lock Disc Brake
  • Rear Speeds: 11/10/9/8
  • O.L.D. (mm): 142
  • Spoke Hole: 28H, 32H, 36H
  • External Serration Disc Brake Rotor Lock Ring|Without: Yes
  • Internal Serration Disc Brake Rotor Lock Ring|Without: Yes
  • Axle Fixing Method: 12 mm E-THRU
  • Flange Distance (mm): 55.45
  • Offset (mm): 7.6
  • P.C.D. Left/Right (mm): 50.5/51.5
  • Flange Diameter Left/Right (mm): 59.3/60.3
  • Spline Type|HG Spline M (10/9/8-Speed, MTB 11-Speed): Yes
  • Engagement Type: Pawl ratchet
  • Seal|Hub: Labyrinth+Contact
  • Seal|Freehub Body: Contact
