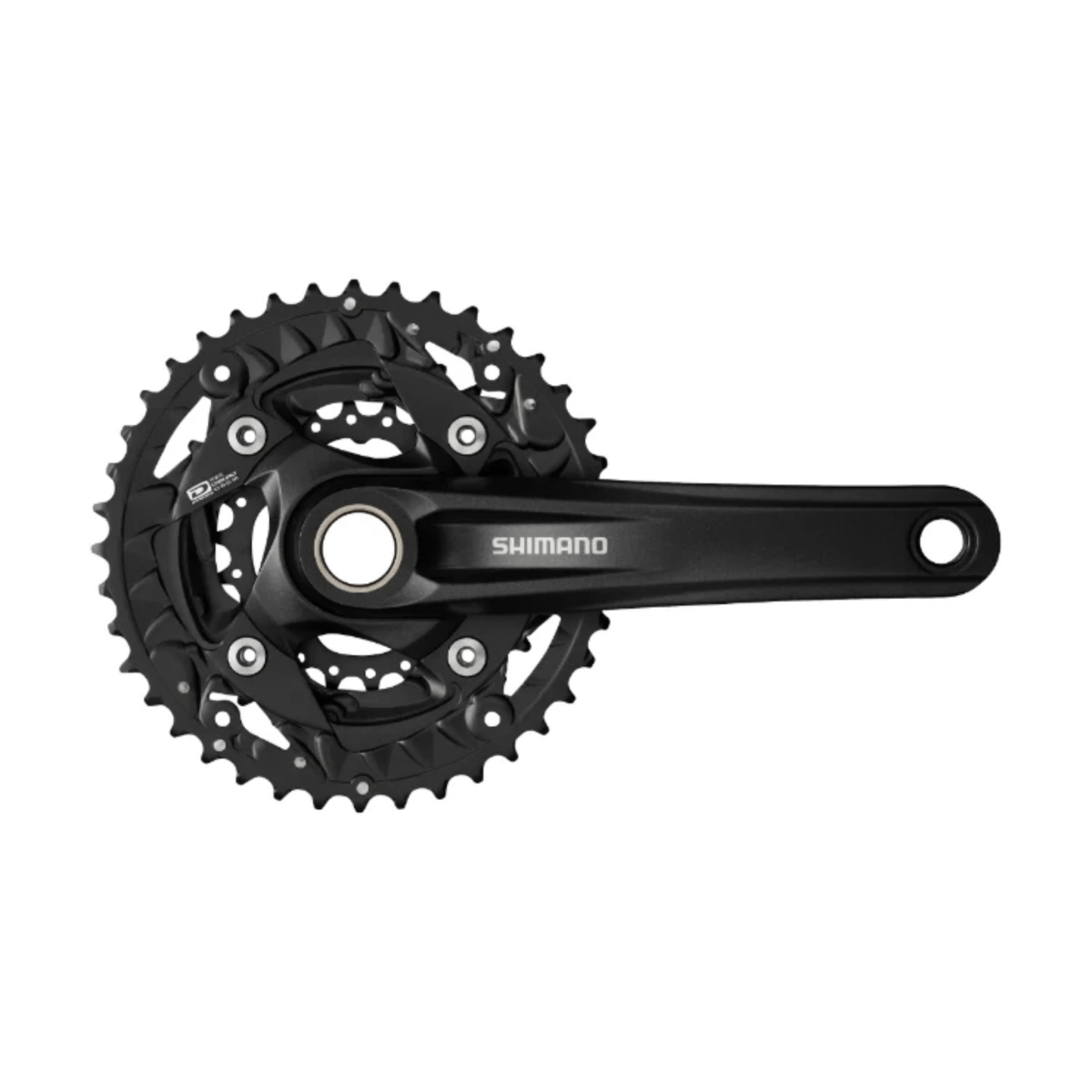

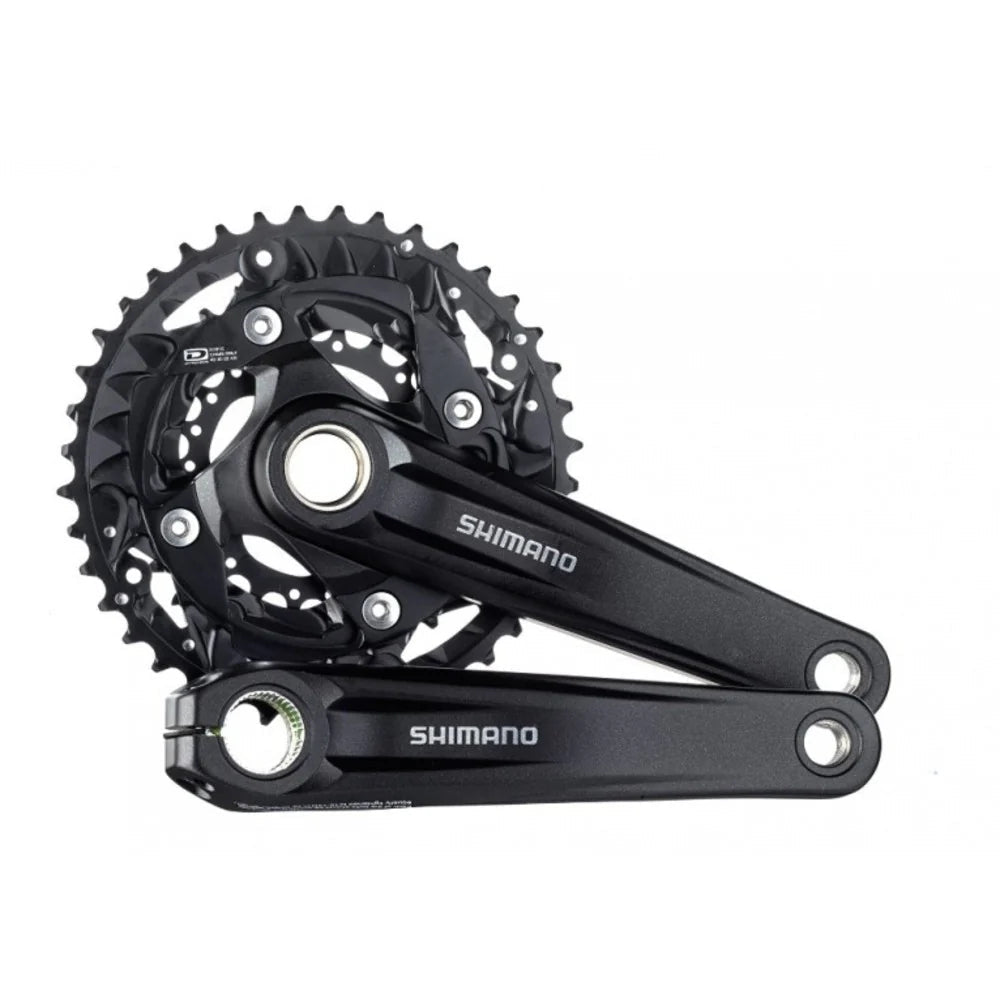

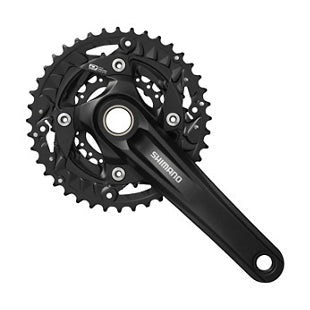

Shimano FC-MT500-3 3x10-Speed MTB Front Chainwheel

EFCMT500CX002X
₹7,930
Length
Size

Estimated Shipping Widget will be displayed here!

Adaptable 3x10-Speed Crankset

Overview

The Shimano FC-MT500-3 crankset is designed for riders who seek adaptability, providing a wide gear range that ensures smooth transitions from city streets to challenging mountain trails.

Durable 2-Piece Construction: Built with Shimano’s proven 2-piece construction, this crankset delivers enhanced stiffness and power transfer while maintaining long-lasting durability. Replaceable chainrings further extend its usability, making it a dependable choice for all riders.

Optimal Gear Combination: Featuring a 40-30-22T chainring combination, the FC-MT500-3 offers an ideal range of gears for climbing steep inclines and cruising flat terrain, ensuring a comfortable and efficient ride in all conditions.

Wide Compatibility: With a 50 mm chainline and compatibility for both 135 mm QR/Nut and 142 mm O.L.D. thru-axle systems, this crankset integrates seamlessly with modern MTB frames. A 177 mm Q-factor provides balanced pedaling efficiency and stability.

To cater to diverse riding preferences, the FC-MT500-3 is available with or without a chain guard, offering both added protection and a sleek design for riders who value performance and aesthetics.

Features

  • Durable 2-Piece Construction: Enhances stiffness and power transfer with replaceable chainrings for extended usability.
  • Optimal Gear Combination: 40-30-22T chainrings provide a wide range for climbing and cruising on varied terrains.
  • Wide Compatibility: Supports 135 mm QR/Nut and 142 mm O.L.D. thru-axle systems with a 50 mm chainline and 177 mm Q-factor.
  • Chain Guard Option: Available with or without a chain guard to suit rider preferences and aesthetics.
  • Smooth and Stable Shifting: Designed for consistent shifting performance across paved roads and steep trails.

Technologies

  • HG-X Chain: Directional design optimizes front and rear shifting for smoother performance and lighter weight.
  • Dyna-SYS: Offers closer gear ratios for improved efficiency, stability, and power transfer.
  • 2-Piece Crank Set: Integrated design increases rigidity, enhances power transmission, and simplifies installation.

Specifications

  • Model No: FC-MT500-3
  • Series: Shimano
  • Color: Black
  • Rear Speeds: 10
  • Compatible Chain: HG-X 10-Speed
  • Chain Line (mm): 50
  • O.L.D.|Thru (mm): 142
  • O.L.D.|QR/Nut (mm): 135
  • P.C.D. (mm): 96/64
  • Spider/Gear Arms: 4
  • Chainring Combination: 40-30-22T
  • Q-Factor (mm): 177
  • Crank Arm Length (mm): 170, 175
  • Optional Chain Guard|With Chain Guard: Yes
  • Optional Chain Guard|Without Chain/Bash Guard: Yes
  • Crankset Type: 2-Piece Crankset
  • Compatible Bottom Bracket Type|Outboard: Yes
  • Recommended Bottom Bracket|Threaded (Normal): BB-MT501
  • Recommended Bottom Bracket|Threaded (E-Type): SM-BB52
  • Recommended Bottom Bracket|Press-Fit: BB-MT500-PA
  • Threaded Bottom Bracket Shell Width (mm): 68, 73
  • Crank Fixing Screw Included: Yes
  • Remarks: * It is fixed on the threaded middle ring
