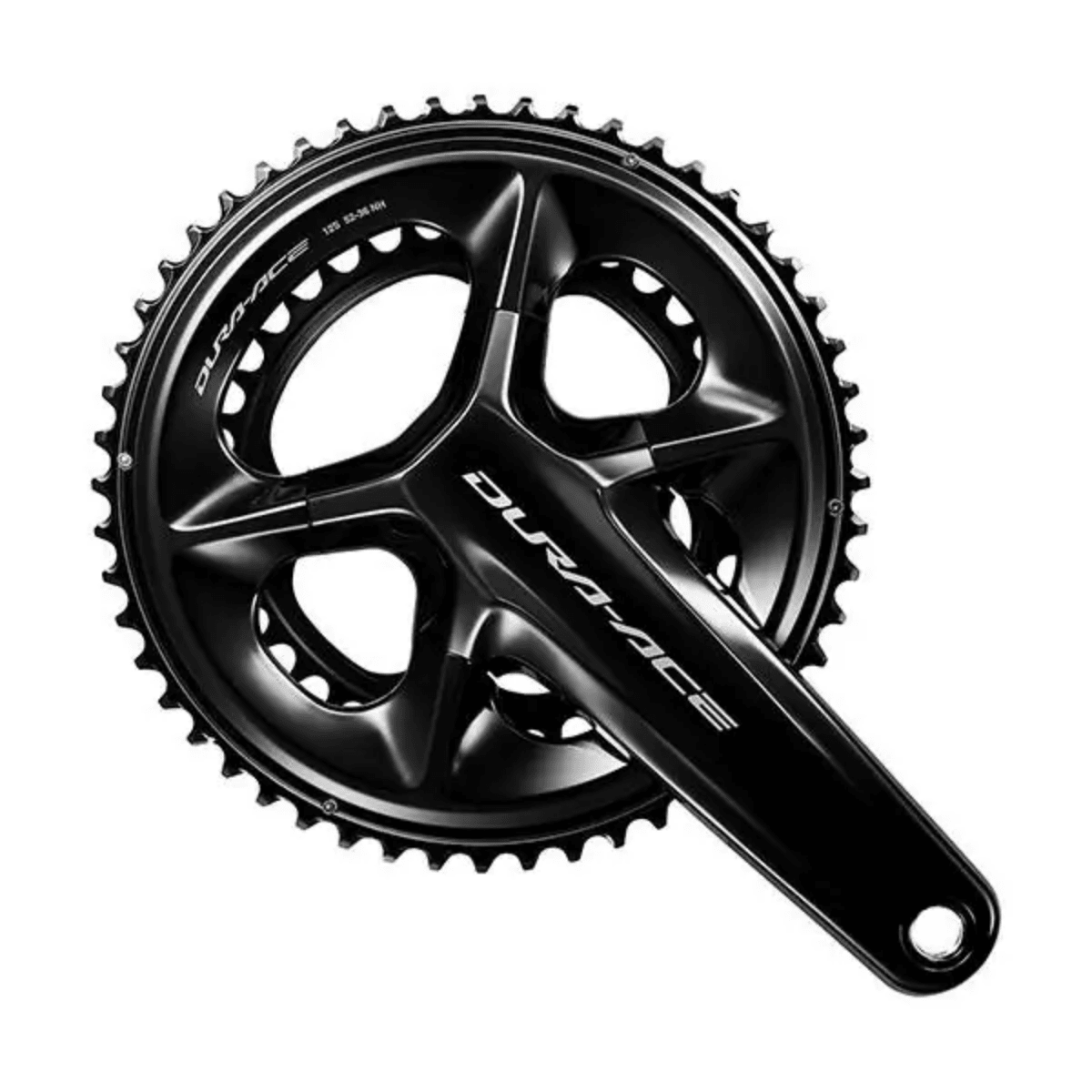

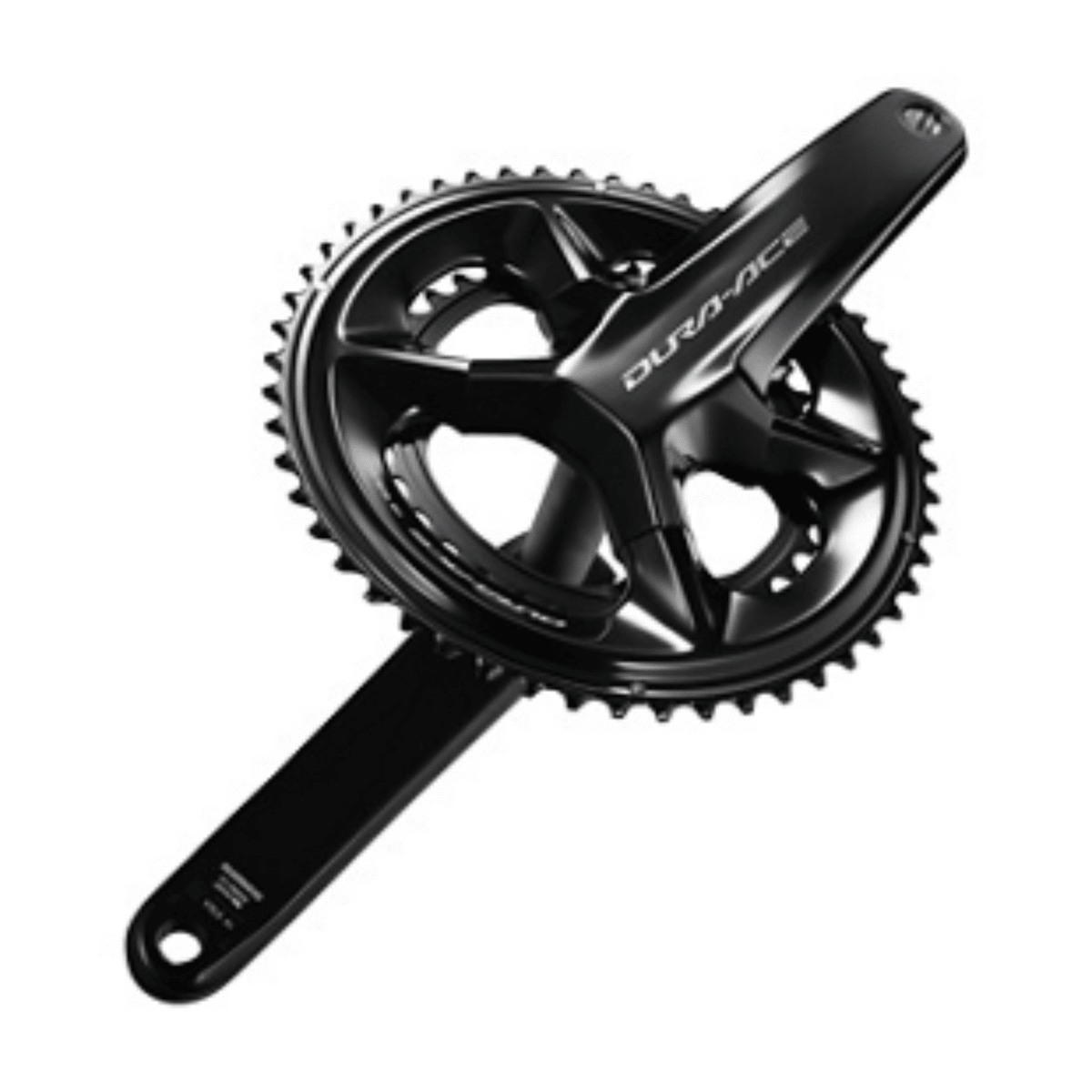

Shimano Dura-Ace FC-R9200 2x12-Speed Front Chainwheel

IFCR9200AX04
₹48,610
Length
Size

Flagship Road Crankset Engineered for Absolute Race Efficiency

Description

The Shimano Dura-Ace FC-R9200 crankset sits at the heart of Shimano’s flagship road groupset. It efficiently transfers every watt into forward motion while delivering the fastest and most precise front shifting available. Designed for elite performance, it’s built to perform under the highest race demands.

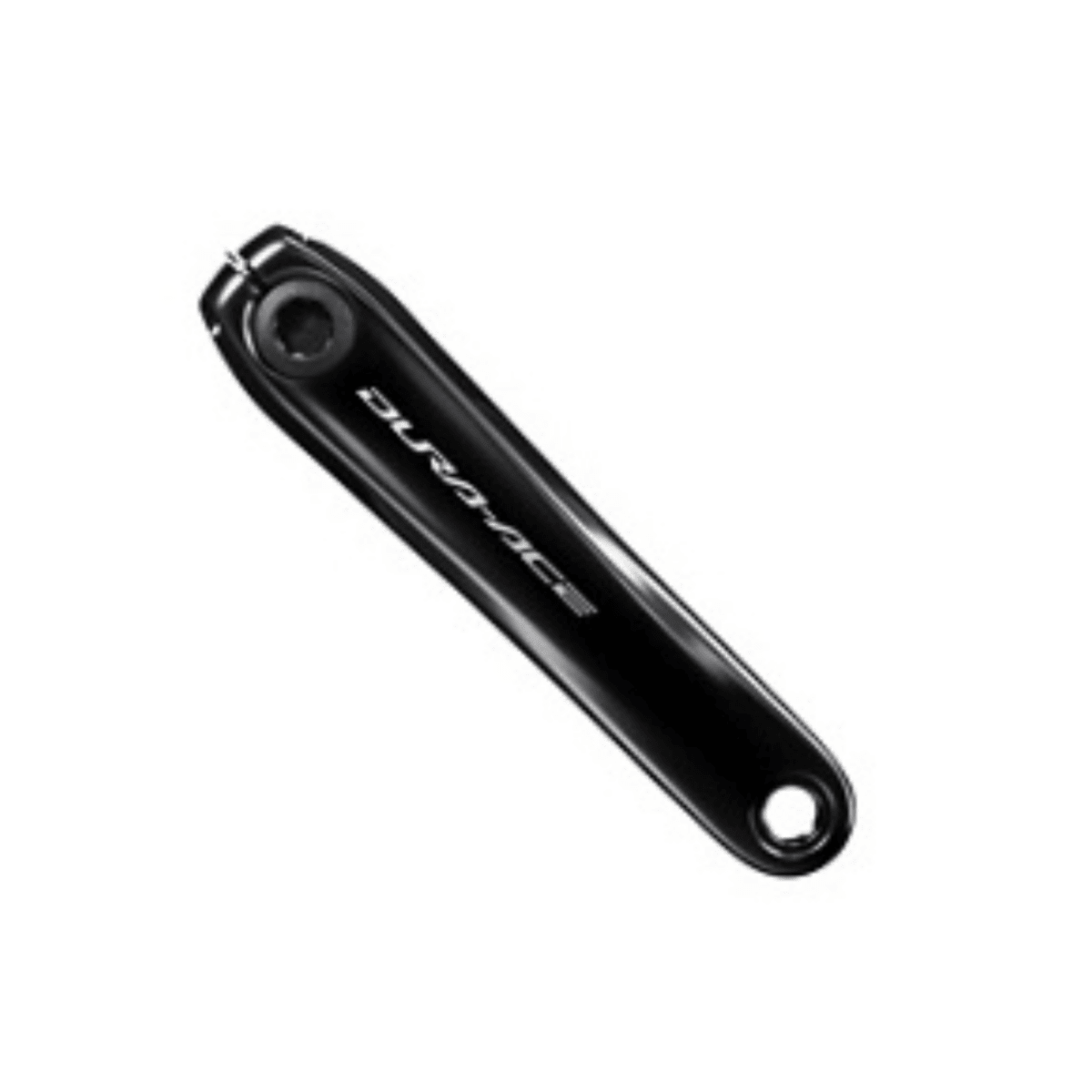

Hollowtech II Construction: The FC-R9200 uses Shimano’s Hollowtech II crank arms to achieve an ideal balance of stiffness, strength and low weight. This construction keeps the crank rigid under hard efforts while reducing unnecessary mass. The result is a responsive and efficient ride feel.

Hollowglide Chainring Design: Shimano’s Hollowglide chainring structure cuts weight without sacrificing durability. It improves power transfer while enabling quicker and more accurate front shifts. Shifting remains smooth and reliable even under high load.

Optimised Gear Combinations: The FC-R9200 is available with refined chainring options, including the new 54-40T combination. This setup is designed to maximise drivetrain efficiency for high-speed riding. It allows riders to maintain optimal cadence across varied race conditions.

Lightweight, stiff and exceptionally smooth, the FC-R9200 is built for those who demand absolute performance from their drivetrain.

Features
  • Flagship Road Performance: Designed as the core of Shimano’s top-tier road groupset for elite racing demands.
  • Efficient Power Transfer: Rigid construction ensures every watt is transferred directly into forward motion.
  • Lightweight Hollow Construction: Hollow crank arms balance stiffness and reduced weight for responsive acceleration.
  • Advanced Chainring Structure: Lightweight chainring design improves power transfer and front shift accuracy under load.
  • Optimised Gear Combinations: Refined chainring options support high-speed riding and efficient cadence control.
  • Fast and Precise Front Shifting: Engineered to deliver Shimano’s quickest and most accurate front shifts.
  • Wide Crank Length Range: Multiple crank arm lengths allow precise bike fitting for all rider sizes.
  • Race-Proven Reliability: Built to perform consistently under the highest race pressures and sustained efforts.

Technology

  • Hollowtech II: Integrated hollow crankarm and axle design balances stiffness, strength, and low weight for efficient power transfer.
    High Precision Sealing: Advanced bearing-area sealing improves durability while maintaining smooth rotational performance.

Specifications
  • Model No: FC-R9200
  • Series: Dura-Ace
  • Color: Series Color
  • Rear Speeds: 12
  • Compatible Chain: HG 12-Speed
  • Chain Line (mm): 44.5
  • P.C.D. (mm): 110
  • Spider/Gear Arms: 4
  • Chainring Combination: 46-36T, 50-34T, 52-36T, 54-40T
  • Q-Factor (mm): 148
  • Crank Arm Length (mm): 160, 165, 167.5, 170, 172.5, 175, 177.5
  • Optional Chain Guard|Without Chain/Bash Guard: Yes
  • Hollowtech II: Yes
  • Hollowtech Crank Arm: Yes
  • Hollowglide: Yes
  • Compatible Bottom Bracket Type|Outboard: Yes
  • Recommended Bottom Bracket|Threaded (Normal): BB-R9100
  • Recommended Bottom Bracket|Press-Fit: SM-BB92-41B
  • Threaded Bottom Bracket Shell Width (mm): 68, 70
  • Crank Fixing Screw Included: Yes
  • Average Weight (g): 693 (46-36T), 685 (50-34T), 692 (52-36T), 714 (54-40T)
