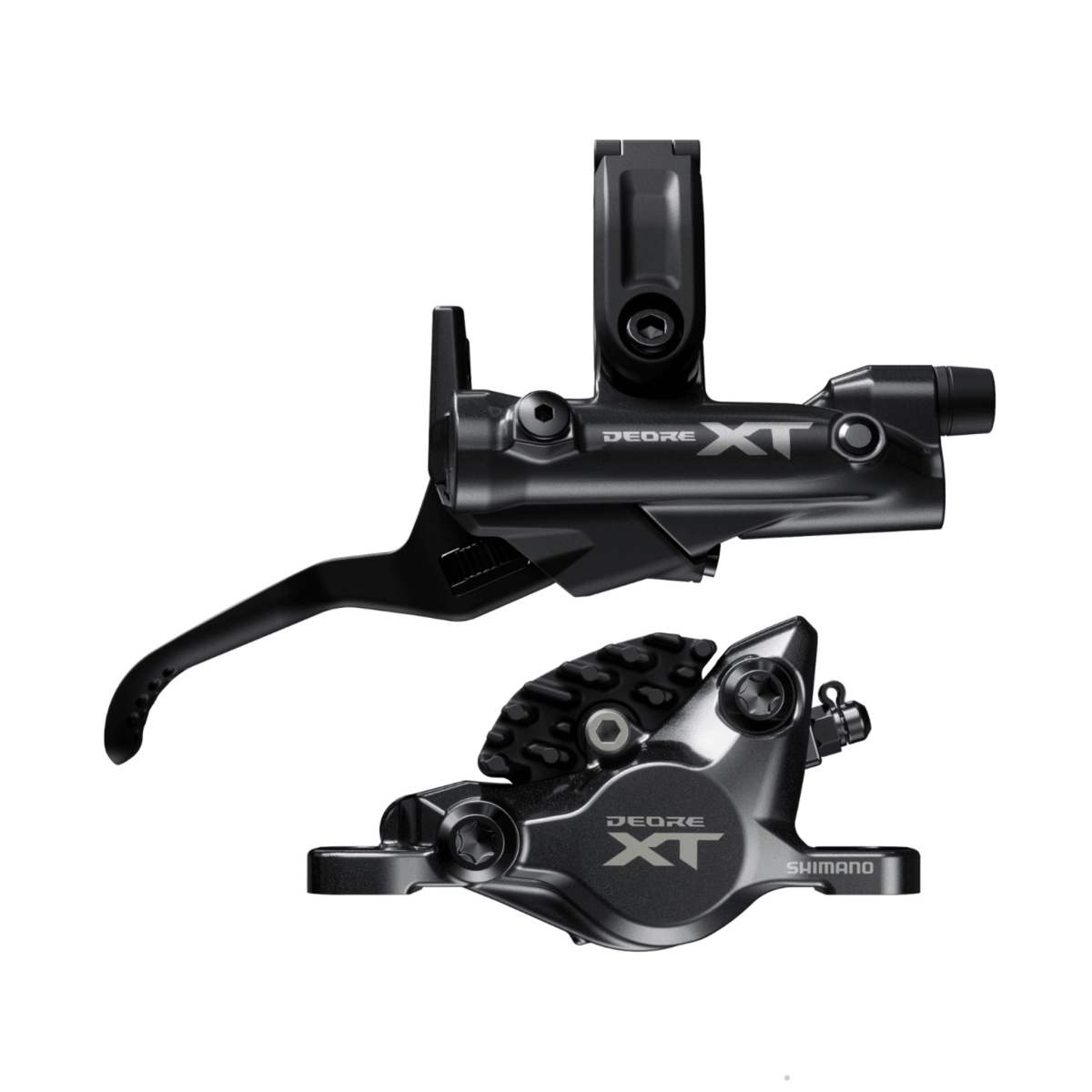

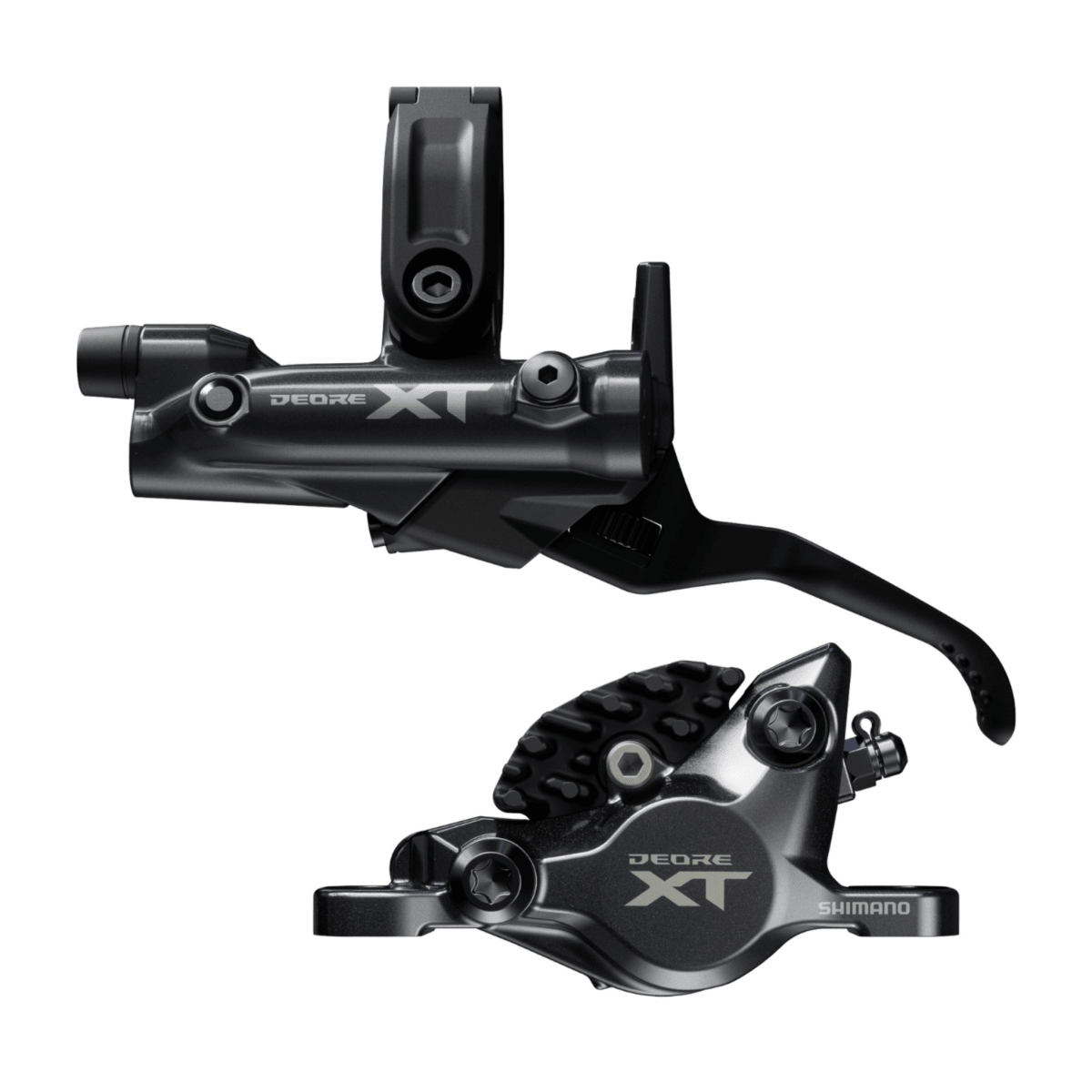

Shimano Deore XT BL-M8200/BR-M8200 Hydraulic Disc Brake Caliper

IM82001JLFPRA100
₹17,040
Pad Material
Type

Estimated Shipping Widget will be displayed here!

In the Box

Front Brake – BL-M8200 (L) / BR-M8200 (F)
1x BL-M8200 Left Brake Lever
1x BR-M8200 Front Brake Caliper
1x SM-BH90-SBM Brake Hose (1000 mm, Black)
1x Resin Brake Pad (Without Fin)
1x Connector Insert
1x Olive & Insert Set

Rear Brake – BL-M8200 (R) / BR-M8200 (R)
1x BL-M8200 Right Brake Lever
1x BR-M8200 Rear Brake Caliper
1x SM-BH90-SBM Brake Hose (1700 mm, Black)
1x Resin Brake Pad (Without Fin)
1x Connector Insert
1x Olive & Insert Set

Refined Trail Braking with Dependable Deore XT Control

Overview

The Shimano Deore XT M8200 brake system builds on a legacy that shaped modern mountain biking. Designed to handle real-world trail demands, it delivers dependable stopping power, refined control and long-term durability. It’s a braking setup that balances performance and reliability for serious trail riders.

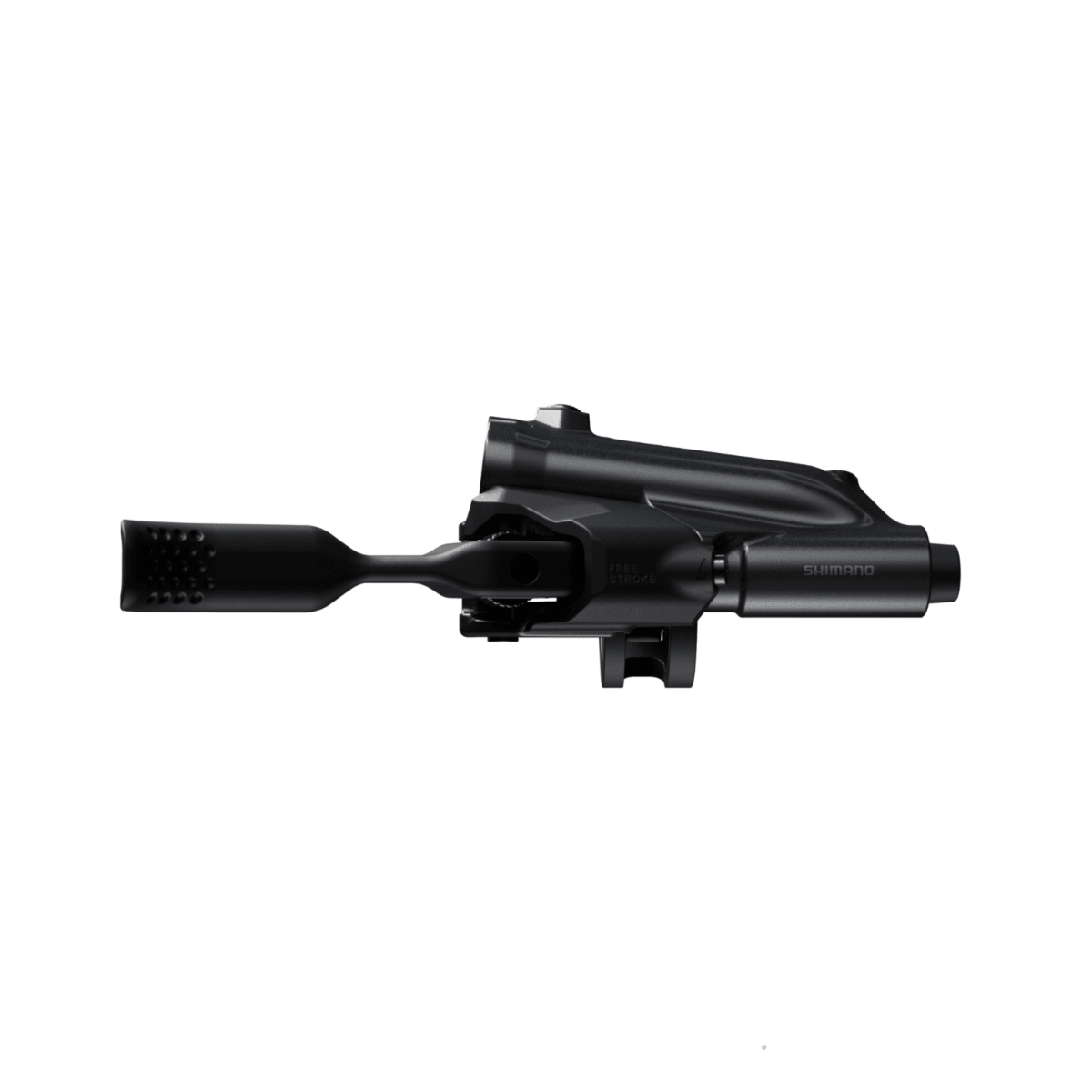

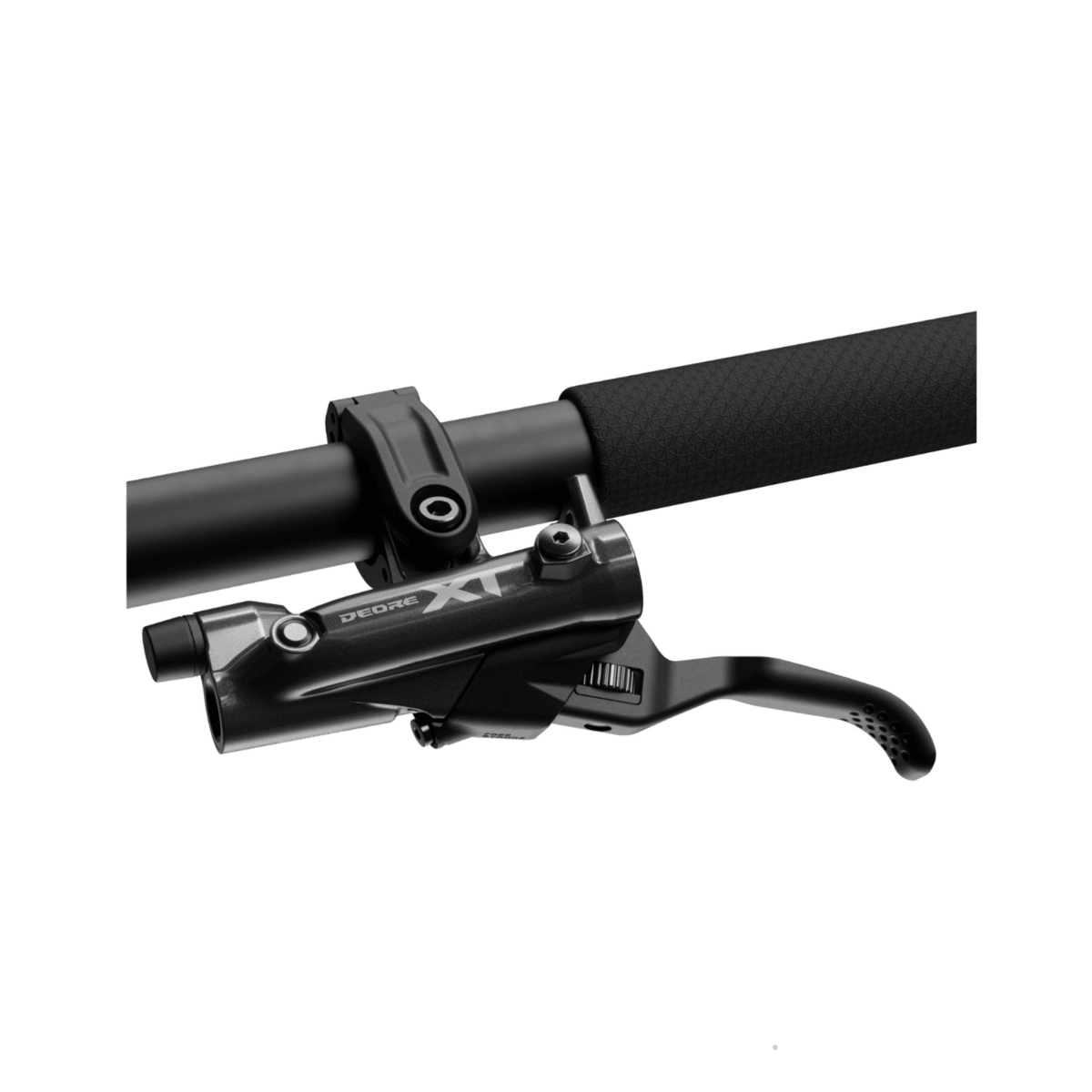

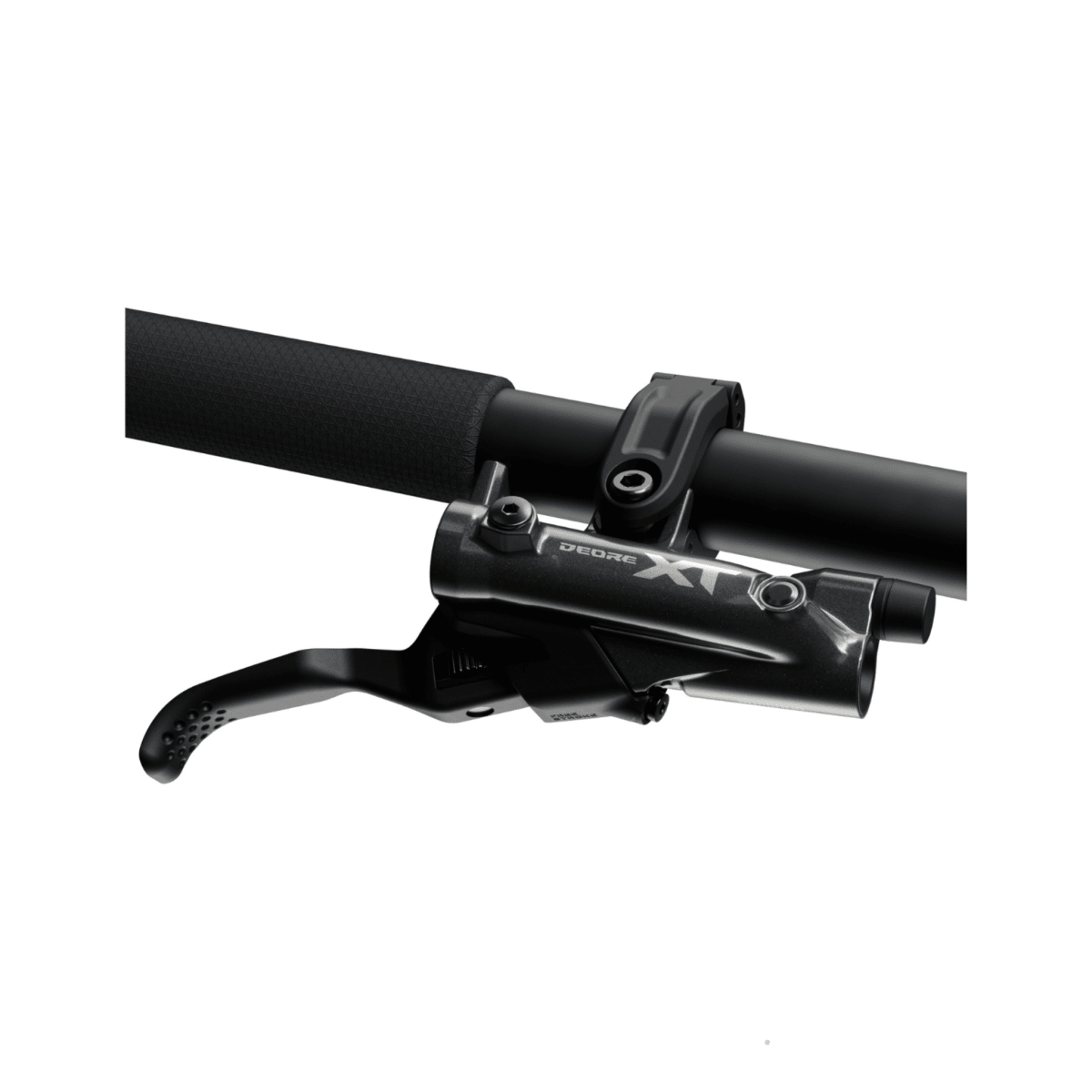

BL-M8200 Brake Lever – Refined Ergonomics: The alloy BL-M8200 brake lever is shaped around the natural movement of the human hand. A closer pivot point follows the finger’s arc, delivering a strong yet controlled pull. Reach adjustment allows riders to dial in a comfortable position for attacking technical terrain with confidence.

Servo Wave and Consistent Modulation: Redesigned Servo Wave technology optimizes the power curve throughout the lever stroke. It manages pad-to-rotor contact smoothly, improving modulation and control. Shimano’s low-viscosity mineral oil keeps braking feel consistent across a wide range of temperatures.

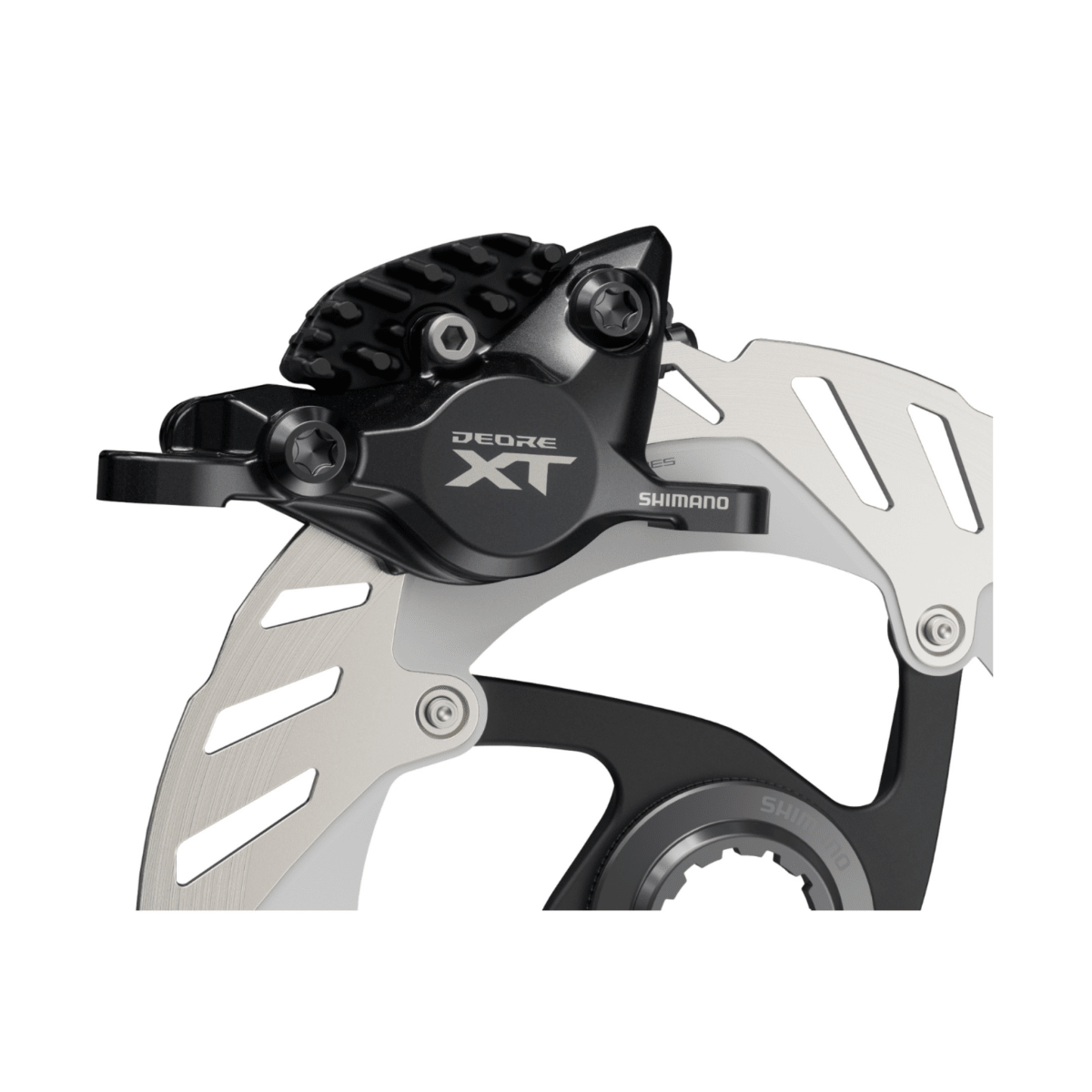

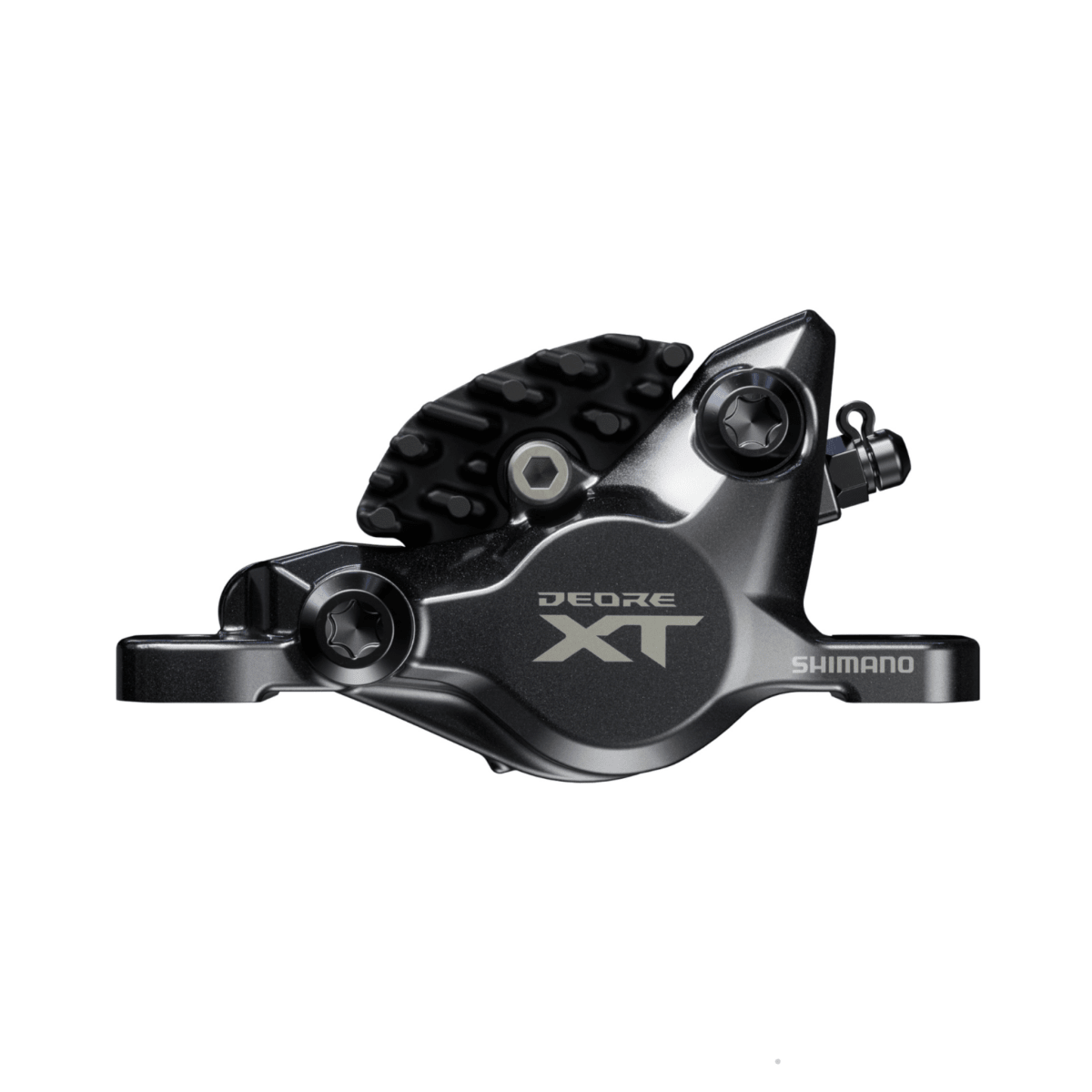

BR-M8200 2-Piston Caliper – Balanced Trail Performance: The BR-M8200 two-piston caliper offers a strong balance of power and weight savings. Heat-resistant resin pistons and compatibility with resin or metal pads ensure reliable braking on steep and rough trails. It’s a versatile caliper built for demanding riding conditions.

Supplied as a ready-to-install J-Kit with SM-BH90 hoses and connector inserts, the M8200 brake set is robust and workshop-friendly.

Features

BL-M8200

  • Caliper Customization: Compatible with M8220 Enduro calipers for higher stopping power or M8200 XC calipers for a lighter setup.
  • Consistent Brake Control: Servo Wave action smooths pad engagement and power delivery, while low-viscosity oil maintains feel across temperatures.
  • Durability: Alloy lever blade uses Shimano’s proven stamping process for long-term reliability.
  • Evolved Ergonomics: Updated lever shape, pivot point and improved reach adjust deliver comfort and confident control.
  • Tidy Cable Routing: Updated routing design keeps the cockpit clean and uncluttered.

BR-M8200

  • Solid Construction: Alloy caliper body emphasizes durability for demanding trail conditions.
  • Custom Controls: Designed to pair with BL-M8200 lever for an optimal balance of braking power and weight.
  • Consistent Brake Control: Servo Wave tuning and low-viscosity oil deliver stable, predictable braking under varied trail conditions.

Technologies

  • Shimano Ergo Flow: Revised pivot point and upswept lever shape improve ergonomic connection and braking comfort.
  • I-Spec EV: Expanded adjustment range creates a clean cockpit and allows precise control positioning.
  • Servo Wave Action: Rapid initial pad contact followed by progressive power increase for improved modulation and control.
  • Ice Technologies: Heat-management design reduces brake fade and maintains consistent braking on long, steep descents.
    Ice Technology Pad: Optional finned pads enhance heat dissipation and braking consistency.
  • One Way Bleeding: Streamlined oil routing simplifies bleeding and helps prevent air entry into the system.

Specifications

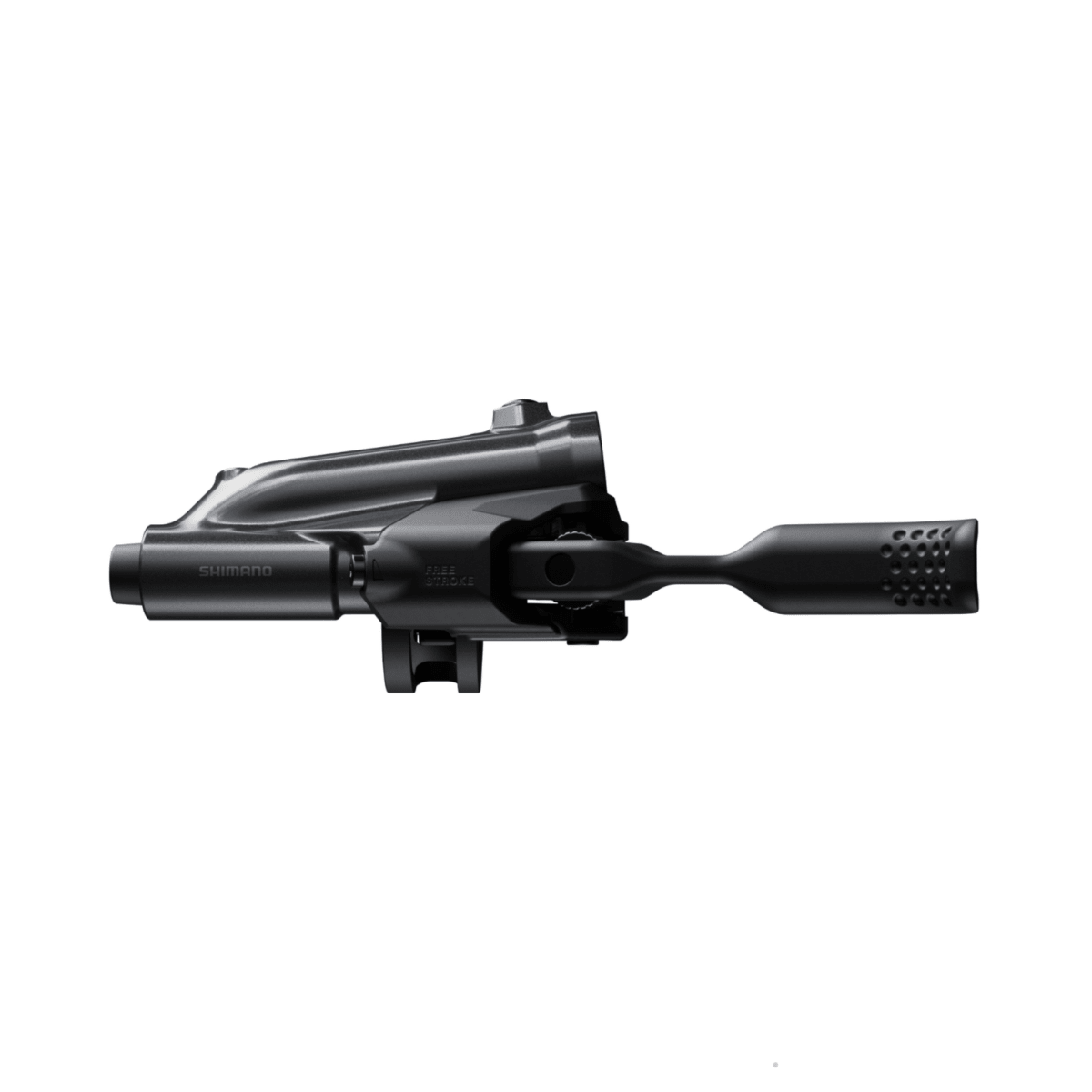

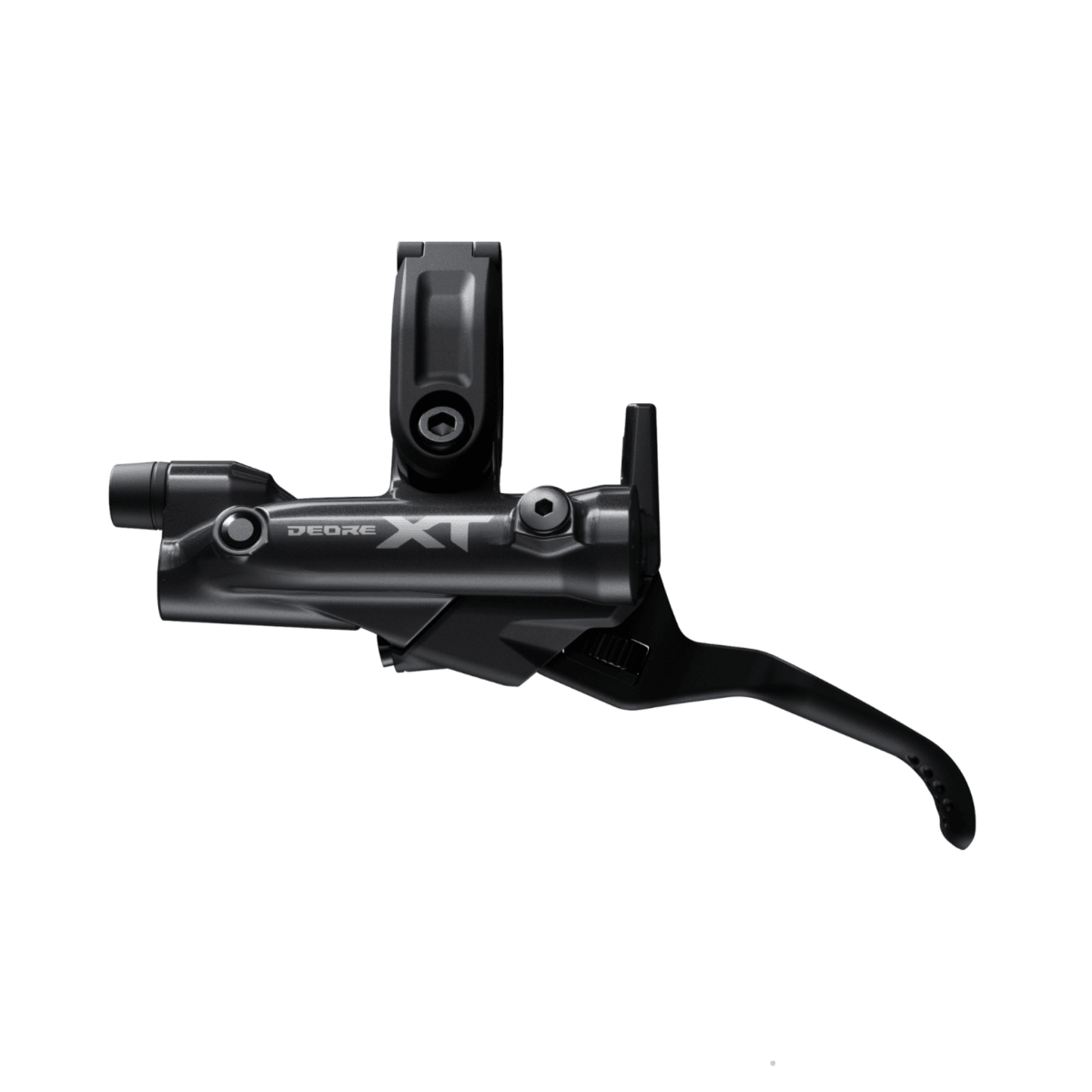

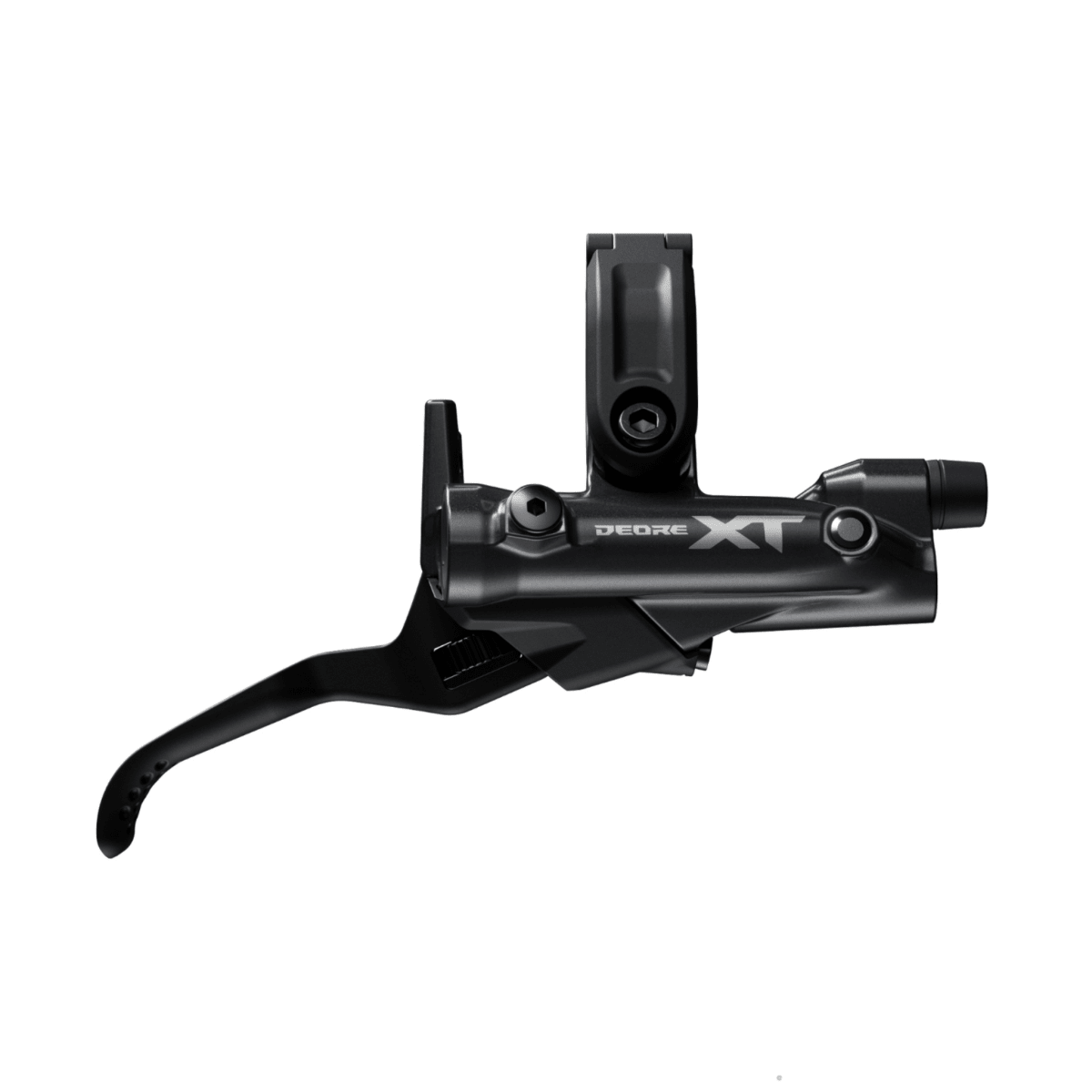

BL-M8200 Brake Lever

  • Model No: BL-M8200
  • Series: Deore XT
  • Brake Type: Hydraulic Disc Brake
  • Lever Size: 2-Finger
  • Brake Hose (Kit): SM-BH90-SBM
  • Hose Joint: Straight
  • Brake Hose Color (Kit): Black
  • J-Kit Spec (for OEM): Yes
  • Servo Wave: Yes
  • Reach Adjust|Toolless: Yes
  • Free Stroke Adjust: Yes
  • Compatible Shifter Mount|Clamp Band: Yes
  • Compatible Shifter Mount|I-Spec EV: Yes
  • Clamp Band|Open Clamp: Yes
  • Recommended Brake Caliper: BR-M8200, BR-M8220, BR-MT805
  • Oil: Shimano Low Viscosity Oil
  • Funnel Bleeding: Yes
  • Average Weight (g): 114

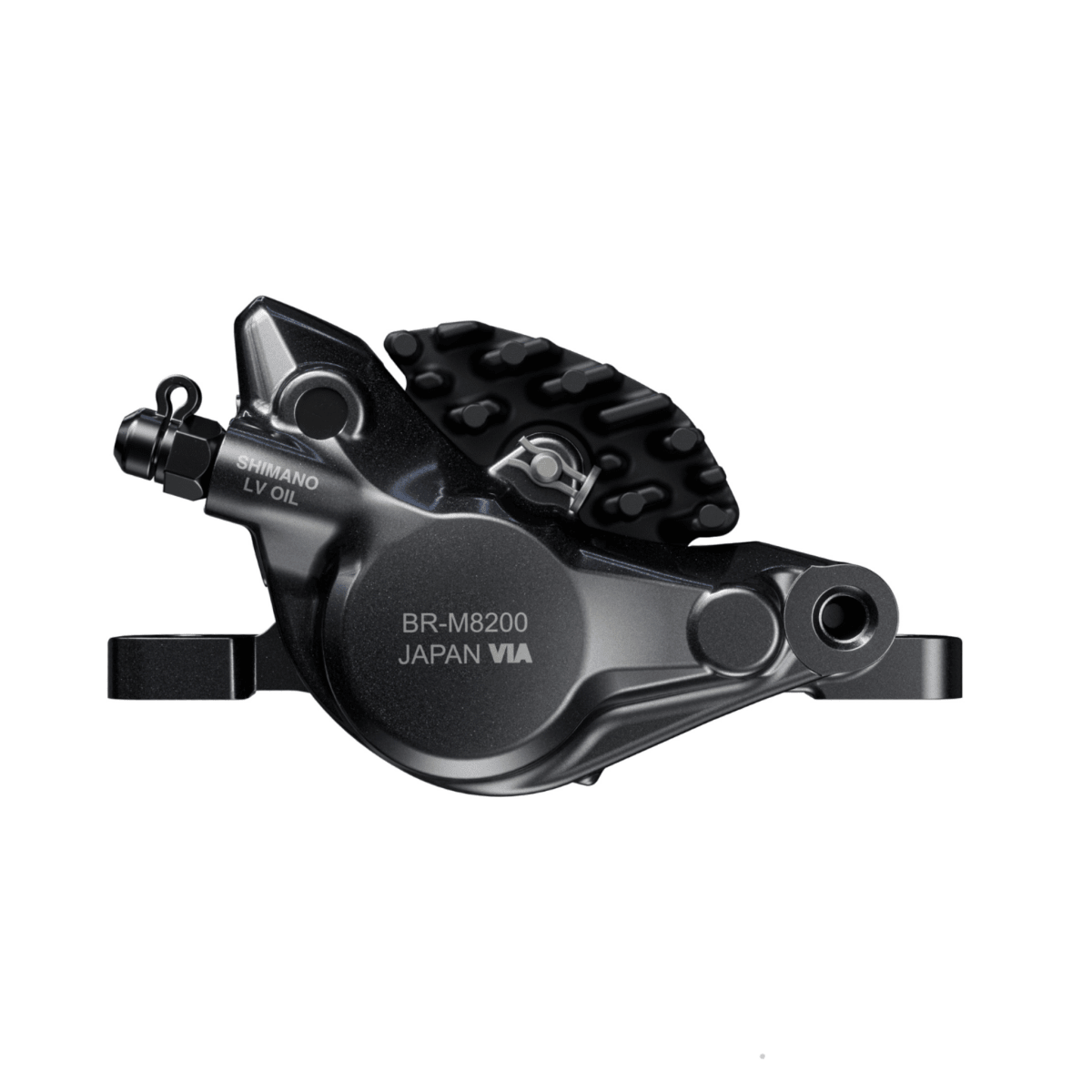

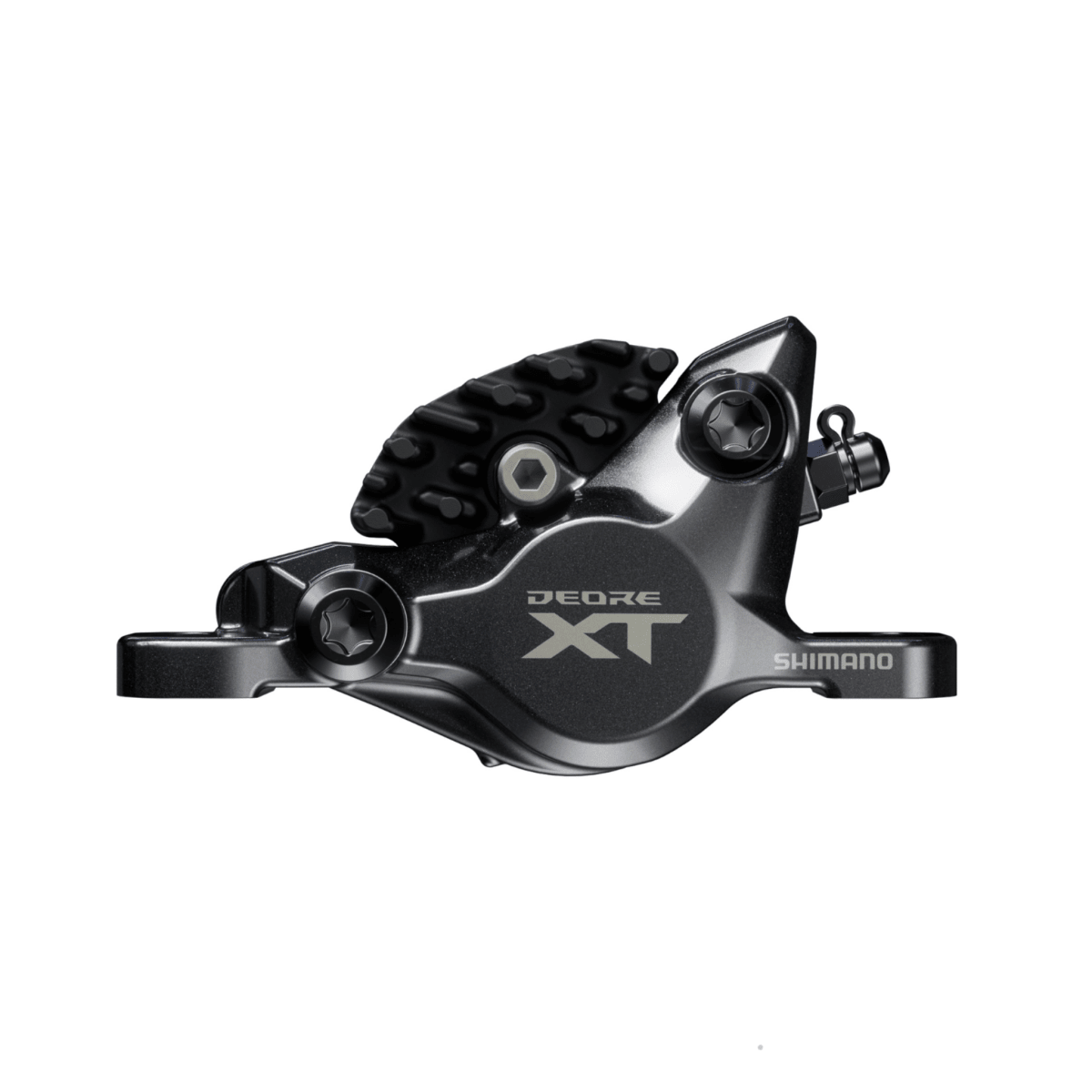

BR-M8200 Brake Caliper

  • Model No: BR-M8200
  • Series: Deore XT
  • Brake Type: Hydraulic Disc Brake
  • Brake Hose (Kit): SM-BH90-SBM
  • Hose Joint: Banjo
  • Brake Hose Color (Kit): Black
  • J-Kit Spec (for OEM): Yes
  • Ice Technologies Pad Compatible Caliper: Yes
  • Pad|Standard 1: G05A-RX Resin (w/o Fin)
  • Pad|Standard 2: G04S-MX Metal (w/o Fin)
  • Pad|Option 1: J05A-RF Resin (w/ Fin)
  • Pad|Option 2: J04C-MF Metal (w/ Fin)
  • Recommended Brake Lever: BL-M8200
  • Recommended Disc Brake Rotor: RT-CL800, SM-RT86
  • Compatible Rotor Size: 140 mm (SS), 160 mm (S), 180 mm (M), 203 mm (L), 220 mm (LL)
  • Oil: Shimano Low Viscosity Oil
  • One Way Bleeding: Yes
  • Mount Type: Post Type
  • Piston: 2
  • Caliper Fixing Screw|Tool Size: 5 mm
  • Caliper Fixing Screw|Anti-Loosen Method: Snap Ring
    Pad Mount: Pad Axle
  • Average Weight (g): 103
