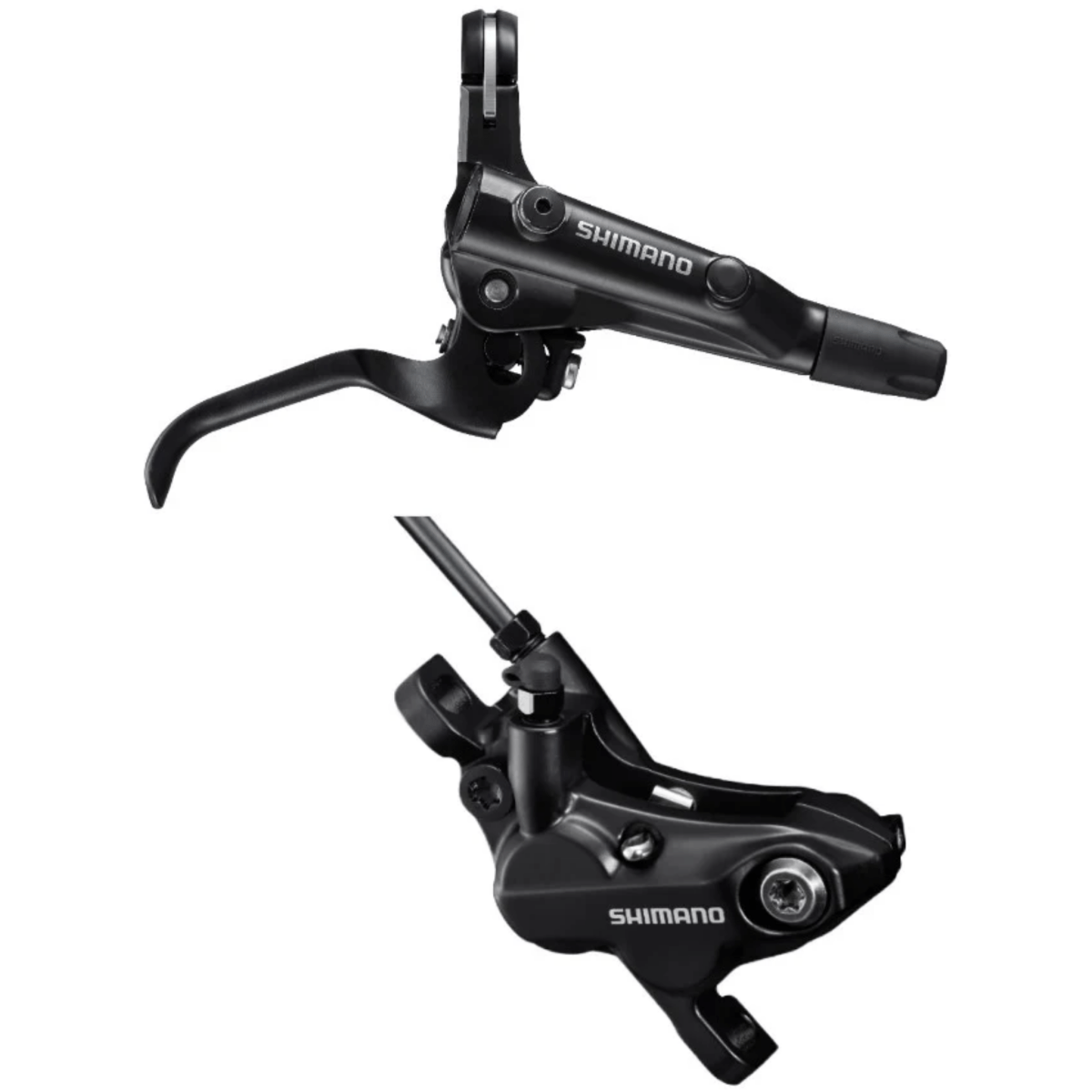

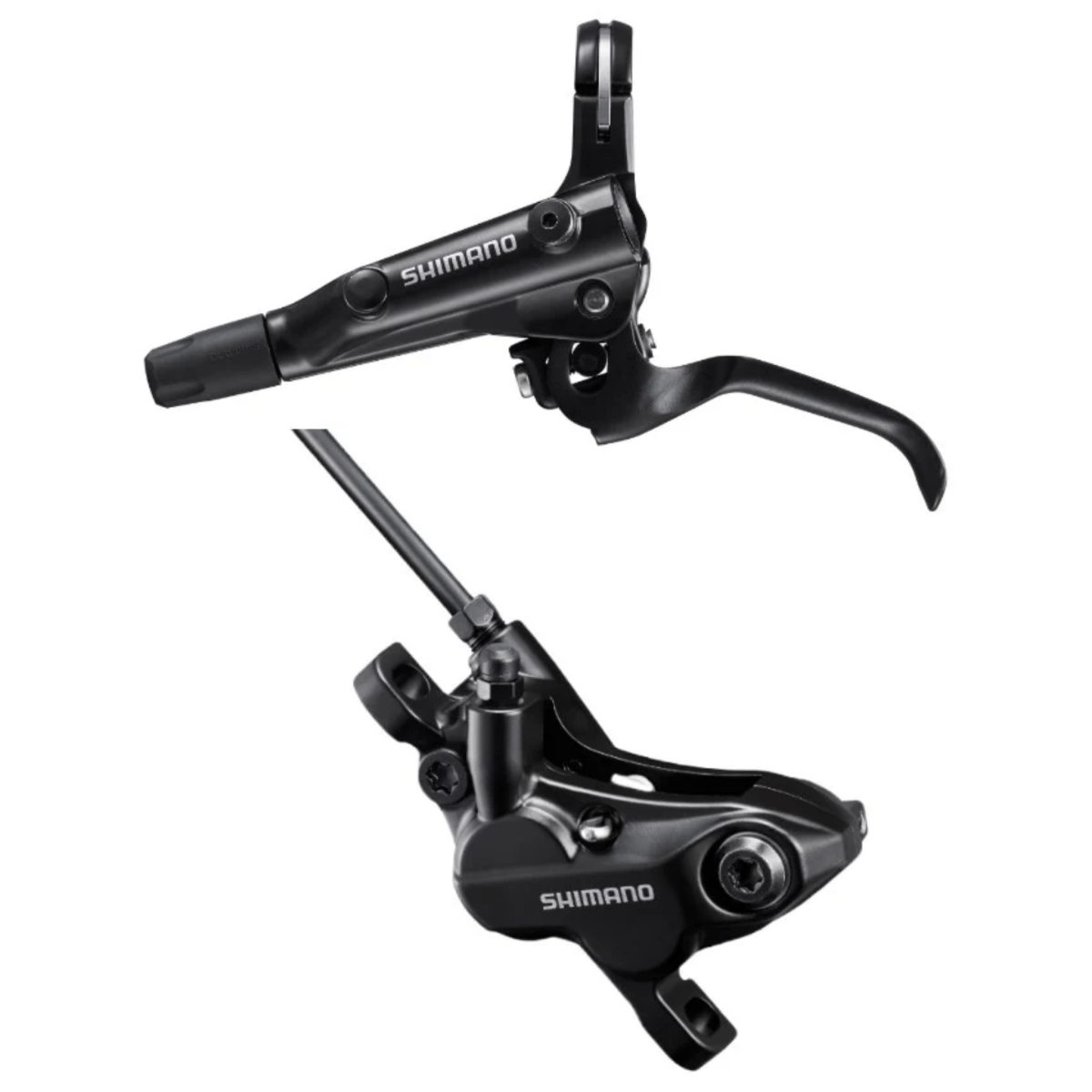

Shimano Deore BL-MT501/BR-MT520 Hydraulic Disc Brake Set

EMT501EJLFPMA100
₹10,220
Pad Material
Type

Estimated Shipping Widget will be displayed here!

Powerful 4-Piston MTB Braking

Overview

The Shimano BL-MT501 brake lever delivers exceptional braking power with Servo Wave technology. Designed for mountain biking, it ensures quick brake engagement and smooth control for challenging trails, making it a reliable choice for technical descents and demanding terrain.

I-Spec II Compatibility: The BL-MT501 lever is I-Spec II compatible, allowing seamless integration with shifters for a clean and ergonomic cockpit setup. This ensures precise control and enhanced rider tuning for better performance on the trail.

4-Piston Caliper for Superior Braking: The BR-MT520 hydraulic caliper features a powerful 4-piston design, boosting stopping power and control. Its robust build inspires confidence during downhill rides, enabling smooth modulation and precise braking in all conditions.

Versatile Hose Configuration: Available in Left/Front (1000mm hose) and Right/Rear (1700mm hose) options, the brake set provides flexibility for various bike setups. Riders can choose between metal or resin pads without fins, catering to different riding styles and terrains.

Engineered for durability and consistent braking, the Shimano Deore BL-MT501/BR-MT520 Hydraulic Disc Brake Set is built to handle the rigors of mountain biking.

Features

BL-MT501

  • Sleek and Durable Design: Features a smooth and stable master cylinder design for reliable performance across XC to trail riding styles.
  • High-Power Braking: Equipped with Servowave technology for efficient and powerful braking with improved control.

BR-MT520

  • Enhanced Braking Confidence: High power brake performance with a dual-diameter opposed-piston design for wider contact and better control.
  • Four Piston Caliper: Offers highly responsive braking power, rapid initial pad contact, and controllable power modulation for stable and precise braking.
  • Durable and Heat Resistant: Heat-insulated pad and piston ensure durability and consistent performance under intense conditions.

Technologies

  • Servowave Action: Increases braking power by rapidly multiplying force after initial pad contact, ensuring precise and controlled braking with minimal lever movement.
  • Four Piston Caliper: Dual-diameter piston design enhances braking power, reduces rotor wobble, and minimizes noise, offering 50% more stopping power in combination with the Servowave lever for excellent modulation.

Specifications

BL-MT501

  • Model No: BL-MT501
  • Series: Shimano
  • Color: Black
  • Brake Type: Hydraulic Disc Brake
  • Lever Size (Finger): 2
  • Brake Hose (Kit): SM-BH59-JK-SS (for BR-MT500), SM-BH90-SS (for BR-MT520)
  • Hose Joint: Straight
  • Brake Hose Color (Kit): Black
  • J-Kit Spec (for OEM): Yes
  • Servo Wave: Yes
  • Reach Adjust|Tool: Yes
  • Compatible Shifter Mount|Clamp Band: Yes
  • Compatible Shifter Mount|I-Spec II: Yes
  • Clamp Band|Open clamp: Yes
  • Recommended Brake Caliper: BR-MT500, BR-MT520
  • Oil: Shimano Mineral
  • Funnel Bleeding: Yes

BR-MT520

  • Model No: BR-MT520
  • Series: Shimano
  • Color: Black
  • Brake Type: Hydraulic Disc Brake
  • Brake Hose (Kit): SM-BH90-SS
  • Hose Joint: Straight
  • Brake Hose Color (Kit): Black
  • J-Kit Spec (for OEM): Yes
  • Pad|Standard 1: D03S-RX Resin (w/o fin)
  • Pad|Standard 2: D02S-MX Metal (w/o fin)
  • Recommended Brake Lever: BL-MT501
  • Recommended Disc Brake Rotor: SM-RT70
  • Compatible Rotor Size: 140 mm (SS), 160 mm (S), 180 mm (M), 203 mm (L), 220 mm (LL)
  • Oil: Shimano Mineral
  • One Way Bleeding: Yes
  • Mount Type: Post Type
  • Piston: 4
  • Caliper Fixing Screw|Tool Size: 5 mm
  • Caliper Fixing Screw|Anti-Loosen Method: Snap Ring
  • Pad Mount: Split Pin
