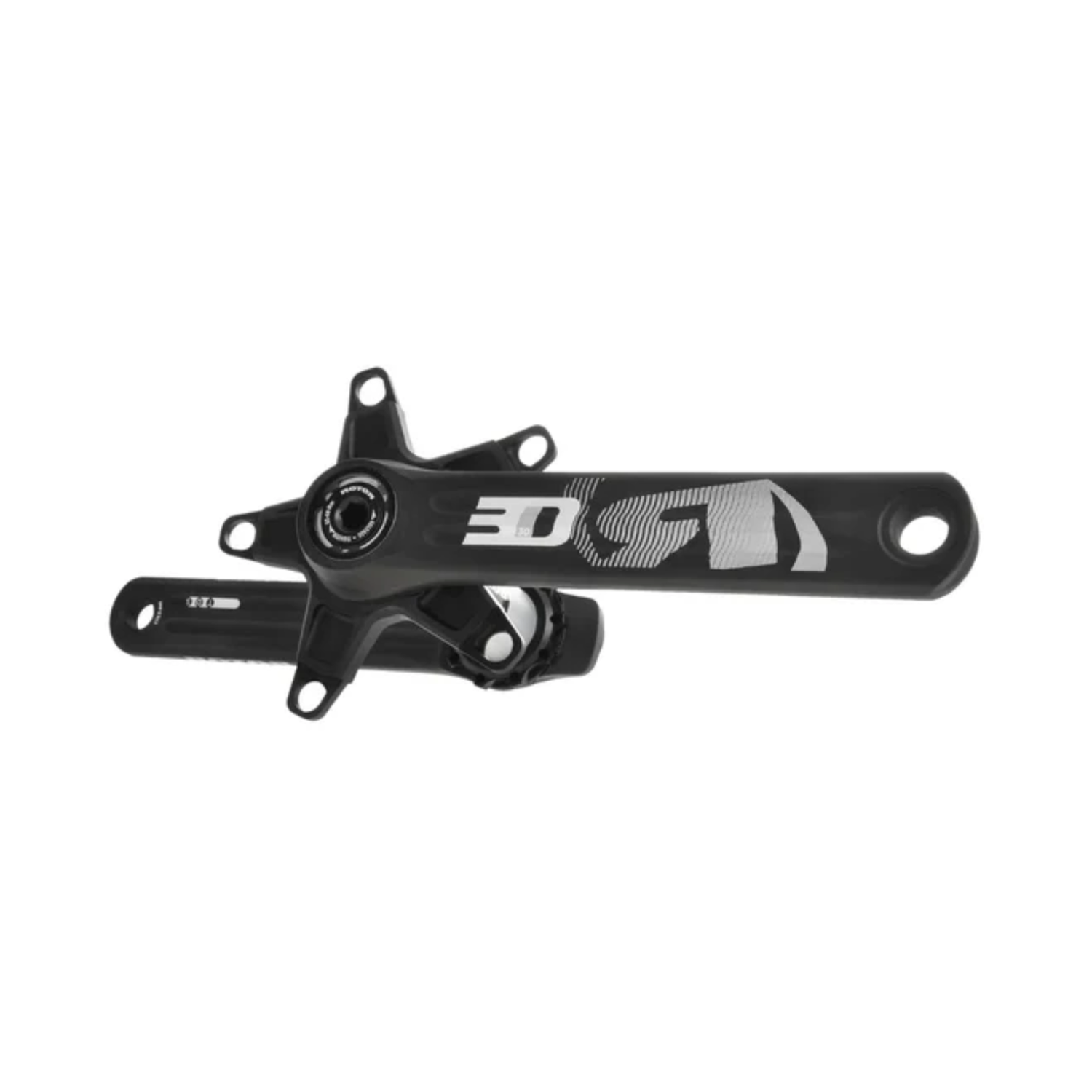

Rotor Inpower 3D30 BCD110x5x2 Crankarm Assembly

Name: Rotor Inpower 3D30 BCD110x5x2 Crankarm Assembly
Brand: Rotor
SKU: C13-017-19010-002
Price: 79000.0 INR
Availability: InStock

Integrated Power Measurement for Structured Road Training

₹79,000

Length

170mm

Delivery estimateEnter your pincode for delivery dates

Free shipping over ₹2,000Delivered across India
100% genuineAuthorised dealer, manufacturer warranty
Cash on deliveryOn orders up to ₹20,000
Secure checkoutUPI, cards and net banking

Not sure about size or compatibility? Ask TBA Guide WhatsApp us

The Rotor Inpower 3D30 BCD110x5x2 Crankarm Assembly features a power meter housed inside the crank axle. This protected position helps measure left-leg power while shielding the electronics from impacts and external contamination.

Detailed Pedalling Analysis: The system records power and cadence while supporting Rotor metrics such as Torque 360 and Optimum Chainring Angle. These insights help riders understand power delivery and refine their pedalling technique.

Durable 3D Construction: The machined aluminium crankarm provides the stiffness required for efficient power transfer during climbs, intervals and sustained road efforts. Its 170 mm length offers a familiar fit for performance road setups.

Five-Bolt Road Compatibility: A 110 mm five-bolt spider interface supports compatible double road chainrings, including suitable round rings and Q Rings. The 30 mm axle works with compatible Rotor bottom brackets across several frame standards.

Rotor Inpower 3D30 BCD110x5x2 Crankarm Assembly combines protected power measurement, detailed ride metrics and dependable road performance.

Product details

Specifications

Model: INpower 3D30
Measurement: Left Leg
Estimated Total Power: Left-Leg Power Multiplied by Two
Material: Forged and CNC-Machined 7075 Aluminium
Chainring Configuration: 2x
Chainring Compatibility: Round Rings and Q Rings
Speed Compatibility: 9-Speed, 10-Speed and 11-Speed
Wireless Connectivity: ANT+
Data: Power, Cadence, Torque Effectiveness and Pedal Smoothness
Rotor Data: Torque 360, OCA and OCP
Cadence Measurement: Accelerometer

Battery: 1x AA 1.5V
Estimated Battery Life: 300 Hours
Water Resistance: IPX7
Q-Factor: 148 mm
Chainline: 43.5 mm
Spindle Diameter: 30 mm
Bolt Pattern: 5-Bolt
Bolt Circle Diameter: 110 mm
Crank Length: 170 mm
Color: Black/Grey
Weight: 562 g Without Battery

Features

INpower: Measures left-leg power through strain gauges positioned inside the crank spindle.
Integrated Spindle Electronics: Protected internal placement improves resistance to impacts and weather.
Real-Time Training Data: Transmits power, cadence and pedalling metrics to compatible devices.
Long Battery Runtime: Uses a replaceable AA battery for extended riding periods.
Five-Bolt Road Interface: Supports compatible round and oval 110x5 chainrings.
Versatile Frame Fit: Compatible with several road bottom-bracket standards using suitable Rotor bearings.

Technologies

Torque 360: Displays force distribution throughout the complete pedal rotation.
OCA: Identifies the angle where maximum pedalling force is applied.
OCP Guidance: Helps determine a suitable Q Rings position from recorded pedalling data.
