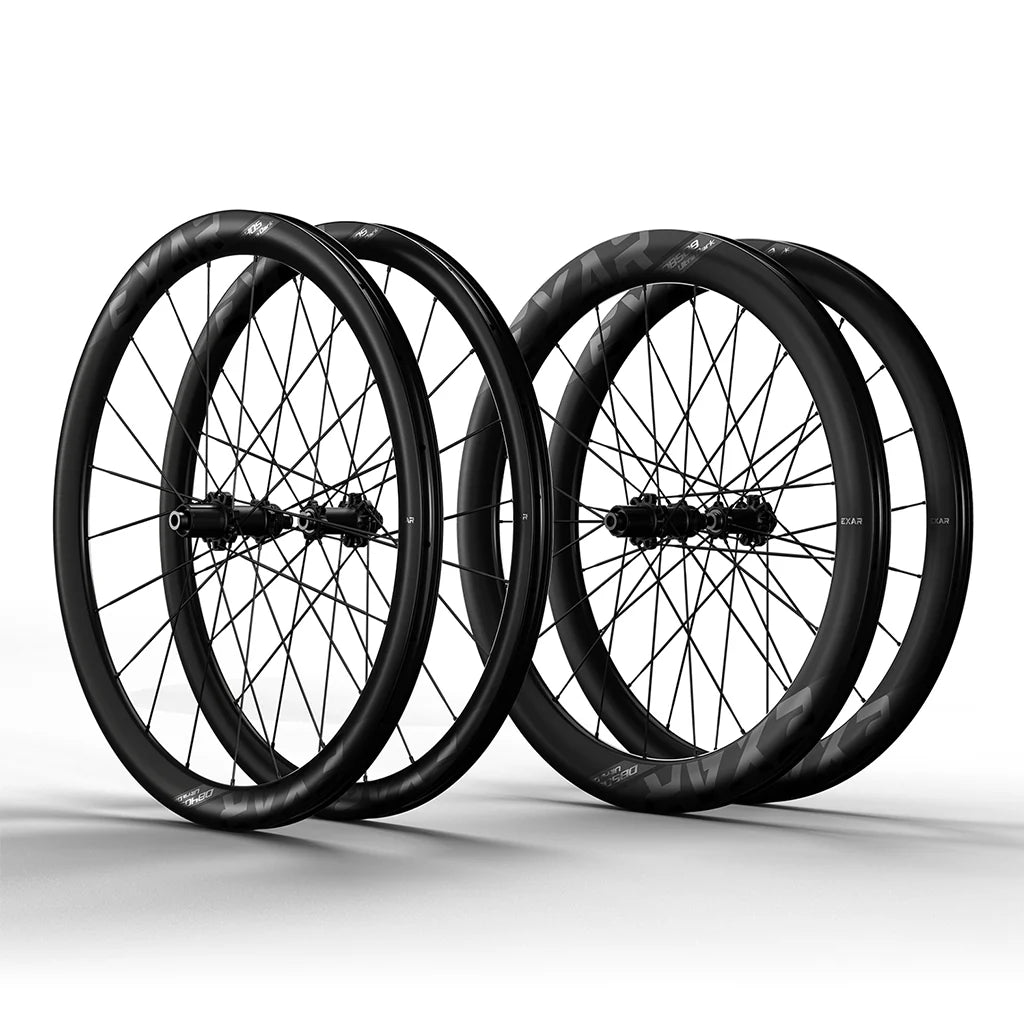

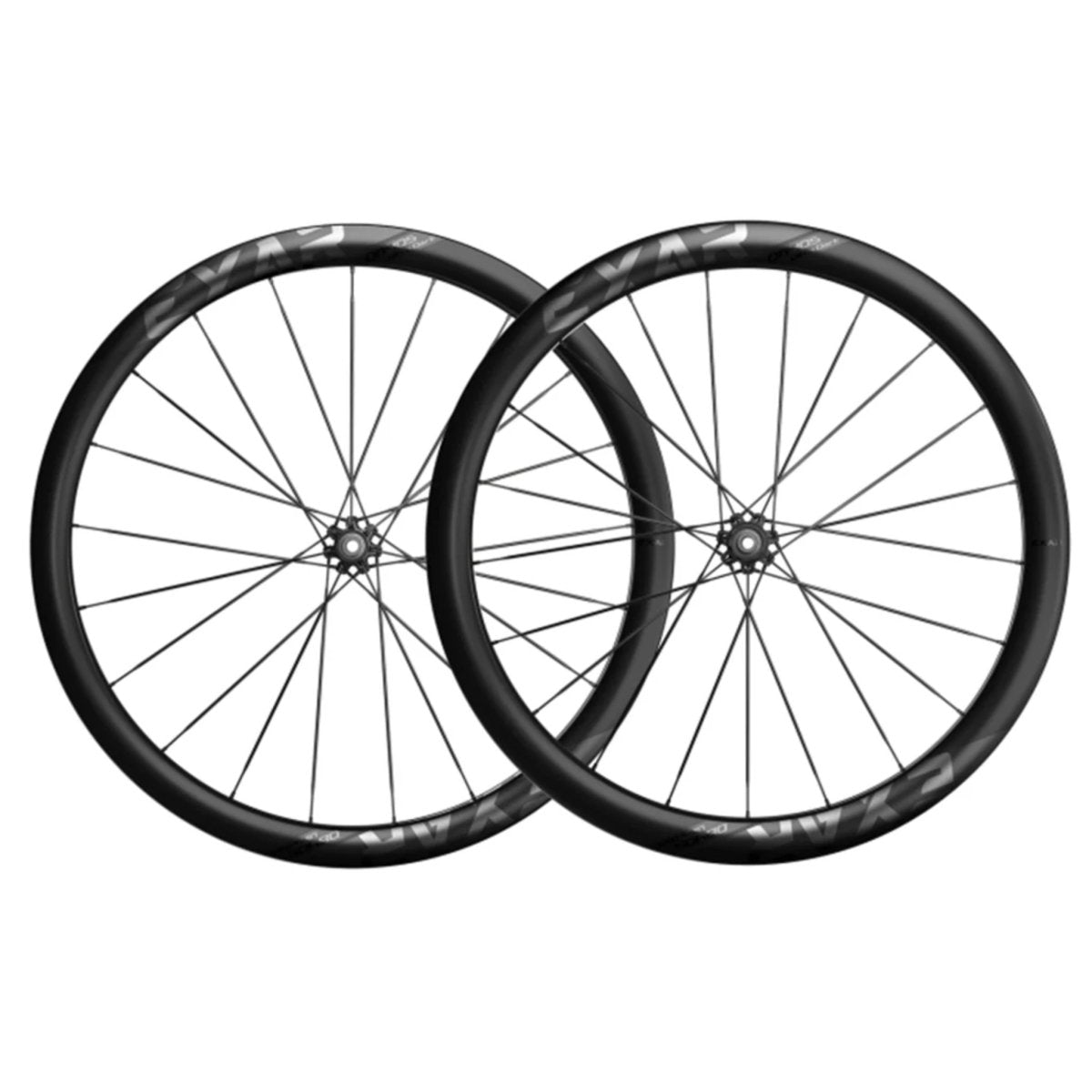

Magene Exar UltraDark DB405 Disc Brake Carbon Wheelset-40/45mm

ULT-DRK-DB405_Std
₹108,900

Estimated Shipping Widget will be displayed here!

In the Box

1x Carbon Fiber Front Wheel
1x Carbon Fiber Rear Wheel
2x Tubeless Rim Tape
50x Rim Plug
2x Tubeless Tire Valve
1x User Manual

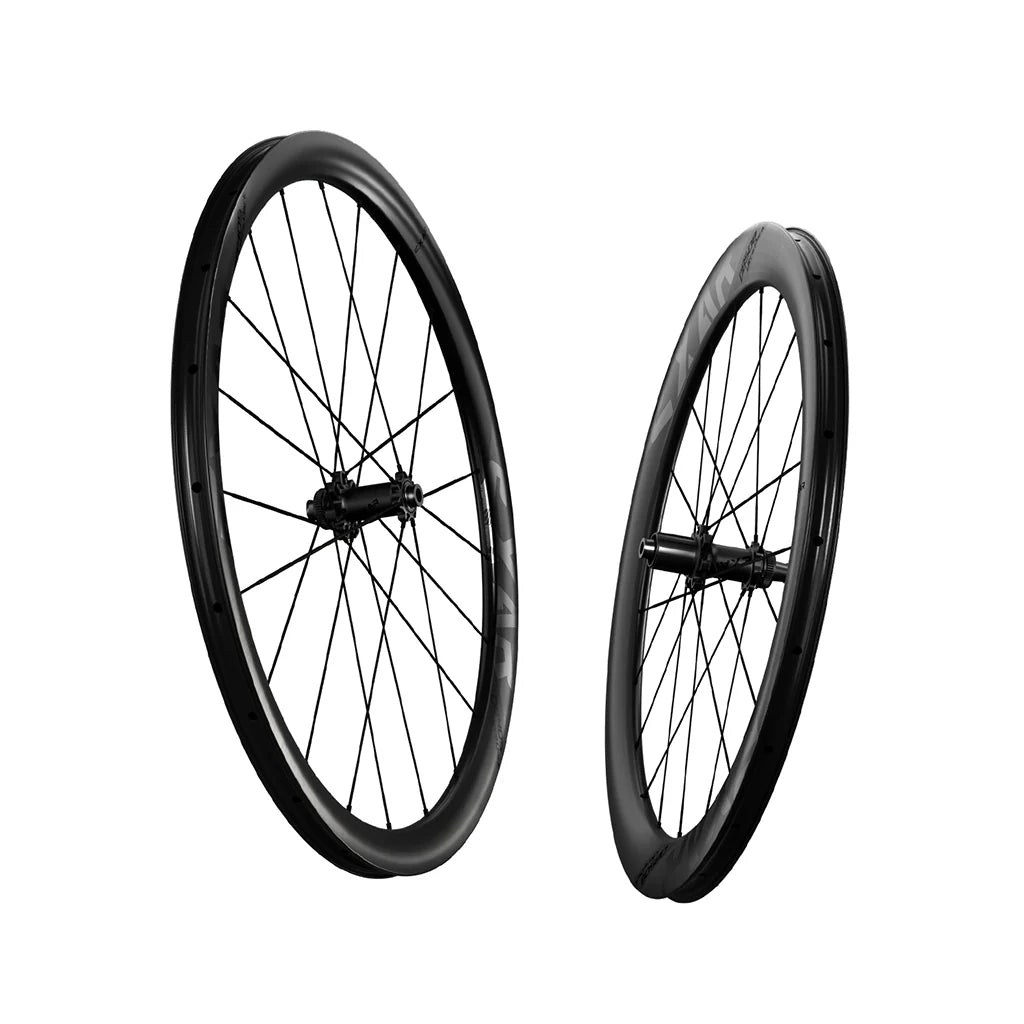

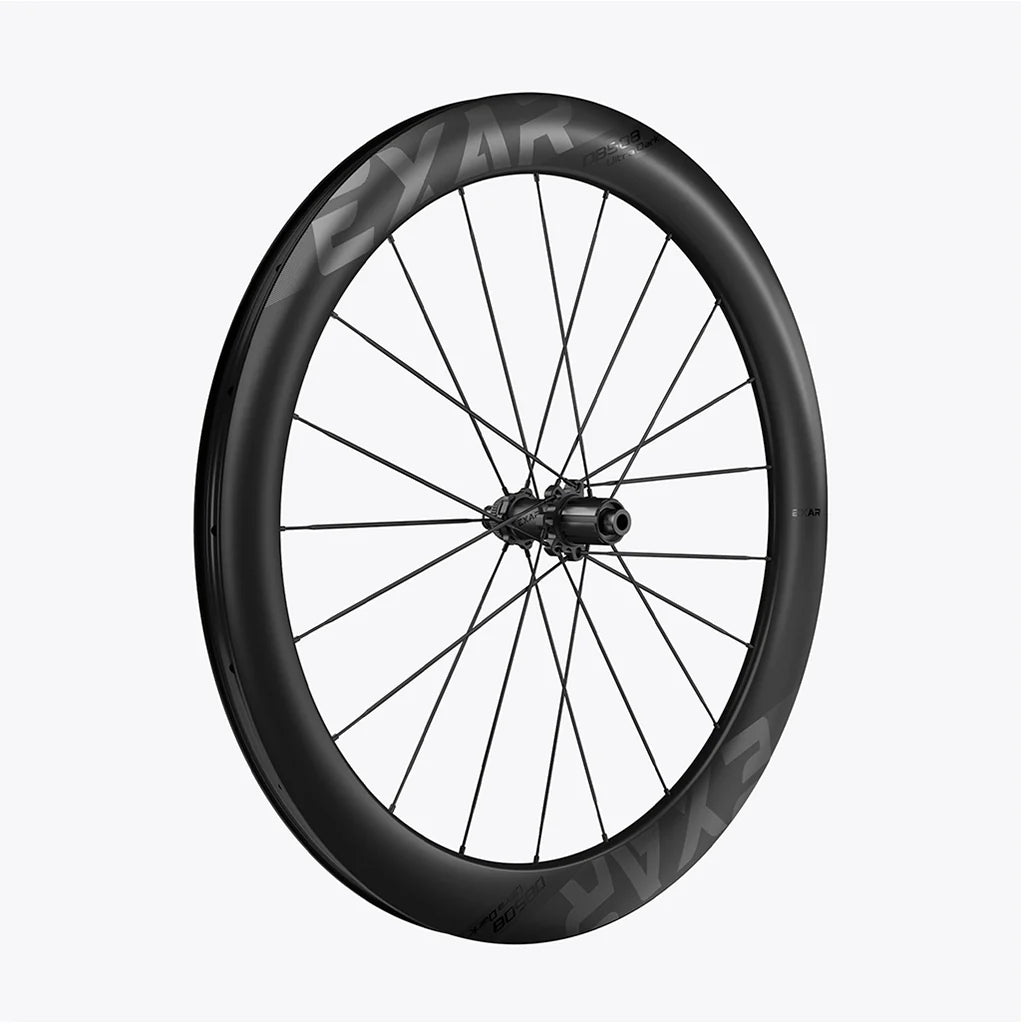

Disc Brake Carbon Wheelset for Aerodynamic Performance

Overview

The Magene Exar UltraDark DB405 Disc Brake Carbon Wheelset is crafted for cyclists who seek superior performance and aerodynamic efficiency. Designed specifically for disc brakes, this wheelset features a 40mm front and 45mm rear rim height, offering enhanced control, stability, and speed for serious riders.

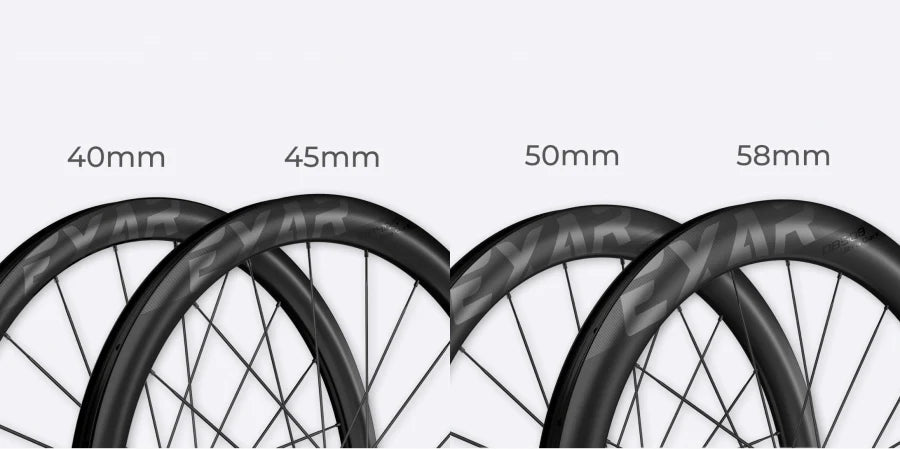

Lower Front and Higher Rear Rim Design for Optimal Performance: With a 40mm front rim and 45mm rear rim, the Exar UltraDark DB405 wheelset provides a unique balance of control and aerodynamics. The lower front rim height ensures precision handling and responsiveness, while the higher rear rim enhances aerodynamic efficiency, allowing for faster speeds with less drag during intense rides.

Sleek Dark Black Design for Versatile Compatibility: The new dark black design of the DB405 wheelset pairs seamlessly with a wide range of bike frames, giving your bike a sleek and modern look. This versatile design makes it an ideal choice for cyclists looking to upgrade both the performance and appearance of their ride.

Upgraded Hub and Spokes for Faster Response: Featuring upgraded hubs and carbon fiber spokes, the Exar UltraDark DB405 provides a faster, more stable response, especially during acceleration and sprints. The improved power transfer and enhanced durability make this wheelset perfect for performance-oriented cyclists who need reliable, responsive equipment.

Aerodynamic and Lightweight: Designed to maximize aerodynamic efficiency, the DB405 wheelset helps you maintain higher speeds with less effort. Its lightweight construction further enhances performance, making it easier to accelerate and climb while reducing overall fatigue during long rides.

Whether you’re racing or training, the Magene Exar UltraDark DB405 Disc Brake Carbon Wheelset offers the precision, speed, and control needed for peak performance.

Features
  • Classy Night Black Coating: The new night black paint with dark logos enhances both style and performance, perfectly complementing any bike frame for a sleek look.
  • Lighter, Then Faster: Constructed with HI-MOD carbon fiber, the wheelset reduces weight while retaining stiffness, offering faster response during climbing and acceleration.
  • Lower Front and Higher Rear Wheel Design: Ensures better stability, aerodynamic performance, and crosswind resistance, while maintaining high inertia in the rear wheel and controllability in the front.

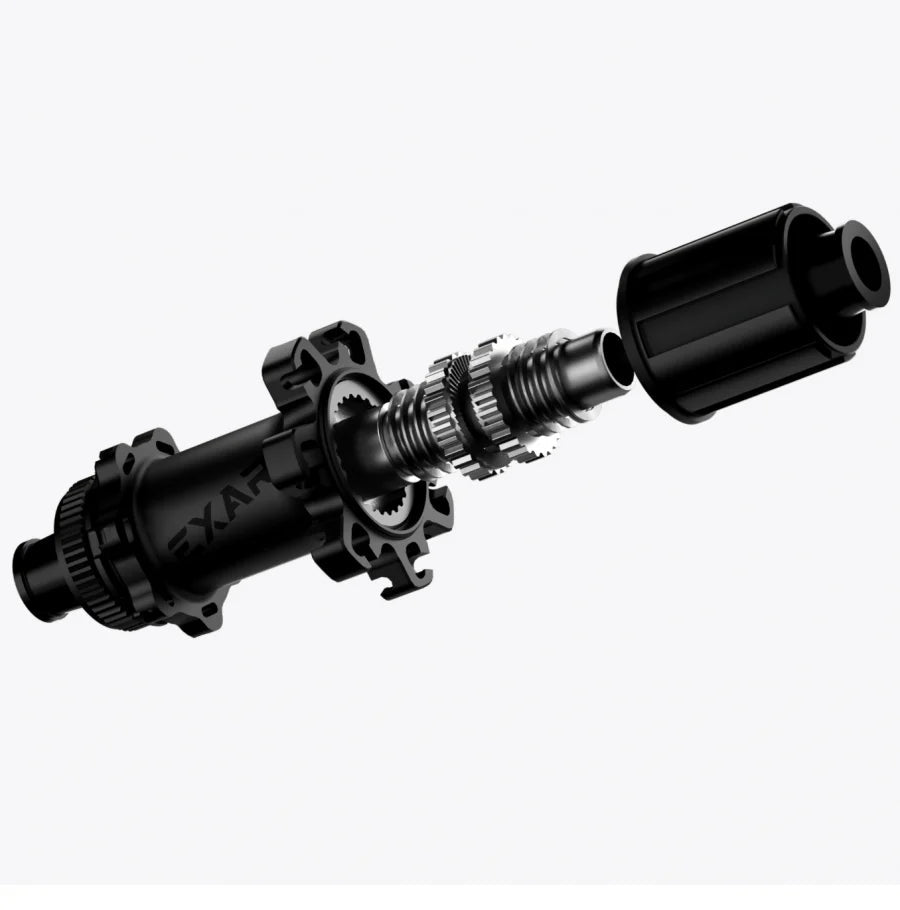

  • Flat Engagement Ratchet: Features a 36-tooth flat ratchet for stable performance at all speeds, with replaceable ratchet options for faster response.

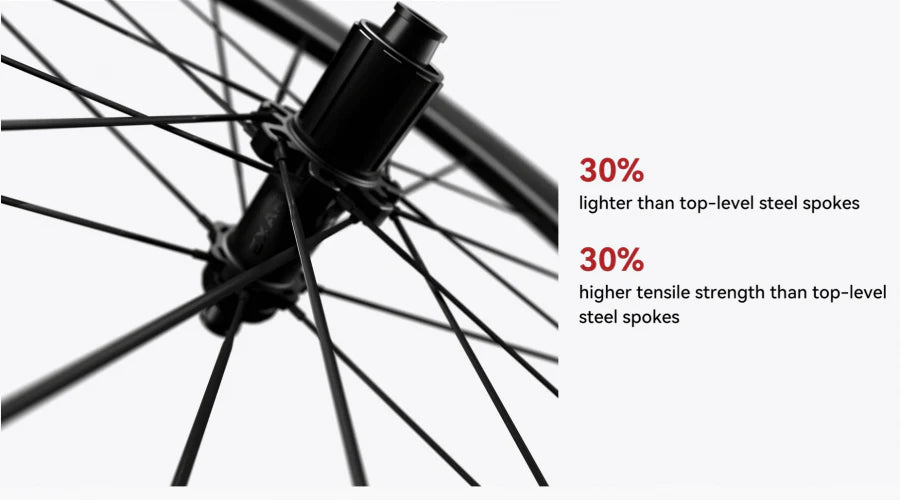

  • Full Carbon Fiber Spokes: VONOA carbon fiber spokes weigh 30% less than steel spokes, offering higher tensile strength and increased driving efficiency.

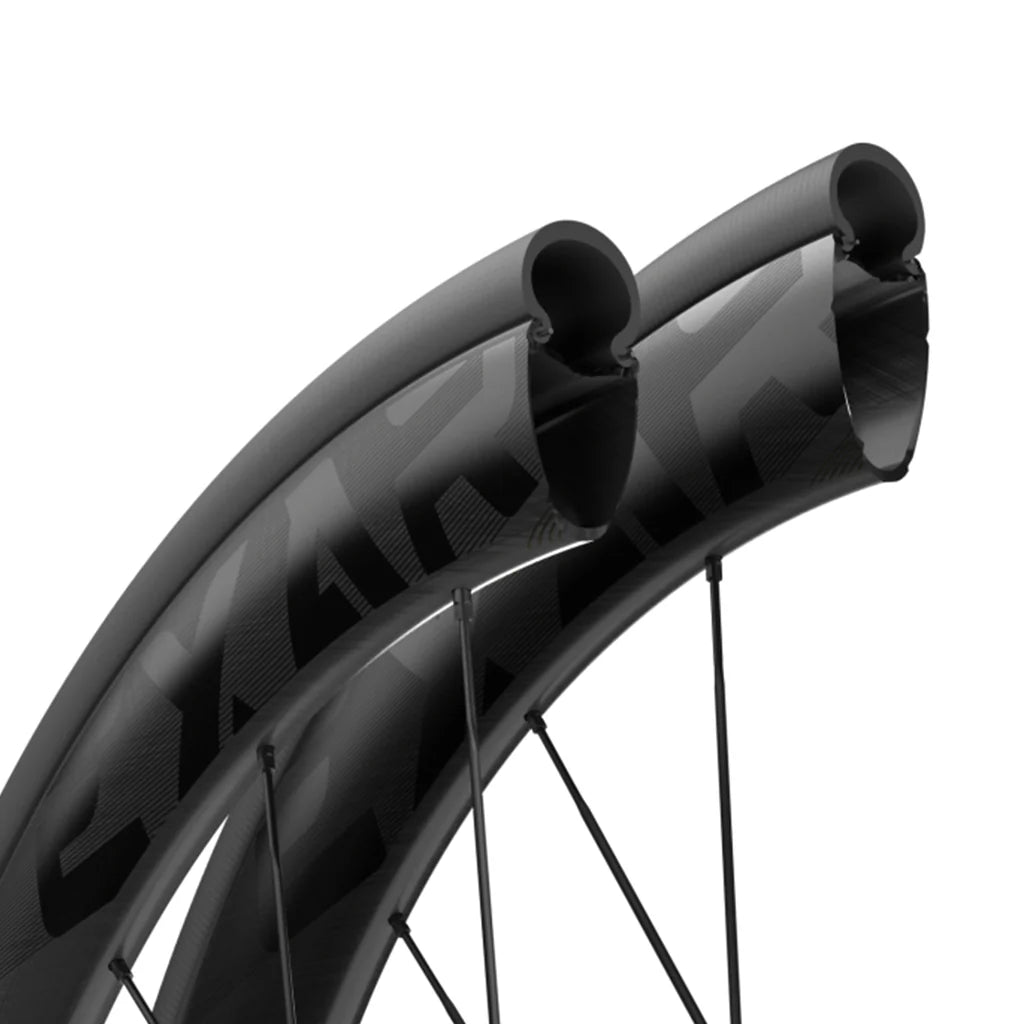

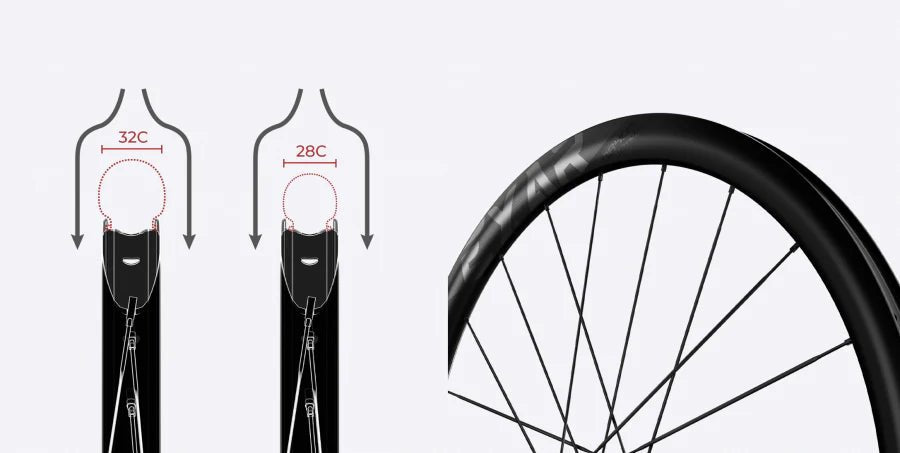

  • 30mm Wide Rim for Aerodynamics: A 30mm external and 23mm internal rim width improves aerodynamics and comfort with a flat contact surface between tire and rim, ideal for 28-32c tires.

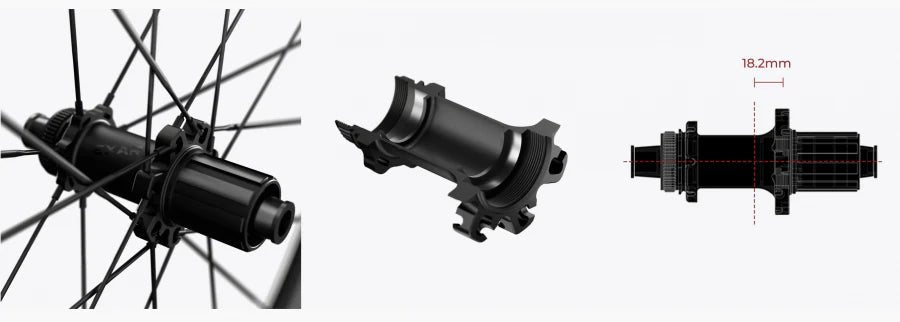

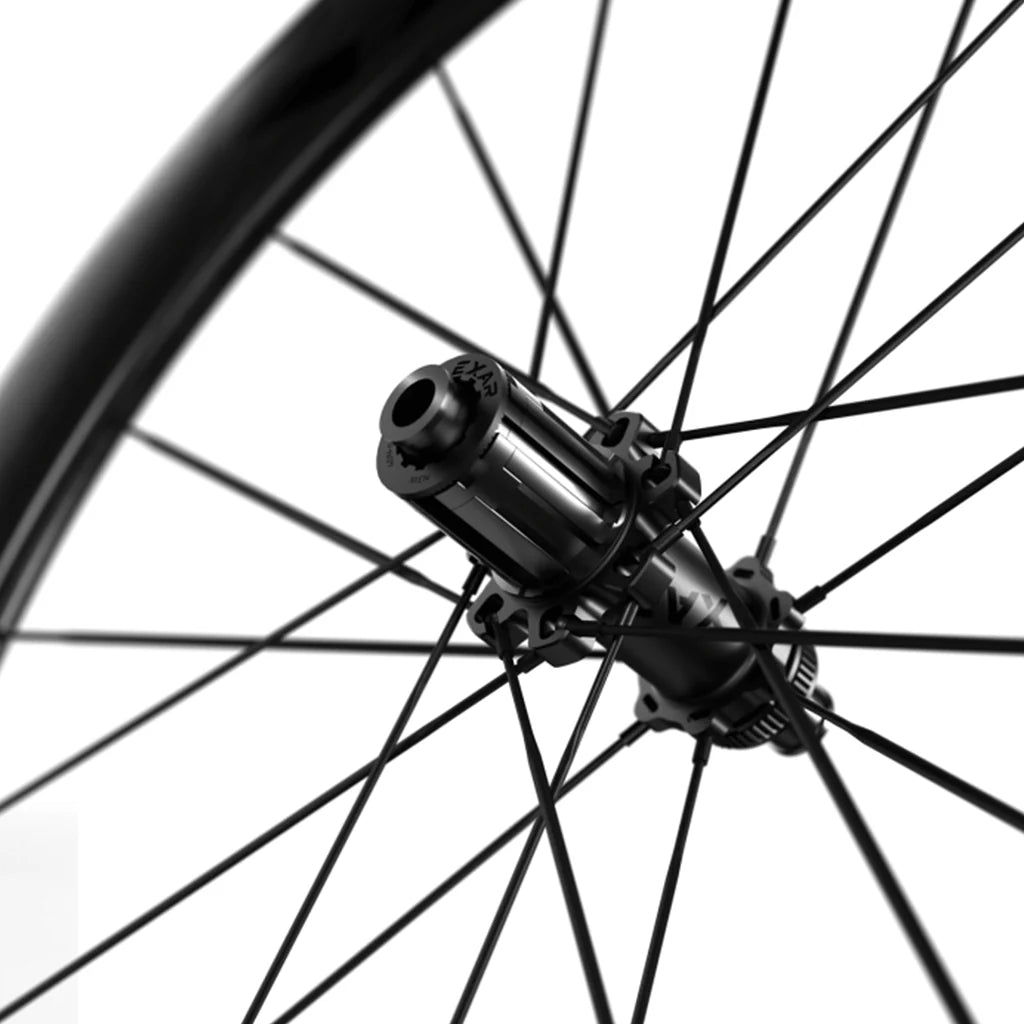

  • Elaborate Hub Design: Scientifically calculated flange diameter and smooth bearing surface edging reduce stress and friction, improving driving stiffness and durability.
  • 2:1 Balanced Spoke Pattern: Distributes tension evenly for enhanced balance and performance, with rear-wheel drive side tension at 130kgf±10% and non-drive side at 110kgf±10%.

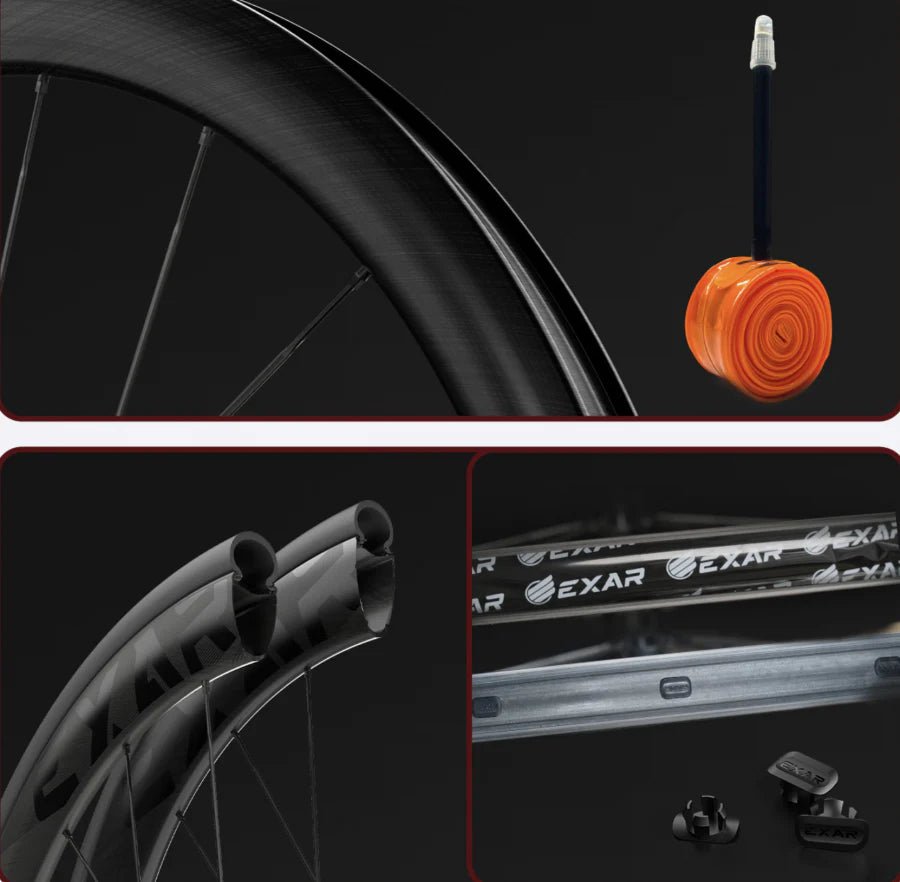

  • Tubeless and Clincher Tire Compatibility: Dynamic balance design supports both tubeless and clincher tires, with included rim plugs for reduced weight when using clincher tires.

Specifications
  • Product Name: UltraDark Series 2024
  • Model: DB405 UltraDark
  • Brake Type: Disc Brake
  • Rim Height: Front 40 mm, Rear 45 mm

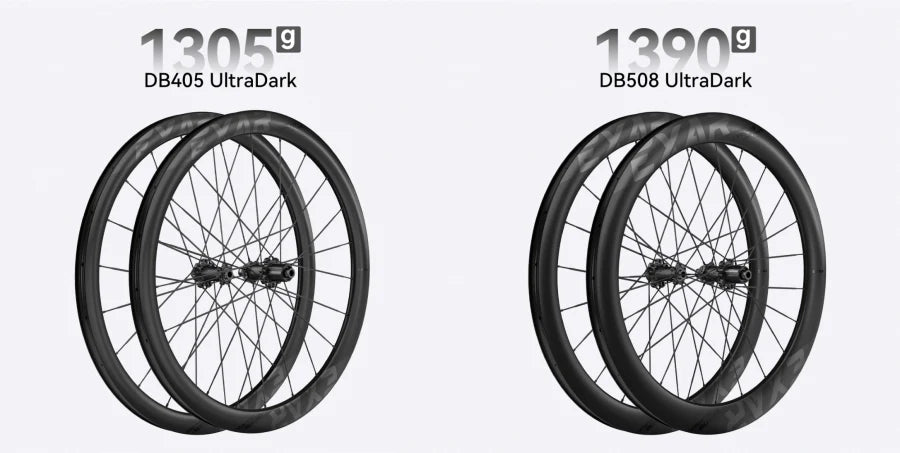

  • Weight: 1305 g (±3% tolerance, without rim tape and valve)
  • External Rim Width: 30 mm
  • Internal Rim Width: 23 mm
  • Rim Material: HI-MOD Carbon Fiber
  • Spoke: HI-MOD Carbon Fiber
  • Front Spoke Tension: 110kgf±10%
  • Rear Spoke Tension: Drive Side 130kgf±10%, Non-Drive Side 110kgf±10%
  • Front Wheel Spoke Lacing: 21H 2:1, brake side×2, non-brake side Radial Lacing
  • Rear Wheel Spoke Lacing: 21H, 2:1, drive side×2, brake side Radial Lacing
  • Ratchet: 36T (DT system Compatible, Replaceable Ratchet with different tooth amount)
  • Frame Spacing: 100/142 mm thru-axle
  • Freehub Standard: Shimano 11-speed (Campagnolo N3W and SRAM XDR freehub are available separately)
  • Compatible Cassette: Shimano 8-12 speed
  • Compatible Tire Type: Clincher Tire, Tubeless Tire
  • Maximum Tire Pressure: 110psi for Clincher Tire, 100psi for Tubeless Tire
  • Compatible Tire Width: Compatible with 25c Tire and above
  • Suggested Tire Width: 28c-32c
  • Warranty: 2 years
  • Country of Origin: China
