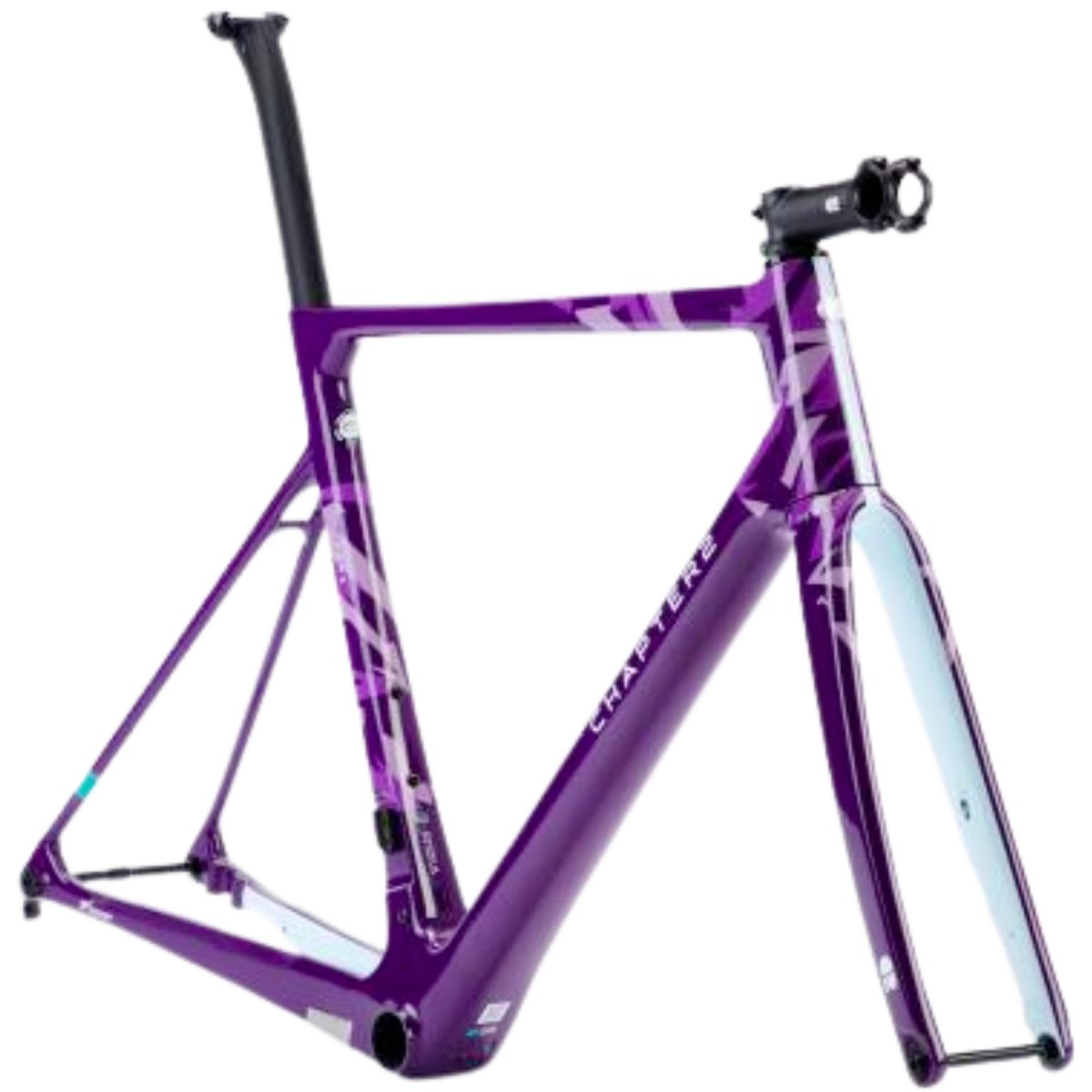

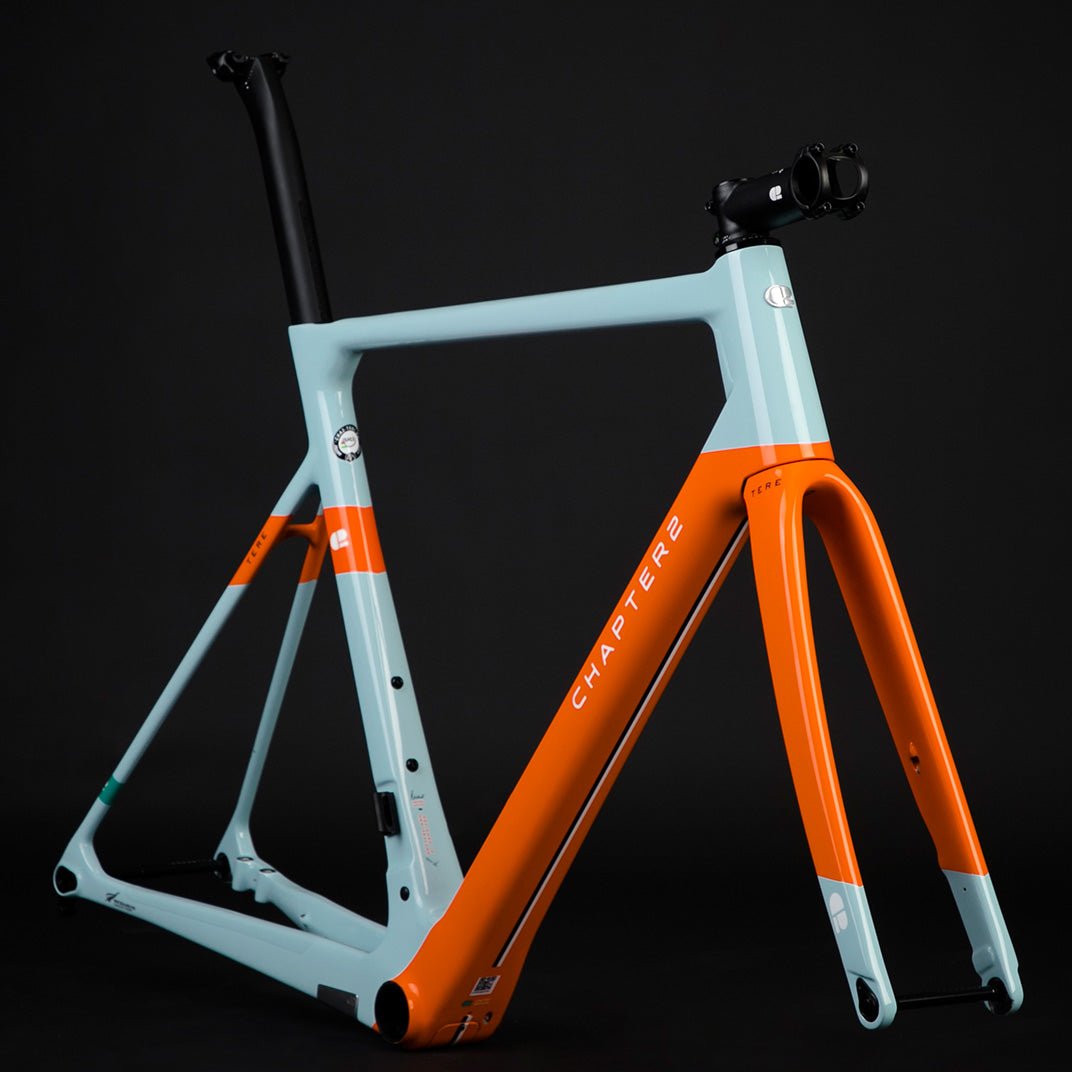

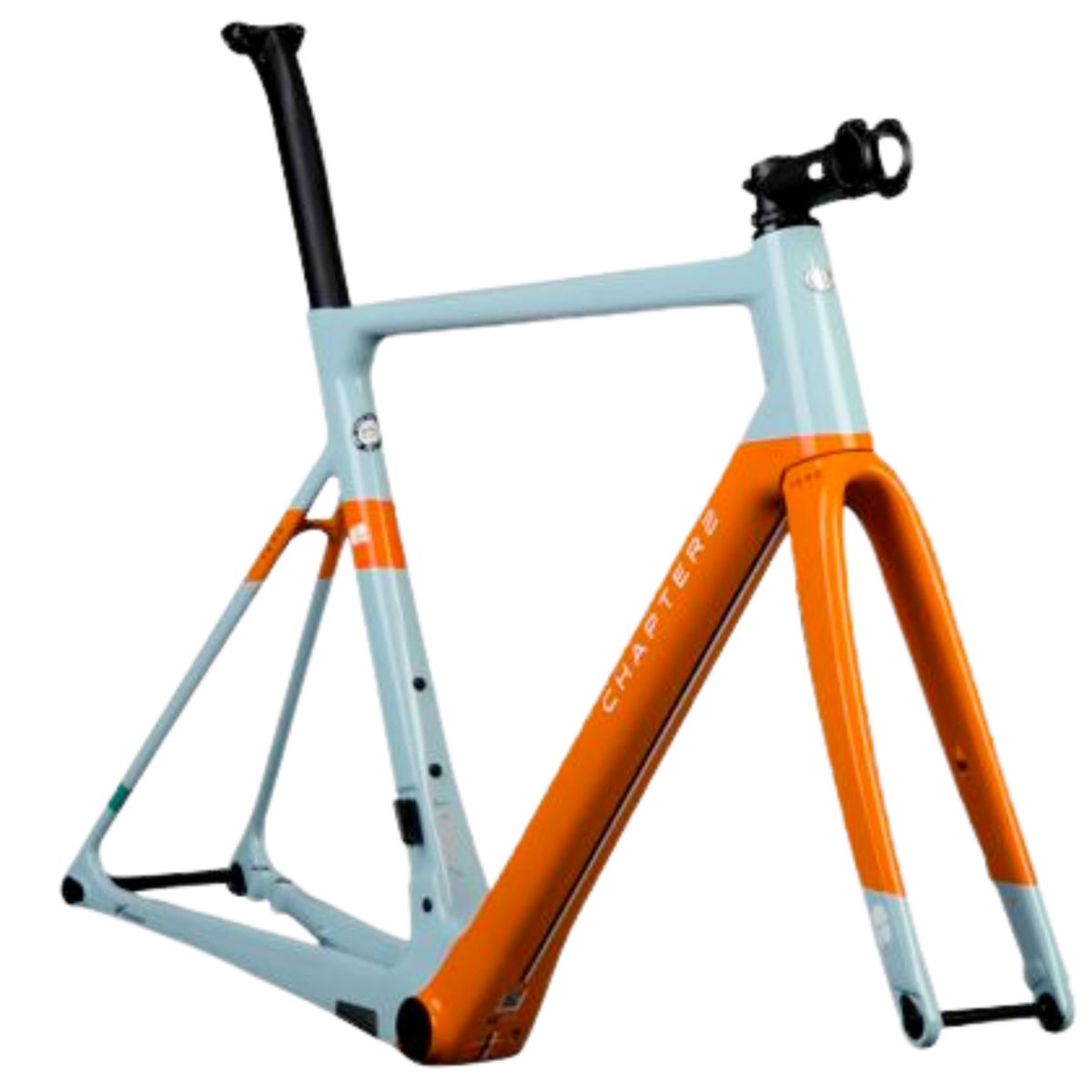

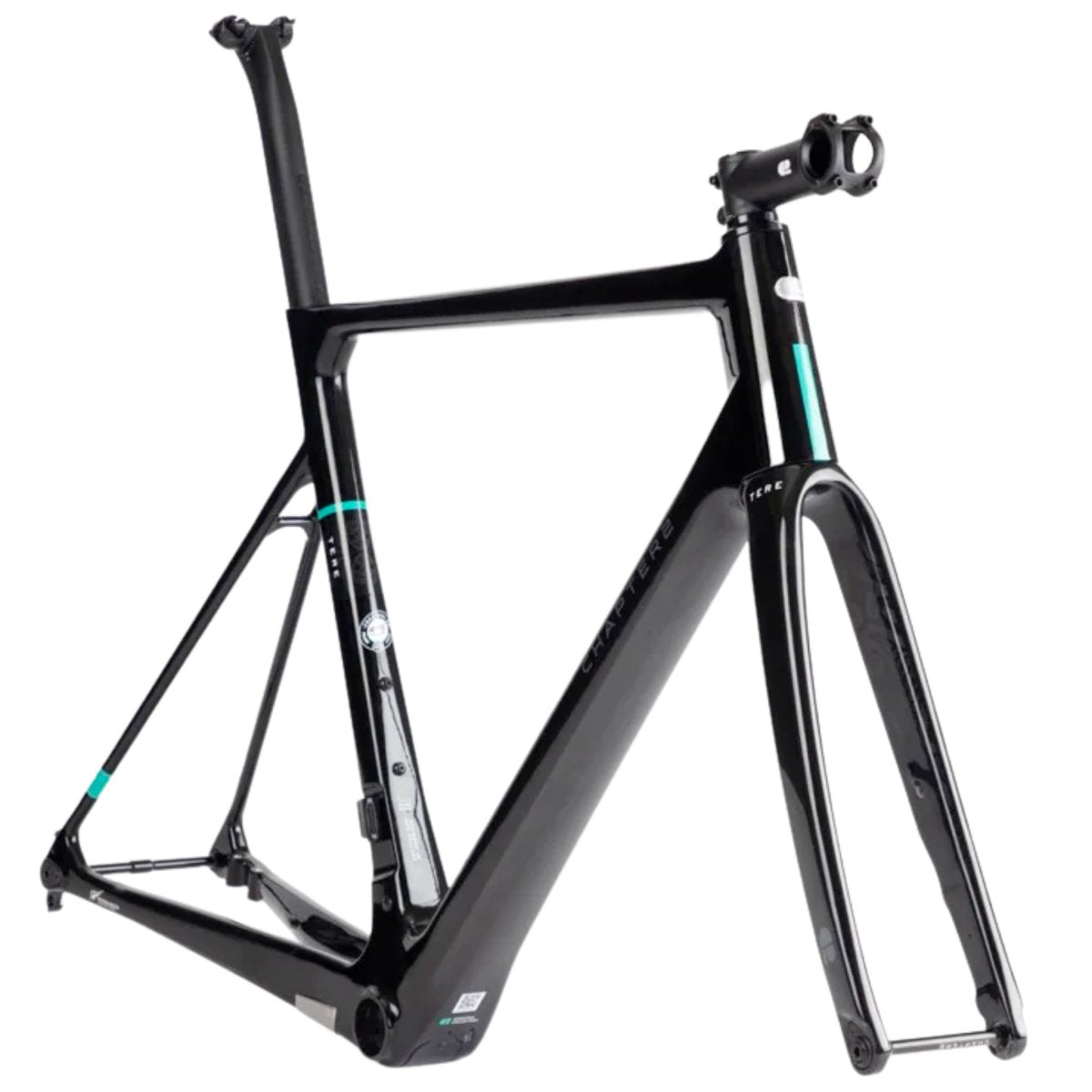

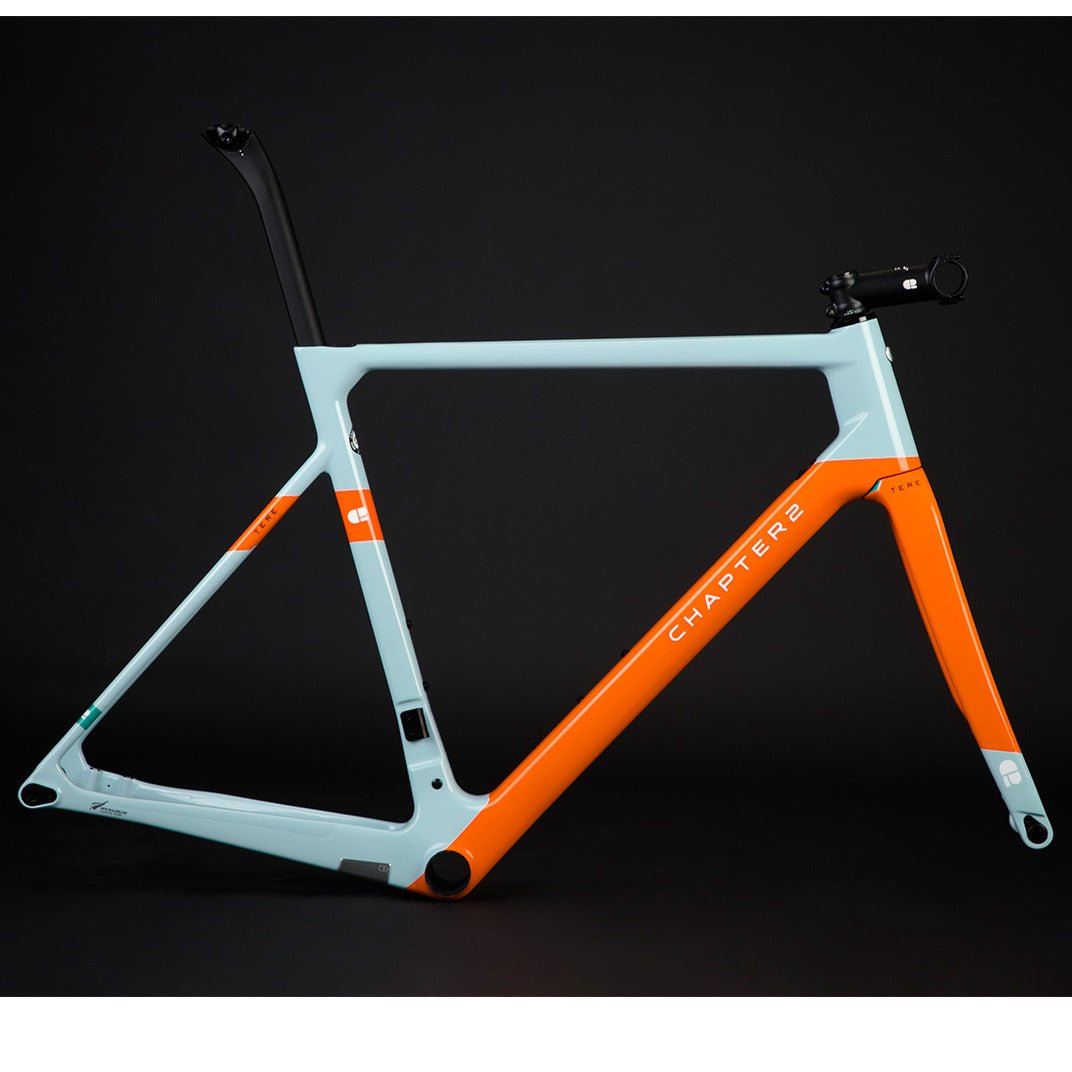

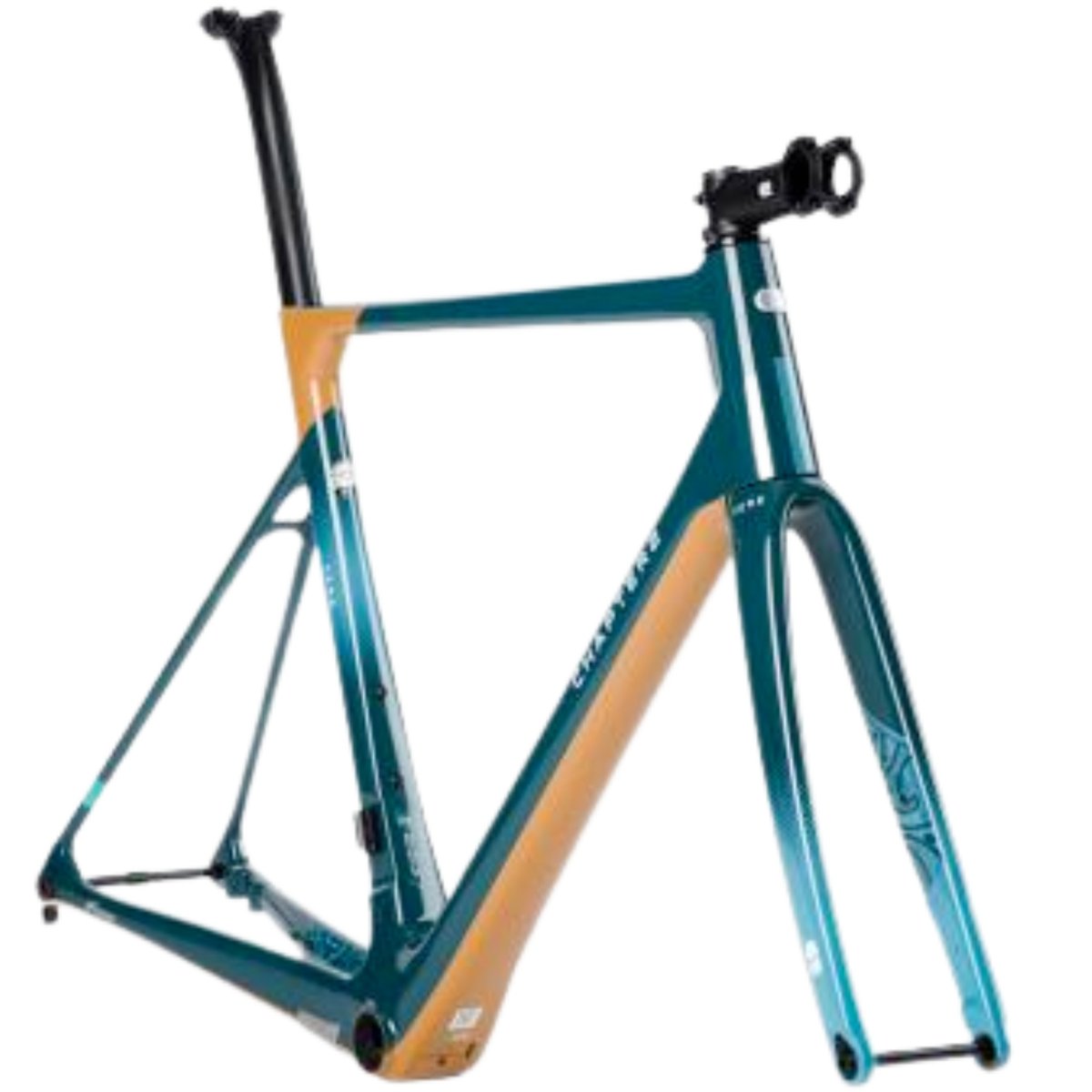

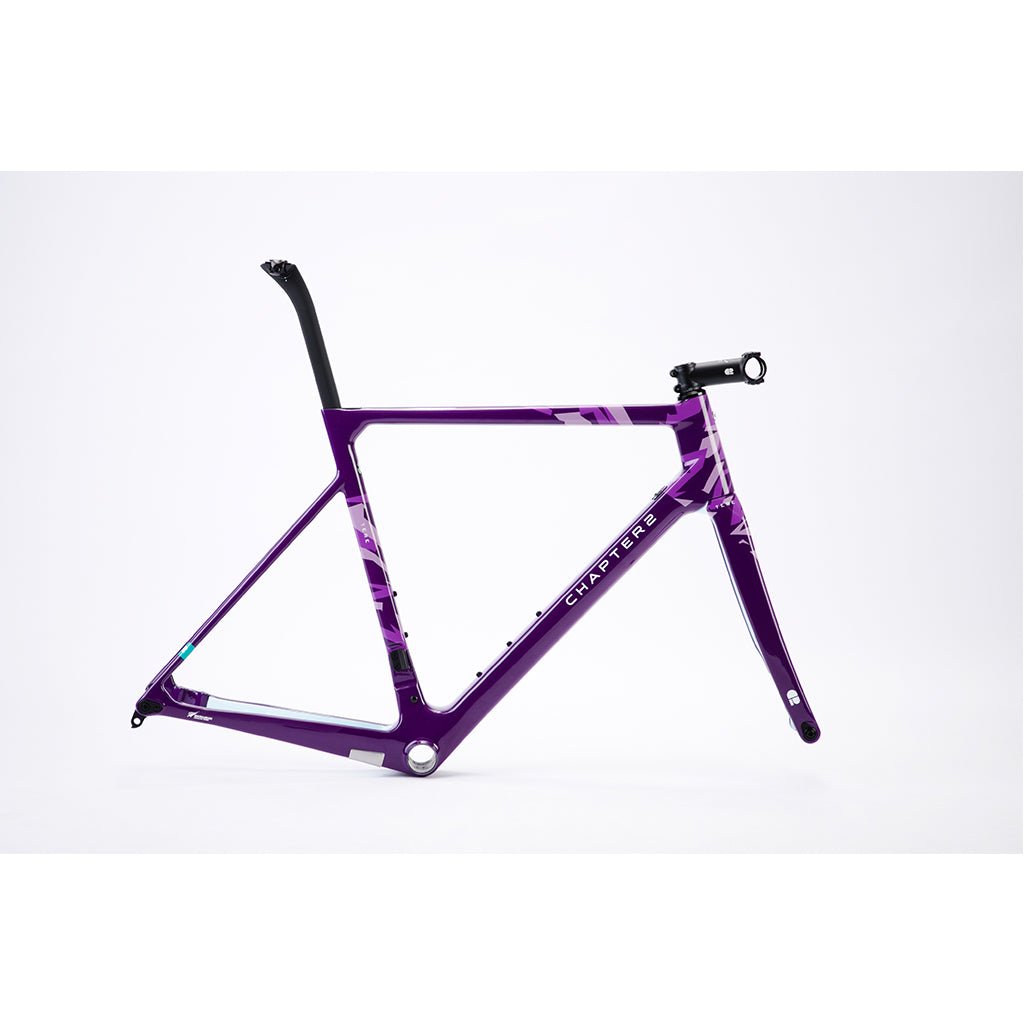

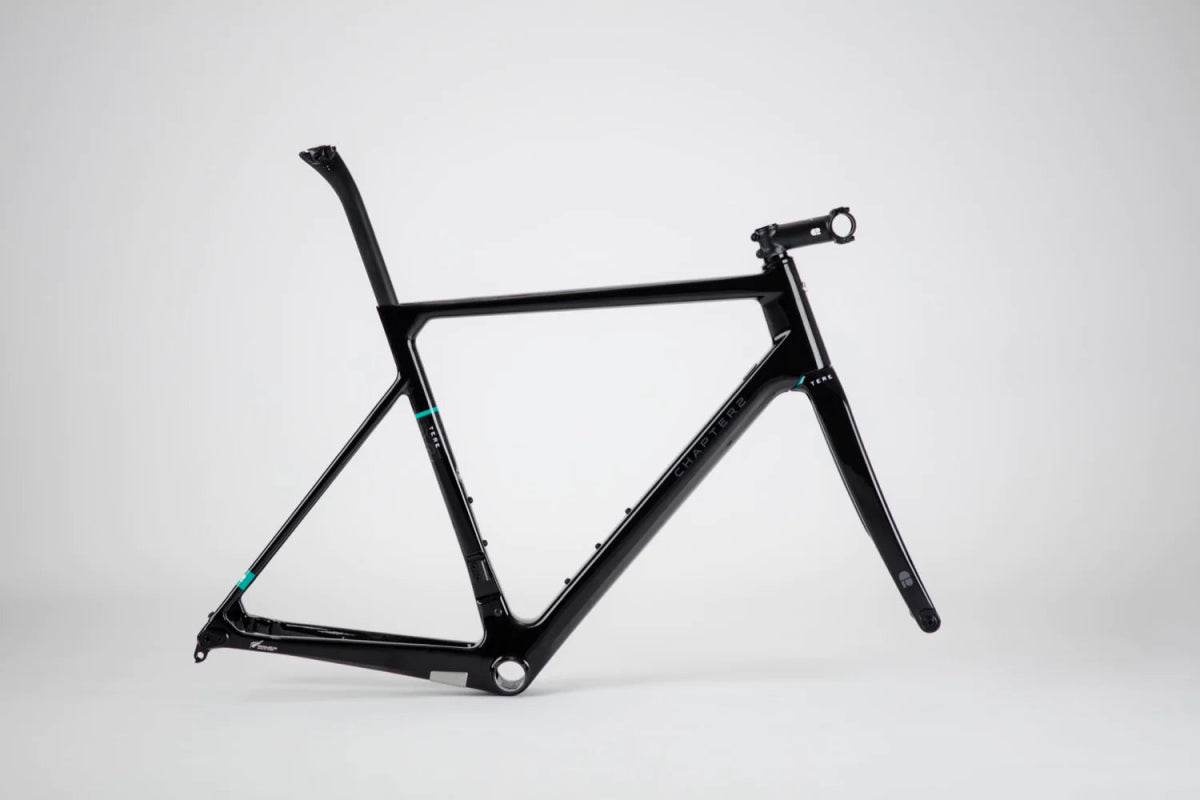

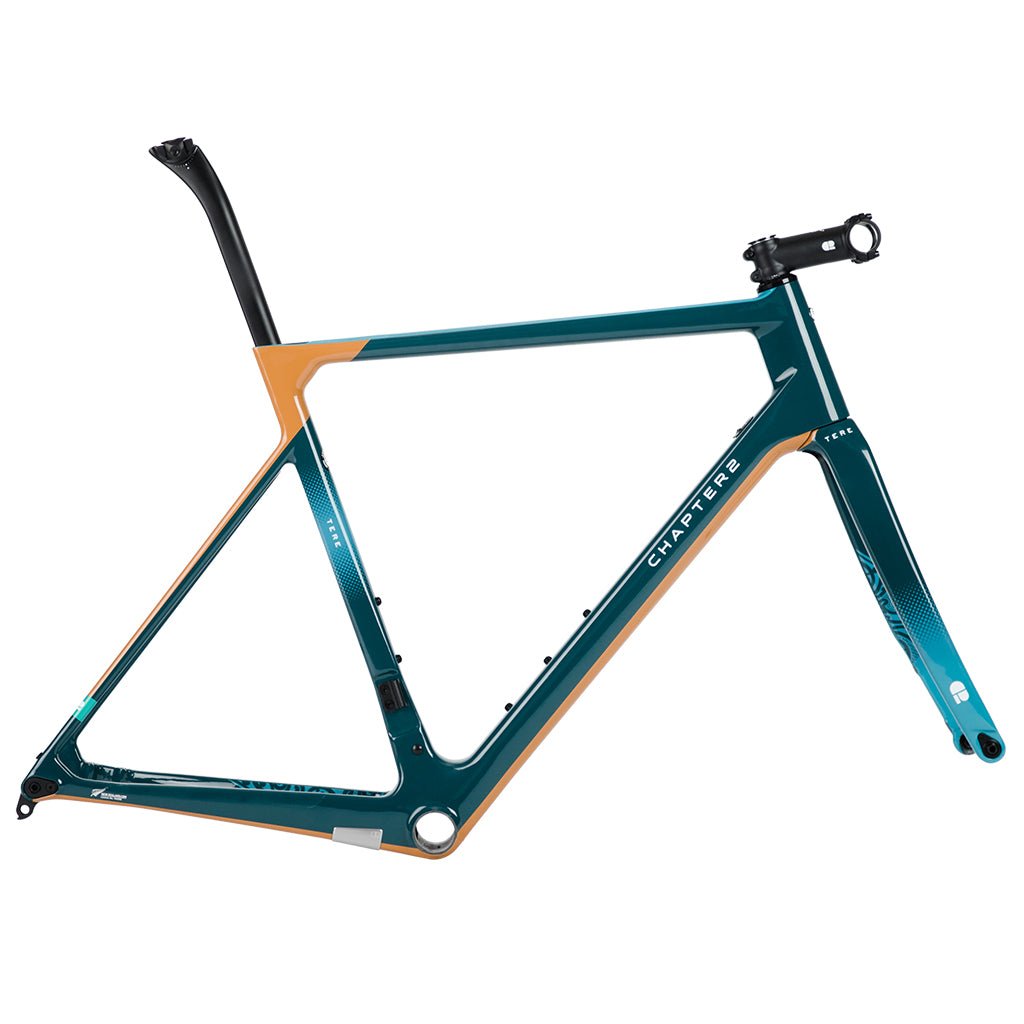

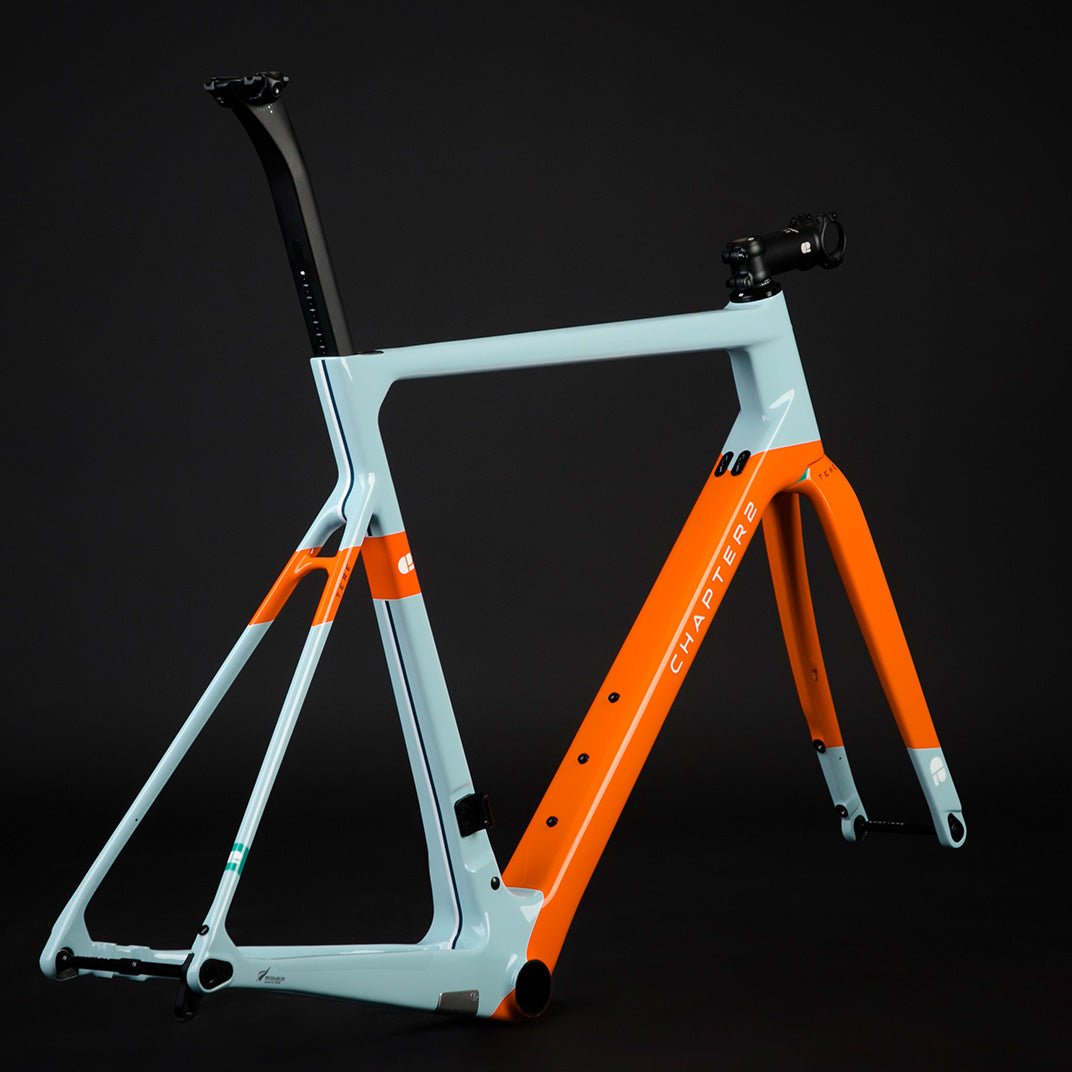

Chapter 2 TERE All-Road Disc Brake Frameset

117012FSZZZ27_XS

Regular priceâ‚ą194,900
/
Tax included. Shipping calculated at checkout.
Color
Size

Chapter 2 TERE All-Road Disc Brake Frameset: Versatility Redefined for All Conditions

The Chapter 2 TERE All-Road Disc Brake Frameset is the epitome of a Performance All-Road frame, designed to exceed expectations in all conditions. "Tere," meaning "be quick, swift, and fast" in Maori, perfectly encapsulates the essence of this frame, delivering on its promise of speed and agility on every occasion.

Quintessential All-Road Performance: Positioned in the All-Road category, the TERE is engineered to cater to both the weekend warrior and seasoned pro. Its unique silhouette is a result of careful engineering, ensuring an ideal stiffness-to-weight ratio for unparalleled performance. Whether you're tackling a local crit, conquering epic mountain climbs, or enjoying a leisurely coffee shop ride, the TERE excels in all scenarios.

Swift and Fast Design Philosophy: True to its name, the TERE embodies the design philosophy of being swift and fast. The frame's characteristics make it a versatile choice for riders who demand high performance in a variety of riding conditions. From sunrise to sunset, the TERE delivers an exceptional riding experience.

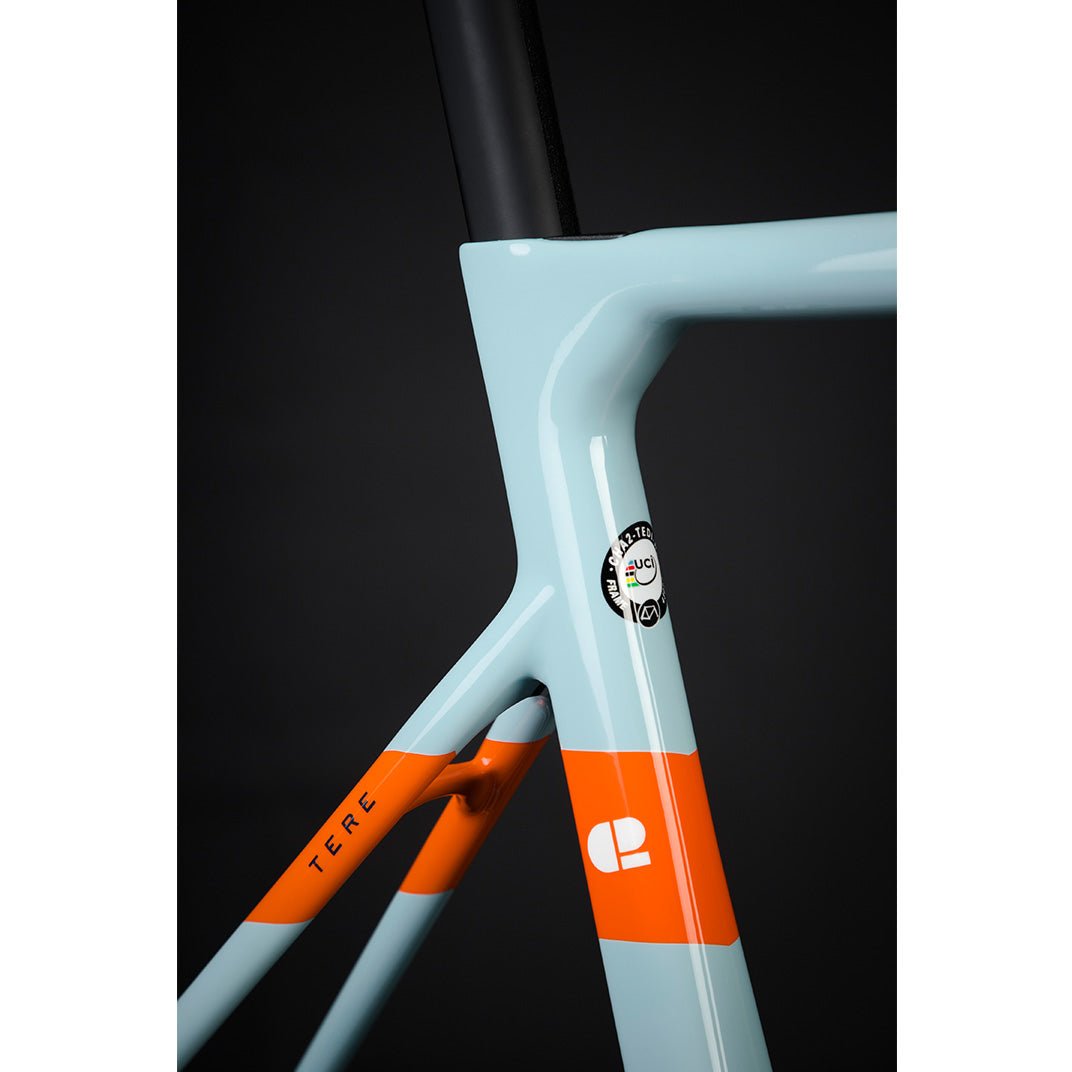

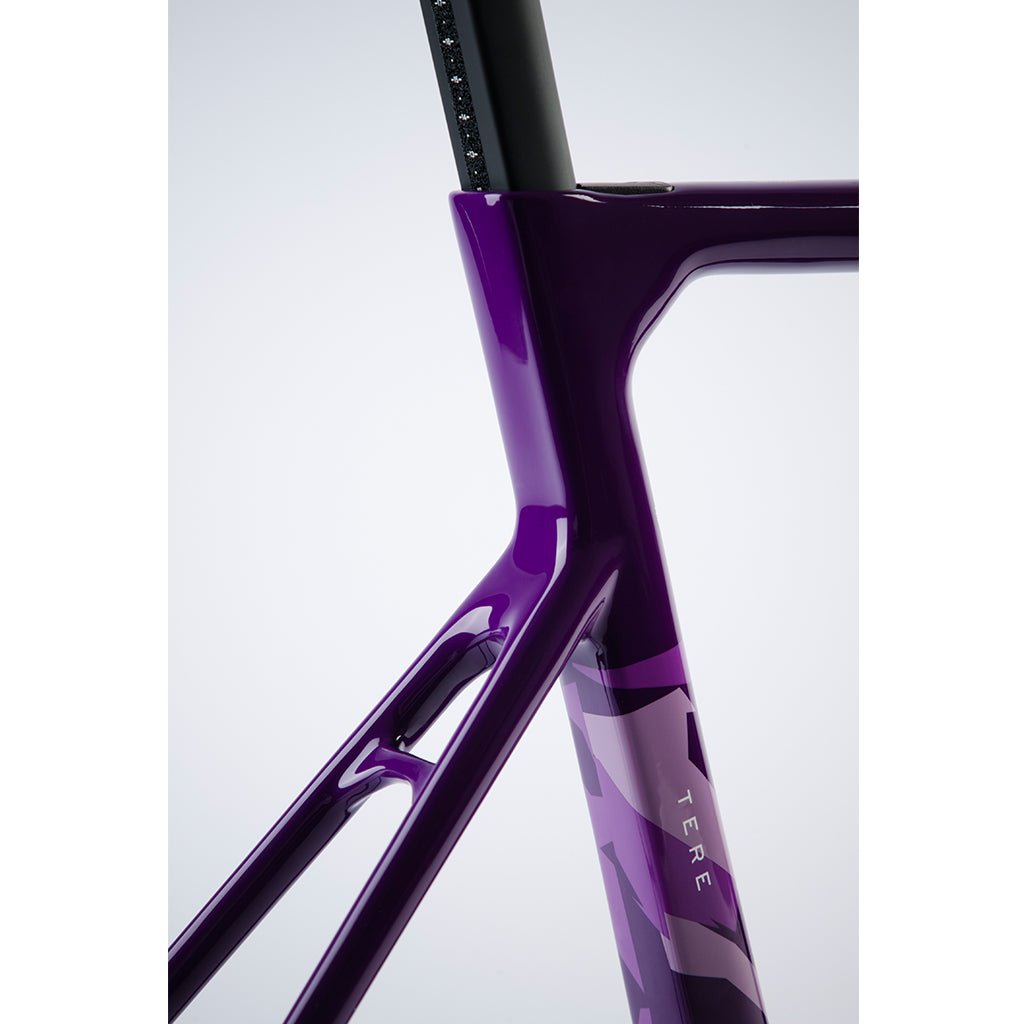

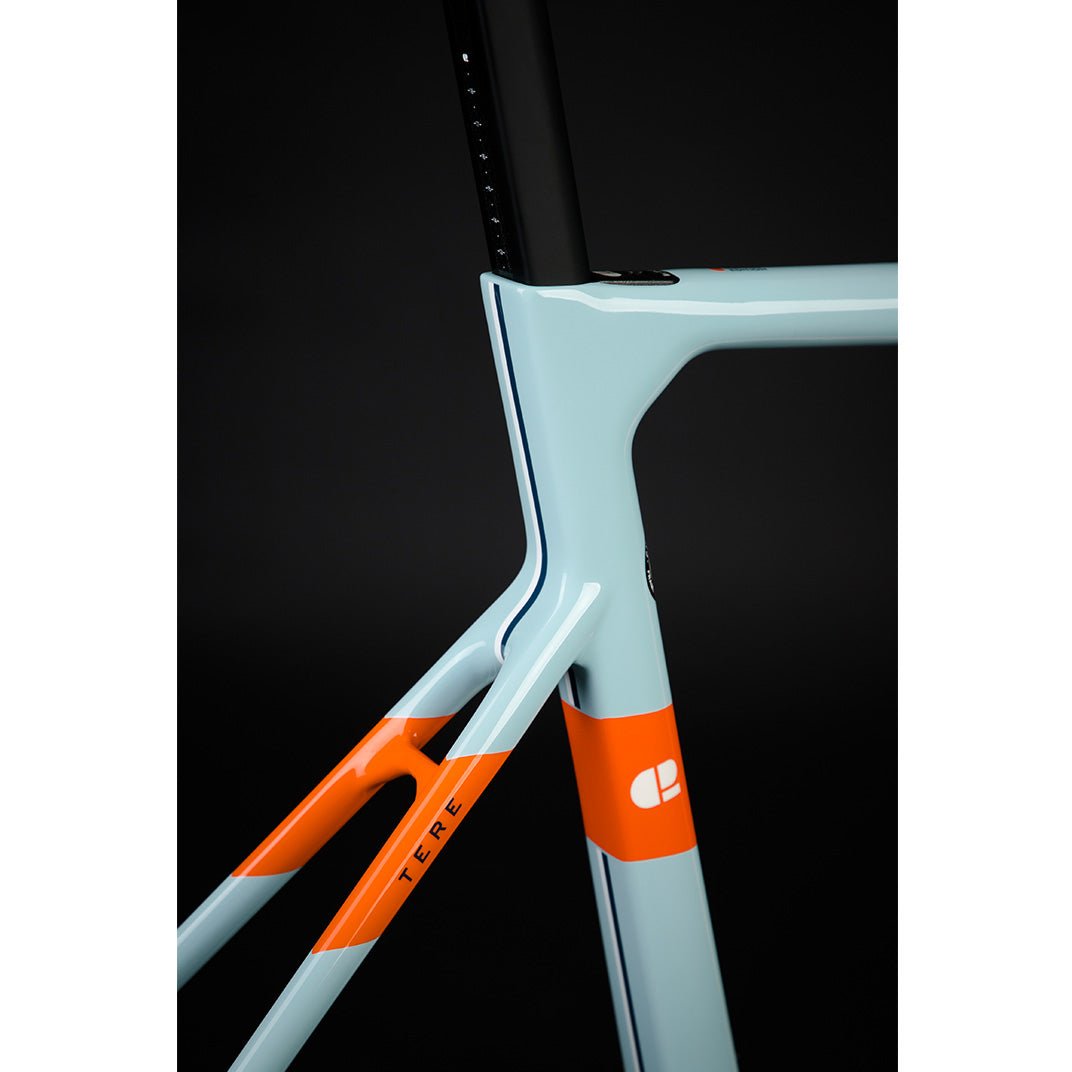

Vibration Dampening for All-Day Comfort: Designed with all-day riding in mind, the TERE features vibration dampening Seatstays and Seatpost. This thoughtful design, combined with a more upright stance, ensures that you can push your limits and give your best effort throughout the entire day.

Available in Rim and Disc Versions: Tailor your ride to your preferences with the TERE, available in both Rim and Disc versions. Whether you prefer the classic feel of rim brakes or the enhanced modulation of disc brakes, the TERE provides options to match your riding style.

Aerodynamic Excellence Tested in the Wind Tunnel: Subtle yet effective Kamm-Tail profiles on the TERE have been rigorously tested at Auckland University's Wind Tunnel. This aerodynamic excellence, combined with the use of high-tensile directional carbon fiber in the Headtube, ensures that the TERE handles with precision and confidence in any tight corner.

Versatility Redefined: The Chapter 2 TERE All-Road Disc Brake Frameset redefines versatility, offering a frame that excels in every riding scenario. Experience the swift and fast design philosophy embodied in the TERE, and elevate your riding experience to new heights.

Features

Features of Chapter 2 Tere All-Road Disc Brake Frameset

  • Stiff Racing Frame: Improved Power Transfer & Precise Steering
  • Compact Kamm-Tail: Aerodynamic & Stiffness where Needed
  • Kamm-Tail Aero Profile - Improved Lateral Stiffness - Improved Head Tube Stiffness
  • High Modulus Carbon (Headtube): Increased Cornering Performance
  • High Modulus Carbon (BB): Increased Power Transfer
  • Dropped Stays: Improved Compliance for Endurance Rides
  • Rigged Headtube - 1-8” - 1.5” Headset - Improved Headtube Stiffness
  • Rim & Disc Options: Both Options are Available
  • Tire Clearance - Up to 30mm Tire Clearance - Improved Traction & Compliance
  • Engineered Compliance - Slim Seat Stay - Vibration Dampening Seatpost
  • Directional Carbon - Improved Stiffness BB - Improved Stiffness Head Tube
  • MANA Bar Compatible - Compatible with MANA Bar - Integrated Fork Crown
  • Frameset Only: Bespoke & Personal

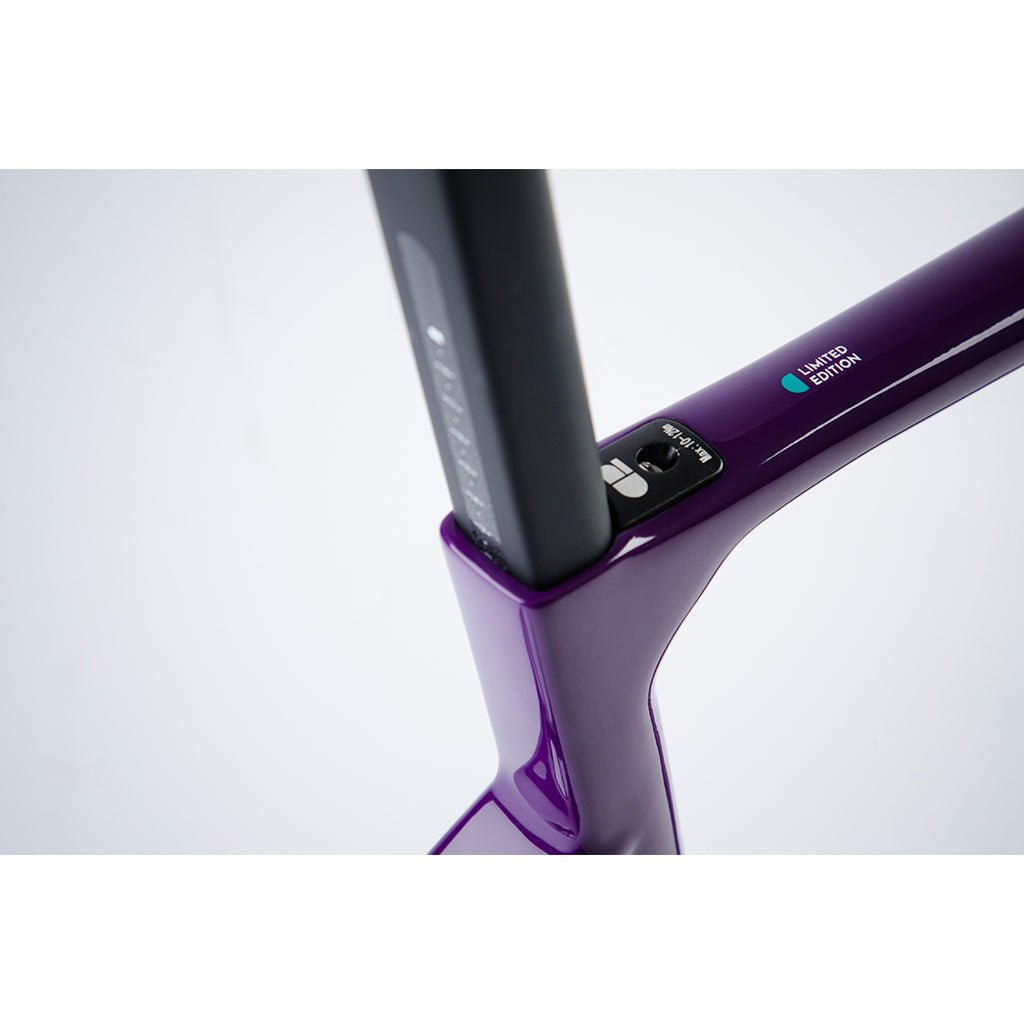

  • Limited Edition: Exclusivity
Specifications

Specifications of Chapter 2 Tere All-Road Disc Brake Frameset

Carbon  Toray® T700, T800 & 3K Directional Carbon
Frame 5 Sizes XS, S, M, L & XL
Fork Rakes (2) XS, S (53mm offset) and M, L, XL (43mm offset)
Frame Weight 950 g (Rim) & 1015 g (Disc) Size M +/- 3%
Fork Weight 390 g (Rim) & 425 g (Disc) Uncut +/- 3%
Seatpost Weight 98 g +/- 3%
Handlebar/Stem (MANA) 80 mm, 90 mm, 100 mm, 110 mm and 120 mm (+/-7°)
Headset Chapter2 Tapered 1-1/8” – 1.5”
Bottom Bracket Press Fit BB86.5
Electronic Shifting Shimano® Di2, SRAM® eTAP & Campagnolo® EPS compatible
Battery Type Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
Tire Clearance 25 mm (Rim) & 28 mm (Disc)
Saddle Rail 7 mm Round & 7x9 mm Oval
Disc Thru-Axle Spec Flat Mount, FR 12x100 mm, RR 12x142 mm, E-Thru M12x1.5 mm
Safety Standard EN ISO 4210:2014
UCI Accreditation UCI Approved
Torque Specifications
Saddle Rail 12Nm
Seatclamp 10-12Nm
Stem (Steerer) 6Nm
Stem (Handlebar) 6Nm
Front Derailleur Hanger 3Nm
Rear Derailleur Hanger 2Nm
BB Cable Guide Cover 1Nm
Water Bottle Cage Bolts 3Nm
Geometry

Geometry of Chapter 2 Tere All-Road Disc Brake Frameset

Size  XS S M L XL
Stack 505
530
555
580
605
Reach 360
368
378
387
396
Top Tube 514
531
548
564
581
Head Tube 113
133
153
178
204
Seat Tube Angle (°) 73 73 73 73 73
Head Tube Angle (°) 70.5 72.2 73.1 73.5 73.5
Seat Tube 495
515
535
555
575
BB Drop 68
68
68
68
68
Rear Centre 408 408 408 408 408
Wheelbase 970
975
973
985
1002
Front Centre 575
575
575
587
604
Fork Offset 53 53 43 43 43
Seatpost Setback 20
20
20
20
20
Stem 80
90
100
110
120
Standover 756
778 800 823
846
Rider Height <170
165-175 170-180 175-185 >180
Max. Tire Size 28
28
28
28
28
Rear Caliper Mount 25 25 25 25 25
In The Box

Contents of Chapter 2 Tere All-Road Disc Brake Frameset

  • Frame
  • Fork
  • Stem
  • C2 fork expansion bolt
  • Headset
  • Headset spacer kit
  • Seatpost
  • Thru Axles
