Basso Venta Disc 105 MCT Road Bicycle
1BAVNDBK15T8-51

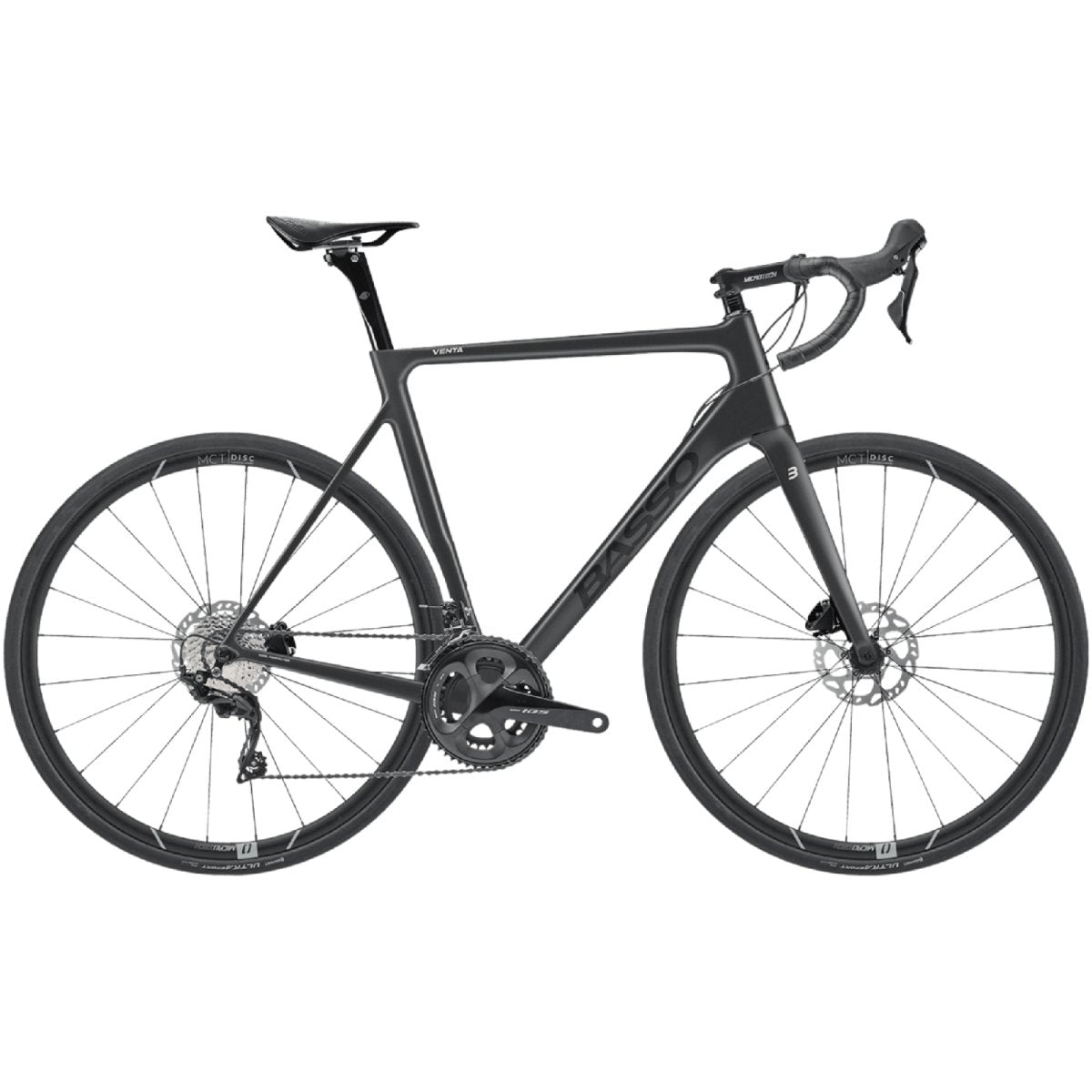

Basso Venta Disc 105 MCT Road Bicycle
Premium Quality for all: Experience the pinnacle of cycling excellence with the Basso Venta Disc 105 MCT Road Bicycle. Crafted with utmost precision and attention to detail by Basso, renowned for their premium frames, the Venta is a testament to superior craftsmanship and exceptional value. Designed to excel on the racecourse and built to endure, this road bicycle guarantees enduring performance for years to come.
Unleash Your Power, Unleash Your Speed: Equipped with an oversized bottom bracket and a reinforced head tube junction, the Venta resists torsional stress, ensuring unparalleled power transfer and efficiency. Bid farewell to power loss due to flex, and embrace a ride that maximizes your energy output, propelling you towards the finish line with lightning speed and remarkable ease.
Fast, Smooth, No Compromises: Discover a new level of speed and comfort with the Venta's innovative design. Its relaxed geometry provides added comfort, while the meticulously developed carbon layup delivers a reactive and comfortable structure. The straight fork and compact rear triangle contribute to exceptional handling performance, making the Venta agile enough to tackle even the most challenging terrains with finesse.
Every Detail Counts: Elegance meets functionality in the Basso Venta Disc 105 MCT Road Bicycle. Beyond its stunning aesthetics, this bike boasts advanced features typically reserved for higher-tier models. Experience the convenience of internal cable routing, ensuring a clean and streamlined appearance while optimizing performance.
Features
Features of Basso Venta Disc 105 MCT Road Bicycle
- Handmade by Basso with meticulous attention to quality and detail
- Exceptional value proposition without compromising on performance
- Oversized bottom bracket and reinforced head tube junction for optimal power transfer
- Eliminates power loss due to flex, maximizing efficiency
- Relaxed geometry for added comfort during long rides
- Meticulously developed carbon layup for a reactive and comfortable structure
- Straight fork and compact rear triangle for agile and responsive handling
- Advanced features like internal cable routing for a clean and streamlined appearance
Technology of Basso Venta Disc 105 MCT Road Bicycle
3B Clamp System Gen 2
A totally hidden fixing solution that is invisible on the frame, intertwining technological and aesthetic innovation.
The result is a lightweight, invisible and strong integrated system with three screws, which has been further implemented through the vulcanization of the steel plank. This Basso solution gives the 3B system an anti-vibration function, which improves the riding experience by elevating comfort on uneven and bumpy surfaces.
Specifications

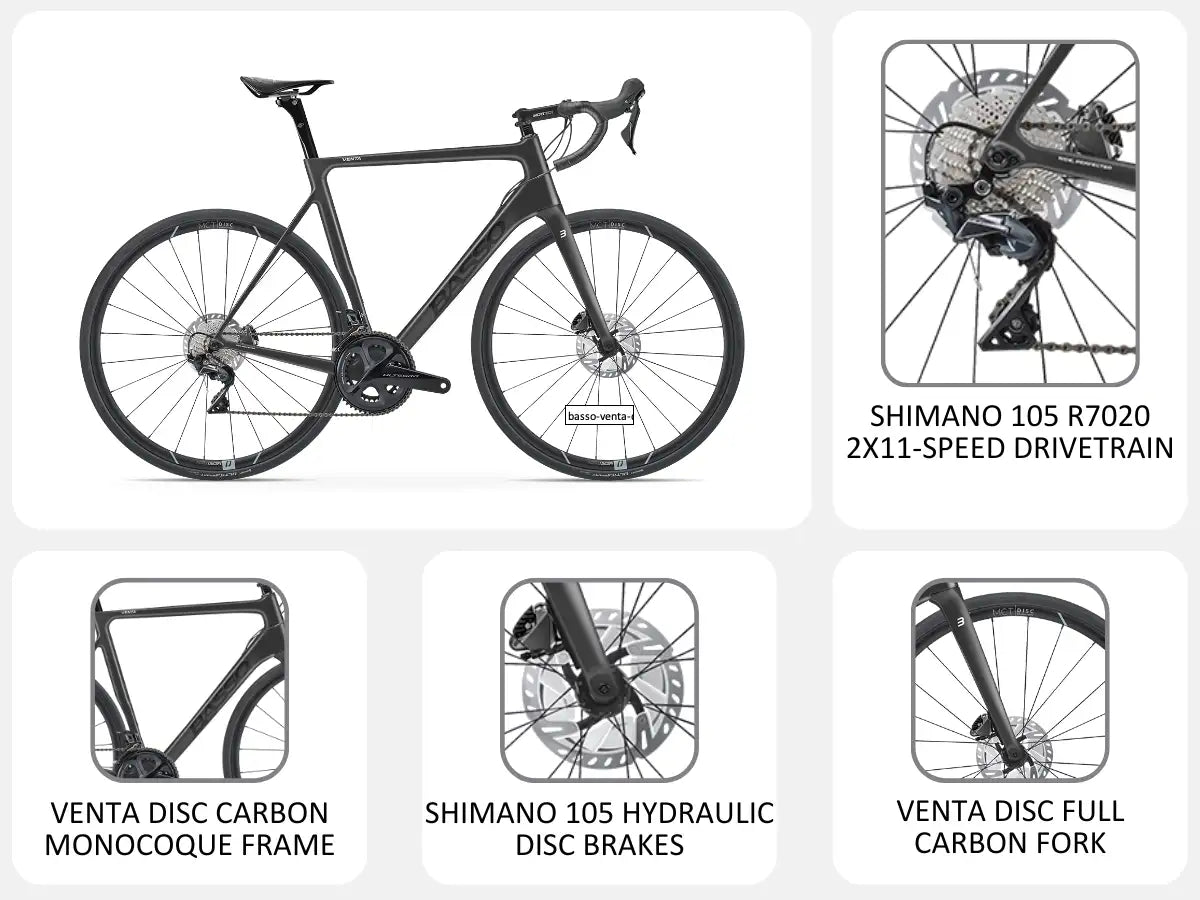

Specifications of Basso Venta Disc 105 MCT Road Bicycle
|
Model |
Venta Disc |
|
Frame |
Venta Disc Carbon Monocoque |
|
Frame Kit |
The frame, fork and all the specific Basso components |
|
Build Kit |
Frame kit and all components without groupset |
|
Color |
Antrachite |
|
Fork |
Venta Disc Full Carbon |
|
Derailleur |
Front: Shimano 105 R7020 2-Speed; Rear: Shimano 105 R7020 11-Speed |
|
Shifters |
Shimano 105 2x11-Speed |
|
Brakes |
Shimano 105 Hydraulic Disc Brakes |
|
Brake Levers |
Shimano 105 |
|
Groupset |
Shimano 105 7020 Disc |
|
Cassette |
Shimano 105 11/32T |
|
Chain |
Shimano 105 |
|
Crank Arm |
172.5 |
|
Crankset |
Shimano 105 50/34T |
|
No Of Gears |
22 Speed |
|
Wheels |
Microtech MCT Disc |
|
Additional Spacers |
Microtech 5 mm Spacer (3 x 5mm spacers already included) |
Geometry
Geometry of Basso Venta Disc 105 MCT Road Bicycle
Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.
|
|
45 |
48 |
51 |
53 |
56 |
58 |
61 |
|
Seat Tube (A1) |
450 mm |
480 mm |
510 mm |
530 mm |
560 mm |
580 mm |
610 mm |
|
Top Tube (B) |
505 mm |
515 mm |
525 mm |
545 mm |
560 mm |
575 mm |
590 mm |
|
Reach (R) |
374 mm |
374 mm |
377 mm |
383 mm |
385 mm |
388 mm |
389 mm |
|
Stack (S) |
527 mm |
527 mm |
552 mm |
564 mm |
591 mm |
614 mm |
638 mm |
|
Seat Tube Angle (C) |
76° |
75° |
75° |
74° |
73,5° |
73° |
72,5° |
|
Steering Tube Angle (D) |
71,8° |
71,8° |
72° |
74° |
73,5° |
73,5° |
74° |
|
Chain-Stay Length (E) |
400 mm |
400 mm |
400 mm |
400 mm |
402 mm |
406 mm |
406 mm |
|
BB To Fork Length (F) |
576 mm |
576 mm |
585 mm |
592 mm |
590 mm |
599 mm |
602 mm |
|
Head Tube (H) |
125 mm |
125 mm |
150 mm |
162 mm |
180 mm |
204 mm |
228 mm |
|
Handlebar Width Out/Out (M) |
420 mm |
440 mm |
440 mm |
440 mm |
440 mm |
440 mm |
460 mm |
|
Stem Length (N) |
90 mm |
100 mm |
100 mm |
110 mm |
110 mm |
120 mm |
130 mm |
|
Crank Length (O) |
170 mm |
170 mm |
172,5 mm |
172,5 mm |
172,5 mm |
172,5 mm |
175 mm |
