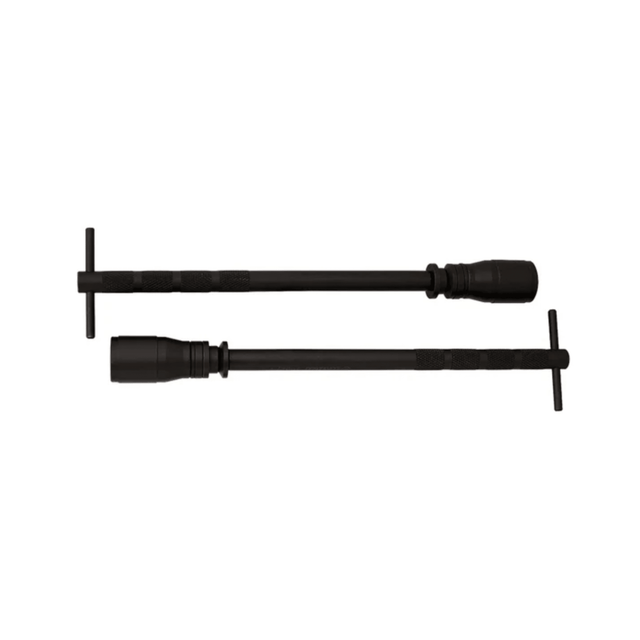

Unior 1692/4 Dropout Alignment Gauges

Name: Unior 1692/4 Dropout Alignment Gauges
Brand: Unior
SKU: 618412
Price: 6675.0 INR
Availability: InStock

Paired Dropout Gauges For Accurate Frame Alignment

₹6,675

Delivery estimateEnter your pincode for delivery dates

Free shipping over ₹2,000Delivered across India
100% genuineAuthorised dealer, manufacturer warranty
Cash on deliveryOn orders up to ₹20,000
Secure checkoutUPI, cards and net banking

Not sure about size or compatibility? Ask TBA Guide WhatsApp us

The Unior 1692/4 Dropout Alignment Gauges are designed to check whether the frame or fork dropouts are parallel, square and properly aligned before wheel installation.

Helps Diagnose Wheel Fit Issues: Misaligned dropouts can cause poor wheel tracking, brake rub, shifting issues, or uneven hub bearing load. These gauges help identify the problem clearly before further adjustment.

Paired Gauge Design: The tool is used as a pair, with each gauge fitted into the dropouts like an axle. When the two faces are brought together, the gap shows whether the dropouts are aligned or need correction.

Useful For Steel Frame Correction: For minor misalignment on steel frames, the gauges can also provide controlled leverage for correction. For aluminium, carbon, or titanium frames, manufacturer guidance should be followed.

The Unior 1692/4 Dropout Alignment Gauges are a specialist workshop tool for accurate frame and fork dropout inspection and alignment.

Product details

Specifications

Product Code: 618412
Operation: Paired Gauges Installed into Front and Rear Dropouts
Compatibility: Most Modern Frame and Fork Dropouts
Recommended Workflow: Use before Hanger Alignment and Final Drivetrain Adjustment

Features

Dropout Alignment Check: Helps inspect whether frame or fork dropouts are parallel, square, twisted, or splayed.
Paired Gauge Design: Two gauges install like wheel axles and meet face-to-face to reveal alignment errors clearly.
Steel Frame Correction: Can help correct minor steel dropout misalignment using controlled leverage.
Diagnostic Workshop Tool: Useful when tracking issues, brake rub, or repeated hanger problems are hard to solve.
Full Rear-End Workflow: Pairs well with hanger alignment tools for complete rear dropout and drivetrain alignment service.

How to use

Install Gauges: Fit each gauge into the frame or fork dropouts like a wheel axle.
Bring Faces Together: Move the gauge faces toward each other to check whether they meet flush.
Read Alignment: A visible gap, offset, or uneven contact shows twist, splay, or non-parallel dropout alignment.
Correct Carefully: On steel frames, apply controlled pressure through the gauge handle in the needed direction.
Re-Check Often: Re-measure after each correction and repeat gradually until both gauge faces align correctly.
Avoid Carbon Bending: Do not attempt to bend carbon dropouts; use the tool for diagnosis only on carbon frames.
