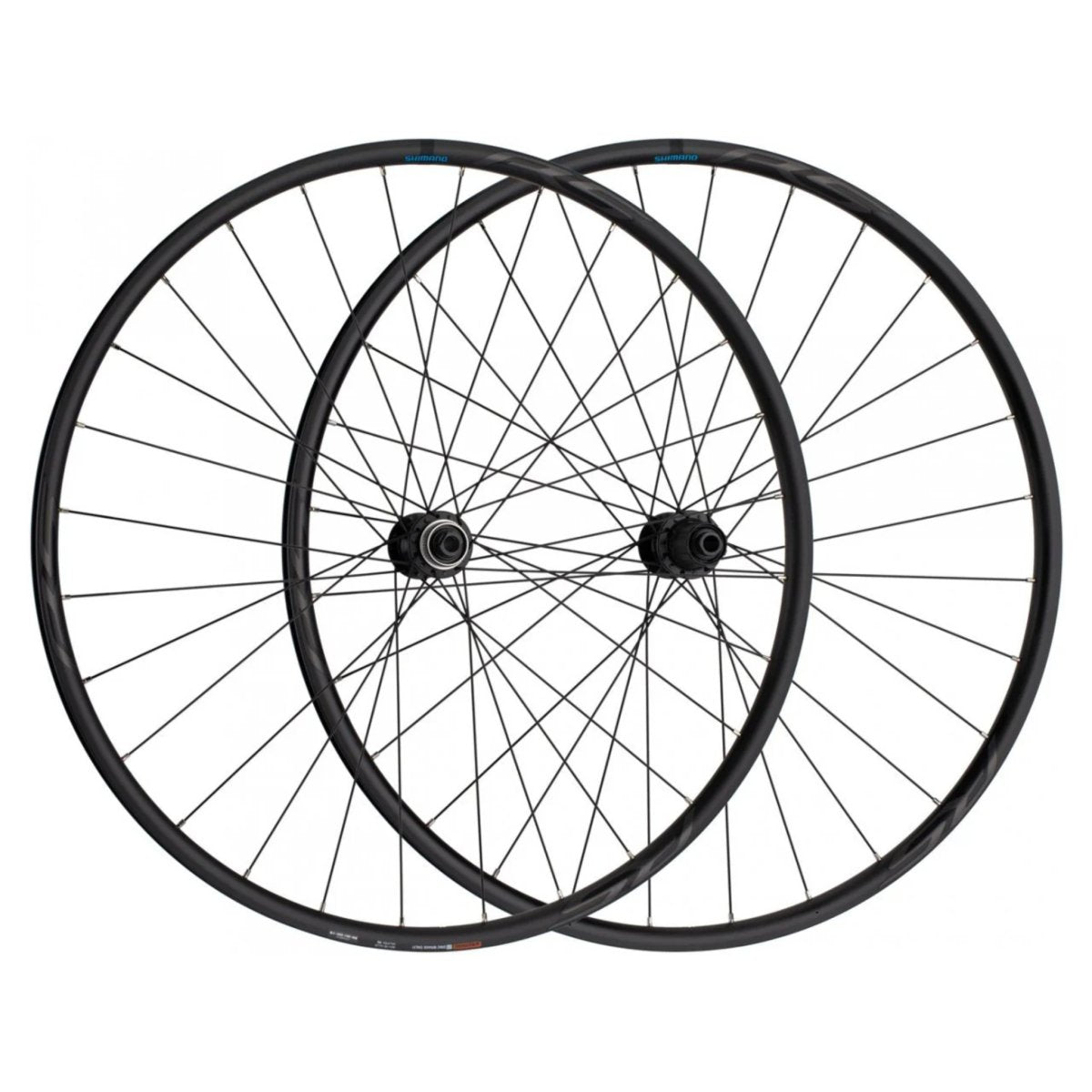

Shimano WH-RS171-CL-700C Clincher Center Lock Disc Brake Wheelset

Name: Shimano WH-RS171-CL-700C Clincher Center Lock Disc Brake Wheelset
Brand: Shimano
SKU: EWHRS171FERED70B
Price: 18930.0 INR
Availability: InStock

EWHRS171FERED70B

₹18,930

Type

Pair Rear

Product variants

In the Box

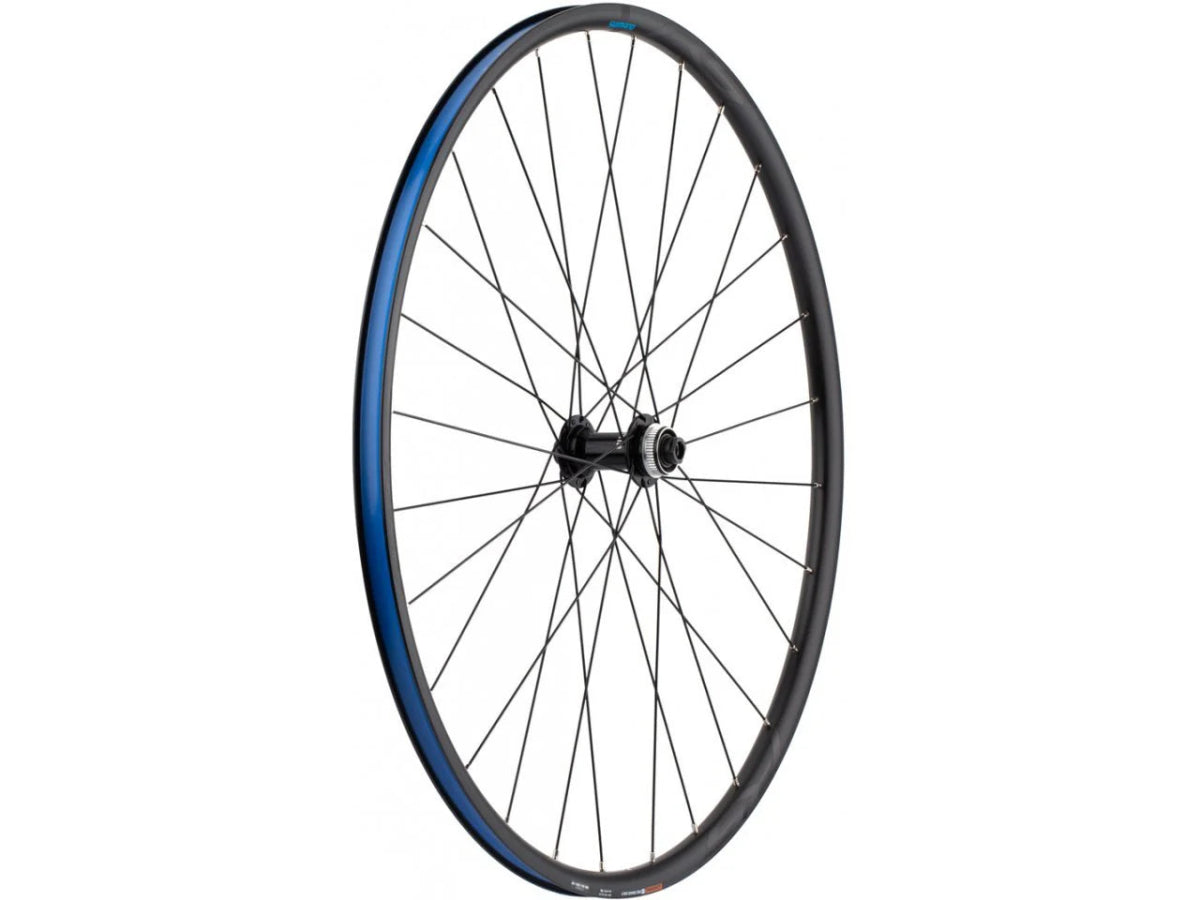

1 x Shimano WH-RS171-CL-700C Front Wheel

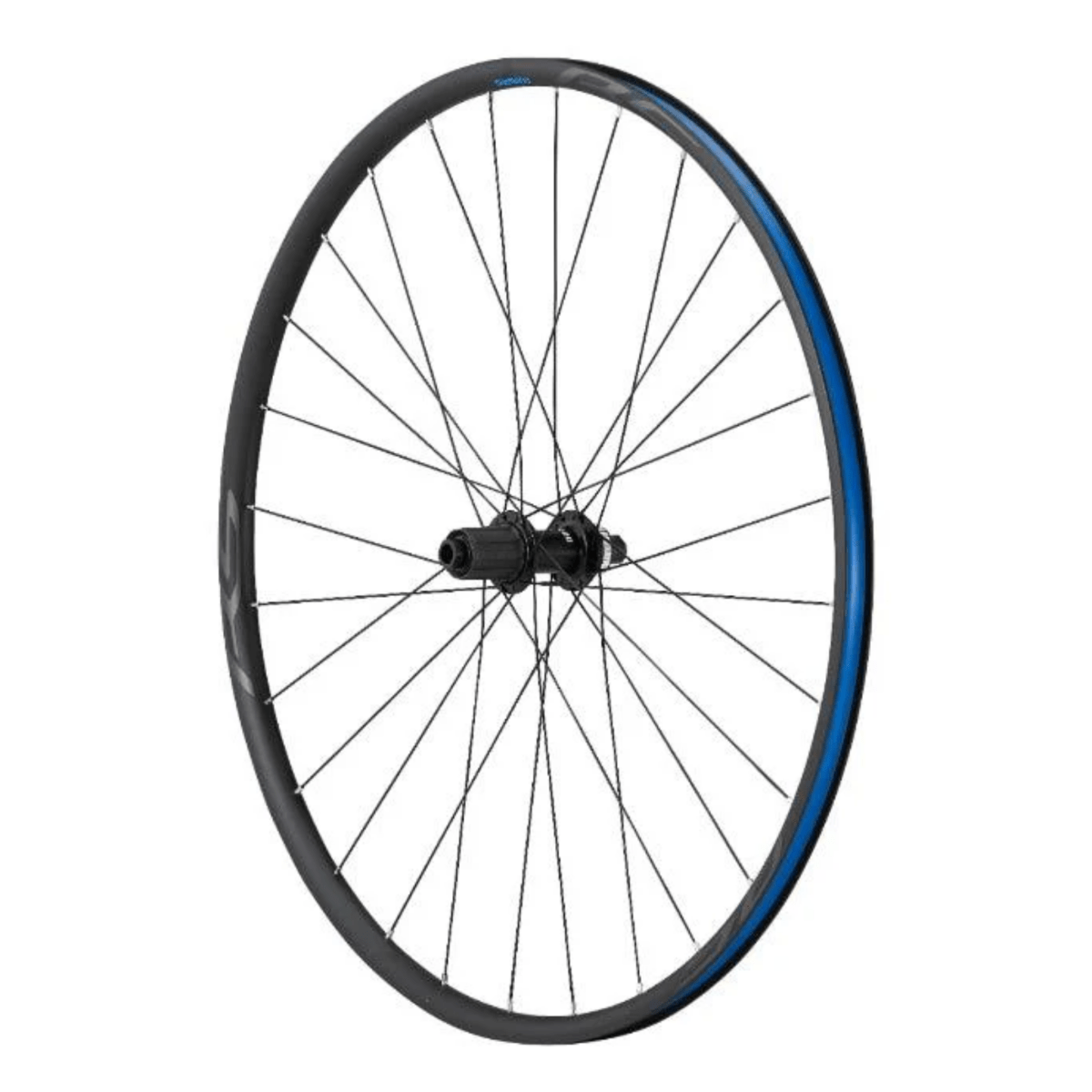

1 x Shimano WH-RS171-CL-700C Rear Wheel
incl. Rim Tapes

Reliable and Versatile Road and Gravel Wheelset

Description

The Shimano WH-RS171-CL-700C Wheelset is a reliable and versatile option for road and gravel riders. Designed for performance and durability, it features a lightweight clincher rim, Center Lock disc brake compatibility, and seamless integration with modern drivetrains.

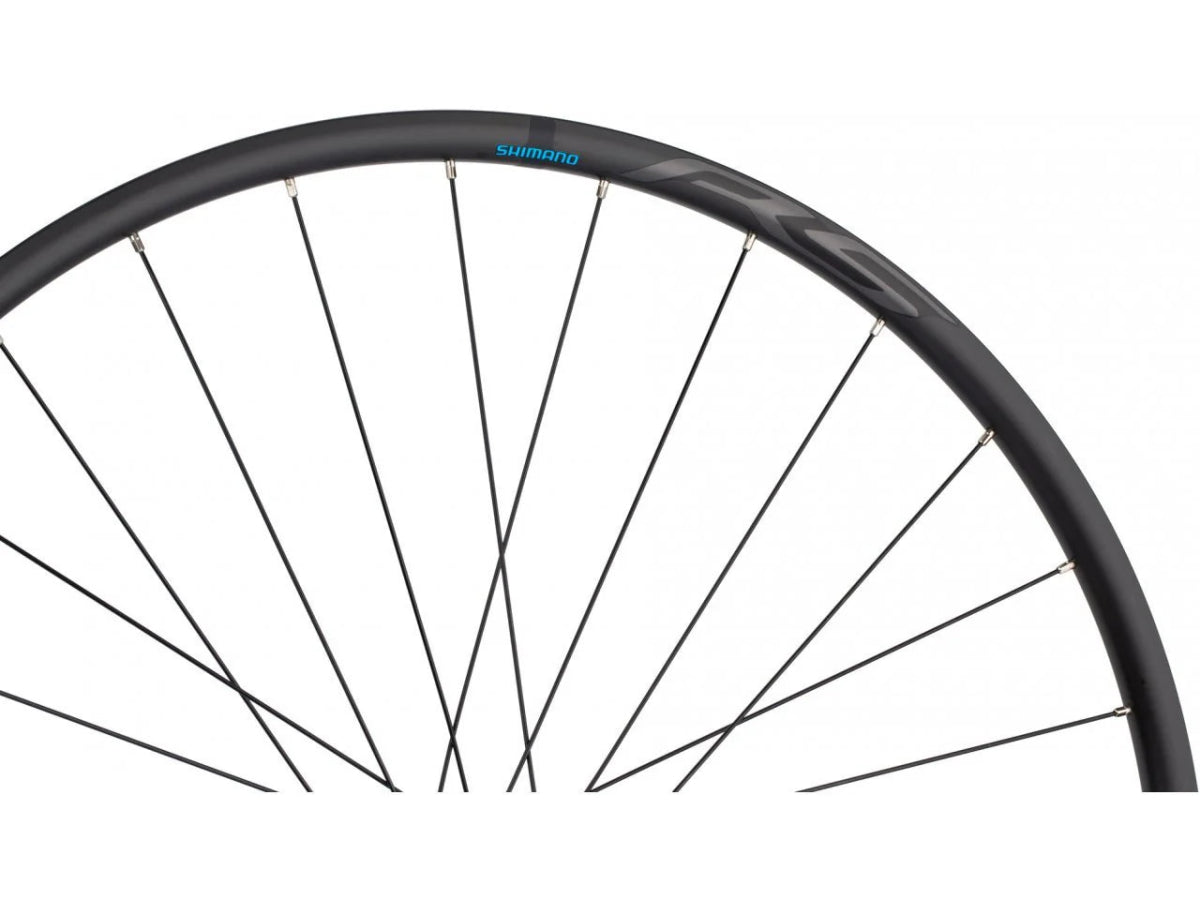

Durable and Lightweight Design: The WH-RS171 features a robust aluminum clincher rim designed for 700C tires. With 28 spokes in both the front and rear wheels, the wheelset ensures strength and durability while maintaining a lightweight profile for efficient riding.

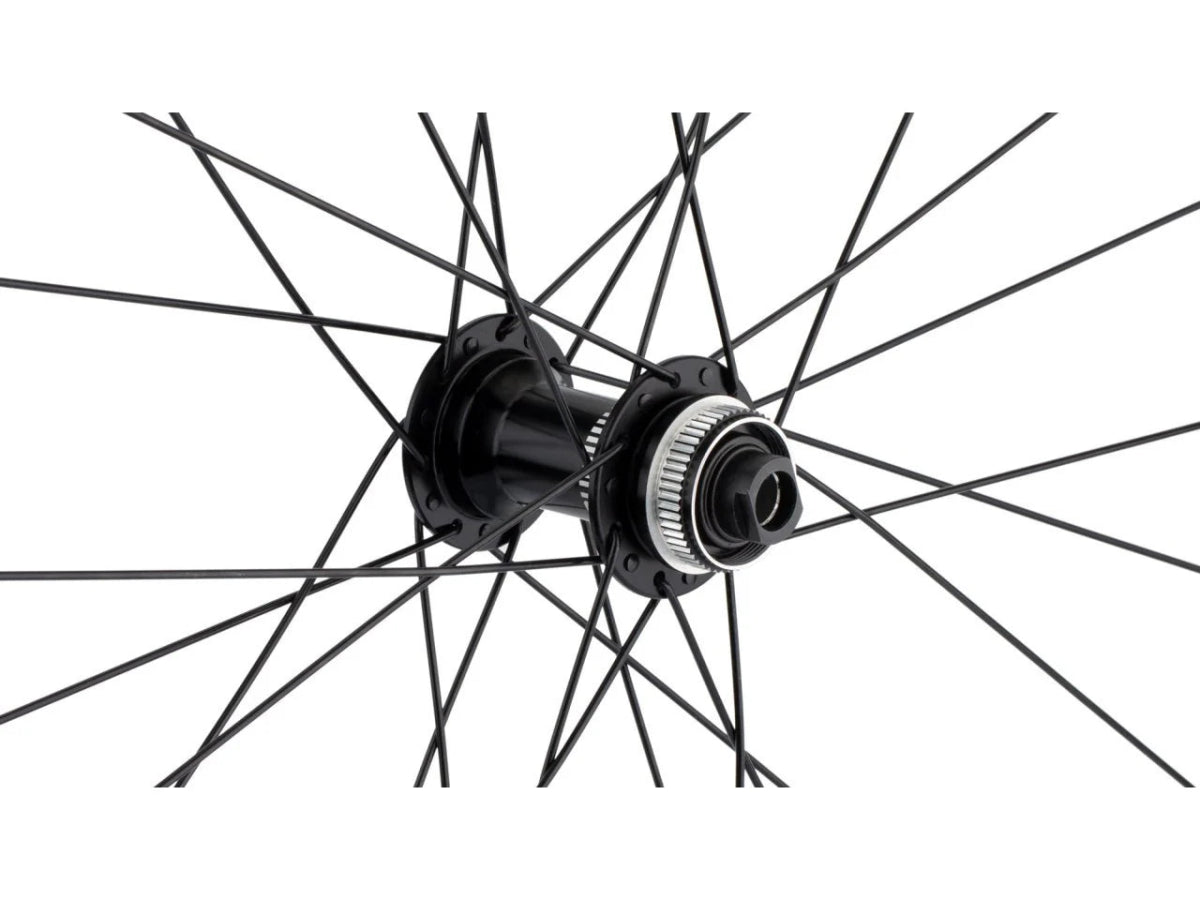

Center Lock Disc Brake Compatibility: Engineered for Center Lock disc brakes, the WH-RS171 provides consistent and powerful braking performance in all conditions. The design ensures easy rotor installation and secure attachment.

Optimized for Modern Drivetrains: The wheelset is compatible with 10- and 11-speed drivetrains, making it a versatile choice for road cyclists and gravel enthusiasts. Its design ensures smooth performance across various riding styles and conditions.

E-Thru Axles for Stability: Featuring 12mm E-Thru axles and a 100mm front and 142mm rear hub spacing, the WH-RS171 ensures a secure and stable connection to the frame. This enhances power transfer and handling precision.

The wheelset comes pre-fitted with rim tape, simplifying the setup process. It’s ready to handle the demands of clincher tires for an efficient and hassle-free riding experience.

Features

Durable and Lightweight Design: Features a robust aluminum clincher rim with 28 spokes for strength and a lightweight profile for efficient performance.
Center Lock Disc Brake Compatibility: Ensures consistent and powerful braking in all conditions with easy rotor installation.
Modern Drivetrain Compatibility: Compatible with 10- and 11-speed drivetrains, making it versatile for road and gravel riding.
E-Thru Axles for Stability: Equipped with 12mm E-Thru axles (100mm front, 142mm rear) for secure and stable frame connection, enhancing power transfer and handling.
Ready to Ride: Comes pre-fitted with rim tape, simplifying the setup process for clincher tires.
Contact Seals: Protect hubs from contaminants, enhancing longevity and smooth rolling.

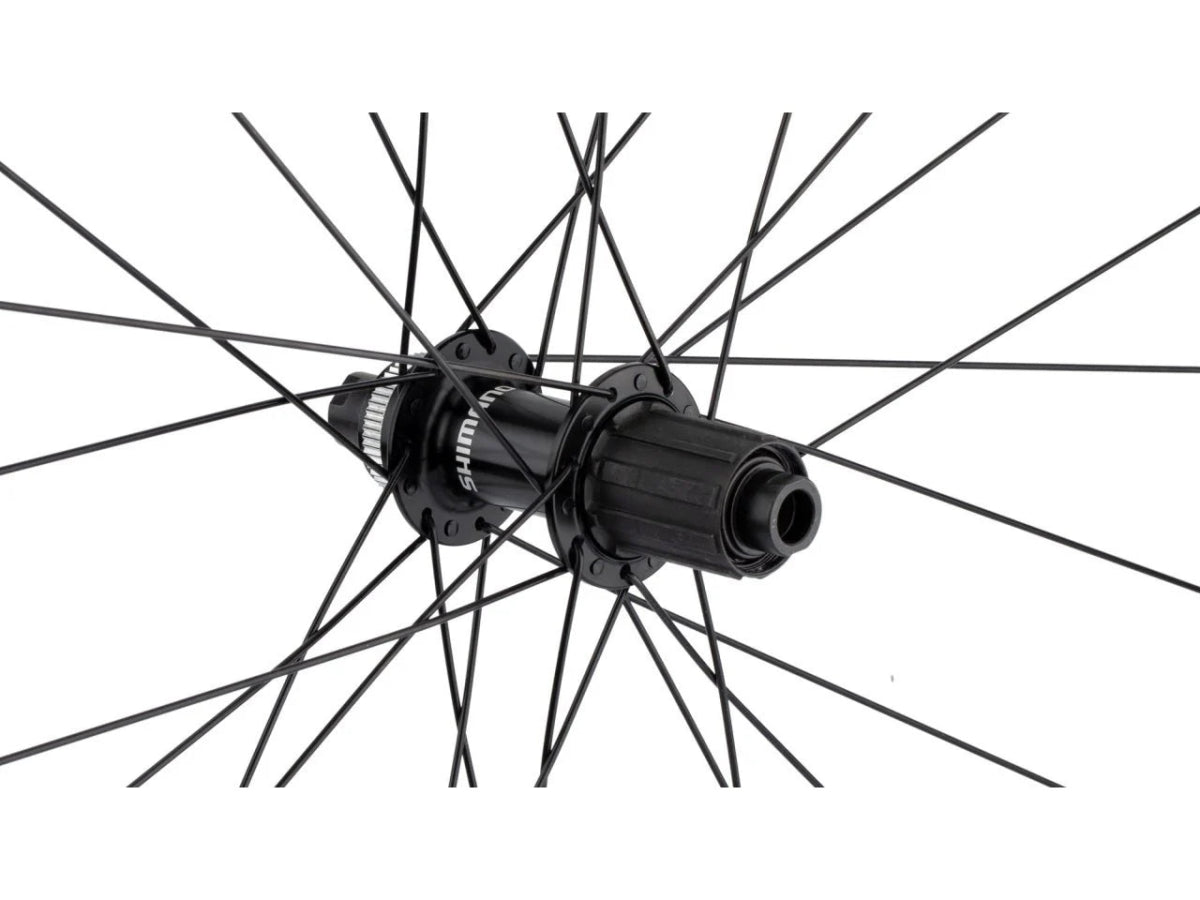

Pawl Ratchet Engagement: Ensures reliable and efficient power transfer.

Specifications

Series: Shimano
Model No: WH-RS171-CL-F12-700C & WH-RS171-CL-R12-700C
Model Name: WH-RS171-CL
Specification: F12-700C / R12-700C
Color|Hub Shell: Black
Front/Rear: Front / Rear
Brake Type: Center Lock Disc Brake

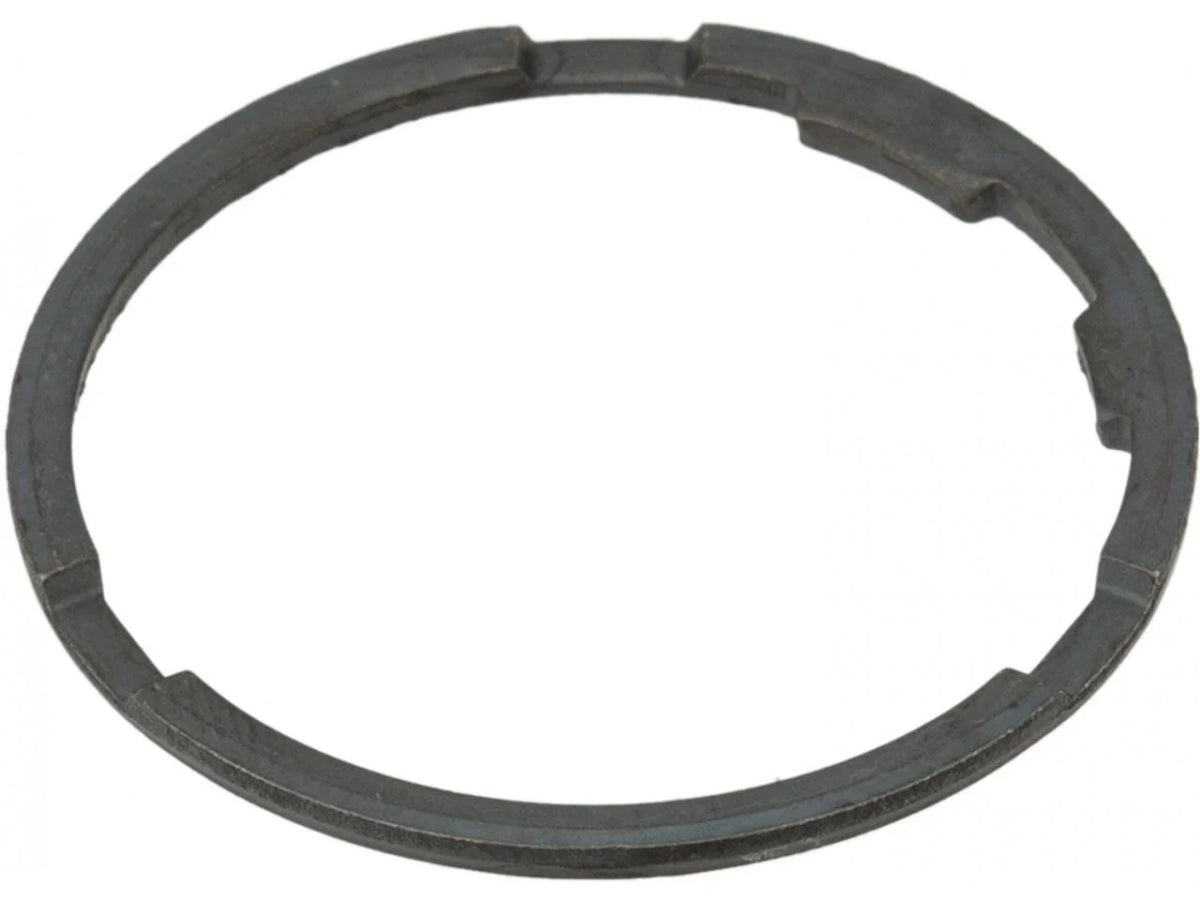

Rear Speeds: Rear: 11/10* (*Adapter is needed to use a 10-Speed Cassette)
O.L.D. (mm): Front: 100, Rear: 142
Wheel Size: 622 x 19C (700C)
Tire Type: Clincher
Recommended Tire Size: 28-622 - 42-622
Rim Height (mm): 19
Rim Internal Width (mm): 19
Rim External Width (mm): 24.6
Rim Joint: Sleeve
Requires Rim Tape: Yes
Spokes Number: 28
Spokes: Diameter: 2 mm
Axle Fixing Method: 12 mm E-THRU
Thru Axle (Length x Inner Diameter; mm): Front: 100 x 12, Rear: 142 x 12
Spline Type|HG Spline L (Road 12/11-Speed): Yes (Rear)
Engagement Type: Pawl Ratchet (Rear)
Bearing|Cup: Polish
Bearing|Cone: CBN
Disc Mount|Center Lock: Yes
Disc Mount|140 mm Disc Brake Rotor Compatible: Yes
Seal|Hub: Contact
Seal|Freehub Body: Contact (Rear)
Internal Grease Sleeve: Yes
Rim Material: Aluminum
Rim Finish: Anodized
Spoke Material: Stainless Steel
Spoke Finish: Black
Nipple Material: Brass
Nipple Finish: Silver
Freehub Body Material: Steel (Rear)
Hub Shell Material: Aluminum
Hub Shell Finish: Anodized
Reflectors|JIS/CPSC: Cateye RR-550-WUW SW
Reflectors|AS: Cateye RR-550-WUA SW
Reflectors|DIN: Cateye RR-317-WUA SW
Compatible Spoke Protector (Rear): CP-FH08 (23T-28T 11-Speed), CP-WH41 (23-30T 10-Speed), CP-WH12 (32T 11/10-Speed)
Average Weight (g): Front: 897, Rear: 1098
