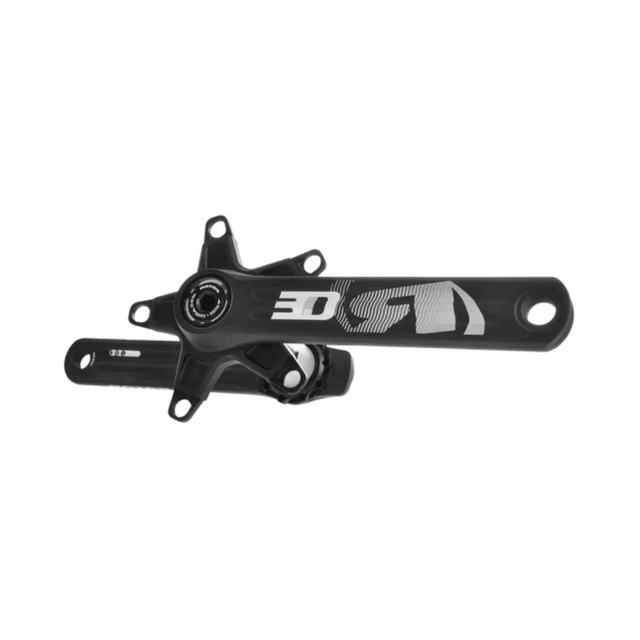

Rotor Inpower 3D30 BCD110x5x2 Crankarm Assembly

Integrated Power Measurement for Structured Road Training

INpower
Integrated Spindle Electronics
Real-Time Training Data

₹79,000

Earn 1580 points paying online Details

Length

170mm

Not sure it fits your bike? Ask TBA Guide WhatsApp us

Delivery estimate

The Rotor Inpower 3D30 BCD110x5x2 Crankarm Assembly features a power meter housed inside the crank axle. This protected position helps measure left-leg power while shielding the electronics from impacts and external contamination.

Detailed Pedalling Analysis: The system records power and cadence while supporting Rotor metrics such as Torque 360 and Optimum Chainring Angle. These insights help riders understand power delivery and refine their pedalling technique.

Durable 3D Construction: The machined aluminium crankarm provides the stiffness required for efficient power transfer during climbs, intervals and sustained road efforts. Its 170 mm length offers a familiar fit for performance road setups.

Five-Bolt Road Compatibility: A 110 mm five-bolt spider interface supports compatible double road chainrings, including suitable round rings and Q Rings. The 30 mm axle works with compatible Rotor bottom brackets across several frame standards.

Rotor Inpower 3D30 BCD110x5x2 Crankarm Assembly combines protected power measurement, detailed ride metrics and dependable road performance.

Specifications

Model	INpower 3D30
Measurement	Left Leg
Estimated Total Power	Left-Leg Power Multiplied by Two
Material	Forged and CNC-Machined 7075 Aluminium
Chainring Configuration	2x
Chainring Compatibility	Round Rings and Q Rings
Speed Compatibility	9-Speed, 10-Speed and 11-Speed
Wireless Connectivity	ANT+
Data	Power, Cadence, Torque Effectiveness and Pedal Smoothness
Rotor Data	Torque 360, OCA and OCP
Cadence Measurement	Accelerometer

Battery	1x AA 1.5V
Estimated Battery Life	300 Hours
Water Resistance	IPX7
Q-Factor	148 mm
Chainline	43.5 mm
Spindle Diameter	30 mm
Bolt Pattern	5-Bolt
Bolt Circle Diameter	110 mm
Crank Length	170 mm
Color	Black/Grey
Weight	562 g Without Battery

Features

INpower: Measures left-leg power through strain gauges positioned inside the crank spindle.
Integrated Spindle Electronics: Protected internal placement improves resistance to impacts and weather.
Real-Time Training Data: Transmits power, cadence and pedalling metrics to compatible devices.
Long Battery Runtime: Uses a replaceable AA battery for extended riding periods.
Five-Bolt Road Interface: Supports compatible round and oval 110x5 chainrings.
Versatile Frame Fit: Compatible with several road bottom-bracket standards using suitable Rotor bearings.

Technologies

Torque 360: Displays force distribution throughout the complete pedal rotation.
OCA: Identifies the angle where maximum pedalling force is applied.
OCP Guidance: Helps determine a suitable Q Rings position from recorded pedalling data.
