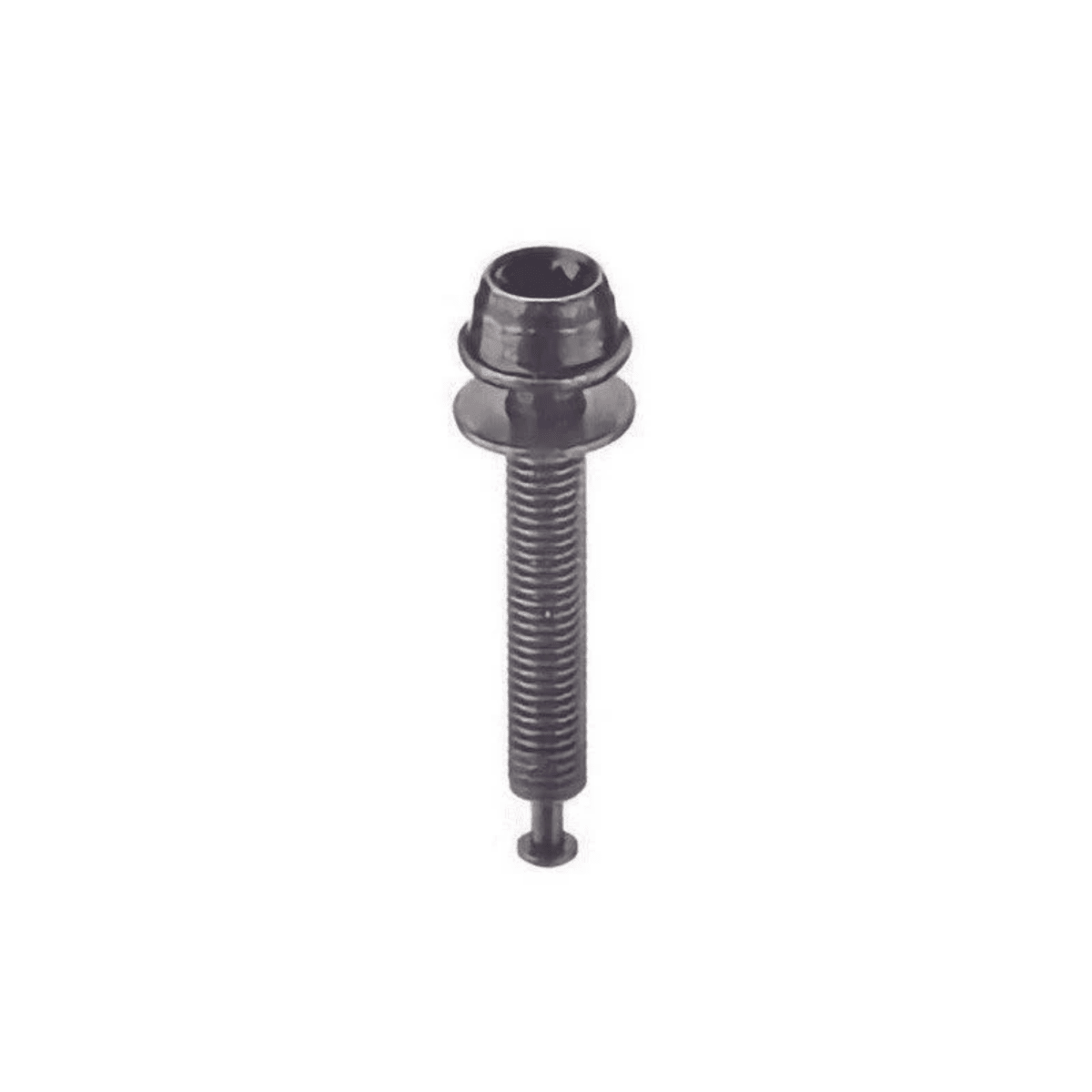

Shimano BR-RS505 Caliper Fixing Bolt Type C

Y8N208050
₹250
Length

Estimated Shipping Widget will be displayed here!

Precision Flat Mount Fixing Bolt for Secure Brake Installation

Overview

The Shimano BR-RS505 Caliper Fixing Bolt Type C is designed for precise and secure mounting of flat mount disc brake calipers. It ensures correct alignment and reliable braking performance on compatible frames. A small but essential component for proper brake installation.

Type C Configuration: This Type C fixing bolt is intended for chainstay installation. It is used in combination with the SM-MA-R160D/D adapter, which is sold separately. Together, they provide a stable and correct caliper mount.

Front and Rear Compatibility: The bolt is suitable for Shimano flat mount disc brake calipers used on both front and rear setups. It supports consistent mounting standards across different bike configurations. Ideal for replacements or fresh installations.

Frame-Specific Length Options: Available in multiple lengths, the fixing bolt accommodates different frame mount thicknesses. This ensures proper thread engagement and secure tightening. Choosing the correct length is key for safe braking performance.

Shimano BR-RS505 Caliper Fixing Bolt is a must-have part for mechanics and riders setting up or servicing flat mount disc brake systems.

Features
  • Secure Caliper Mounting: Designed to ensure precise alignment and reliable fixing of flat mount disc brake calipers.
  • Type C Chainstay Configuration: Intended for chainstay installation when used with the SM-MA-R160D/D adapter.
  • Front and Rear Compatibility: Suitable for use on both front and rear flat mount brake setups.
  • Multiple Length Options: Available in different bolt lengths to match varying frame mount thicknesses.
  • Workshop-Ready Component: Built to Shimano specifications for dependable fit, durability and service reliability.

Specifications
  • Version: Type C
  • Mount Position: Chainstay
  • Bolt Length (without Head) (mm): 28, 33, 38, 43, 48
  • Frame Mount Thickness Compatibility (mm): 15, 20, 25, 30, 35
  • 28 mm Bolt|Rear Mount Thickness: 15 mm
  • 33 mm Bolt|Rear Mount Thickness: 20 mm
  • 38 mm Bolt|Rear Mount Thickness: 25 mm
  • 43 mm Bolt|Rear Mount Thickness: 30 mm
  • 48 mm Bolt|Rear Mount Thickness: 35 mm
  • Adapter Compatibility: SM-MA-R160D/D (sold separately)
  • Caliper Type Compatibility: Flat Mount Disc Brake Calipers
  • Compatible Brake Models: Ultegra BR-R8170, Ultegra BR-R8070, 105 BR-R7070, Metrea BR-U5000, Tiagra BR-4770, Deore XT BR-M8110, SLX BR-M7110, GRX BR-RX810, GRX BR-RX400, BR-RS305, BR-RS405, BR-RS505, BR-RS805, BR-UR300
