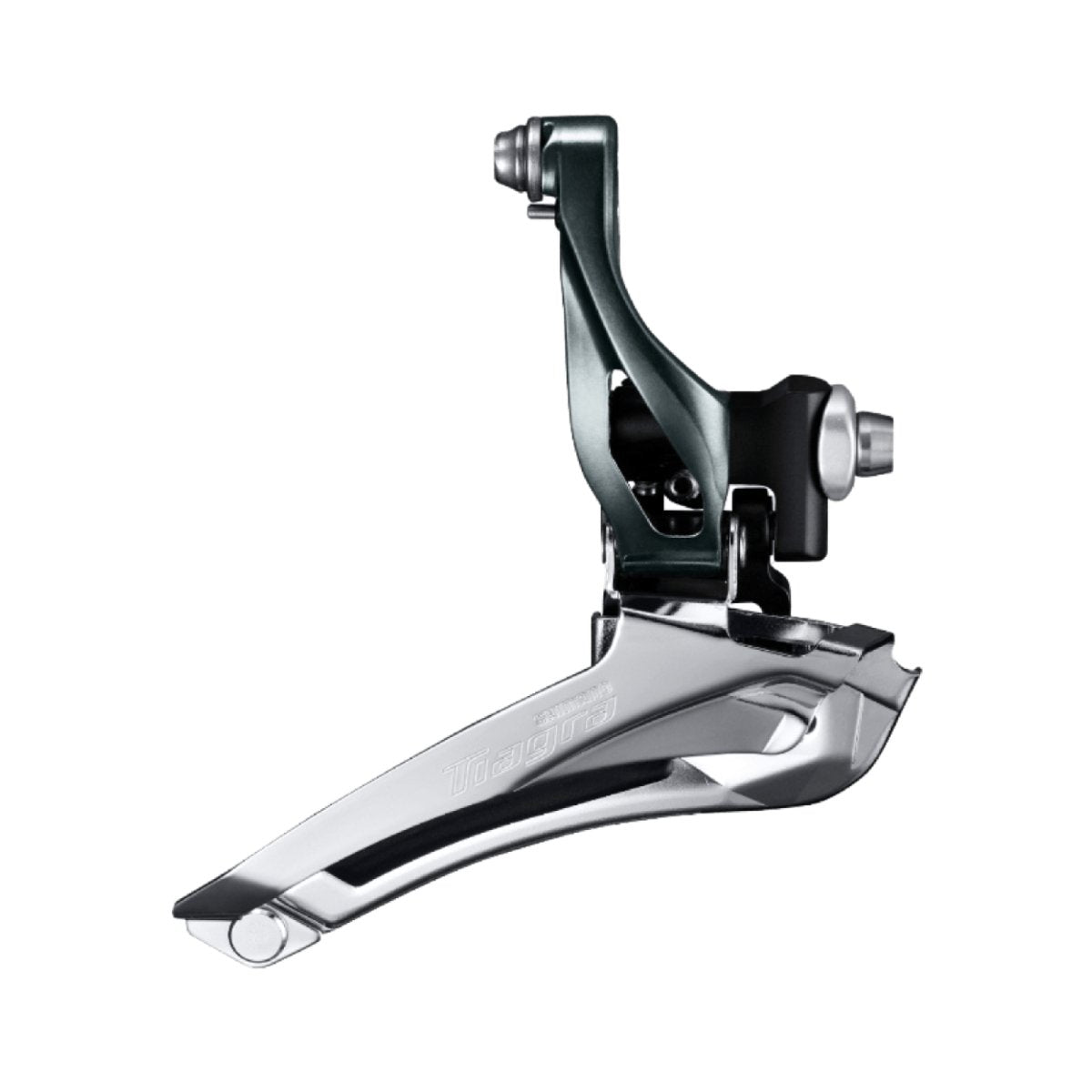

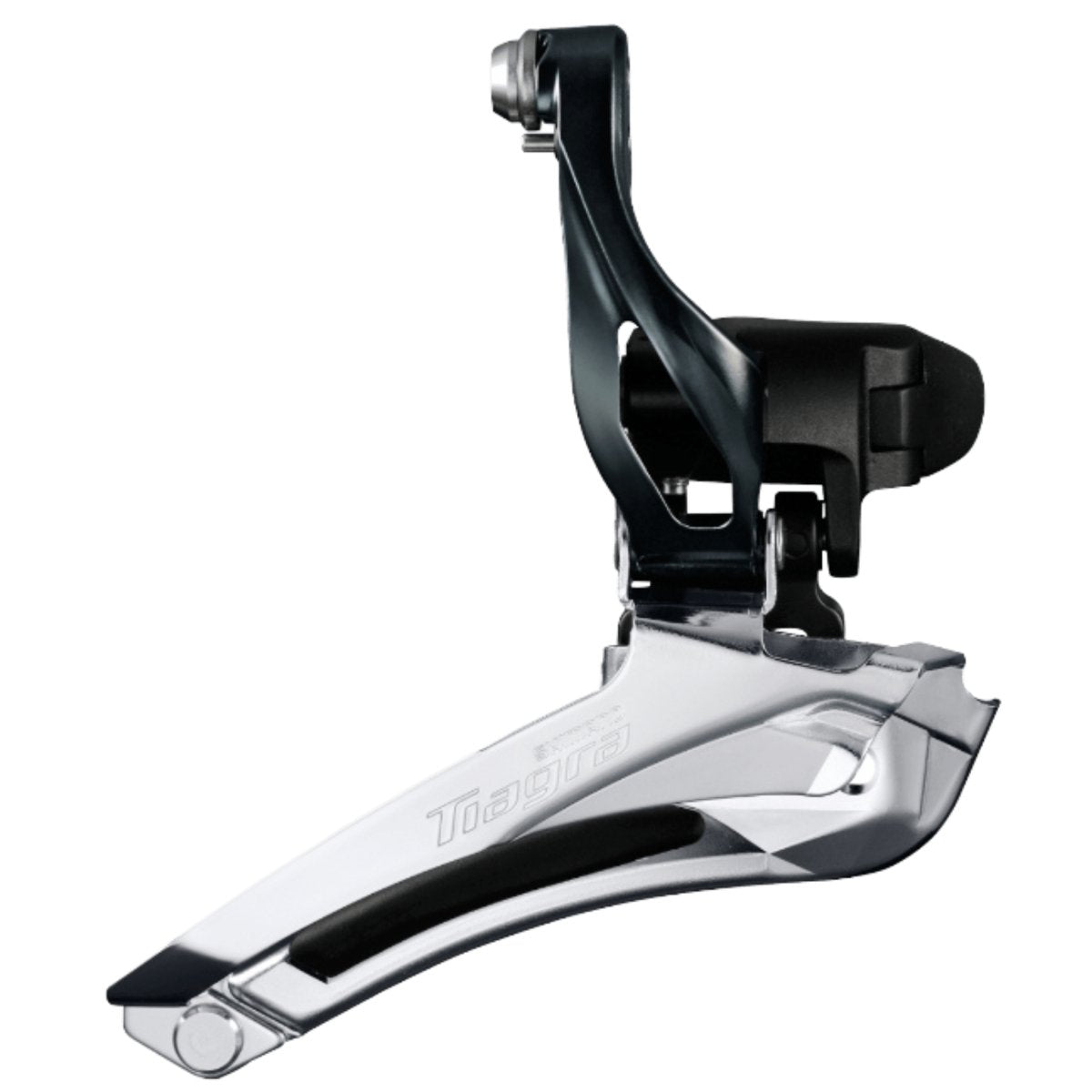

Shimano Tiagra FD-4700 Front Derailleur 10 Speed
Light Action with Precise Front Shifting
- 2*10 Speed
- Front
Shimano Tiagra FD-4700 Front Derailleur 10 Speed - Brazed-On is backordered and will ship as soon as it is back in stock.
Pickup available at The Bike Affair, Hyderabad
- Free shipping over ₹2,000Delivered across India
- 100% genuineAuthorised dealer, manufacturer warranty
- Cash on deliveryOn orders up to ₹20,000
- Secure checkoutUPI, cards and net banking
Shimano Tiagra FD-4700 Front Derailleur 10 Speed - Brazed-On is backordered and will ship as soon as it is back in stock.
The Shimano Tiagra FD-4700 Front Derailleur is designed for road riders who want smooth, predictable front shifting within a mechanical Tiagra drivetrain. It is a practical choice for replacing a worn component, restoring shifting performance on an existing bike or completing a compatible road build. Shimano focuses on dependable operation and a controlled feel at the shift lever, making it well suited to training, commuting and regular recreational road riding.
Lighter Shift Action. Shimano uses a longer lever-arm design to reduce the effort required at the shift lever. This helps front gear changes feel easier and more deliberate when moving between chainrings, particularly when terrain changes and riders need to adjust gearing without disrupting their rhythm.
Two Mounting Options. The FD-4700 is available in both brazed-on and clamp-band configurations, allowing riders to select the version suited to their frame. Both versions share the same core shifting characteristics, so the choice primarily depends on the bicycle's mounting arrangement. When installed as part of a correctly matched Tiagra drivetrain, the derailleur is designed to provide precise and reliable front shifting across regular road-riding conditions.
Product details
Specifications
Specifications
| Model No | FD-4700-F (Brazed-On), FD-4700-B (Clamp Band) |
|---|---|
| Series | Tiagra 4700 Series |
| Color | Series Color |
| Front Speeds | 2 |
| Rear Speeds | 10 |
| Compatible Chain | HG-X 10-Speed, CN-HG500 |
| Action|Down Swing | Yes |
| Mount|Brazed-On | Yes |
| Mount|Clamp Band (mm)|28.6 | Yes (28.6 mm Clamp Band: 31.8 mm w/ Adapter) |
|---|---|
| Mount|Clamp Band (mm)|31.8 | Yes |
| Mount|Clamp Band (mm)|34.9 | Yes |
| Chain Line (mm) | 43.5 |
| Chainstay Angle | 61-66° |
| Top Gear Teeth | 46-52T |
| Total Capacity | 16T |
