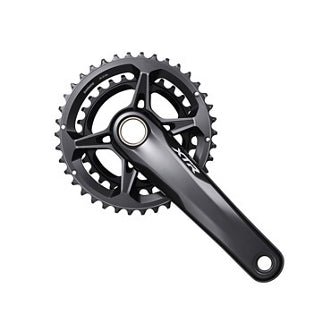

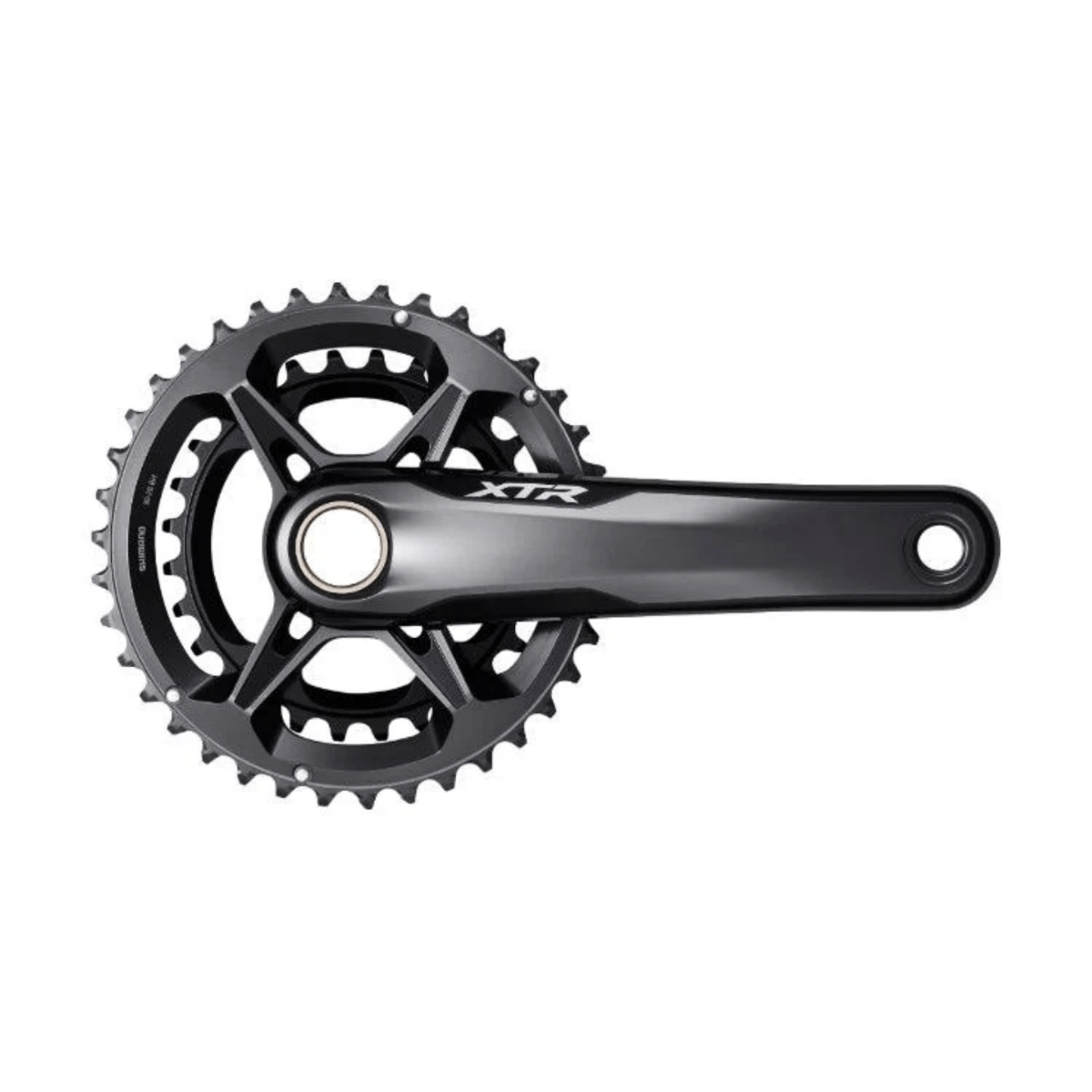

Shimano XTR FC-M9100-2 2x12-Speed Front Chainwheel
Precision XTR Double Crankset
Shimano XTR FC-M9100-2 2x12-Speed Front Chainwheel - 170mm / 38-28T is backordered and will ship as soon as it is back in stock.
- Free shipping over ₹2,000Delivered across India
- 100% genuineAuthorised dealer, manufacturer warranty
- Cash on deliveryOn orders up to ₹20,000
- Secure checkoutUPI, cards and net banking
Shimano XTR FC-M9100-2 2x12-Speed Front Chainwheel - 170mm / 38-28T is backordered and will ship as soon as it is back in stock.
The Shimano XTR FC-M9100-2 crankset is the pinnacle of precision engineering, designed for competitive mountain biking and technical trail riding. Delivering smooth, reliable shifting for 2x12-speed systems, it ensures top performance under the most demanding conditions.
Direct Mount Chainring System: Built with an innovative direct mount system, this crankset features chainrings with a specialized tooth profile to improve chain retention. The optimized 38-28T chainring combination offers versatile gearing for both climbing and high-speed descents.
Narrow Q-Factor for Efficient Pedaling: With a narrow 162mm Q-factor, the FC-M9100-2 crankset ensures a comfortable and efficient pedaling stance. Its 48.8mm chainline ensures compatibility with modern drivetrains and maintains seamless power transfer.
Flexible Fit Options: Available in crank arm lengths of 165mm, 170mm, and 175mm, the FC-M9100-2 is adaptable to a variety of rider preferences and frame geometries. It supports both 142mm thru-axle and 135mm QR setups, making it ideal for modern cross-country and trail bikes.
Constructed with four gear arms and a lightweight design, this XTR crankset balances strength and weight for superior performance. The absence of a chain guard underscores its sleek and professional aesthetic, catering to riders who demand functionality and style.
Product details
Specifications
Specifications
| Model No | FC-M9100-2 |
|---|---|
| Series | XTR |
| Color | Series Color |
| Rear Speeds | 12 (Front Double) |
| Compatible Chain | HG 12-speed |
| Chain Line (mm) | 48.8 |
| O.L.D.|Thru (mm) | 142 |
| O.L.D.|QR/Nut (mm) | 135 |
| P.C.D. (mm) | Direct |
| Spider/Gear Arms | 4 |
| Chainring Combination | 38-28T |
| Q-Factor (mm) | 162 |
|---|---|
| Crank Arm Length (mm) | 165, 170, 175 |
| Optional Chain Guard|Without Chain/Bash Guard: Yes | |
| Hollowtech II | Yes |
| Compatible Bottom Bracket|Outboard | Yes |
| Recommended Bottom Bracket|Threaded (Normal): SM-BB93 | |
| Recommended Bottom Bracket|Press-Fit | SM-BB94-41A |
| Threaded Bottom Bracket Shell Width (mm): 68, 73 | |
| Crank Fixing Screw Included | Yes |
| Average Weight (g) | 597 |
