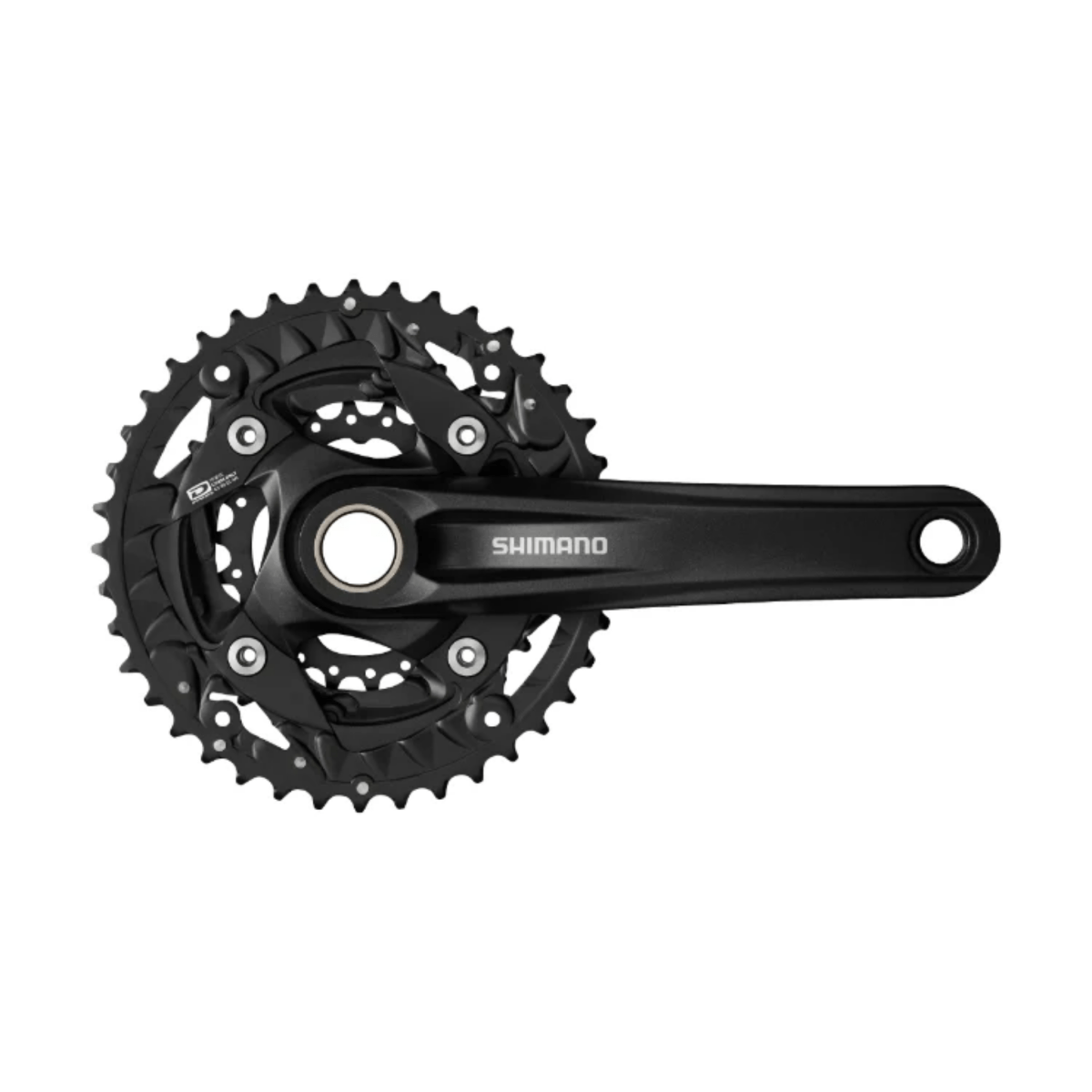

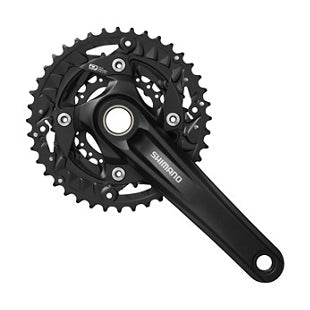

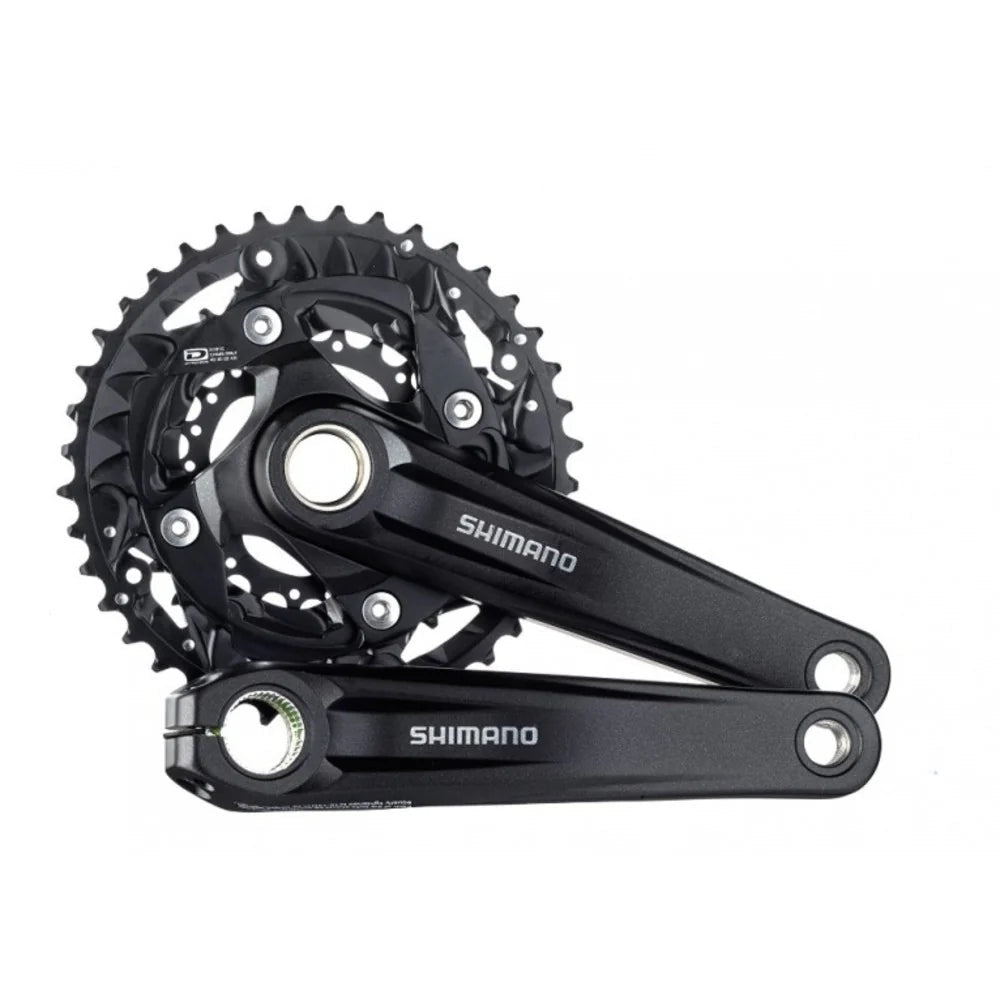

Shimano FC-MT500-3 3x10-Speed MTB Front Chainwheel
Adaptable 3x10-Speed Crankset
Shimano FC-MT500-3 3x10-Speed MTB Front Chainwheel - 170mm / 40-30-22T (W/O CG) is backordered and will ship as soon as it is back in stock.
- Free shipping over ₹2,000Delivered across India
- 100% genuineAuthorised dealer, manufacturer warranty
- Cash on deliveryOn orders up to ₹20,000
- Secure checkoutUPI, cards and net banking
Shimano FC-MT500-3 3x10-Speed MTB Front Chainwheel - 170mm / 40-30-22T (W/O CG) is backordered and will ship as soon as it is back in stock.
The Shimano FC-MT500-3 crankset is designed for riders who seek adaptability, providing a wide gear range that ensures smooth transitions from city streets to challenging mountain trails.
Durable 2-Piece Construction: Built with Shimano’s proven 2-piece construction, this crankset delivers enhanced stiffness and power transfer while maintaining long-lasting durability. Replaceable chainrings further extend its usability, making it a dependable choice for all riders.
Optimal Gear Combination: Featuring a 40-30-22T chainring combination, the FC-MT500-3 offers an ideal range of gears for climbing steep inclines and cruising flat terrain, ensuring a comfortable and efficient ride in all conditions.
Wide Compatibility: With a 50 mm chainline and compatibility for both 135 mm QR/Nut and 142 mm O.L.D. thru-axle systems, this crankset integrates seamlessly with modern MTB frames. A 177 mm Q-factor provides balanced pedaling efficiency and stability.
To cater to diverse riding preferences, the FC-MT500-3 is available with or without a chain guard, offering both added protection and a sleek design for riders who value performance and aesthetics.
Product details
Specifications
Specifications
| Model No | FC-MT500-3 |
|---|---|
| Series | Shimano |
| Color | Black |
| Rear Speeds | 10 |
| Compatible Chain | HG-X 10-Speed |
| Chain Line (mm) | 50 |
| O.L.D.|Thru (mm) | 142 |
| O.L.D.|QR/Nut (mm) | 135 |
| P.C.D. (mm) | 96/64 |
| Spider/Gear Arms | 4 |
| Chainring Combination | 40-30-22T |
| Q-Factor (mm) | 177 |
| Crank Arm Length (mm) | 170, 175 |
|---|---|
| Optional Chain Guard|With Chain Guard | Yes |
| Optional Chain Guard|Without Chain/Bash Guard: Yes | |
| Crankset Type | 2-Piece Crankset |
| Compatible Bottom Bracket Type|Outboard | Yes |
| Recommended Bottom Bracket|Threaded (Normal): BB-MT501 | |
| Recommended Bottom Bracket|Threaded (E-Type): SM-BB52 | |
| Recommended Bottom Bracket|Press-Fit | BB-MT500-PA |
| Threaded Bottom Bracket Shell Width (mm): 68, 73 | |
| Crank Fixing Screw Included | Yes |
| Remarks | * It is fixed on the threaded middle ring |
