Unior 689/2Bi Inner Bearing Puller

622587
₹32,784

Estimated Shipping Widget will be displayed here!

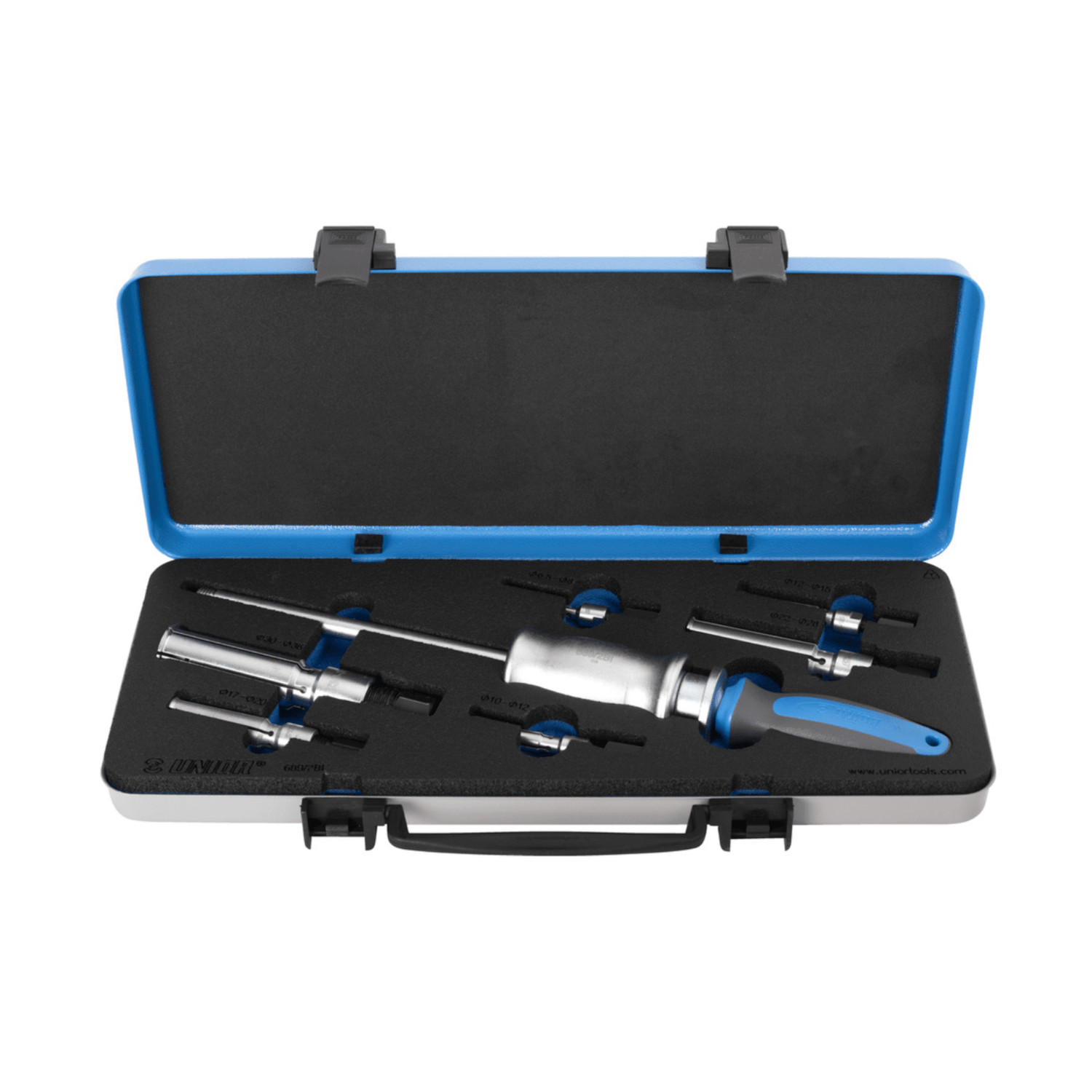

In the Box

1x Inner Bearing Puller With 1 kg Sliding Hammer
6x Expandable Collet 6.5-8 mm, 10-12 mm, 12-15 mm, 17-20 mm, 22-28 mm, 30-36 mm
1x Storage Case

How To Use
  1. Choose Collet: Select the correct expandable collet for the bearing inner diameter.
  2. Fit Into Bearing: Insert the collet through the bearing bore and expand it inside the inner race.
  3. Attach Puller: Connect the puller and sliding hammer assembly securely.
  4. Extract Bearing: Use steady slide hammer impacts to pull the bearing out of the housing.
  5. Check Housing: Inspect the bearing seat before installing the replacement bearing.

Slide Hammer Bearing Puller For Internal Extraction

Overview

The Unior 689/2Bi Inner Bearing Puller is designed for removing different types of bearings by gripping them securely from the inside and pulling them out with controlled force.

Covers Multiple Bearing Sizes: The set includes 6 puller arms for inner bearing dimensions 6.5-8, 10-12, 12-15, 17-20, 22-28 and 30-36 mm. This makes it useful for a wide range of workshop bearing removal jobs.

Slide Hammer Extraction: Once the bearing is gripped from the inside, it is extracted using the included 1 kg sliding weight. This helps generate the pulling force needed without damaging surrounding components.

Strong Workshop Construction: Made from premium chrome vanadium steel, the tool is drop forged, hardened and tempered for durability. The chrome-plated finish and ergonomic double-component handle support regular professional use.

The Unior 689/2Bi Inner Bearing Puller is a reliable workshop tool for accurate and efficient removal of compatible internal bearings.

Features
  • Internal Bearing Grip: Expandable collets grip the inner bearing race for controlled extraction.
  • Wide Bearing Range: Covers bearing inner dimensions from 6.5 mm to 36 mm with six collet sizes.
  • Slide Hammer Removal: Uses a 1 kg sliding hammer to extract bearings with steady impact force.
  • Durable Tool Build: Premium chrome vanadium steel is drop forged, hardened and tempered for strength.
  • Workshop Case Setup: Supplied as a complete puller set for professional bearing service and storage.

Specifications
  • Product Code: 622587
  • Material: Premium Chrome Vanadium Steel
  • Body: Drop Forged, Entirely Hardened and Tempered
  • Handle: Ergonomic Heavy Duty Double Component Handle

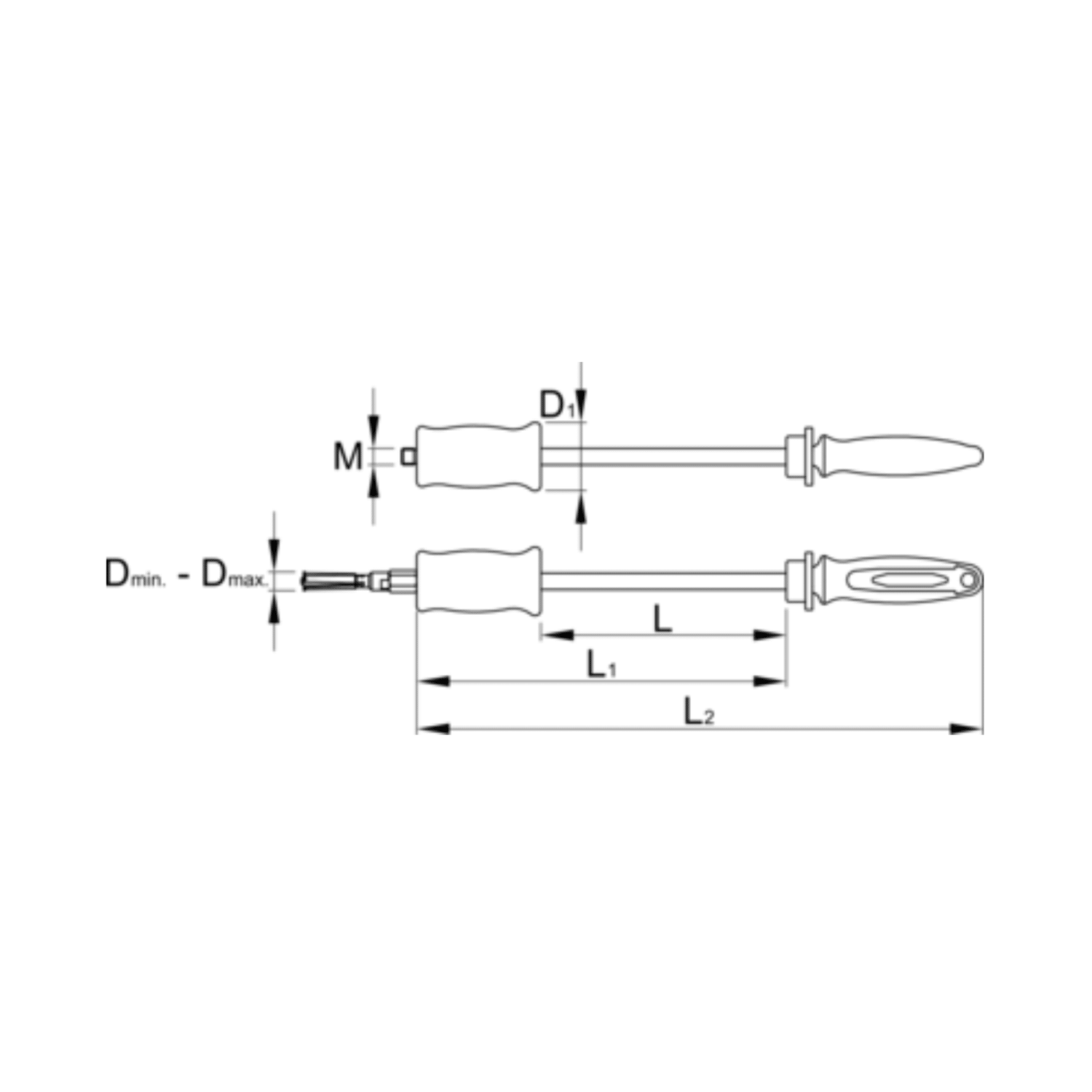

  • Minimum Diameter: 6.5 mm
  • Maximum Diameter: 36 mm
  • Diameter (D1): 50 mm
  • Length (L): 180 mm
  • Length (L1): 271 mm
  • Length (L2): 415 mm
  • Thread (M): M12
  • Weight: 3300 g
