Unior 1695MB1-US Crank Saver - Pedal Thread Repair and Insert Kit

626980
₹20,159

Estimated Shipping Widget will be displayed here!

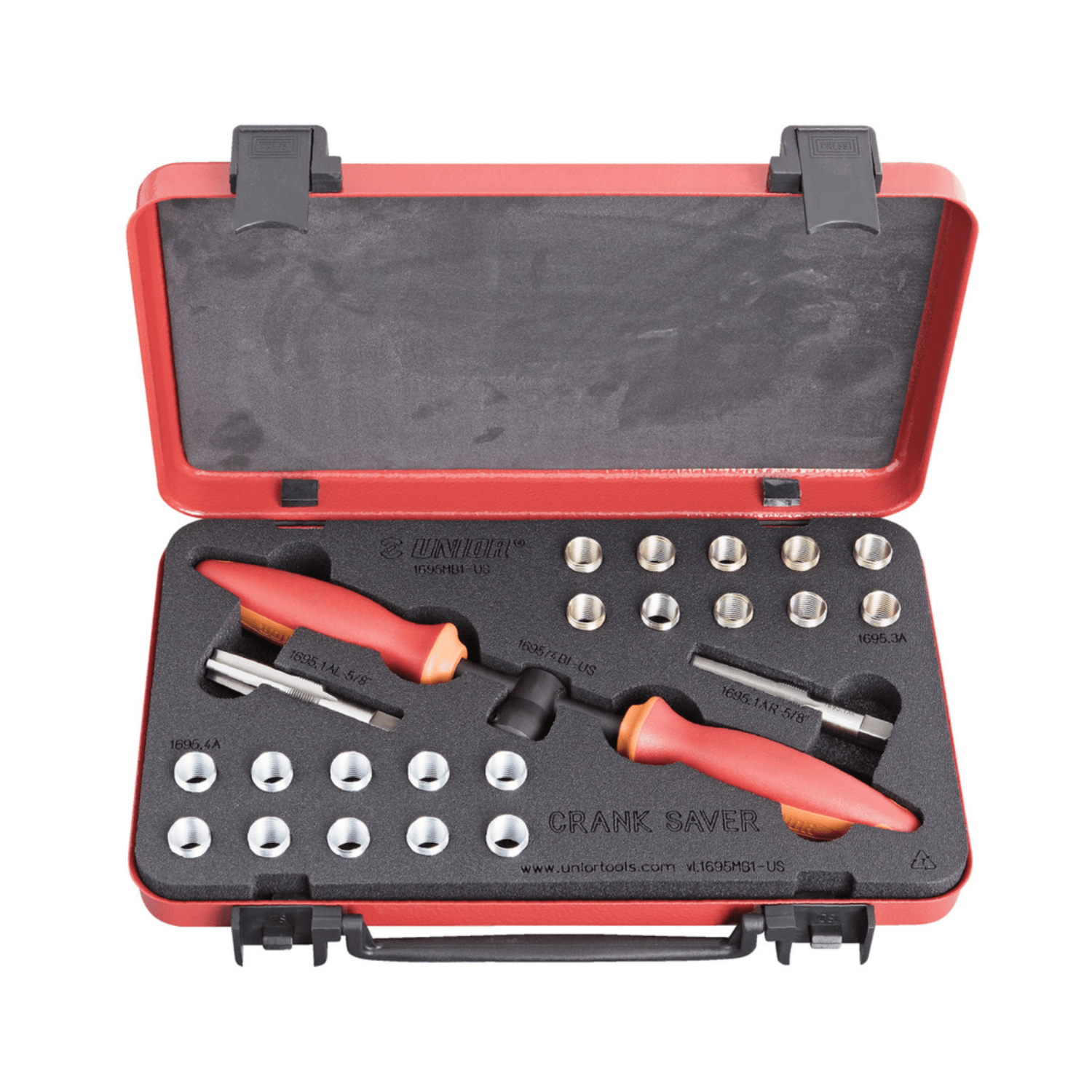

In the Box

1x Tap Handle (1695/4BI-US)
1x Left Pedal Reamer and Tap (1695.1AL) 5/8" x 24 TPI
1x Right Pedal Reamer and Tap (1695.1AR) 5/8" x 24 TPI
10x Left Pedal Thread Insert (1695.4A) 5/8L x 24
10x Right Pedal Thread Insert (1695.3A) 5/8 x 24
1x Metal Box (981K3/8R) 3/8VDEx321x198x54

How To Use

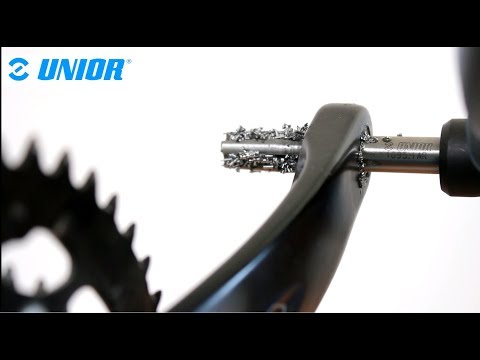

  1. Ream Threads: Use the reaming taps to create oversized 5/8" x 24 TPI threads in the crank arm.
  2. Clean Area: Thoroughly clean the new threads before fitting the insert.
  3. Apply Thread Locker: Apply suitable thread locker to the pedal thread insert.
  4. Install Insert: Thread the insert into the crank arm until properly seated.
  5. Fit Pedal: Finally, thread the pedal into the installed insert and check secure fitment.

Pedal Thread Repair Kit For Saving Damaged Cranks

Overview

The Unior 1695MB1-US Crank Saver Kit is designed to repair damaged or stripped pedal mounting threads, helping save crank arms that would otherwise need replacement.

Oversized Thread Repair System: The kit uses reaming taps to create oversized 5/8" x 24 TPI threads inside the crank arm. This prepares the damaged area for a secure replacement insert.

Insert-Based Crank Recovery: Once the thread is cleaned, the repair insert is installed into the crank arm with thread locker. The pedal can then be fitted into the insert, restoring proper pedal mounting.

Useful For Workshop Service: This kit is especially valuable for bike shops and serious mechanics handling damaged cranks. It helps reduce replacement costs and makes crank repair more practical.

The Unior 1695MB1-US Crank Saver - Pedal Thread Repair and Insert Kit is a specialist solution for restoring compatible crank arms with stripped pedal threads.

Features
  • Crank Thread Repair: Helps restore stripped pedal mounting threads and save damaged crank arms.
  • Oversized Thread Prep: Reaming taps create 5/8" x 24 TPI oversized threads before insert installation.
  • Left And Right Support: Includes dedicated left and right taps with matching pedal thread inserts.
  • Secure Insert Fit: Thread locker can be applied to the insert before fitting it into the crank arm.
  • Organized Metal Storage: Supplied in a metal box with cut-out SOS foam trays for clean workshop storage.

Specifications
  • Product Code: 626980
  • Thread Size: 5/8" x 24 TPI
  • Application: Stripped Pedal Thread Repair
  • Storage: Metal Box with Cut-Out SOS Foam Trays
  • Weight: 4500 g
  • Set Quantity: 5 Pcs
