Unior 1693.1Q Pro Shop Clamp

627095
₹16,354

Estimated Shipping Widget will be displayed here!

How To Use

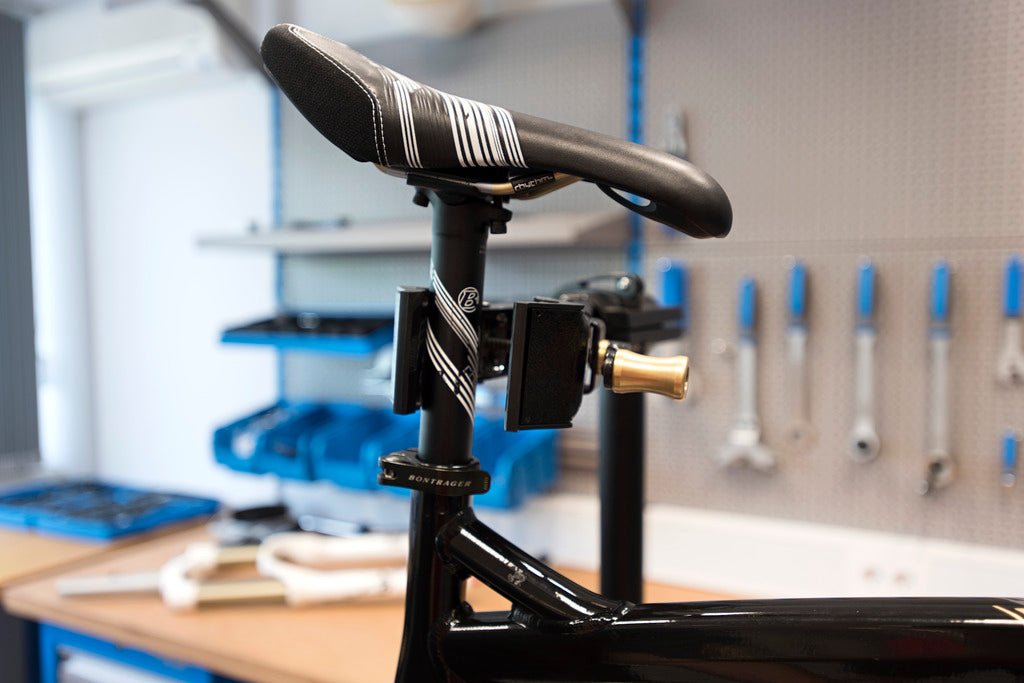

  1. Position Bike Part: Place the bicycle tube or seatpost between both clamp jaws.

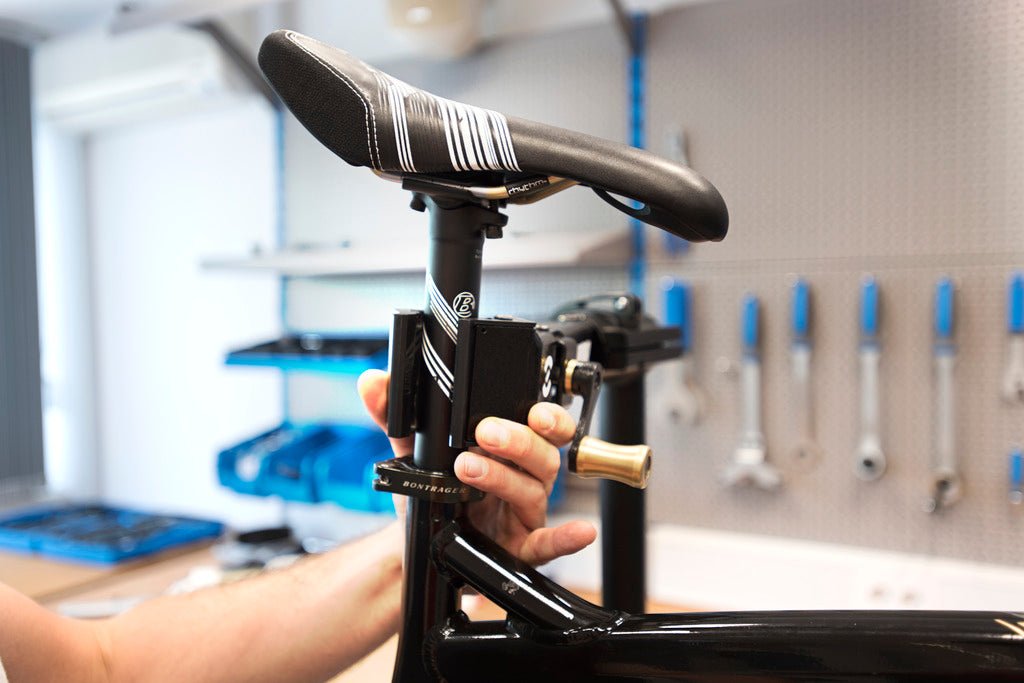

  2. Close By Hand: Squeeze the jaws together by hand until the clamp holds the bicycle in place.

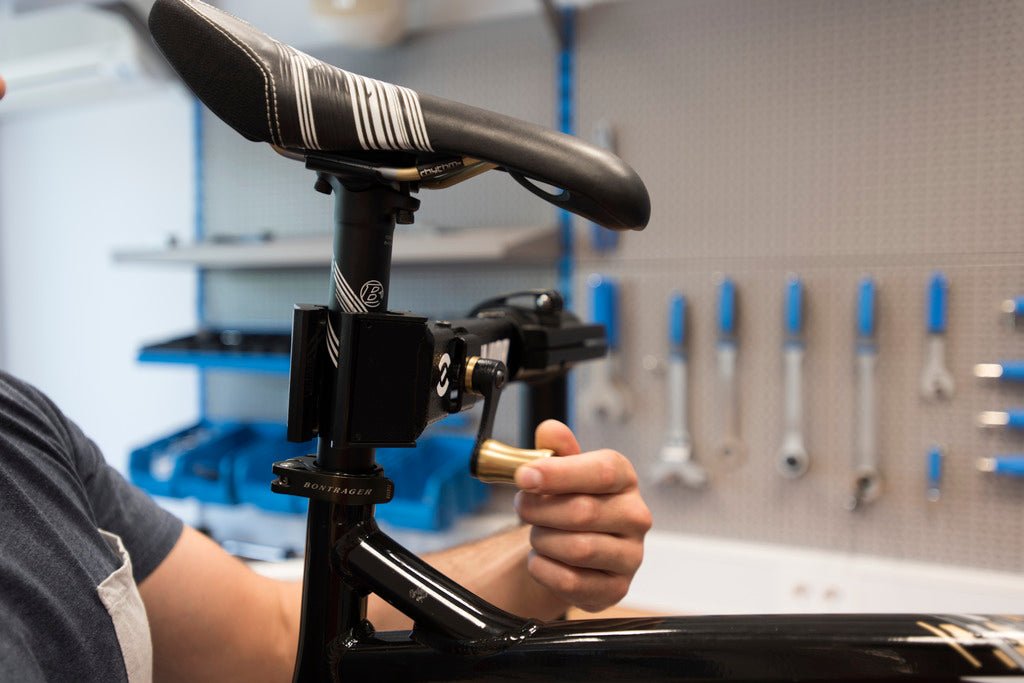

  3. Tighten Handle: Turn the handle clockwise to apply final grip and adjust clamping force precisely.
  4. Release Tension First: Turn the handle counterclockwise a few times to reduce clamping force.

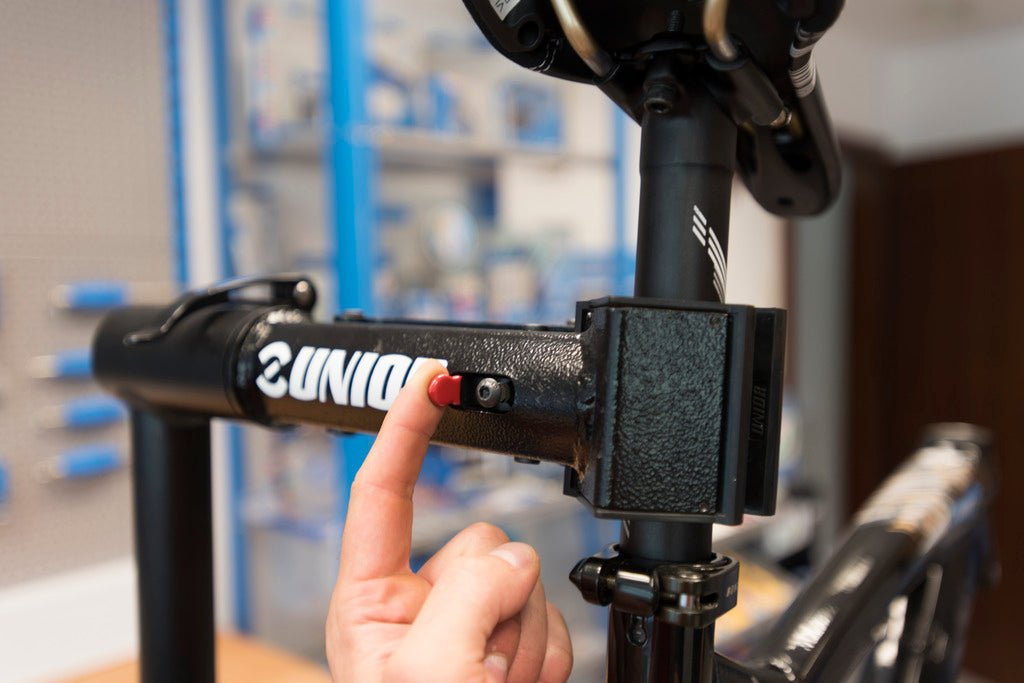

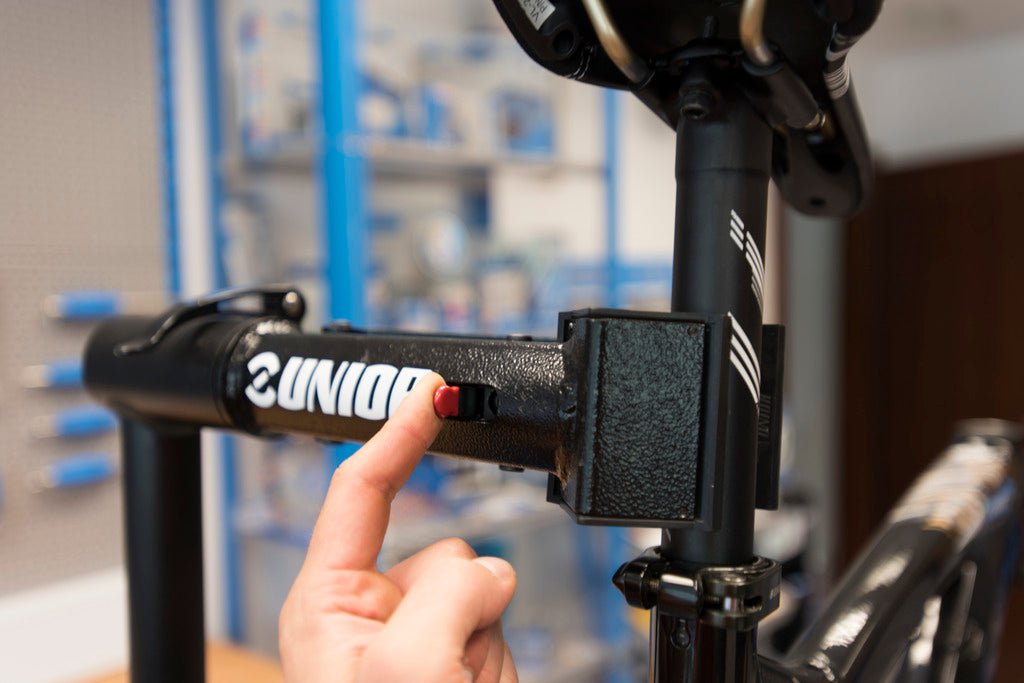

  5. Press Release Button: After releasing tension, press the quick-release button to open the clamp completely.
  6. Important Warning: Do not open only with the button before loosening the handle, as it can damage the locking mechanism.

Fast-Release Shop Clamp For High-Volume Bike Service

Overview

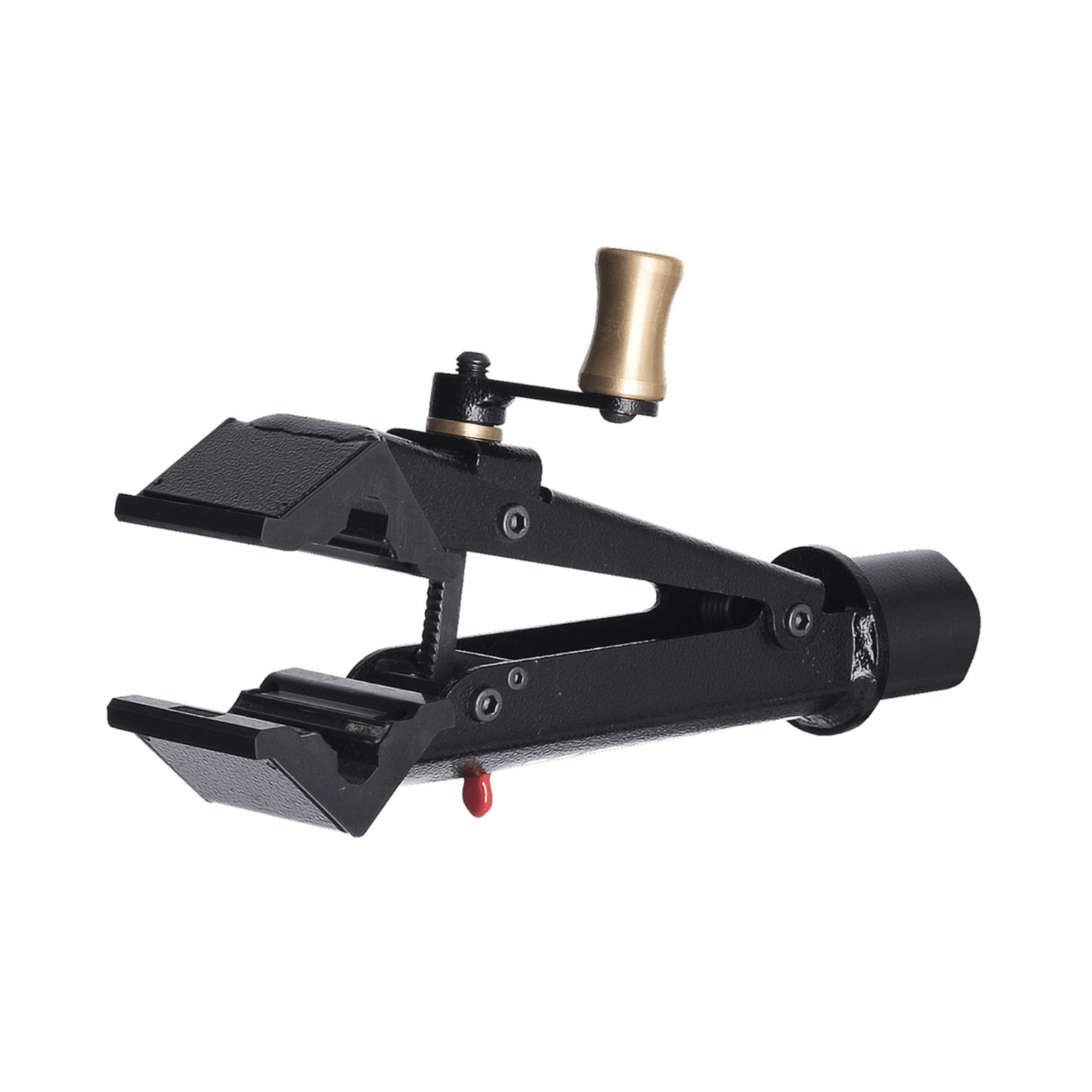

The Unior 1693.1Q Pro Shop Clamp is designed for mechanics who need quick, secure and repeatable bike holding during regular workshop service.

Quick-Release Jaw Design: The dedicated quick-release button opens the clamp without losing the pressure setting. This helps speed up bike changes while keeping the clamp ready for the next frame or seatpost.

Controlled Tube Grip: The brass threaded pressure handle allows fine adjustment of grip force, helping hold tubes securely without unnecessary overtightening. The jaw range covers 22 mm to 60 mm.

Better Clearance For Modern Bikes: With a 70 mm jaw height, the clamp is shorter than a traditional cam clamp. This helps improve clearance on small road frames and bikes with dropper posts.

The Unior 1693.1Q Pro Shop Clamp is a practical upgrade for compatible Unior shop stands and BikeGator+ repair stand setups.

Features
  • Quick Clamp Action: Quick release system lets mechanics close the jaws by hand before applying final grip.
  • Precise Grip Control: Threaded pressure handle allows controlled clamping force without overtightening the tube.
  • Wide Tube Range: Fits round and shaped tubes from Ø22 mm to Ø60 mm for versatile bike service use.
  • Dropper-Friendly Jaw: 70 mm jaw height works well with smaller exposed seatposts and dropper post setups.
  • Repair Stand Ready: Compatible with Unior repair stands for shop, portable and professional service setups.

Specifications
  • Product Code: 627095
  • Pressure Handle: Brass, Threaded
  • Quick Release: Dedicated Button
  • Compatibility: Unior 1693B, 1693C, 1693BS1, BikeGator+ Family
  • Minimum Diameter: 22 mm
  • Maximum Diameter: 60 mm

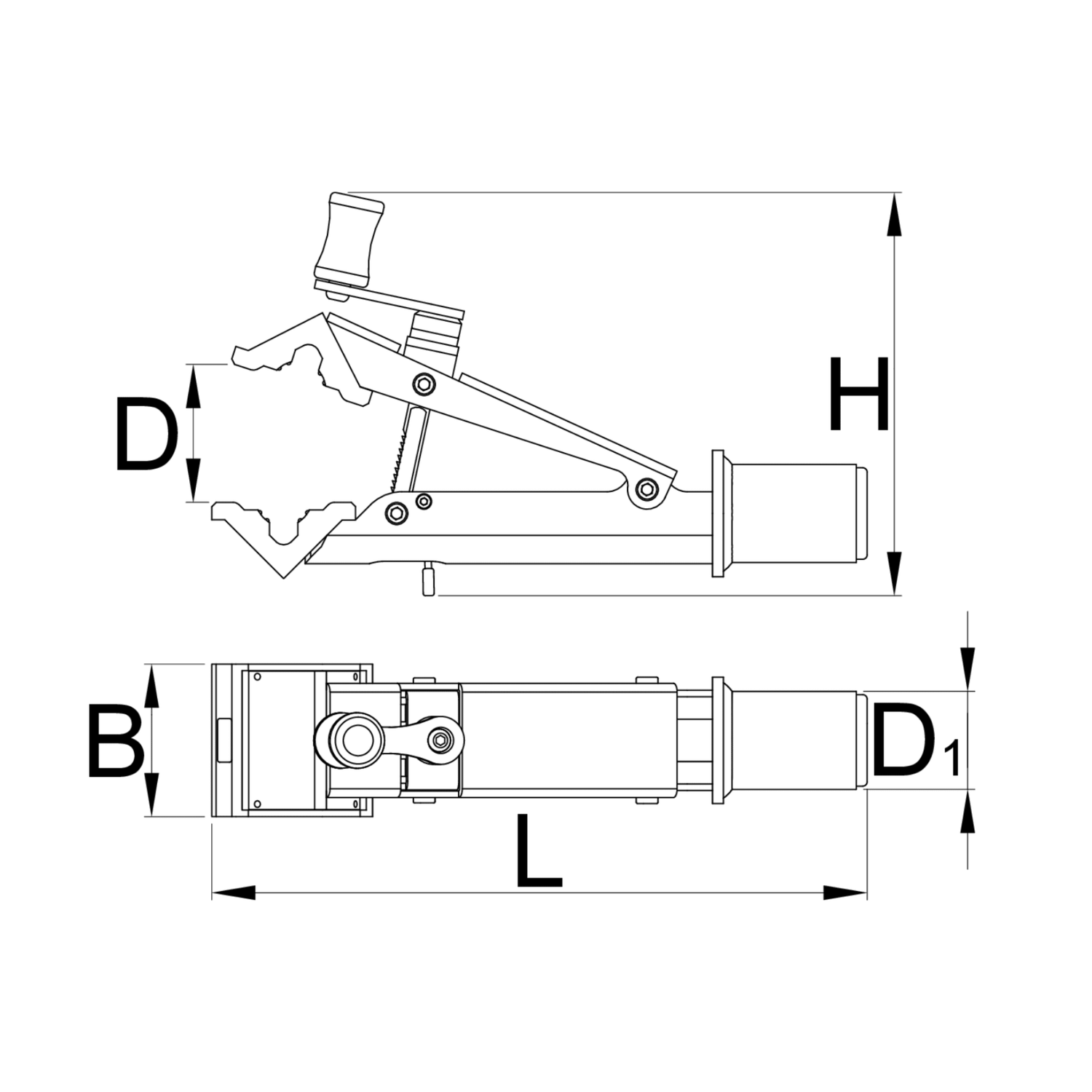

  • Jaw Width (B): 70 mm
  • Height (H): 185 mm
  • Length (L): 300 mm
  • Diameter (D1): 45 mm
  • Weight: 1730 g
  • Jaw Covers: Replaceable Rubber Jaw Covers, Unior 1693.11
