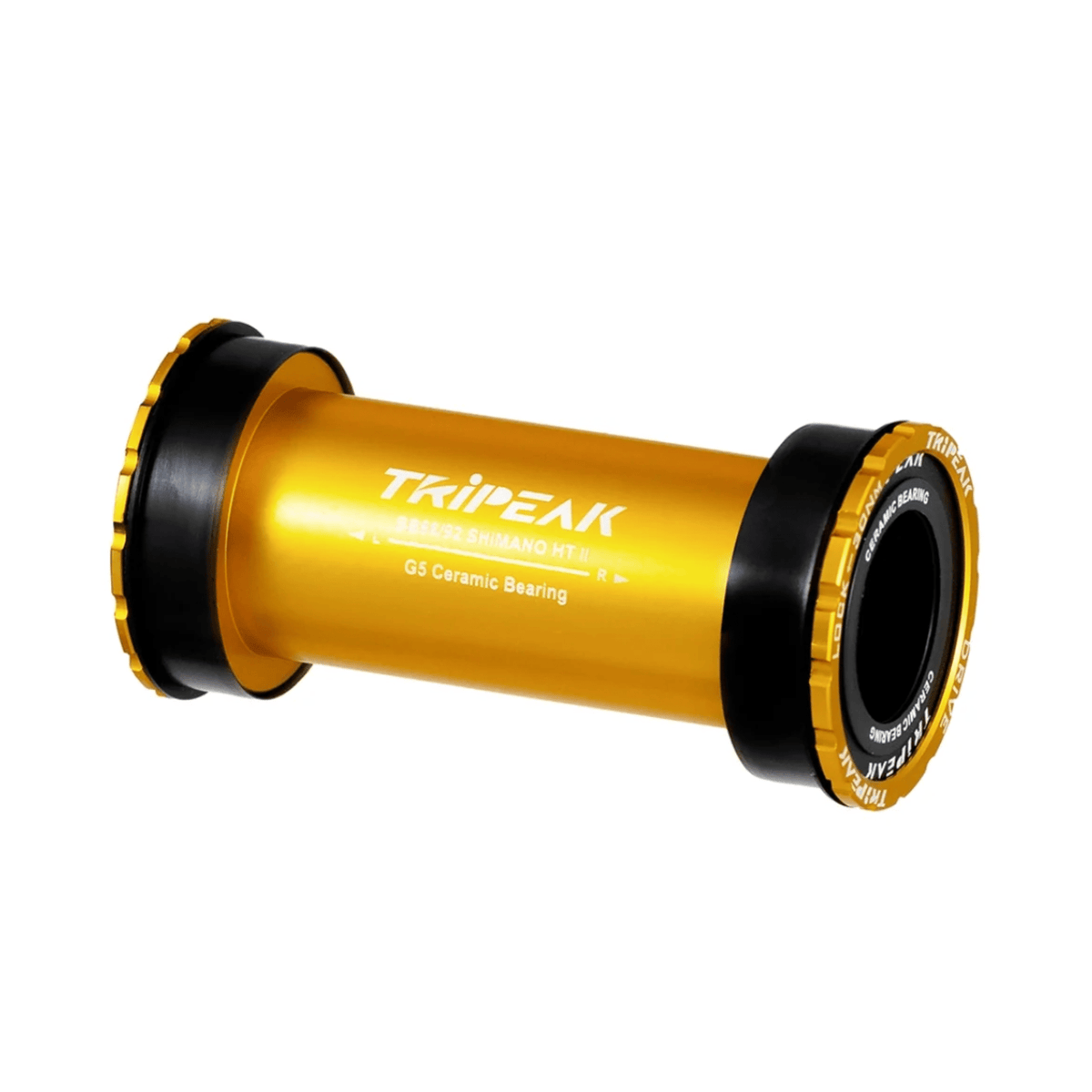

Tripeak Twist-Fit BB86 T0 Shimano HTII (Road) G5 Ceramic Bottom Bracket
G5 Ceramic Bearings with Dual-Locking Cup Alignment
- Press-fit
Tripeak Twist-Fit BB86 T0 Shimano HTII (Road) G5 Ceramic Bottom Bracket - Gold is backordered and will ship as soon as it is back in stock.
Tripeak Twist-Fit BB86 T0 Shimano HTII (Road) G5 Ceramic Bottom Bracket - Gold is backordered and will ship as soon as it is back in stock.
The Tripeak Twist-Fit BB86 T0 Shimano HTII (Road) G5 Ceramic Bottom Bracket is designed for road cyclists replacing a worn bottom bracket or looking to improve the operation of their existing crankset. It addresses two concerns commonly associated with press-fit bottom brackets: unwanted creaking and inconsistent bearing alignment. Unlike conventional press-fit assemblies with independently seated cups, Tripeak's construction mechanically connects the two sides to create a more stable installation. This makes it particularly relevant for riders experiencing persistent bottom bracket noise or planning a drivetrain upgrade without replacing their crankset.
Consistent Pedalling. The bearing construction is intended to maintain smooth rotation while limiting unnecessary friction between moving components. Correct alignment is especially important because poorly positioned bearings can experience uneven loading, potentially affecting their operation and service life. For cyclists regularly training, climbing or riding longer distances, a properly installed bottom bracket contributes to predictable crank movement. The potential efficiency improvement will depend on the condition of the component being replaced, and should not be confused with a guaranteed increase in riding speed.
Installation and Maintenance. The assembly is intended for frames and cranksets using the appropriate interfaces, so both must be confirmed before installation. Its locking arrangement helps address movement between the cups, but it cannot correct a severely damaged or incorrectly manufactured frame shell. The protective contact surfaces are intended to reduce wear during fitting and removal, making them useful when servicing a valuable frame. A trained bicycle mechanic should carry out installation using the appropriate tools and manufacturer instructions. After riding in heavy rain, periodic inspection is advisable to identify contamination, rough bearing movement or developing noises before they affect the drivetrain.
Product details
Specifications
Specifications
| Model | Twist-Fit BB86 T0 Shimano HTII G5 Ceramic |
|---|---|
| Recommended Discipline | Road Cycling |
| Bottom Bracket Standard | BB86 |
| Frame Shell Type | Press-Fit |
| Frame Shell Inner Diameter | 41mm |
| Frame Shell Width | 86mm |
| Crankset Compatibility | Shimano Hollowtech II Road |
| Crank Spindle Diameter | 24mm |
| Installation System | Twist-Fit |
| Locking Mechanism | Dual-Sided Locking |
| Bearing Type | Ceramic Hybrid Bearings |
|---|---|
| Bearing Grade | G5 |
| Bearing Ball Material | Ceramic |
| Bearing Race Material | Steel |
| Bearing Cup Material | CNC-Machined AL6061 Aluminium Alloy |
| Snug Ring Material | PA+GF Composite |
| Tool Interface | 16-Notch |
| Tool Interface Outer Diameter | 44mm |
| Color | Gold, Red |
| Weight | Approx. 96 g per Set |
Features
Features
Fit and sizing
Fit and sizing
Fit: Press-fit
