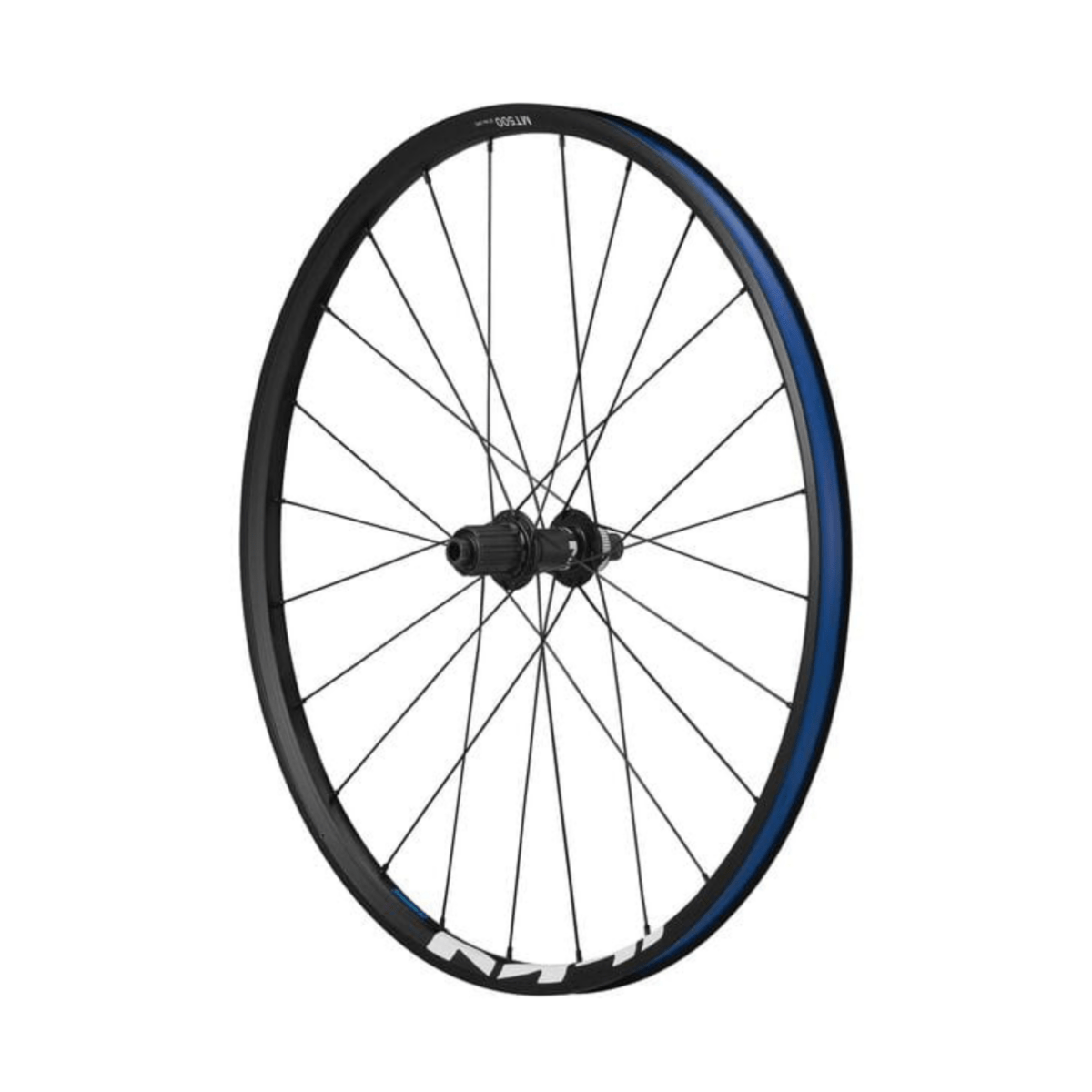

Shimano WH-MT500-CL-29 Clincher Center Lock Disc Brake Wheelset
Reliable 29" Clincher Wheelset for XC and Trail
- Durable Alloy Rims for Confident Riding
- Sealed Cup-and-Cone Hub System
- Stable 24-Spoke Lacing
Shimano WH-MT500-CL-29 Clincher Center Lock Disc Brake Wheelset - Rear / 173mm is backordered and will ship as soon as it is back in stock.
Ordered in from Shimano Ā· ships in about 3 weeks
Pairs well with
Shimano WH-MT500-CL-29 Clincher Center Lock Disc Brake Wheelset - Rear / 173mm is backordered and will ship as soon as it is back in stock.
The Shimano WH-MT500-CL-29 delivers dependable performance for cross-country and all-mountain riders. Designed for 29" setups, this clincher wheelset is built for control and stability across mixed terrain, featuring center lock disc brake compatibility for consistent braking.
Durable and Lightweight Alloy Rims: The rims are constructed from anodized aluminum with a 24 mm internal width, offering the perfect balance of strength and weight. This design supports enhanced grip and cornering stability, allowing riders to confidently tackle rough trails and technical descents.
Smooth and Sealed Hub System: Featuring Shimanoās proven cup-and-cone bearings and labyrinth-contact seals, the hubs provide smooth rotation and long-term durability. The rear freehub body is made of steel and supports 8ā11-speed mountain bike drivetrains, ensuring wide-ranging compatibility.
Spoke Lacing for Strength and Longevity: Built with 24 J-bend stainless steel spokes and brass nipples, both front and rear wheels are laced in a 2-cross pattern for added strength and flexibility. The wheelset accommodates tire widths from 2.0" to 2.35", providing adaptability across riding conditions.
Available in multiple axle configurationsāincluding 9Ć100 mm or 15Ć110 mm front and 10Ć135 mm, 12Ć142 mm, or 12Ć148 mm rearāthe WH-MT500-CL-29 suits a wide variety of modern mountain bikes.
Specifications
Specifications
| Model No | WH-MT500-CL-R-29 |
|---|---|
| Series | Shimano |
| Color|Hub Shell | Black |
| Color|Quick Release | Black |
| Front/Rear | Rear |
| Brake Type | Center Lock Disc Brake |
| Rear Speeds | 11/10/9/8/7 |
| O.L.D.(Mm) | 135 |
| Wheel Size | 622x24C (29 Inch) |
| Tire|Type | Clincher |
| Tire|Recommended Size | 29x2.00 - 2.35 |
| Rim|Height | 21 mm |
| Rim|Internal Width | 24 mm |
| Rim|External Width | 29.6 mm |
| Rim|Joint | Sleeve |
| Rim|Requires Rim Tape | Yes (24-622) |
| Spokes|Number | 24 |
| Spokes|J-Bend | Yes |
| Spokes|Diameter | 2.3 mm |
| Axle Fixing Method | Quick Release |
| Quick Release Skewer Length | 168mm, 173mm |
| Spline Type|Hg Spline M (10/9/8-Speed, MTB 11-Speed, 7-Speed CS-HG400/HG210): Yes | |
| Engagement Type | Pawl Ratchet |
|---|---|
| Bearing|Cone | CBN |
| Seal|Hub | Labyrinth+Contact |
| Internal Grease Sleeve | Yes |
| Rim|Material | Aluminum |
| Rim|Finish | Anodized |
| Spoke|Material | Stainless Steel |
| Spoke|Finish | Black |
| Nipple|Material | Brass |
| Nipple|Finish | Black |
| Hub Shell|Material | Aluminum |
| Hub Shell|Finish | Painted |
| Axle|Material | Steel |
| Quick Release Lever|Material | Aluminum |
| Quick Release Lever|Finish | Painted |
| Quick Release Housing|Material | Steel |
| Quick Release Nut|Material | Steel+Resin |
| Reflector|JIS/CPSC | Cateye RR-550-WUW SW |
| Reflector|AS | Cateye RR-550-WUA SW |
| Reflector|DIN | Cateye RR317-WUA SW |
| Average Weight (w/o Quick Release, Rim Tape, Tubeless Tape, Valve Stem, Lock Ring): 1200 g | |
