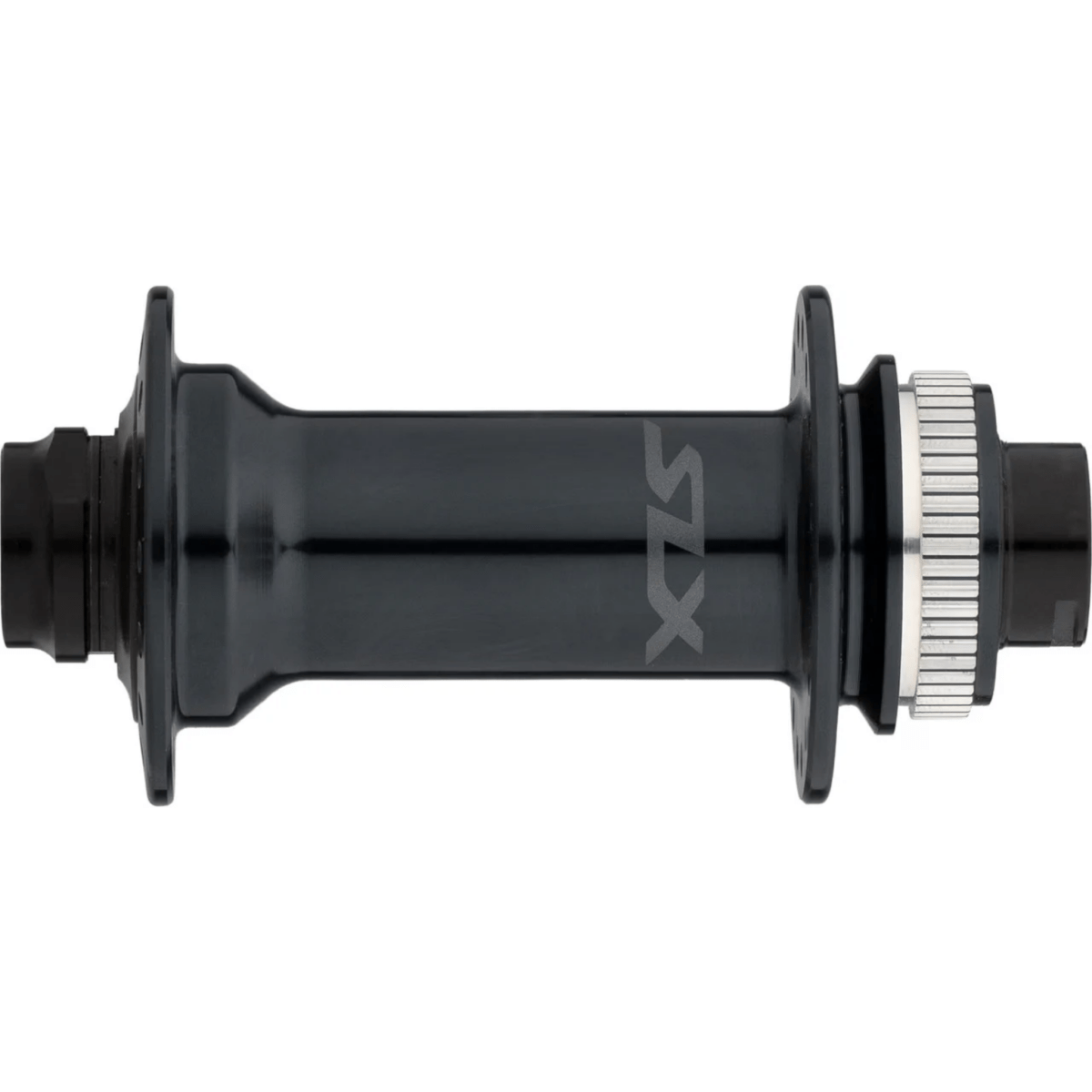

Shimano SLX HB-M7110-B Center Lock Disc Brake Front Hub

Trail-Ready Front Hub with E-Thru Axle and Center Lock Precision

Boost 110 mm Spacing for Stiffness
E-Thru 15 mm Axle Interface
Center Lock Disc Mount System

₹4,330

Earn 86 points paying online Details

Color: Black

Shimano SLX HB-M7110-B Center Lock Disc Brake Front Hub, Black

Holes

32H

Not sure it fits your bike? Ask TBA Guide WhatsApp us

Check delivery estimate

The Shimano SLX HB-M7110-B Front Hub is engineered for mountain bikers who demand performance and reliability. Built for custom wheel builds, this hub delivers smooth operation and solid trail performance, making it an ideal choice for riders looking to upgrade their front wheel setup.

Stiff, Lightweight and Easy to Install: Designed for a 15 mm thru-axle system, this hub offers a strong, toolless interface that’s both lightweight and easy to set up. Its Boost-compatible 110 mm spacing ensures enhanced stiffness and handling, giving you better control on technical trails and descents.

Center Lock Rotor Mount for Quick Setup: The Center Lock disc rotor mount allows for fast, precise rotor installation using a spline system and lock ring. It simplifies the process compared to 6-bolt systems and ensures secure, reliable braking performance with minimal maintenance.

Durability That Handles the Elements: With Shimano’s Labyrinth and Contact Sealing system, this hub is built to keep dirt, water and trail grime out—extending bearing life and maintaining smooth rolling over time. It’s a low-maintenance solution for high-mileage mountain biking.

With high-quality internals, a stiff axle interface and reliable sealing, the SLX HB-M7110-B hub offers a confident and responsive ride wherever the trail leads.

Specifications

Model No	HB-M7110-B
Series	SLX
Color	Black
Brake Type	Center Lock Disc Brake
O.L.D. (mm)	110
Spoke Holes	28H, 32H
External Serration Disc Brake Rotor Lock Ring \| Without: Yes
Axle Fixing Method	15 mm E-Thru

Flange Distance (mm)	70.2
Offset (mm)	5.7
P.C.D. Left / Right (mm)	44 / 44
Flange Diameter (mm)	52.8
Flange Diameter Left / Right (mm)	52.8
Seal	Labyrinth+Contact
Internal Grease Sleeve	Yes
Average Weight	147 g

Features

Boost 110 mm Spacing for Stiffness: Provides enhanced front-end rigidity and improved handling over rough trails and technical descents.
E-Thru 15 mm Axle Interface: Offers a secure, tool-free connection that increases torsional stiffness and makes installation easy.
Center Lock Disc Mount System: Spline interface allows fast, precise rotor mounting with improved braking efficiency and minimal maintenance.
Sealed for Long-Term Durability: Labyrinth and contact sealing system keeps out water, mud and grit, extending the life of internal components.
Perfect for Custom MTB Builds: Designed for riders building or upgrading their wheels with smooth-rolling internals and high-performance specs.

Technologies

Center Lock: Enables fast and secure rotor mounting via a spline interface with lock ring, improving braking precision and ease of maintenance.
E-Thru: 15 mm thru-axle system increases torsional stiffness by 15% and shear stiffness by 25% over 9 mm axles, maintaining lightweight balance and control.
