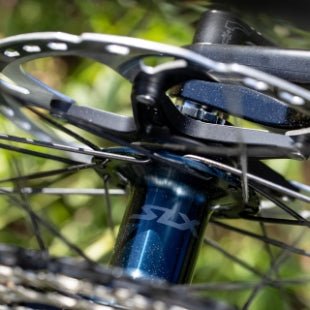

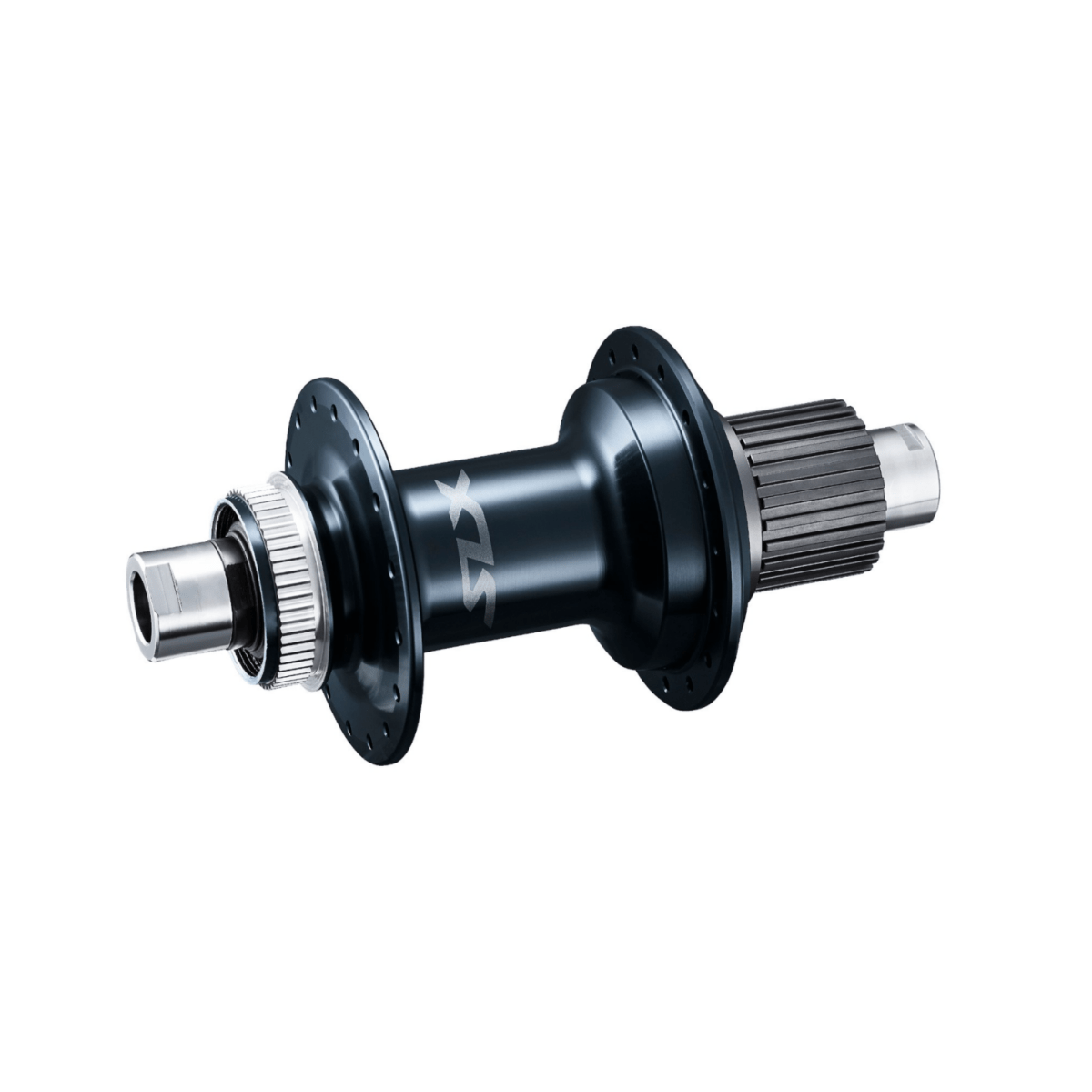

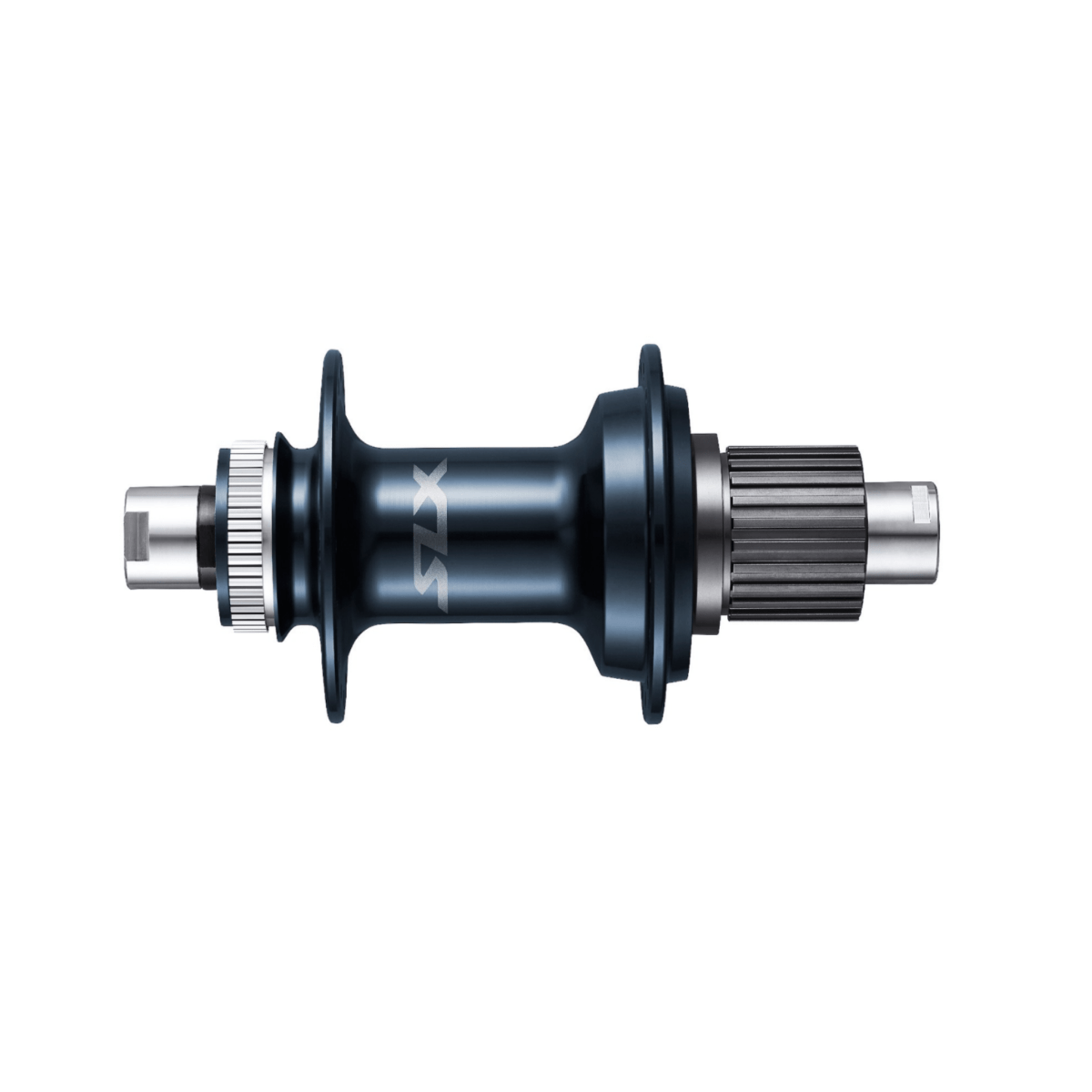

Shimano SLX FH-M7110-B Center Lock 12-Speed Disc Brake Rear Freehub

Name: Shimano SLX FH-M7110-B Center Lock 12-Speed Disc Brake Rear Freehub
Brand: Shimano
SKU: EFHM7110BC
Price: 7780.0 INR
Availability: OutOfStock

Trail-Proven Rear Hub with Micro Spline and Boost Compatibility

₹7,780

Holes

28H 32H

Delivery estimateEnter your pincode for delivery dates

Free shipping over ₹2,000Delivered across India
100% genuineAuthorised dealer, manufacturer warranty
Cash on deliveryOn orders up to ₹20,000
Secure checkoutUPI, cards and net banking

Not sure about size or compatibility? Ask TBA Guide WhatsApp us

The Shimano SLX FH-M7110-B rear freehub is designed for riders who demand performance, reliability and smooth engagement on challenging terrain. Compatible with 12-speed Micro Spline cassettes, it offers a balance of strength and precision that’s ideal for trail, all-mountain and enduro riding styles.

Micro Spline Advantage for Acceleration: With Micro Spline technology, the hub accommodates a 10T top gear, delivering a broader gear range and quicker acceleration. This makes it easier to surge forward during sprints or steep climbs, offering a more dynamic riding experience across all gradients.

Boost-Ready for Maximum Frame Compatibility: The 148 mm O.L.D. Boost spacing ensures enhanced rear-end stiffness and improved wheel strength. Combined with a 12 mm E-THRU axle, the hub provides precise control and stability even when navigating rocky, technical trails.

Center Lock Rotor Mount for Hassle-Free Setup: Featuring Shimano’s Center Lock system, the FH-M7110-B simplifies rotor installation with a spline mount and secure lock ring. This not only shortens setup time but also ensures consistent braking performance, giving riders confidence in all conditions.

Engineered for durability, the Shimano SLX FH-M7110-B rear freehub includes high-quality seals and robust internals that protect against dirt and moisture.

Product details

Specifications

Model no	FH-M7110-B
Series	SLX
Color	Series Color
Color\|Hub Shell	Series Color
Brake Type	Center Lock Disc Brake
Rear Speeds	12
O.L.D. (mm)	148
Spoke Holes	28H, 32H, 36H
10 Tooth Cog Compatible	Yes
External Serration Disc Brake Rotor Lock Ring\|Without: Yes
Internal Serration Disc Brake Rotor Lock Ring\|Without: Yes

Axle Fixing Method	12 mm E-Thru
Flange Distance	62.16 mm
Offset	6.6 mm
P.C.D. Left / Right	60 mm / 61 mm
Flange Diameter Left / Right (mm)	68.8 mm / 69.8 mm
Spline Type\|Micro Spline	Yes
Engagement Type	Direct engagement
Quick Engagement	Yes (max 7.0 deg.)
Seal\|Hub	Labyrinth+Contact
Seal\|Freehub Body	Contact
Average Weight	354 g

Features

Micro Spline Compatibility: Supports 12-speed cassettes with a 10T top gear for quick acceleration and a broader gear range.
Boost-Optimized Design: 148 mm O.L.D. Boost spacing improves rear-end stiffness and wheel durability on aggressive trails.
Center Lock Rotor Mount: Allows fast and precise disc rotor installation via spline mount and lock ring for consistent braking.
Direct Engagement System: Spiral-shaped ratchets increase contact area and drive rigidity while reducing hub weight.
Sealed for Durability: Labyrinth+Contact seals protect internals from dirt and moisture, reducing maintenance.

Technologies

Direct Engagement: Increases drive rigidity with a spiral ratchet interface and aluminum components for lighter, stiffer performance.
Center Lock: Enables quick, secure disc rotor mounting with spline engagement and lock ring for better braking precision.
Micro Spline: Lightweight aluminum freehub supports 10T top gears, reducing weight and enhancing acceleration potential.
Quick Engagement: Features 18/16 notches and dual pawls to ensure faster engagement for improved control on technical terrain.
