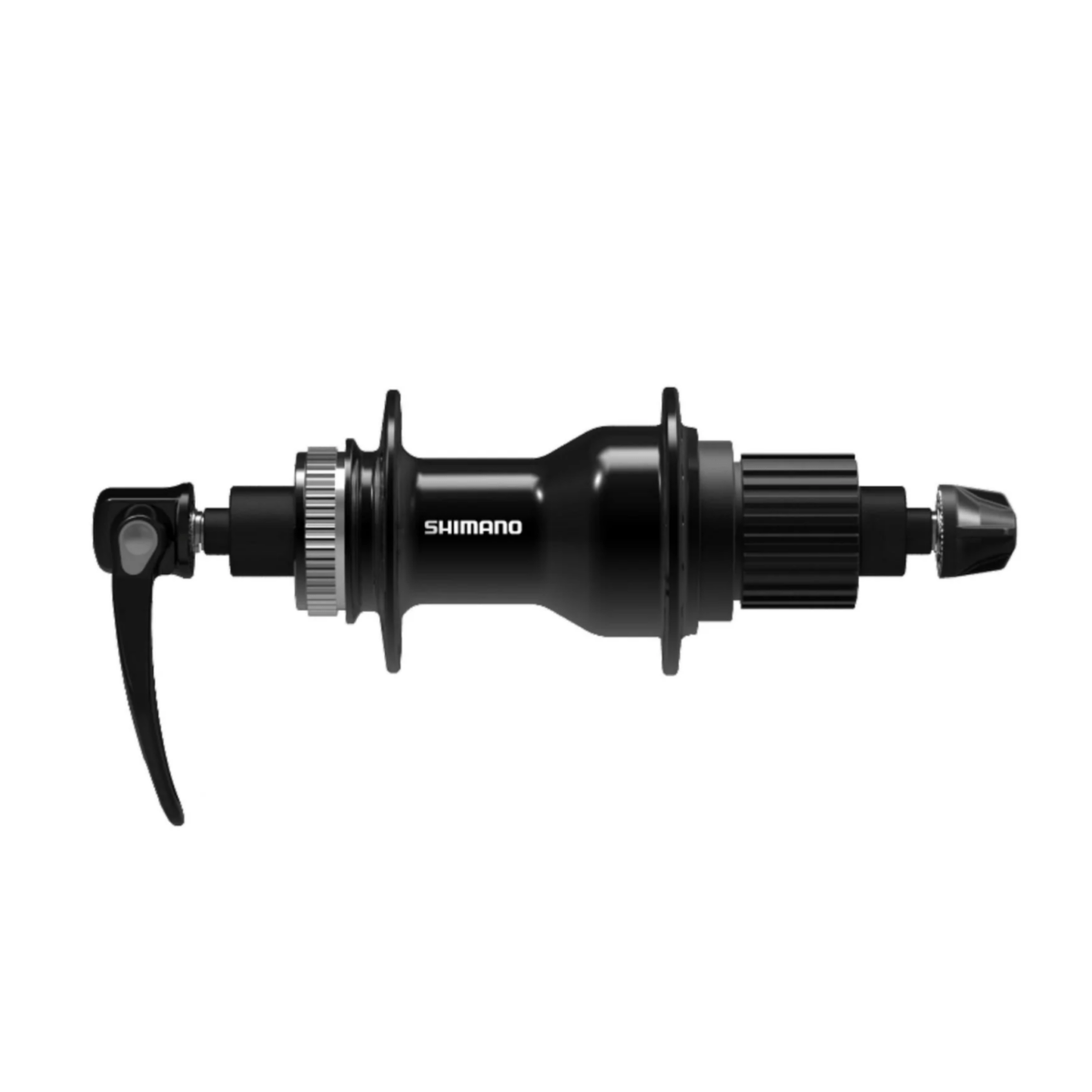

Shimano FH-QC500-MS-B Center Lock 12-Speed Disc Brake Rear Freehub

Reliable 12-Speed Freehub with Micro Spline & Boost Spacing

  • Micro Spline for Wide Gear Range
  • Center Lock Rotor Interface
  • Boost Spacing for Stiffness
Regular price ₹3,480
Earn 68 points paying online Details
Length
Holes
Not sure it fits your bike? Ask TBA Guide WhatsApp us
Check delivery estimate

The Shimano FH-QC500-MS-B rear freehub is designed to deliver dependable performance on demanding trails. Engineered for 12-speed Micro Spline cassettes, it ensures smooth and precise gear engagement, offering a solid foundation for high-performance riding across all terrains.

Center Lock Disc Compatibility for Easy Setup: This hub features a Center Lock disc brake mount, allowing for quick and secure rotor installation using a spline interface and lock ring. The system minimizes installation time and enhances braking consistency, making it a favorite for riders seeking simplicity without compromising braking efficiency.

Micro Spline for Wide Gear Range: With its smaller spline diameter, the hub accommodates a 10T top gear, allowing for broader gearing options in compact formats. This makes it ideal for modern 1x drivetrains that demand wide-range cassettes and high-efficiency setups, especially in off-road and mountain biking applications.

Durability Through Smart Sealing: Shimano’s Labyrinth and Contact Sealing system ensures long-term durability by keeping out dirt, water and grime. These advanced seals maintain smooth hub performance even in wet and muddy environments, reducing maintenance and extending the life of internal components.

Broad Spoke Compatibility: It is compatible with both #13 and #14 gauge spokes, offering versatility for custom wheel builds and replacements on a wide range of bikes.

Built with a 141 mm O.L.D. Boost spacing, the Shimano FH-QC500-MS-B Rear Freehub provides enhanced wheel stiffness and frame clearance.

Specifications

Model NoFH-QC500-MS-B
SeriesShimano
ColorBlack
Color|Hub ShellBlack
Color|Quick ReleaseBlack
Quick Release Lever|ColorBlack
Brake TypeCenter Lock Disc Brake
Rear Speeds12
O.L.D. (mm)141
Spoke Holes28H, 32H, 36H
10 Tooth Cog CompatibleYes
External Serration Disc Brake Rotor Lock Ring|Without: Yes
Internal Serration Disc Brake Rotor Lock Ring|Without: Yes
Axle Fixing MethodQuick release
Quick Release Skewer Length (mm)174, 178
Flange Distance (mm)61.45
Offset (mm)7.6
P.C.D. Left / Right (mm)50.5 / 51.5
Flange Diameter Left/Right (mm)59.3 / 60.3
Spline Type|Micro SplineYes
Engagement TypePawl ratchet
Seal|HubLabyrinth+Contact
Seal|Freehub BodyContact

Features

  • Micro Spline for Wide Gear Range:Ā Supports 10T top gear for compact 12-speed cassettes, ideal for modern 1x drivetrains with broad range capability.
  • Center Lock Rotor Interface:Ā Allows fast, secure disc rotor installation using a lock ring and spline mount for consistent braking power.
  • Boost Spacing for Stiffness:Ā 141 mm O.L.D. improves wheel rigidity and offers extra clearance for larger tires and wider frames.
  • Labyrinth and Contact Sealing:Ā Sealing system keeps out water and debris to ensure smooth, long-lasting performance in all weather conditions.
  • Flexible Spoke Options:Ā Compatible with #13 and #14 gauge spokes across 28H, 32H and 36H for diverse wheel builds.

Technologies

  • Center Lock:Ā Uses a spline mount and lock ring for simple, precise disc rotor installation. Reduces setup time and ensures stable braking with improved rigidity.
  • Micro Spline:Ā Lightweight aluminum freehub design enables use of a 10T cog and Micro Spline cassettes. Offers tighter gear steps and compatibility with wide-range drivetrains.
