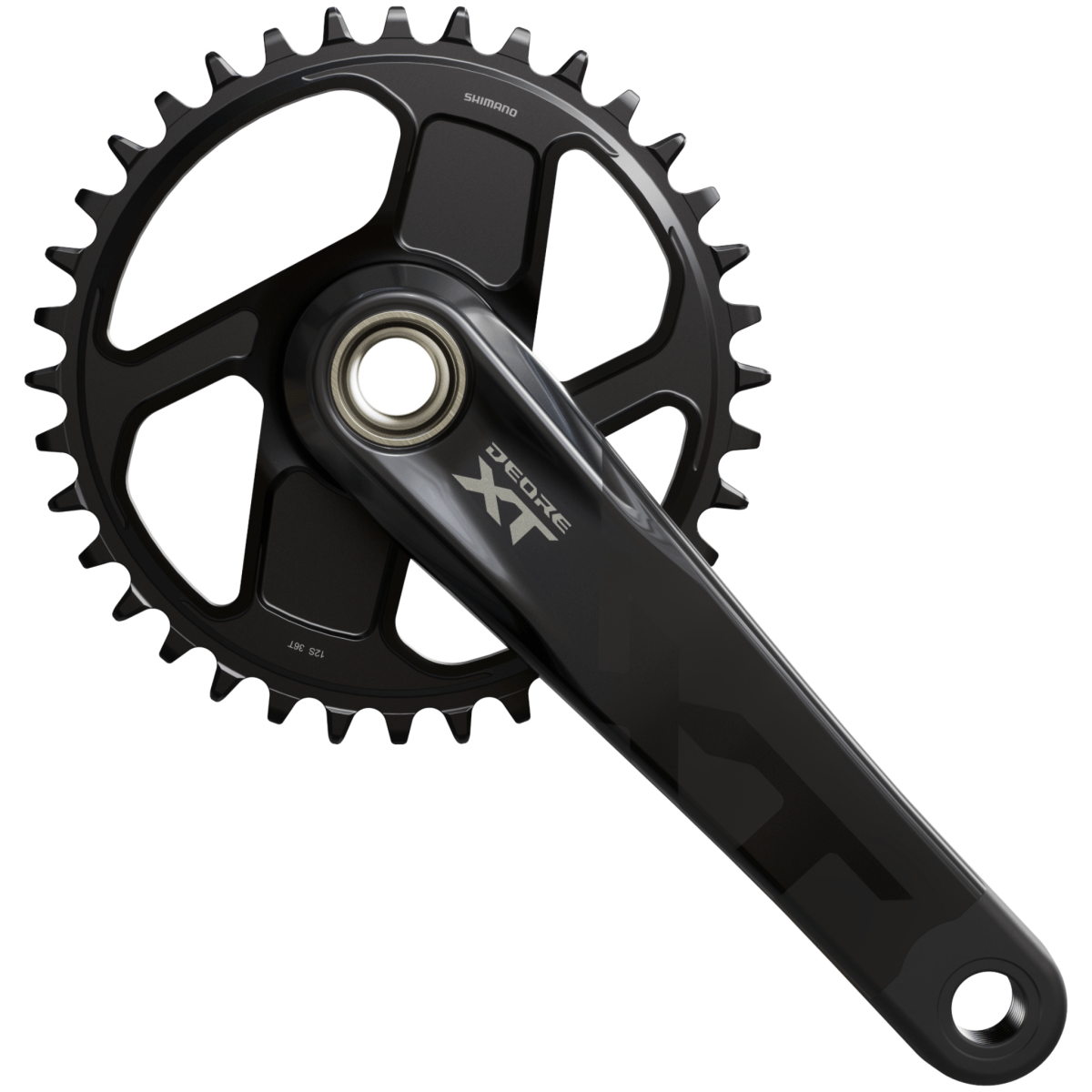

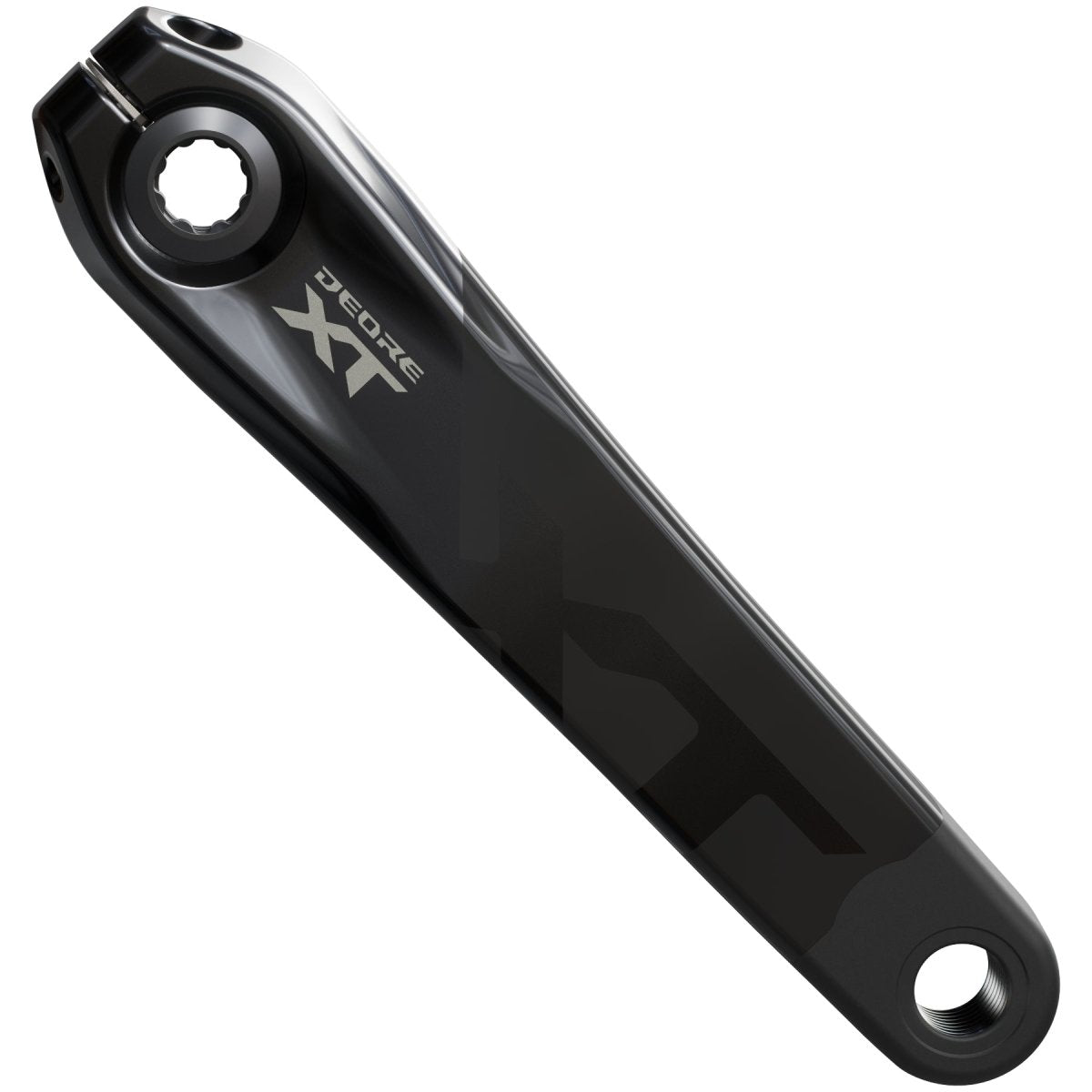

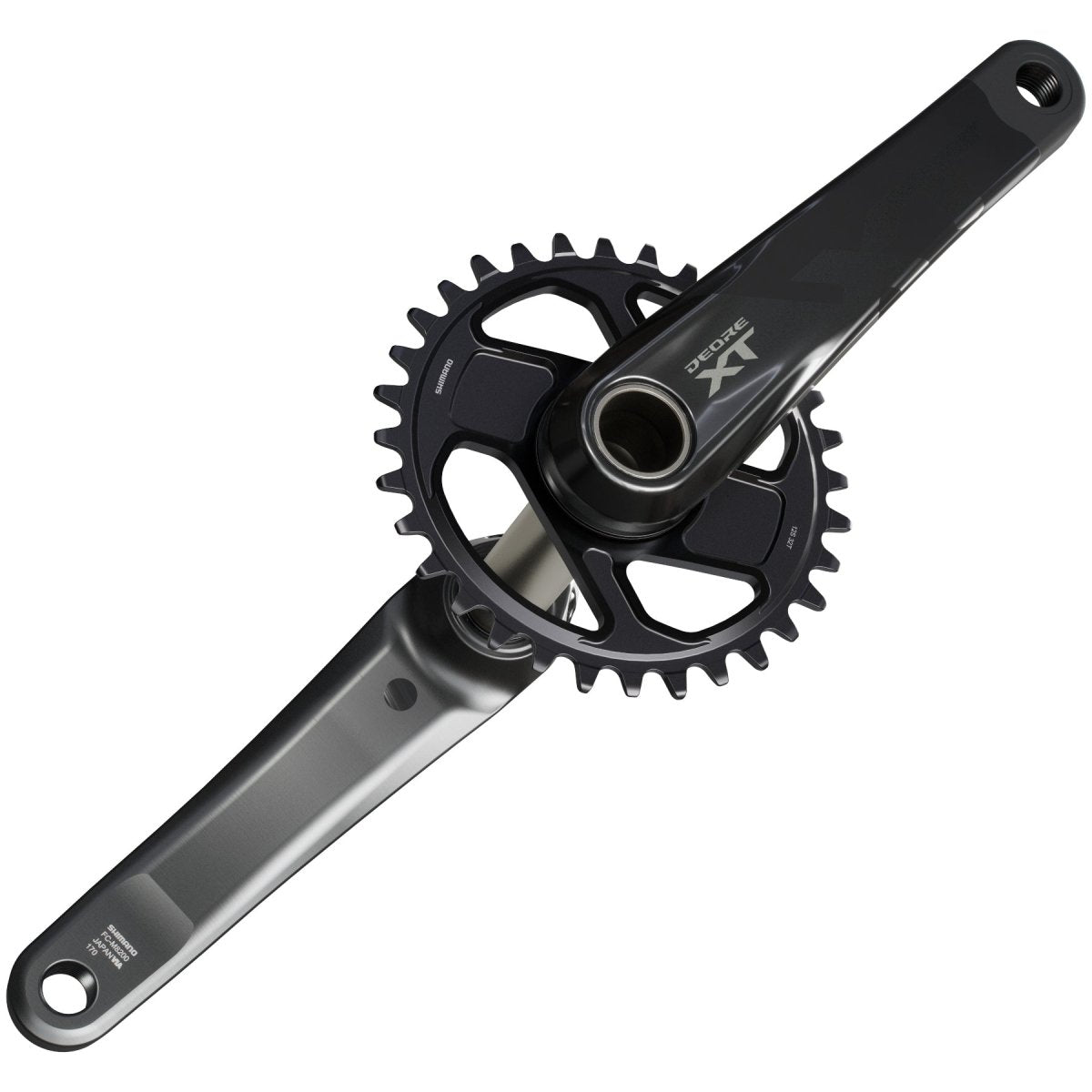

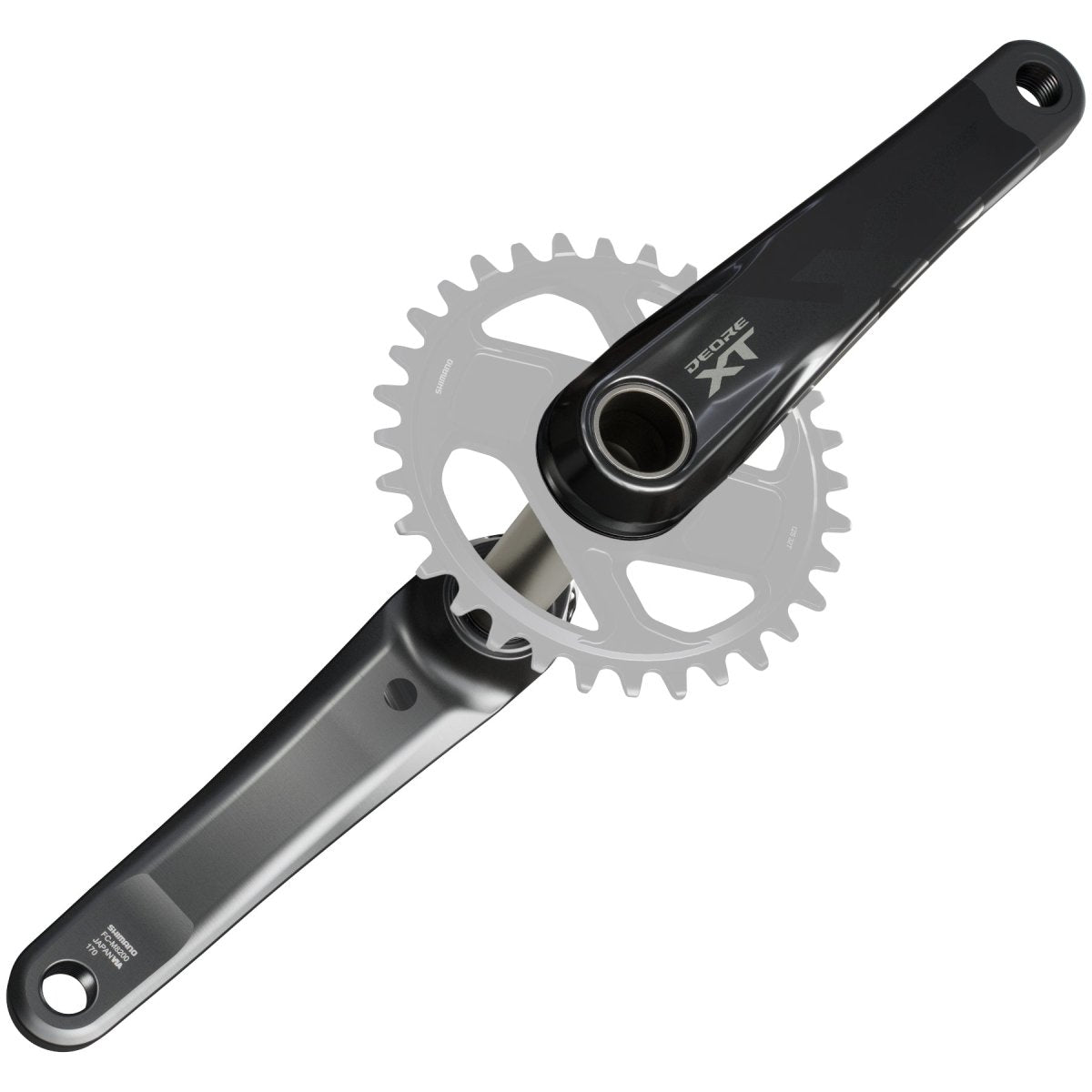

Shimano Deore XT FC-M8200 12-Speed Front Chainwheel

Lightweight Hollowtech II Crankset for Aggressive Trail and Enduro Riding

  • Hollowtech II Construction
  • Trail and Enduro Ready
  • Perfected Q-Factor and Chain Line
Regular price ₹14,690
Earn 292 points paying online Details
Length
Not sure it fits your bike? Ask TBA Guide WhatsApp us
Check delivery estimate

The Shimano Deore XT FC-M8200 crankset is built to deliver a flawless balance between strength and lightweight performance. Designed for 12-speed drivetrains, it uses advanced Hollowtech II alloy forging to create a structure that stands up to the toughest enduro trails while staying light enough for XC efficiency.

Engineered for Trail-Enduro Versatility: This crankset excels across all types of riding—from all-day adventures to aggressive enduro racing. Its perfected Hollowtech II construction ensures optimal stiffness, durability and responsive power transfer, giving you confidence on climbs, descents and technical singletrack.

Optimized Q-Factor and Chain Line: The FC-M8200 features a 176 mm Q-Factor and a 55 mm chain line, striking a perfect balance between rider comfort and modern frame compatibility. This configuration allows for easy setup with no need to adjust wheels or cassettes when switching between trail bikes.

Custom Fit for Every Rider: With crank arm lengths ranging from 160 mm to 175 mm, the FC-M8200 offers sizing options for riders of all heights and preferences. It pairs with the reinforced SM-CR86 direct-mount chainring series, allowing you to fine-tune your gearing to match your terrain and riding style.

Equipped with a standard 24 mm spindle, the FC-M8200 is compatible with Shimano’s threaded and press-fit bottom brackets. This ensures easy integration with a wide range of bike setups while maintaining Shimano’s trusted performance and durability.

Specifications

Model NoFC-M8200
SeriesDeore XT
Rear Speeds12
Compatible ChainHG 12-Speed
Chain Line (mm)55
O.L.D. | Thru (mm)148
P.C.D. (mm)Direct
Chainring Combination28T, 30T, 32T, 34T, 36T
Q-Factor (mm)176
Crank Arm Length (mm)160, 165, 170, 175
Optional Chain Guard | Without Chain/Bash Guard: Yes
Hollowtech IIYes
Compatible Bottom Bracket Type | Outboard: Yes
Recommended Bottom Bracket | Threaded (Normal): BB-MT801
Recommended Bottom Bracket | Press-FitBB-MT800-PA
Threaded Bottom Bracket Shell Width (mm): 68, 73
Crank Fixing Screw IncludedYes

Features

  • Hollowtech II Construction:Ā Optimized forging balances strength, stiffness and lightweight performance for long, demanding rides and technical terrain.
  • Trail and Enduro Ready:Ā Designed for aggressive performance, with efficient power transfer ideal for climbs, descents and singletrack.
  • Perfected Q-Factor and Chain Line:Ā A 176 mm Q-Factor and 55 mm chain line offer superior comfort and compatibility with modern 148 mm rear O.L.D. frames.
  • Crank Arm Sizing Flexibility:Ā Available in 160 mm to 175 mm lengths to fit a wide range of rider heights and preferences.
  • Chainring Versatility:Ā Compatible with Shimano SM-CR86 direct-mount chainrings in sizes from 28T to 36T for terrain-specific tuning.
  • Broad Bottom Bracket Compatibility:Ā Standard 24 mm spindle works with Shimano’s threaded and press-fit bottom brackets for reliable performance.

Technologies

  • Hollowtech II:Ā Integrates bottom bracket axle with right crankarm to improve stiffness, stability and weight balance, ensuring efficient power transfer over long distances.
    High Precision Sealing:
    Ā Durable bearing design with excellent rotational performance for long-term trail and enduro reliability.
  • Dynamic Chain Engagement+:Ā Special tooth profile offers excellent chain retention and smoother pedaling over rough terrain, reducing wear and chain drops.
  • HG Chain Design for Hyperglide+:Ā Works with Hyperglide+ chain for improved shifting efficiency and retention on uneven surfaces.
