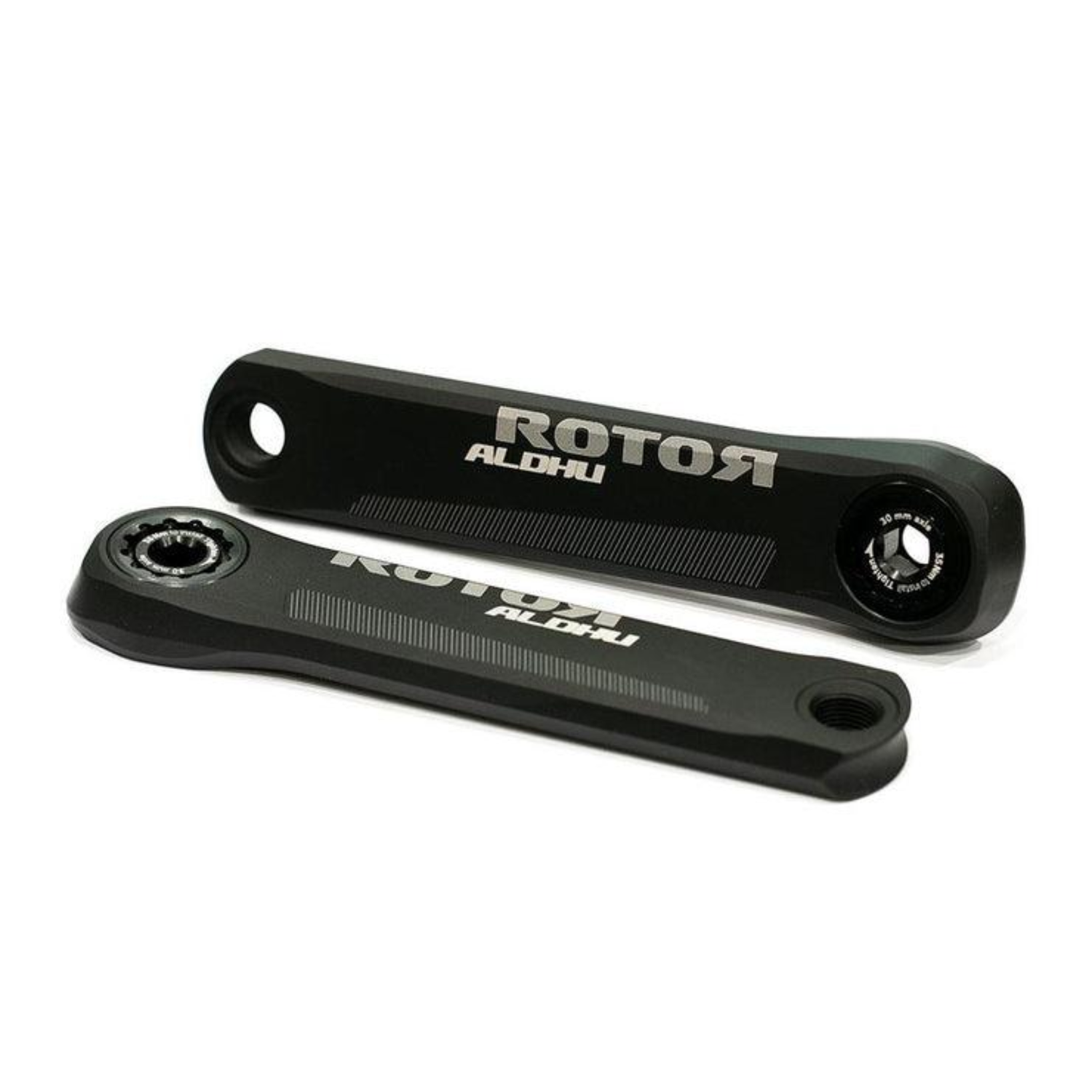

Rotor Aldhu Direct Mount Crank Arms

C02-102-19010-0
₹18,900
Length

Estimated Shipping Widget will be displayed here!

Modular Road Performance with Lightweight Alloy Construction

Overview

The Rotor Aldhu Direct Mount Crank Arms use a proprietary spline interface to connect the crank arms, axle and chainring. This modular construction simplifies assembly, servicing and component changes.

Aerospace-Grade Aluminium: Precision-machined from 7075-T6 aluminium, the crank arms combine low weight with high stiffness, hardness and steel-like strength. The corrosion-resistant material supports dependable long-term performance.

Efficient Power Transfer: The rigid direct-mount structure helps transfer pedalling effort efficiently during climbs, accelerations and sustained road riding. Its lightweight construction also supports a responsive crankset setup.

Flexible Chainring Compatibility: The modular Aldhu platform works with compatible Rotor Q Rings and round chainrings. Riders can select suitable chainring, axle and bottom bracket configurations according to their bicycle setup.

The Rotor Aldhu Direct Mount Crank Arms provide a lightweight, strong and adaptable foundation for a performance-focused road crankset.

Features
  • Efficient Power Transfer: Stiff aluminium construction supports responsive pedalling under load.
  • Modular Crankset Design: Separate arms, axle and chainring simplify setup and component replacement.
  • Easy Chainring Changes: Compatible direct-mount rings can be removed using a single fixing bolt.
  • Flexible Road Setup: Supports different axle and chainring combinations for varied bike standards.
  • Race-Inspired Construction: Developed as Rotor’s lightweight modular road crank platform.

Technologies

  • OCP Mount: Enables precise orientation adjustment when used with compatible Rotor Q Rings.

Specifications
  • Discipline: Road, Gravel, Cyclocross, Triathlon, Track
  • Compatible Chainrings: Rotor Direct Mount Q Rings and Round Rings
  • Bottom Bracket Compatibility: BSA30, ITA30, BB30, Press Fit 4630, UBB4630, BB386 and Press Fit 4130
  • Material: 7055 - T6 Aluminium
  • Crank Interface: Proprietary Splined Direct Mount
  • Spindle Diameter: 24 mm
  • Q-Factor: 147 mm (Standard Spindle) or 152 mm (Offset Spindle)
  • Chainline: 43.5 mm (Standard Spindle) or 46 mm (Offset Spindle)
  • Crank Length: 170 mm
  • Color: Black
  • Weight: 344 g
