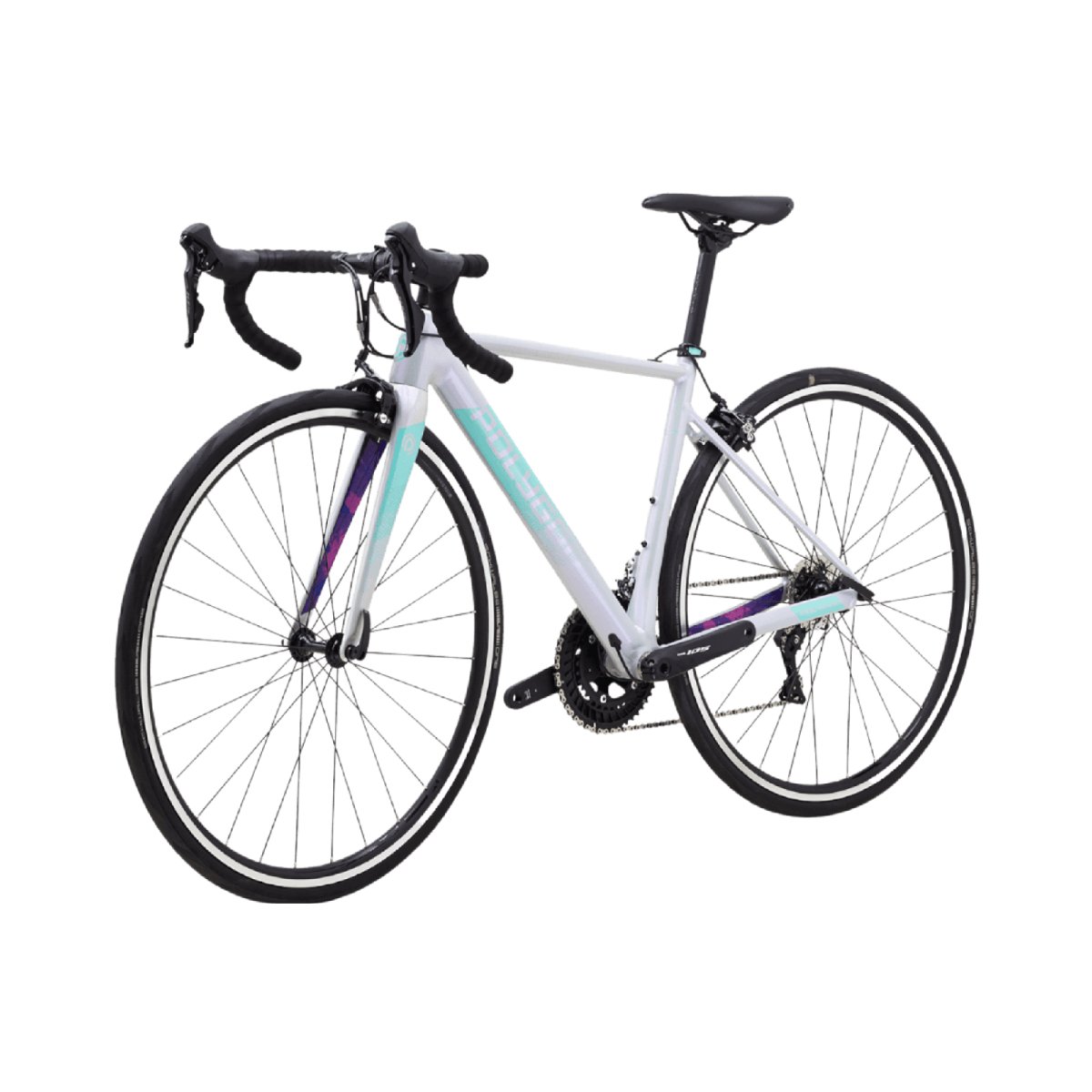

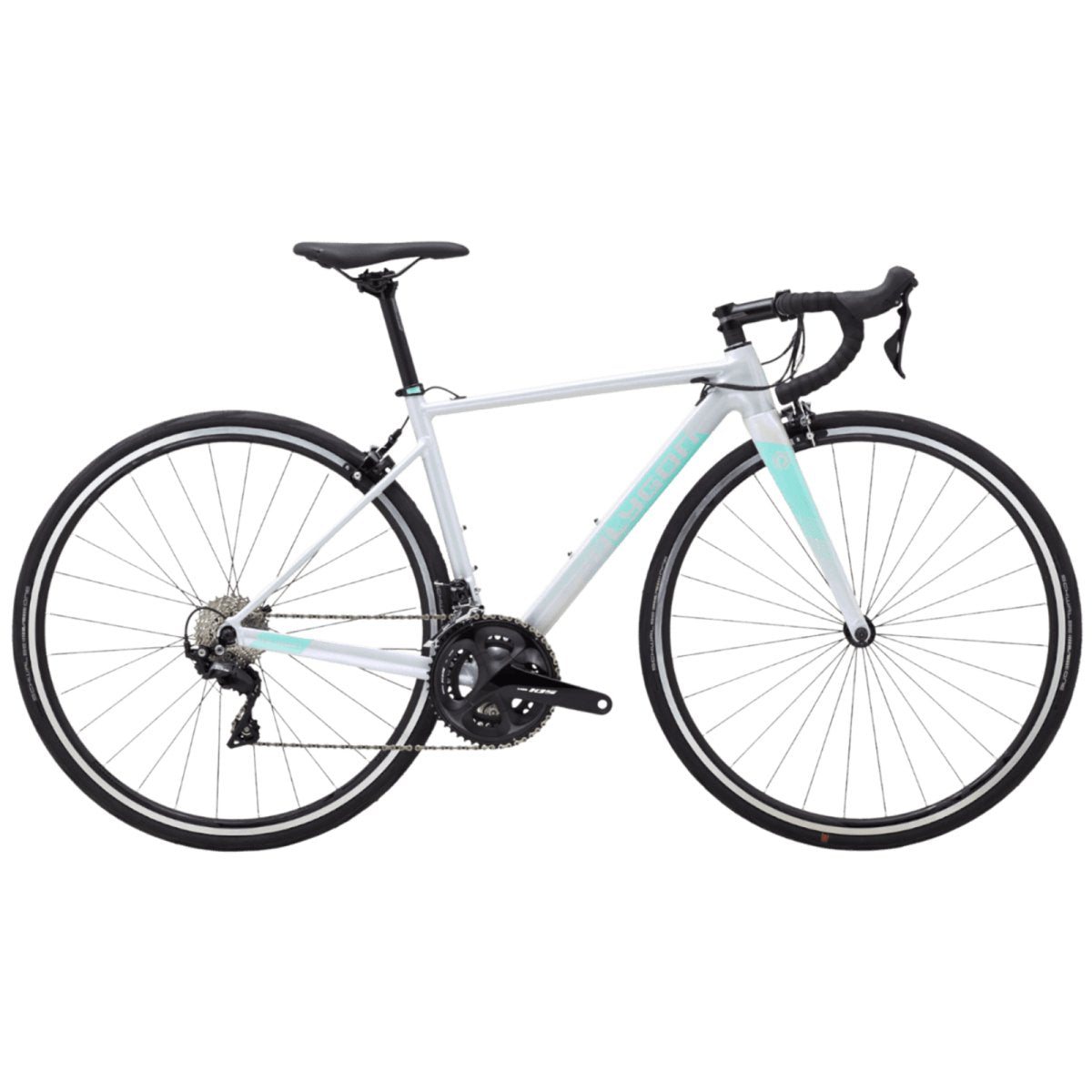

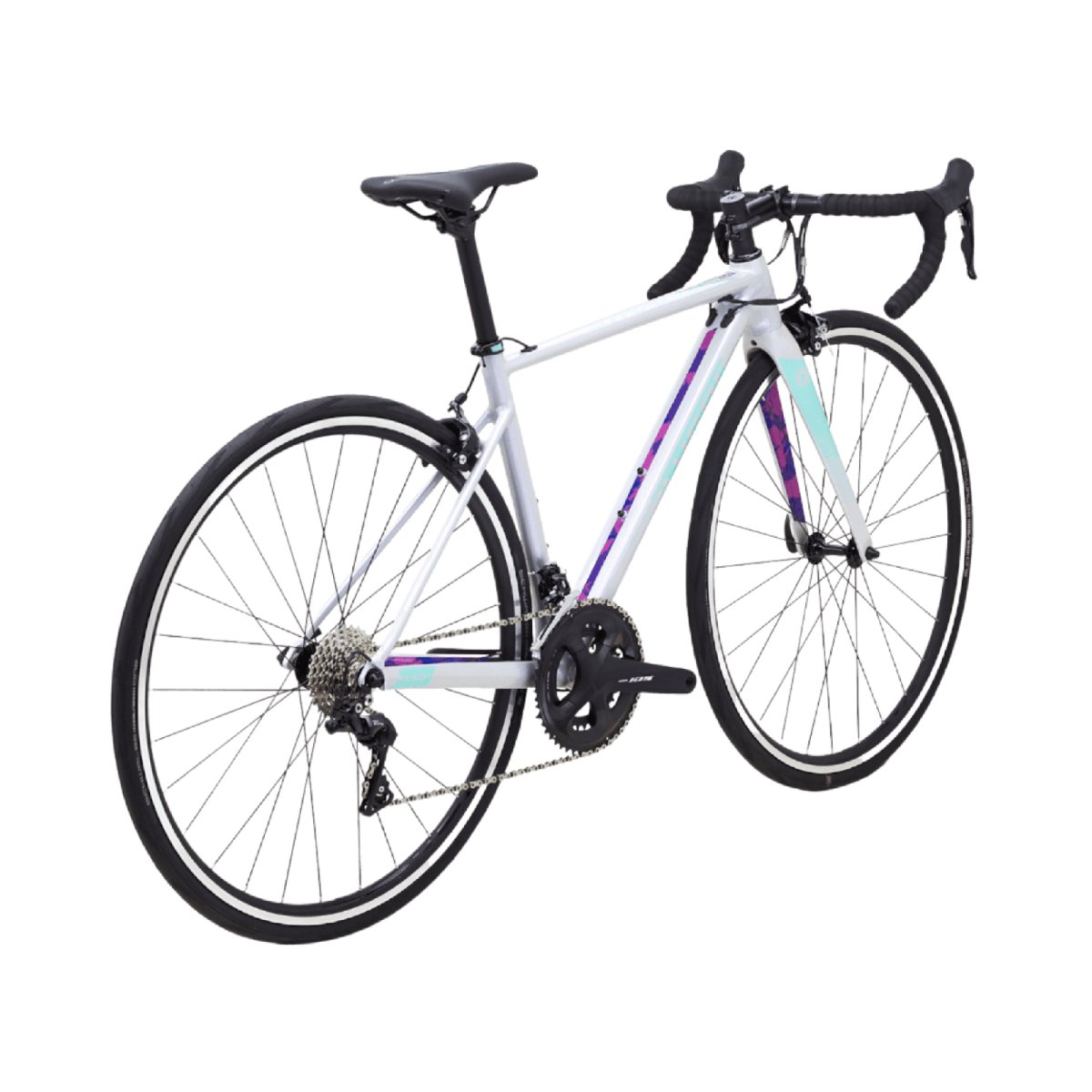

Polygon Strattos S5 Road Bicycle
502765005
Introducing the Polygon Strattos S5 Road Bicycle
Your Gateway to a Whole New Dimension of Fun: Experience a whole new level of exhilaration with the Polygon Strattos S5 Road Bicycle. This bike is astonishingly responsive, smooth, and fast, revolutionizing your road cycling experience. Designed for tranquil, hours-long rides, the Strattos S5 enhances your comfort without compromising performance. Whether you're embarking on a scenic ride with friends or participating in a high-adrenaline race, the Strattos S5 is your ultimate partner, always ready to ride by your side.
Embrace the Joy of Cycling: Feel the rush of excitement as you engage the pedal, the wind rushing around you, and your heartbeat quickening. The all-new Strattos S5 introduces a whole new dimension to road cycling. With its focus on comfort during long rides, this bike ensures every mile is enjoyable. Whether you're exploring picturesque routes with friends or pushing your limits in competitive races, the Strattos S5 will be your trusted companion, always prepared to ride with you.
Unparalleled Comfort and Performance: The Strattos S5 delivers exceptional comfort without compromising performance. Equipped with a vibration-damping carbon fork, this bike absorbs road vibrations, providing a smoother and more comfortable ride even on uneven surfaces. Say goodbye to unnecessary fatigue and welcome longer rides filled with joy. The Strattos S5 unlocks a new level of cycling comfort.
Aerodynamic and Dependable Design: Experience a ride that is not only smooth but also aerodynamic and reliable. The Strattos S5 features internal cable routing, reducing wind resistance and enhancing overall performance. Its tapered head tube design ensures excellent front-end control, minimizing flex and providing precise handling. Ride with confidence, knowing your bike is built for speed and stability.
Features
Features of Polygon Strattos S5 Road Bicycle
- Vibration-damping carbon fork for enhanced comfort
- Internal cable routing for improved aerodynamics and a sleek appearance
- Tapered head tube design for excellent front-end control and precise handling
Specifications
Specifications of Polygon Strattos S5 Road Bicycle
| Frameset | ALX All-Round, Hub Spacing: QRx130mm |
| Fork | ACX All-Round, Taper 1-1/8" TO 1-1/2" |
| Shifter | Shimano 105 ST-R7000, 2x11-Speed |
| Crank | Shimano 105 FC-R7000 50/34T, 170mm (XS, S, M) / 172.5mm (L, XL) |
| Cassette | Shimano 105 CS-R7000 11-30T |
| Derailleur | Rear: Shimano 105 RD-R7000-SS Direct Attach |
| Bottom Bracket | Shimano BB-RS500 |
| Chain | KMC X11-1 |
| Pedal | Alloy Cage & Body W/ Reflector |
| Saddle | Entity, Steel ø 7mm |
| Seatpost | Entity Sport Alloy, DXL: 27.2 x 350mm |
| Handlebar | Entity Sport Alloy, W: 400mm (XS, S, M) / 420mm (L, XL), BB: 31.8mm, R/D: 124mm, B/R: 80mm |
| Handlestem | Entity Sport Alloy, EXT: 90mm (XS, S) / 100mm (M, L) / 110mm (XL), BB: 31.8mm, R/D: 7degree |
| Headset | Zero Stack (ZS) Sealed Bearing For Taper Head Tube, IS 42/28.6 | IS 52/40 |
| Brake Lever | Shimano 105 ST-R7000 |
| Brake Caliper | Shimano 105 ST-R7000 |
| Wheel Set | Entity XL3 |
| Wheel Size | 700C |
| Tire | Performance Tire 700x28C |
| Color | White |
| Size | M, L, XL |
Geometry
Geometry of Polygon Strattos S5 Road Bicycle
| S | M | L | XL | |
| Height (cm) | 162-170 | 168-176 | 174-181 | 180-187 |
| Seat Tube Length | 470 | 500 |
520 |
550 |
| Seat Tube Angle | 74.5 | 74 | 73.5 | 73 |
| Effective Seat Tube Angle | 74.5 | 74 | 73.5 |
73 |
| Head Tube Length | 105 |
130 |
155 |
185 |
| Head Tube Angle | 72.5 |
73 |
73 |
73 |
| Effective Top Tube | 525 | 540 | 555 |
570 |
| Bb Height | 272 |
274.5 |
274.5 |
277 |
| Bb Offset | 72.5 |
70 | 70 | 67.5 |
| Chainstay Length | 415 | 415 |
415 |
415 |
| Wheelbase | 977.32 |
984.83 |
995.01 |
1005.89 |
| Frame Reach | 383.5 |
387.1 |
390 |
391.6 |
| Frame Stack | 510.3 |
533.3 |
557.2 |
583.4 |
| Standover Height | 715.7 |
746.5 |
767.1 |
521.2 |
