XS/49 | S/53 | M/54 | L/56 | XL/58 | |
Height (In in.) |
5'0"-5'4" | 5'3"-5'7" | 5'6"-5'10" | 5'9"-6'0" | 5'11"-6'2" |
Height (In cms.) |
152-163 | 160-170 | 168-178 | 175-183 | 180-188 |

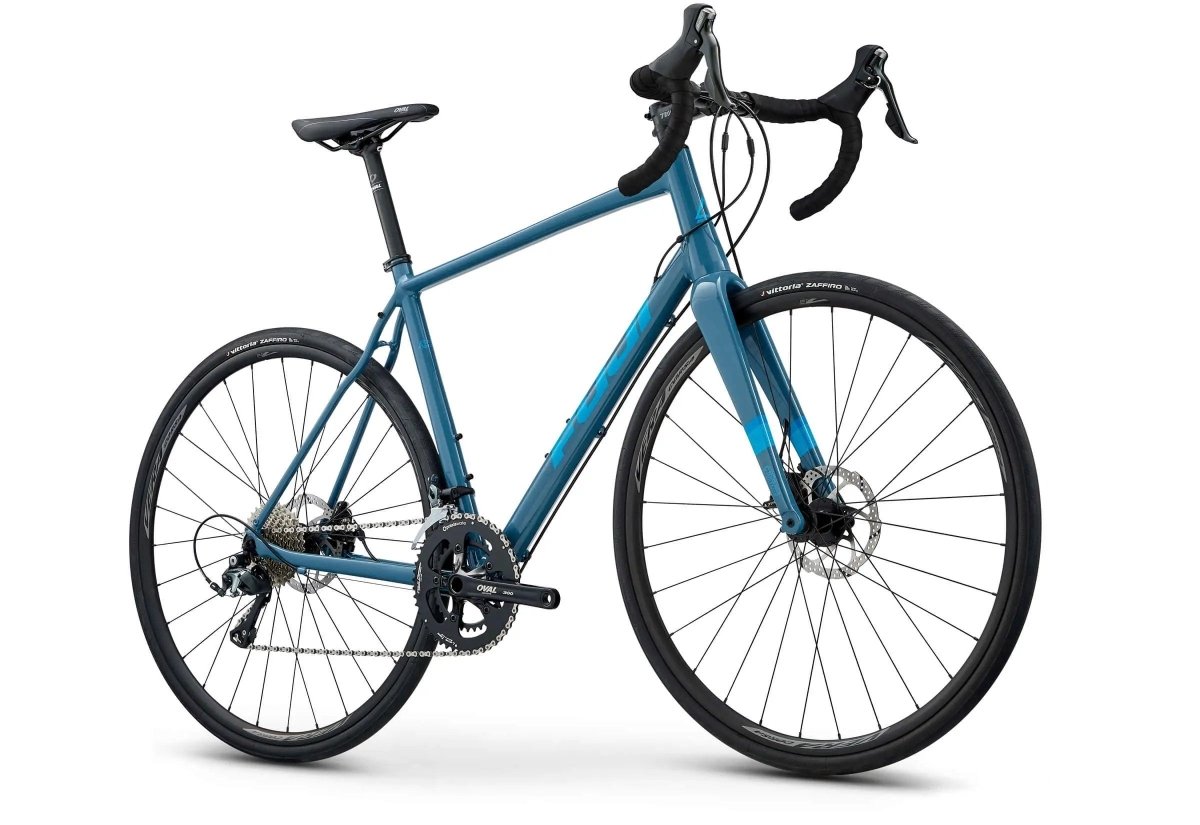

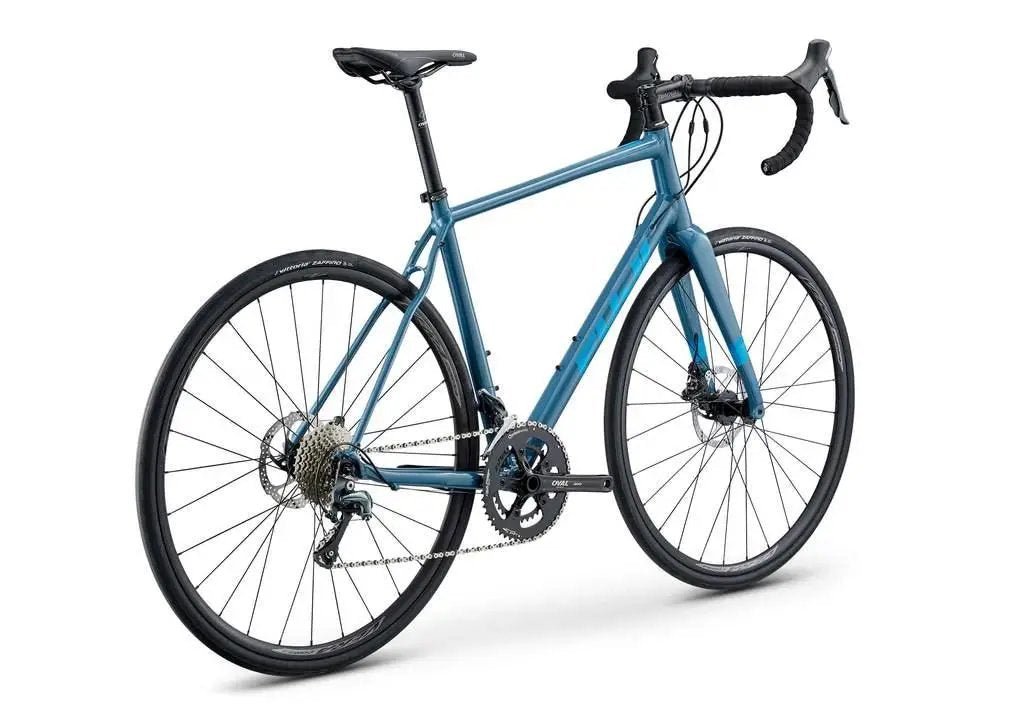

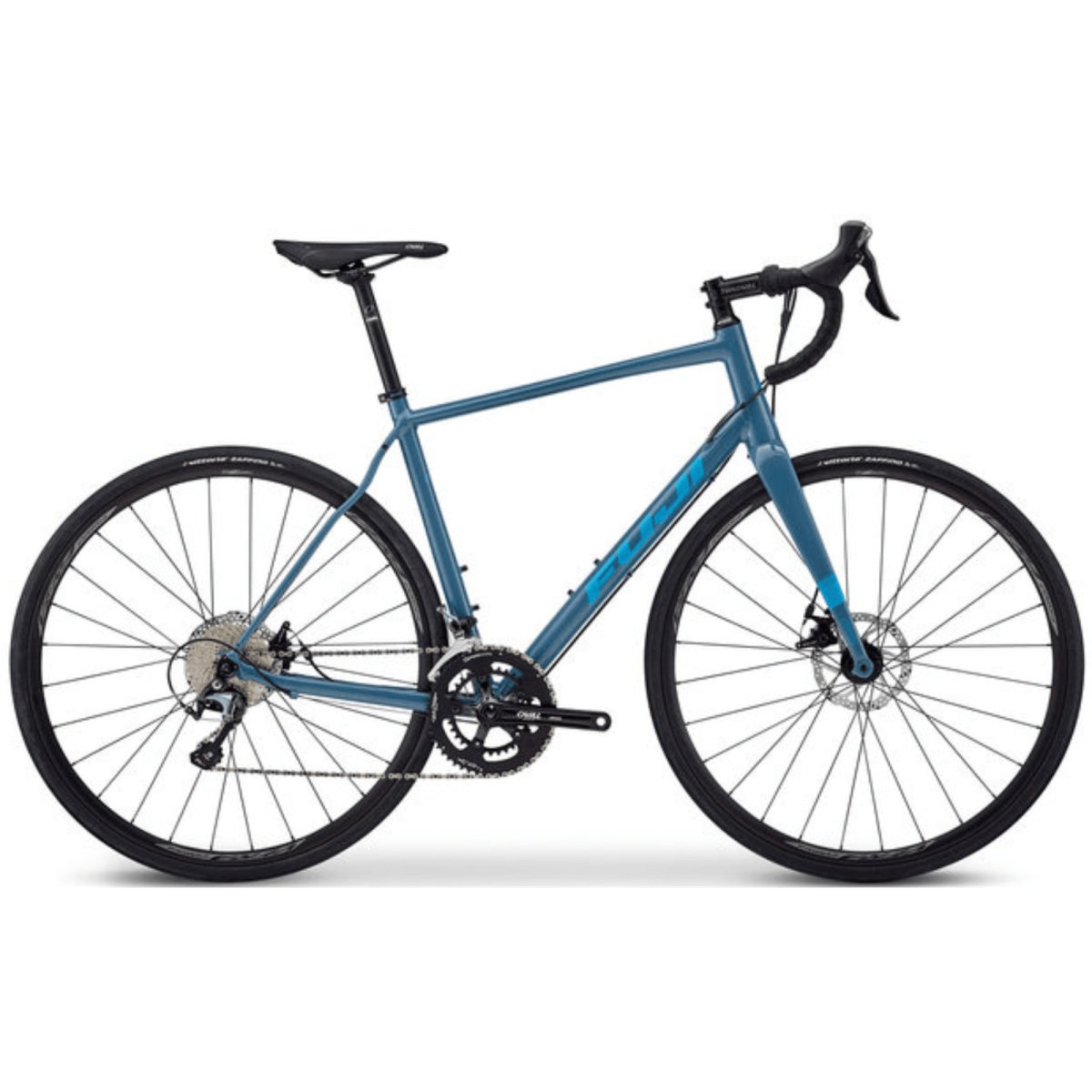

Fuji Sportif 1.3 Road Bicycle
Get Out & Go: Experience the freedom of riding with the Fuji Sportif 1.3 Road Bicycle. Designed to defy any reasons not to ride, this bike offers comfort, sportiness, and impressive features at an unbeatable price. It's the perfect companion for your adventures, whether you're hitting the road or exploring new trails.
Endurance Geometry: With its endurance geometry, the Sportif ensures a comfortable and spirited ride. The taller headtube and longer chainstay place you in an upright riding position, enhancing stability and reducing arm fatigue and back strain. Say goodbye to discomfort without sacrificing speed.
Wave Seatstay: Enjoy a smoother and more comfortable ride with the wave seatstays of the Sportif. These innovative features disrupt and diffuse road vibrations, providing a slight vertical flex that absorbs shocks and enhances your overall riding experience.
Carbon Fork (On select models)*: Experience the ultimate in lightweight performance with the Fuji Sportif's carbon fork. Crafted from high-modulous monocoque carbon, this fork not only reduces weight but also delivers a smoother ride. Enjoy enhanced responsiveness and agility on the road.
Internal Cable Routing: The Sportif's internal cable routing not only improves aerodynamics but also ensures longer cable life and a clean, sleek appearance. Say goodbye to cluttered cables and hello to improved performance and aesthetics.
Tapered Head Tube: The tapered head tube of the Sportif adds stiffness and stability to the front end of the bike. With a larger lower bearing and minimal added weight, this feature provides precise steering and a confident ride, giving you optimal control in various riding conditions.
Thru-Axle: Experience enhanced wheel security and lateral stiffness with the Sportif's thru-axle system. The thru-axles slide through closed dropouts, offering precise steering and optimal control, so you can conquer any terrain with confidence.
Tire Clearance: The Sportif offers ample tire clearance, accommodating up to 35mm tires. Whether you're riding on smooth pavement or tackling rougher surfaces, enjoy the versatility and adaptability of this bike.
Specifications
Specifications of Fuji Sportif 1.3 Road Bicycle
Frame | A2-SL alloy, tapered head tube, 68mm english threaded BB |
Fork | C10 carbon monocoque, tapered carbon steerer, 100x12mm thru-axle |
Crankset | FSA Omega, 50/34T |
Bottom Bracket | FSA Mega Exo |
Derailleur | Front & Rear: Shimano Tiagra |
Shifters | Shimano Tiagra Dual Control , 2 x 10-speed |
Cassette | Shimano HG500, 11-34T |
Chain | KMC X10 |
Wheelset | Alex alloy rims, Joy Tech hubs, 28/28h |
Tires | Vittoria Zaffiro V, 700 x 30c, 26tpi |
Tubes | 700 x 30 presta |
Brakeset | TRP Spyre C mechanical disc, 160mm rotors |
Brake Levers | Shimano Tiagra |
Headset | FSA, 1 1/8” upper - 1 1/2” lower, integrated |
Handlebar | Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep |
Stem | Oval Concepts 313, 3D-forged 6061, +/-6° |
Tape | Selle Italia Smootape Corsa |
Saddle | Selle Italia X3 Boost |
Seatpost | Oval Concepts 300, alloy, 27.2mm |
Sizes | XS (49cm), S (52cm), M (54cm), L (56cm) |
Geometry
Geometry of Fuji Sportif 1.3 Road Bicycle
Size | XXS | XS | S | M | L | XL | XXL |
---|---|---|---|---|---|---|---|
Seat Tube C to T | 420 | 450 | 480 | 500 | 520 | 540 | 570 |
Seat Tube Effective | 460 | 490 | 520 | 540 | 560 | 580 | 610 |
Top Tube Effective | 505 | 515 | 530 | 545 | 560 | 580 | 600 |
Head Tube Length | 100 | 125 | 150 | 170 | 190 | 215 | 235 |
Seat Tube Angle / Actual | 75 | 74.5 | 73.8 | 73.5 | 73 | 73 | 73 |
Headtube Angle | 71 | 71.5 | 71.5 | 73 | 73 | 73 | 73 |
Chainstay Length | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
Wheelbase | 984 | 986 | 995 | 984 | 993 | 1013 | 1033 |
BB Drop | 69 | 69 | 69 | 69 | 69 | 69 | 69 |
Fork Offset | 52 | 52 | 52 | 43 | 43 | 43 | 43 |
Trail | 63 | 60 | 60 | 60 | 60 | 60 | 60 |
Stack | 505 | 531 | 554 | 581 | 601 | 625 | 644 |
Reach | 370 | 368 | 369 | 373 | 376 | 389 | 403 |
Standover | 712 | 737 | 762 | 784 | 804 | 825 | 849 |
Stem | 80 | 80 | 80 | 90 | 90 | 110 | 110 |
Handlebar Width | 380 | 400 | 400 | 420 | 420 | 440 | 440 |
Crank | 170 | 170 | 170 | 170 | 175 | 175 | 175 |
Wheel Size | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
