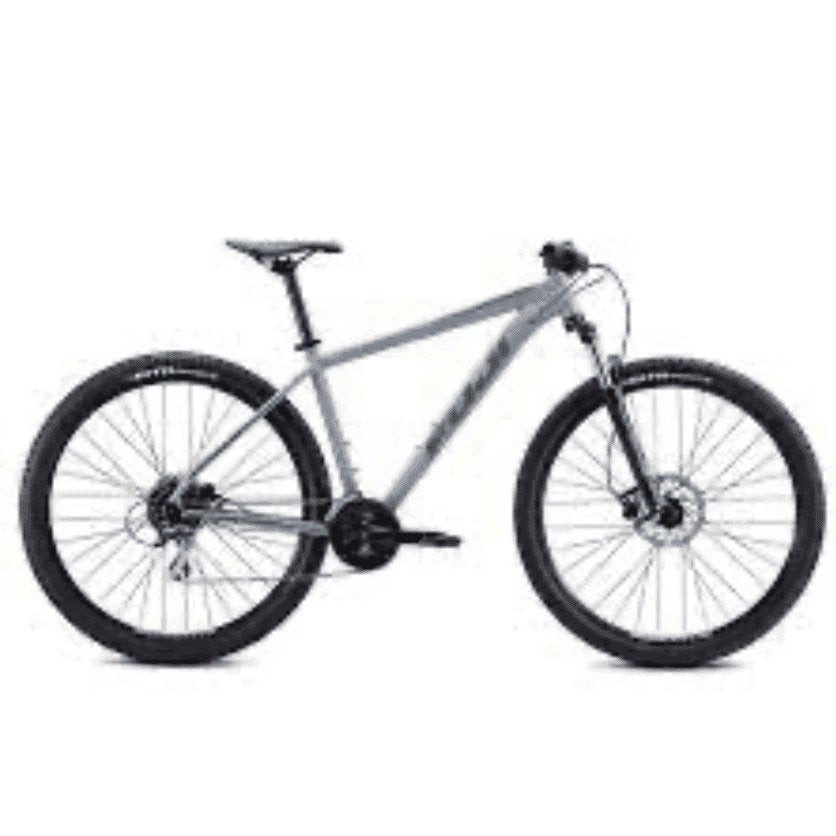

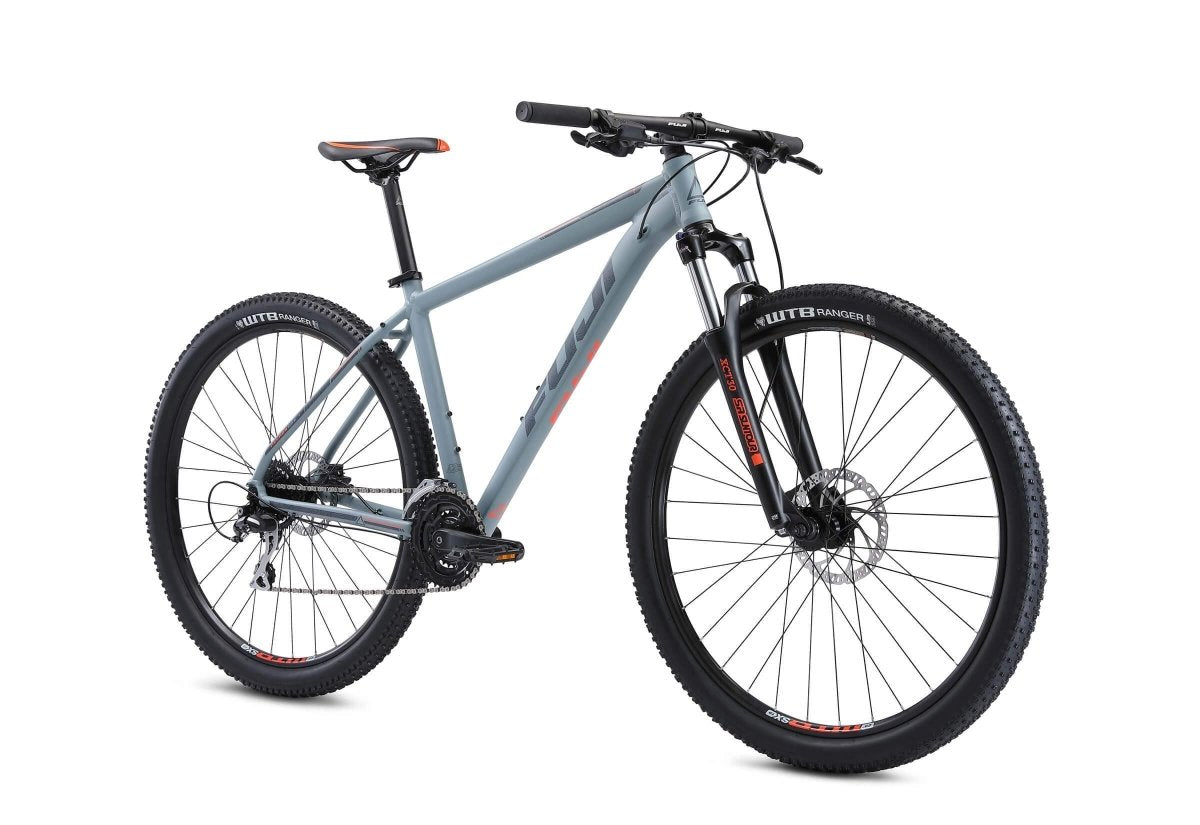

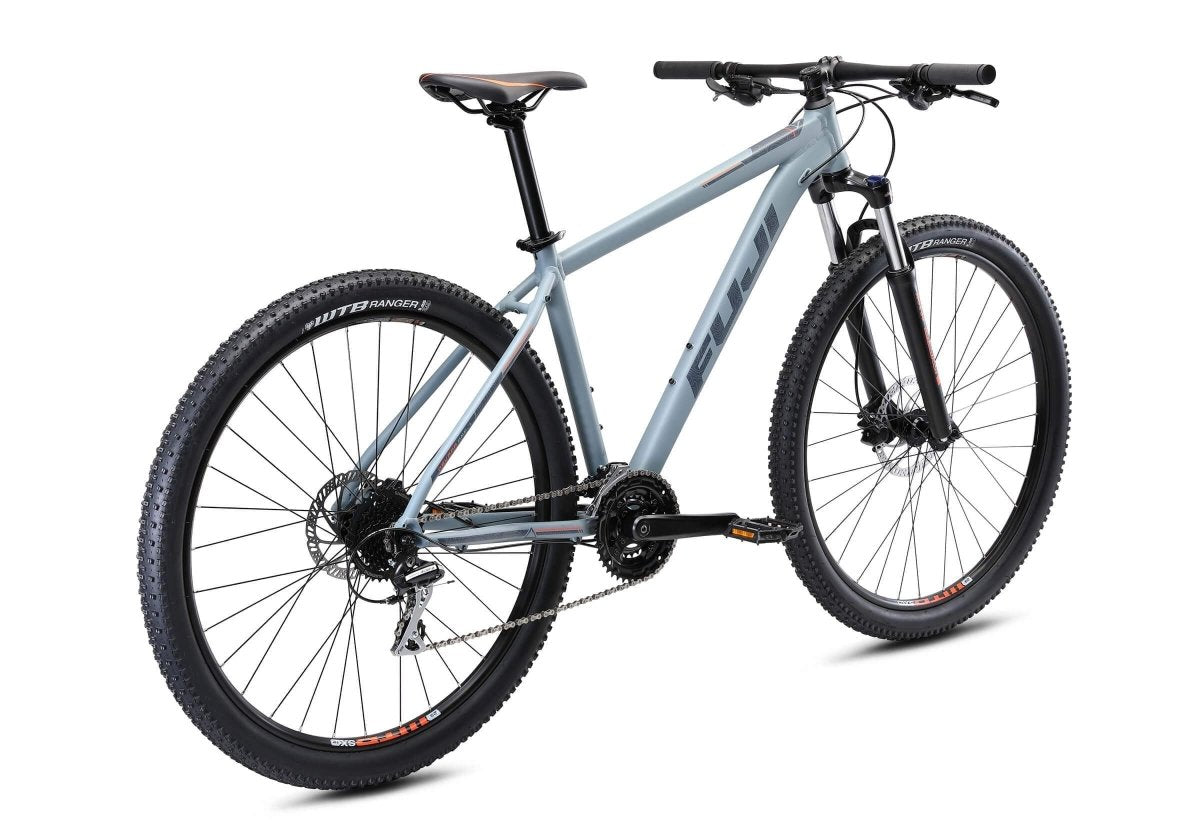

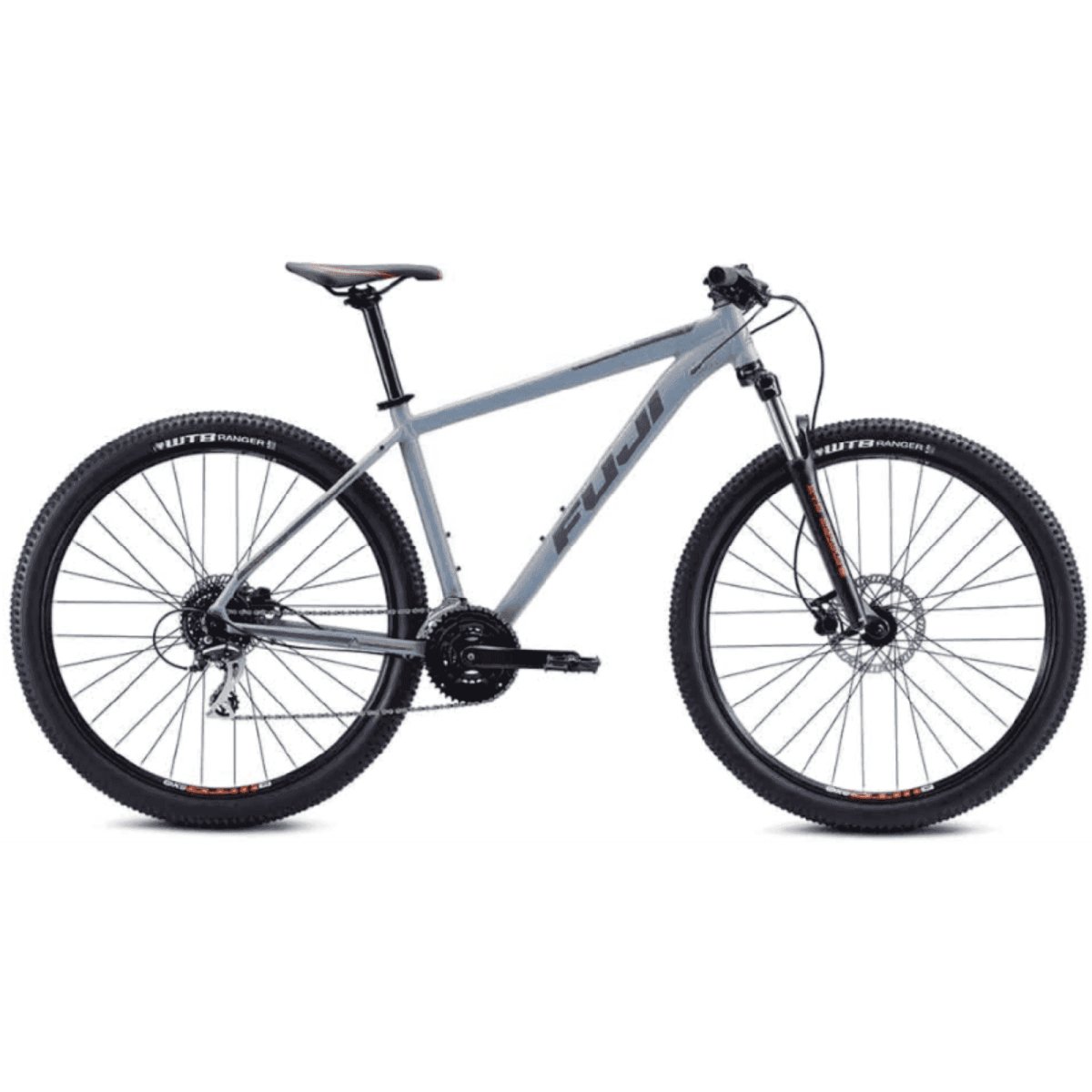

Fuji Nevada 29 1.7 Mountain Bicycle
Fuji Nevada 29 1.7 Mountain Bicycle - Satin Gray / 19 Inch is backordered and will ship as soon as it is back in stock.
Sign up to be the first to know when the product is back in stock
|
|
S/15
|
M/17
|
L/19
|
XL/21
|
XXL/23
|
|
Height
(In in.) |
5'3"-5'7"
|
5'6"-5'10"
|
5'9"-6'0"
|
5'11"-6'2"
|
6'1"-6'5"
|
|
Height
(In cms.) |
160-170
|
168-178
|
175-183
|
180-188
|
185-196
|
Fuji Nevada 29 1.7 Mountain Bicycle
Dive into Adventure: The Fuji Nevada 29 1.7 Mountain Bicycle is the perfect entry-level bike for trail riding, commuting, or simply enjoying the outdoors. With its focus on comfort and reliability, this bike is equally at home in the city or the countryside. It features rear fender and carrier mounts, as well as a kickstand mount, making it a versatile and practical choice for any rider.
Lightweight Double-Butted Frame: Constructed from our mid-level aluminum frame material, the Nevada offers a balance of weight reduction and durability. The double-butted profile in the frame tubes minimizes material in low-stress areas, resulting in a lightweight yet strong frame.
Smooth Suspension: Equipped with a SR Suntour suspension fork, the Nevada provides 100mm of travel to absorb bumps and uneven terrain. Enjoy a smooth and controlled ride on off-road trails.
Efficient Single Gear Crank: Featuring a 1x11 drivetrain with an 11-50T cassette and 30T crankset, the Nevada offers a wide range of gears to conquer various trails. Experience optimal gearing for your adventures.
Racks/Fender Ready: Whether you need to haul gear or want to commute with confidence, the Nevada has you covered. It includes eyelets for racks and fenders, allowing you to customize your bike for rugged hauling or commuting needs.
Specifcations
Specifications of Fuji Nevada 29 1.7 Mountain Bicycle
| Frame | Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle |
| Fork | SR Suntour SF19-XCT30-HLO-DS-29, hydraulic lockout, 100mm |
| Crankset | Prowheel, 42/34/24T |
| Bottom Bracket | Sealed cartridge bearing |
| Pedals | Resin platform |
| Derailleur | Front: Shimano Tourney; Rear: Shimano Acera |
| Shifters | Shimano Altus, Rapid Fire, 3 x 8-speed |
| Cassette | Shimano HG31, 11-34T |
| Chain | KMC HV700 |
| Wheelset | WTB SX19 rims 32H, Formula DC-20 front, DC-22 rear hubs, black spokes |
| Tires | WTB Ranger Comp, 29" x 2.25", 27tpi |
| Brakeset | Tektro HD-M275, 180/160mm rotors |
| Brake Levers | Tektro HD-M275 |
| Headset | 1 1/8" sealed bearings |
| Handlebar | Fuji flat bar, alloy, 710mm |
| Stem | Fuji, forged aluminum, +/-6° |
| Grips | Fuji Performance Grip |
| Saddle | Fuji Performance Saddle |
| Seat Post | Fuji, alloy, 30.9mm |
| Weight | 14.93 kg / 32.92 lbs |
| Color | Satin Gray, |
| Size | L (19") |
Geometry
Geometry of Fuji Nevada 29 1.7 Mountain Bicycle
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Bike Size | 15" | 17" | 19" | 21" | 23" |
| Seat Tube, Center To Top | 370 | 420 | 470 | 520 | 560 |
| Top Tube, Effective | 591 | 611 | 636 | 653 | 672 |
| Head Tube Length | 95 | 105 | 110 | 120 | 130 |
| Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| Head Tube Angle | 69° | 69° | 69° | 69° | 69° |
| Chainstay Length | 450 | 450 | 450 | 450 | 450 |
| Wheelbase | 1113.5 | 1134 | 1160 | 1177.5 | 1197 |
| Bottom Bracket Drop | 55 | 55 | 55 | 55 | 55 |
| Fork Offset | 46 | 46 | 46 | 46 | 46 |
| Stack | 611.5 | 621 | 625.5 | 635 | 644 |
| Reach | 404 | 421 | 445 | 459 | 475 |
| Standover | 781 | 809 | 834.5 | 862 | 886 |
