Token Ninja TF24 3 In 1 PF BB86/89.2/92/BB30/PFBB30 Bottom Bracket For Shimano Crankset

DBBTF24/2-BKTK
₹5,550

Estimated Shipping Widget will be displayed here!

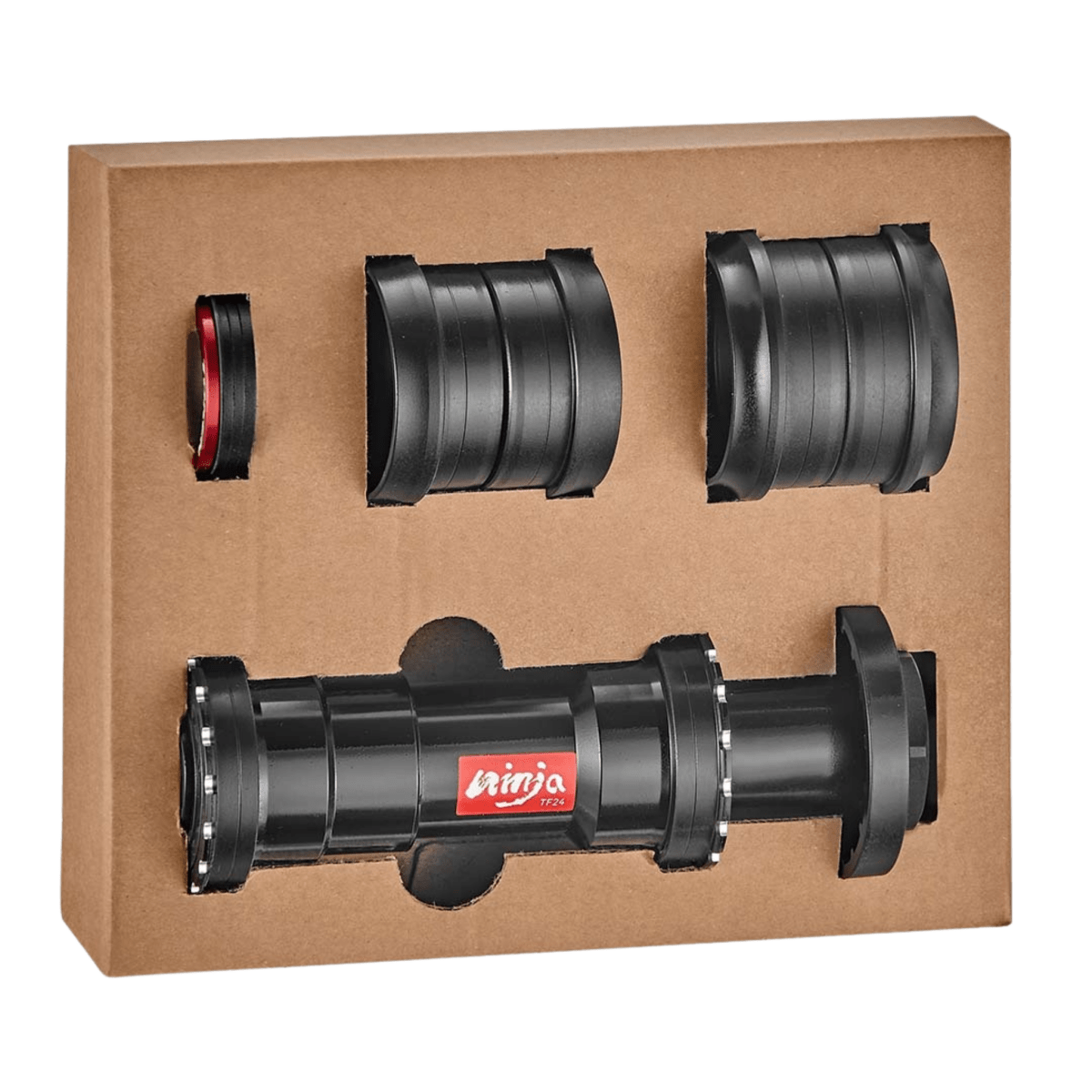

In the Box

1x Token Ninja TF24 Premium Bottom Bracket
1x Centre Sleeve (Waterproof Protection Tube)
2x Adapter Cups (for PF30 and BB30 Shells)
2x Adapter Rings (for Different Frame Standards: BB86/89.5/92)

Creak-Free Precision Bottom Bracket Solution

Overview

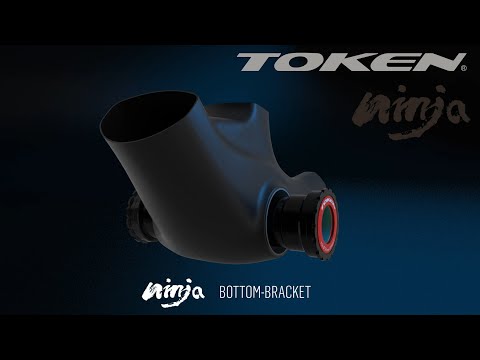

The Token Ninja TF24 3-in-1 bottom bracket is tailored for Shimano 24 mm cranksets and packaged to suit multiple frame standards, covering PF86/89.5/92 as well as BB30 and PF30 shells. One kit, many builds—so you can install with confidence across different bikes.

Stiff, Secure and Easy to Install: The extended alloy shell links both sides together to unify frame, cranks and bottom bracket, boosting stiffness and power transfer. A double-thread design speeds installation and reduces axial force, helping maintain perfect alignment.

Premium Steel Bearings: This version uses Token’s Premium high-carbon steel bearings for dependable smoothness and long service life. They’re engineered for consistent rotation under load, delivering day-in, day-out reliability in mixed conditions.

Sealed for Real-World Riding: Token’s X-Seal system shields the bearings from water and dirt while adding minimal friction, so the BB spins freely and stays protected. The result is a durable, low-maintenance upgrade that keeps your drivetrain running silently and efficiently.

Token’s Fusion technology blends an alloy shell with a nylon composite for a snug, stable fit in the frame. This hybrid build stops unwanted movement, cuts out creaks and keeps your drivetrain feeling tight and responsive.

Features

  • Fusion Construction: Hybrid alloy and nylon shell ensures precise fitment and eliminates creaks for a quieter ride.
  • Enhanced Stiffness: Extended alloy shell locks frame, cranks and BB together for improved power transfer.
  • Double Thread Design: Speeds up installation and reduces axial force for a secure, accurate fit.
  • Premium Steel Bearings: High-carbon steel bearings provide long-lasting smoothness and reliable rotation.
  • Sealed Protection: X-Seal technology shields bearings from water and dirt while minimizing friction.

Technologies

  • Double Thread: Faster installation with reduced axial force for better alignment.
  • Fusion: Hybrid alloy and nylon construction delivers a precise, creak-free performance.
  • X-Seal: Protects bearings from dirt and water with minimal friction.
  • Multi-Function: Ensures cross-platform compatibility across Token products.
  • Premium Bearings: High-carbon steel bearings for smooth rotation and long-lasting durability.

Specifications

  • Product Code: TF24 (Premium)
  • Frame Type: BB86 / BB89.5 / BB92 (Ø41x86.5/89.5/92 mm) | PF30 (Ø46x68/73 mm) | BB30 (Ø42x68/73 mm)
  • Type: Thread Together
  • Crank Type: Shimano (24 mm Spindle)
  • Bearing Type: Premium
  • Color: Black
  • Remarks: 16-notch bearing cups with an outside diameter of 44mm, torque wrench compatible 3/8" drive
  • Token Tool: BB841T-5RSP / BB841T-5SPA
  • Compatible with Park Tool: BBT-69.2
