Pilo D78 Derailleur Hanger for Canyon, Focus, KSM, Marin, Merida

Precision-Machined Replacement Rear Derailleur Hanger

CNC-Machined Construction
Billet Aluminium Design
Hard Anodised Finish

₹3,500

Earn 70 points paying online Details

Not sure it fits your bike? Ask TBA Guide WhatsApp us

Check delivery estimate

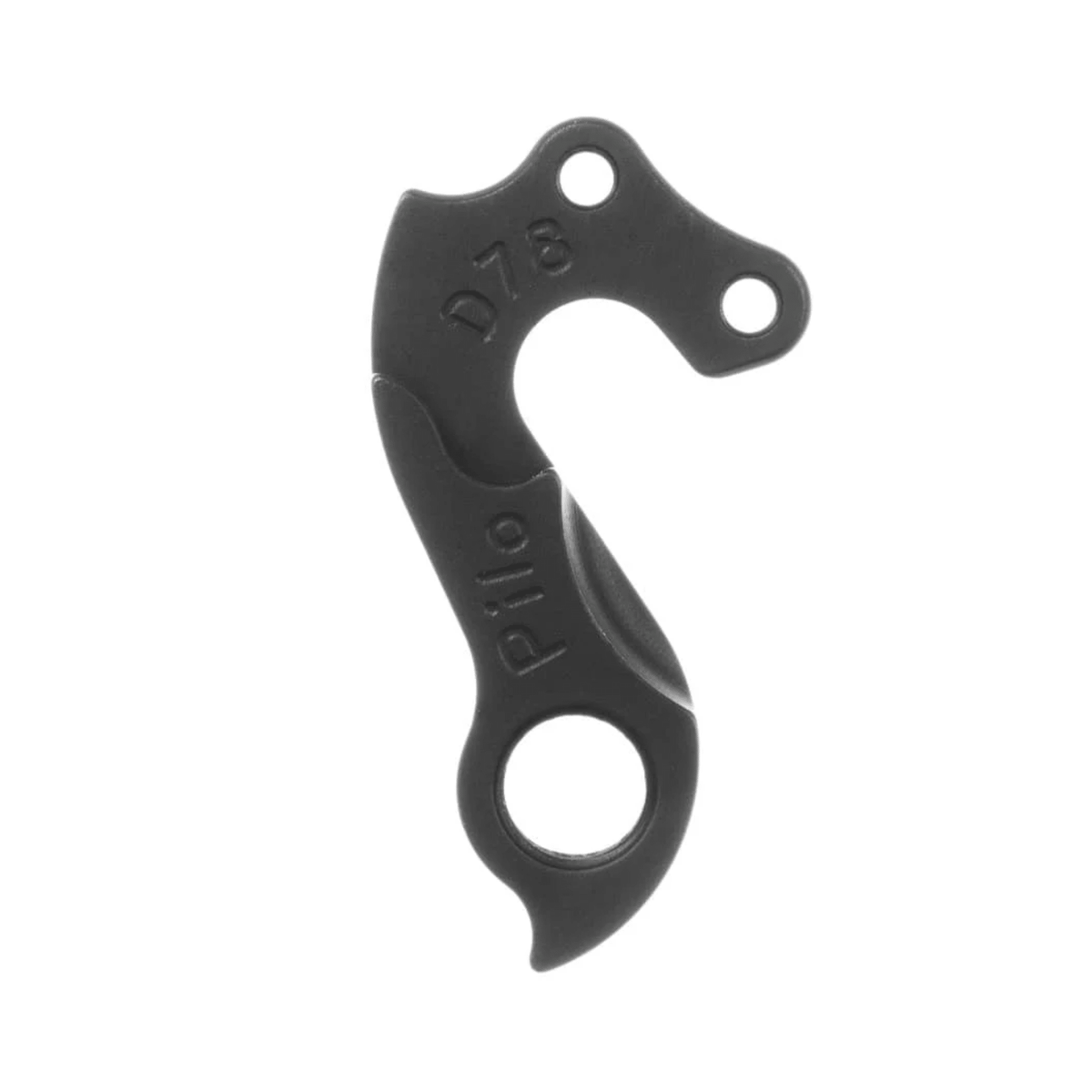

The Pilo D78 Derailleur Hanger is a replacement rear derailleur hanger designed for selected bicycles from Canyon, Focus, KSM, Marin, Merida, Orbea, Raleigh, Stevens and several other manufacturers. Manufactured from CNC-machined aluminium alloy, it provides a precisely formed mounting interface between the bicycle frame and rear derailleur.

Precision Construction. The hanger is machined from billet aluminium and finished with a hard anodised coating. Its accurately formed mounting surfaces help position the rear derailleur correctly, supporting consistent gear shifting when properly installed and aligned. It provides a replacement for damaged or bent original hangers without requiring changes to the bicycle frame.

Frame Compatibility. The D78 is designed for specific bicycle models and production years rather than every frame from the listed manufacturers. Before purchasing, compare the existing hanger's shape, mounting holes and dropout interface with the replacement. Correct identification is essential because similar-looking derailleur hangers may use different mounting arrangements and are not necessarily interchangeable.

Specifications

Model	D78
Product Type	Rear Derailleur Hanger
Material	AL6061-T6511 Aluminium Alloy
Manufacturing Process	CNC-Machined
Derailleur Mount Type	Standard Mount
Frame Mounting Position	Internal
Mounting Configuration	Two-Bolt Attachment

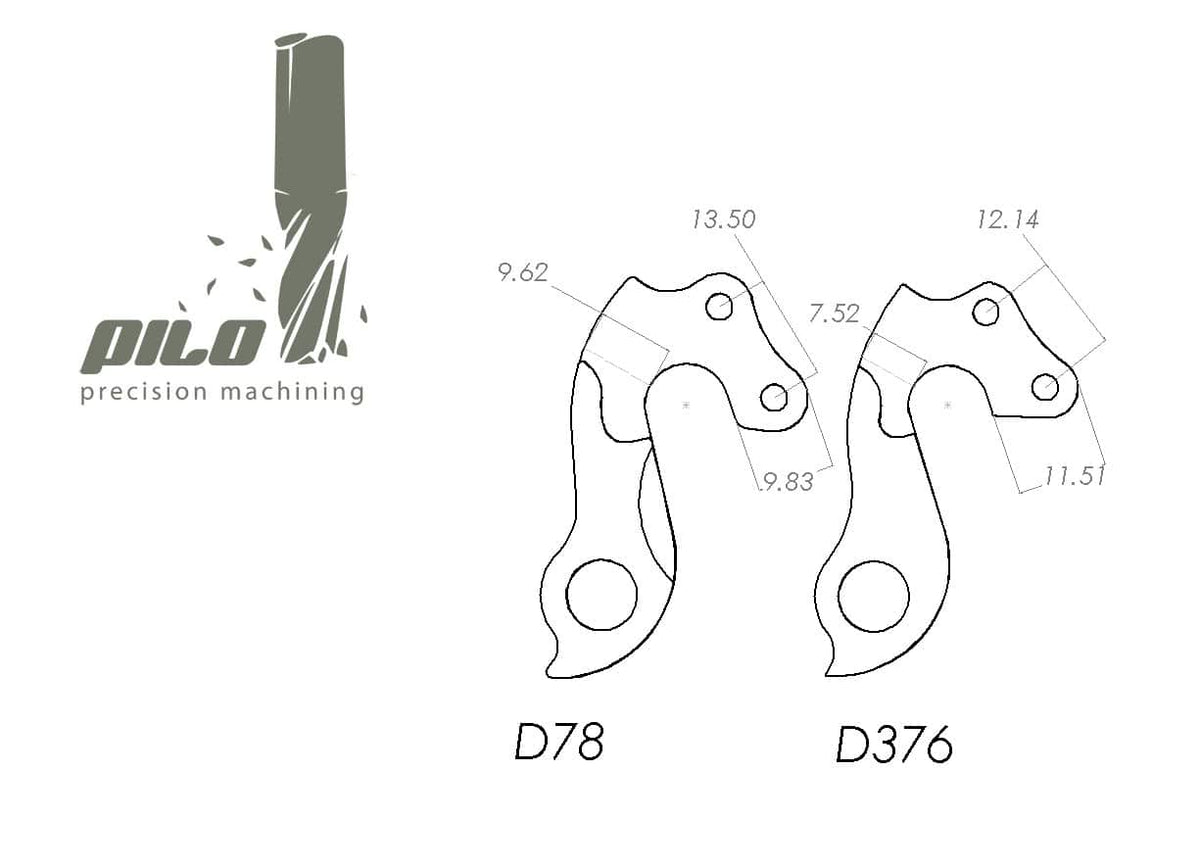

Mounting Hole Spacing	13.5mm Centre to Centre
Dropout Compatibility	Standard 9mm Quick-Release

Compatible Brands	Motobecane, Bottecchia, Canyon, Centurion, De Rosa, Diamondback, Focus, Fondriest, Fuji, Ironhorse, Kalkhoff, KSM, Marin, Megamo, Merida, Orbea, Raleigh, Salsa, Stevens, Univega, Wilier
Compatible Canyon Models	Selected Competition, Elite, Passione, Roadlite, Roadmaster and Speedmax Models
Compatible Focus Models	Selected Black Hills, Black Forest, Raven, Fat Boy, Super Bud and Cayo Expert Models
Compatible Marin Model	Venezia 2005, Early Production
Compatible Merida Models	Selected Cyclo Cross, Ride, Speeder, Road 880 and Road FLX Models
Compatible Salsa Models	Las Cruces and Campeon, 2003-2004
Incompatible Models	Merida 905 and Fondriest Domino
Included	2 Bolts

Features

CNC-Machined Construction: Provides accurately formed mounting surfaces for correct derailleur positioning.
Billet Aluminium Design: Offers a precisely manufactured replacement for the original hanger.
Hard Anodised Finish: Provides surface protection against everyday wear and environmental exposure.
Individual Replacement: Allows a damaged derailleur hanger to be replaced without changing the bicycle frame.
Mounting Hardware Included: Supplied with the fastening bolts required for installation.
