Cyclus Tools Drop Out Alignment Tool Pair

Paired Gauges for Dropout Alignment Correction

Paired Alignment Gauges
Adjustable Sleeves
Steel Construction

₹8,540

Earn 170 points paying online Details

Check delivery estimate

The Cyclus Tools Drop Out Alignment Tool Pair is a workshop tool designed to check and correct the alignment of bicycle frame and fork dropouts. It is intended for professional mechanics and experienced bicycle technicians carrying out frame preparation, wheel fitment checks and dropout alignment work.

Accurate Alignment. The two gauges attach to opposing dropouts, allowing the mechanic to compare their facing surfaces. When the dropouts are correctly aligned, the gauge faces sit parallel to one another. Any difference indicates misalignment that may require correction before further assembly or servicing.

Workshop Application. The tool is suitable for checking compatible front forks and rear frames after removing the wheel. Adjustable sleeves accommodate the required mounting arrangement. Dropout alignment should be checked before facing disc brake mounts or carrying out related brake installation work. Any necessary correction should be performed carefully, following the frame manufacturer's recommendations, particularly when working with materials that must not be cold-set.

Specifications

Part Number	720011
Product Type	Dropout Alignment Tool
Application	Bicycle Frame and Fork Dropout Alignment
Material	Steel
Front Axle Compatibility	9mm
Front Hub Spacing	100mm

Rear Axle Compatibility	10mm
Rear Hub Spacing	130/135mm
Adjustment System	Movable Sleeves
Tool Configuration	Pair of Alignment Gauges
Weight	1207 g

Features

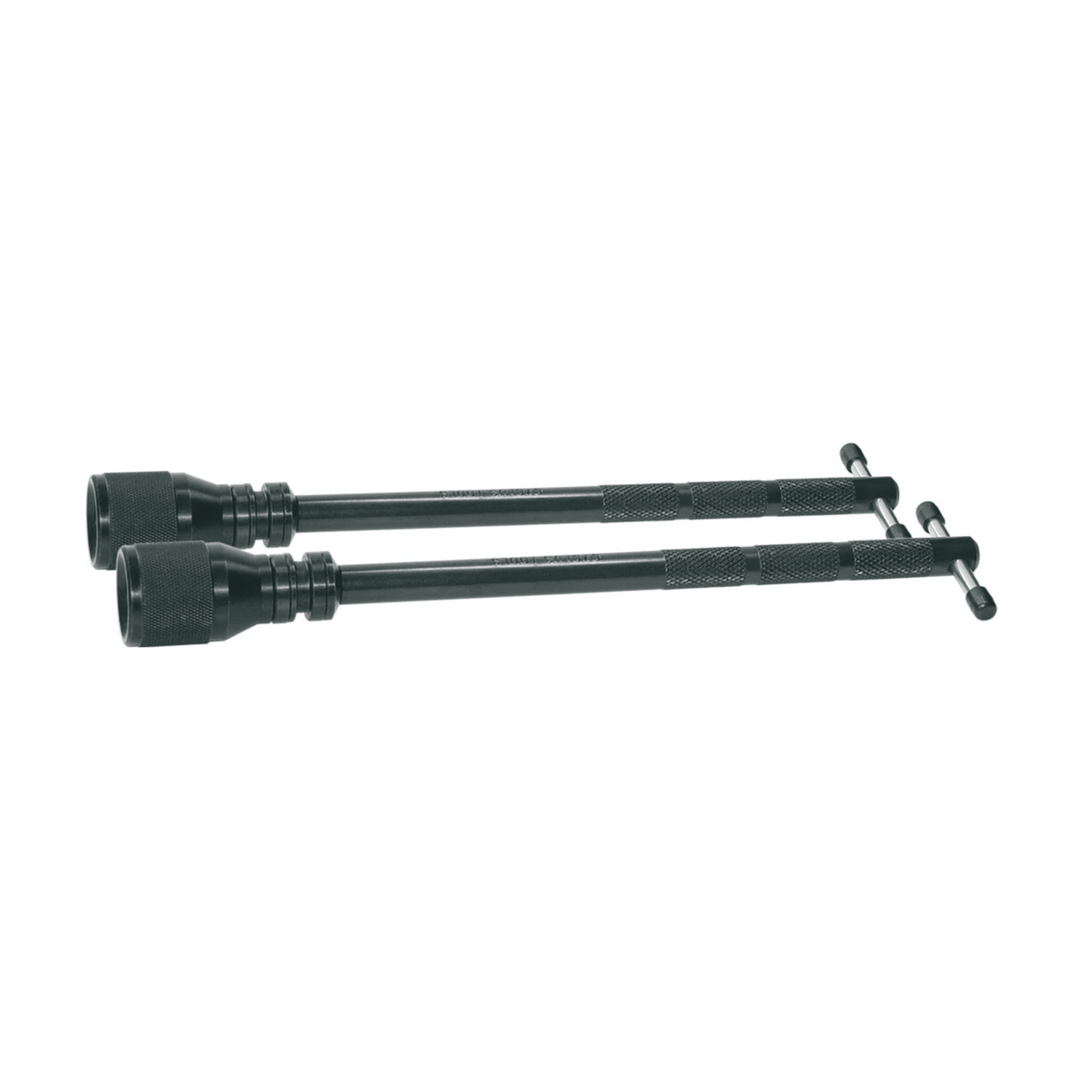

Paired Alignment Gauges: Allow direct comparison of opposing dropout faces to identify misalignment.
Adjustable Sleeves: Accommodate different axle mounting arrangements during frame and fork inspection.
Steel Construction: Provides a rigid measuring assembly for repeated professional workshop use.
Visual Alignment Check: Parallel gauge faces indicate correct dropout positioning without additional measuring instruments.
Frame Preparation: Helps identify alignment issues before wheel installation and disc brake mount servicing.

How to use

Installation

Remove the wheel and clean the dropouts.

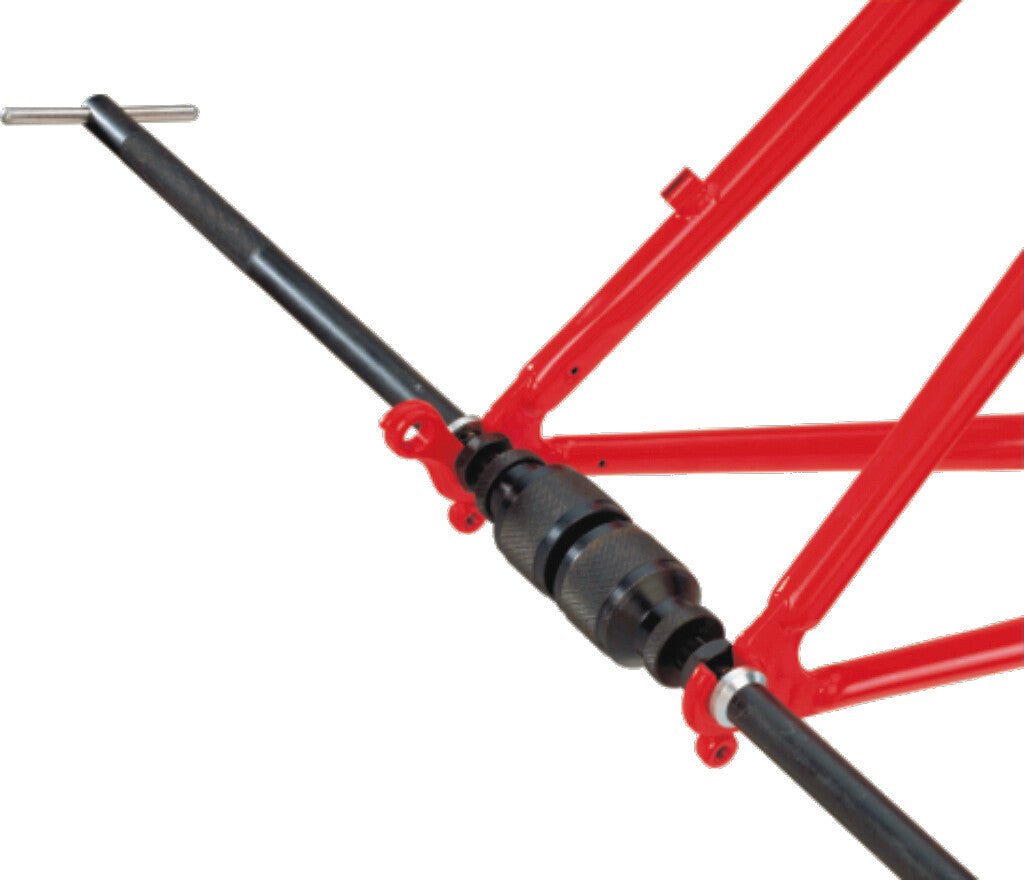

Fit one alignment gauge into each dropout and adjust the sleeves to suit the axle spacing.
Secure both gauges against the dropout faces.

Alignment Check

Bring the gauge faces together and check that they are parallel.
Uneven gaps indicate dropout misalignment.
Make only small corrections where permitted, checking alignment after each adjustment.

Final Check

Remove the gauges, reinstall the wheel and confirm correct seating and free rotation.

Important Precautions

Do not bend carbon fibre frames or dropouts.
Do not cold-set aluminium frames unless permitted by the frame manufacturer.
Alignment correction should be carried out by an experienced bicycle mechanic.
