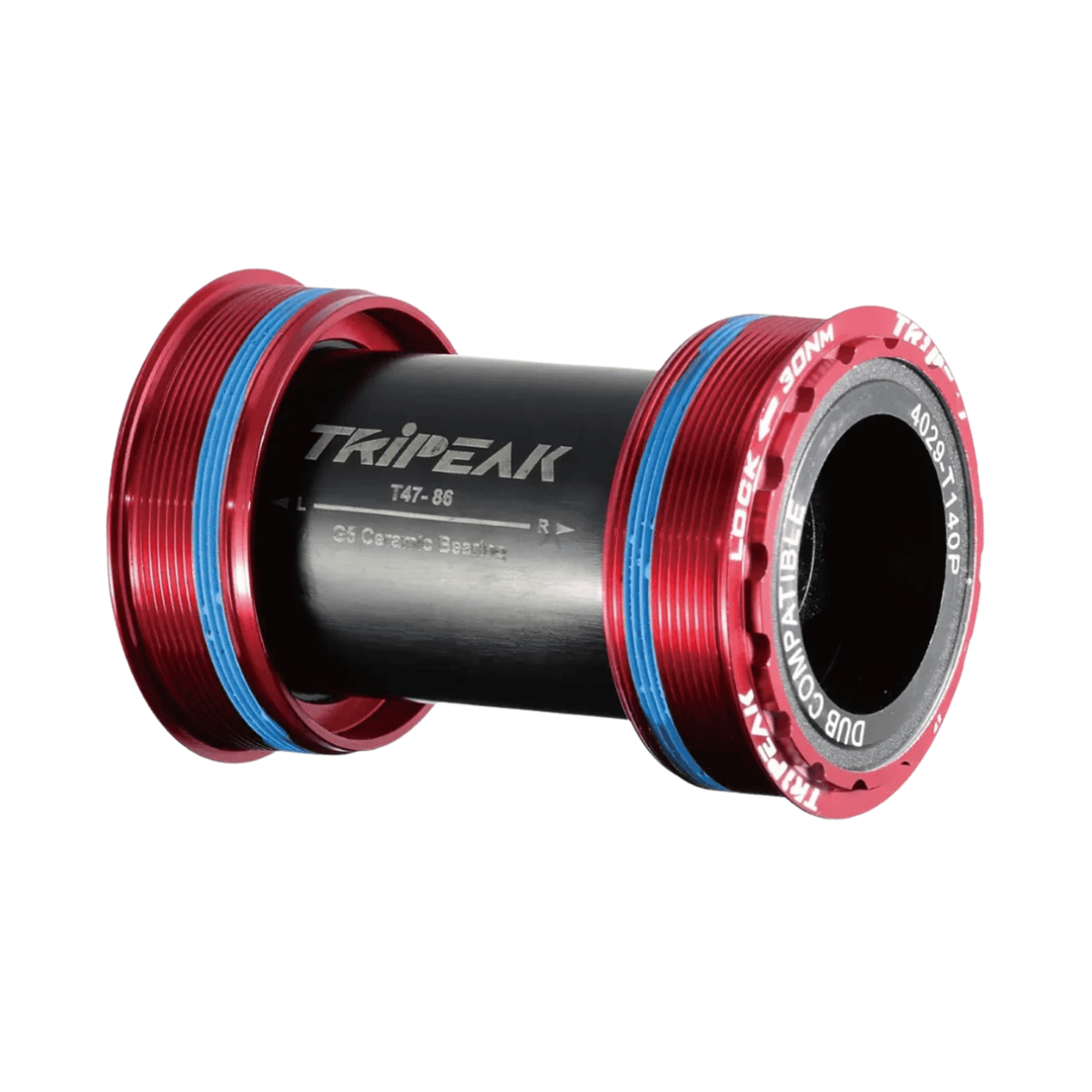

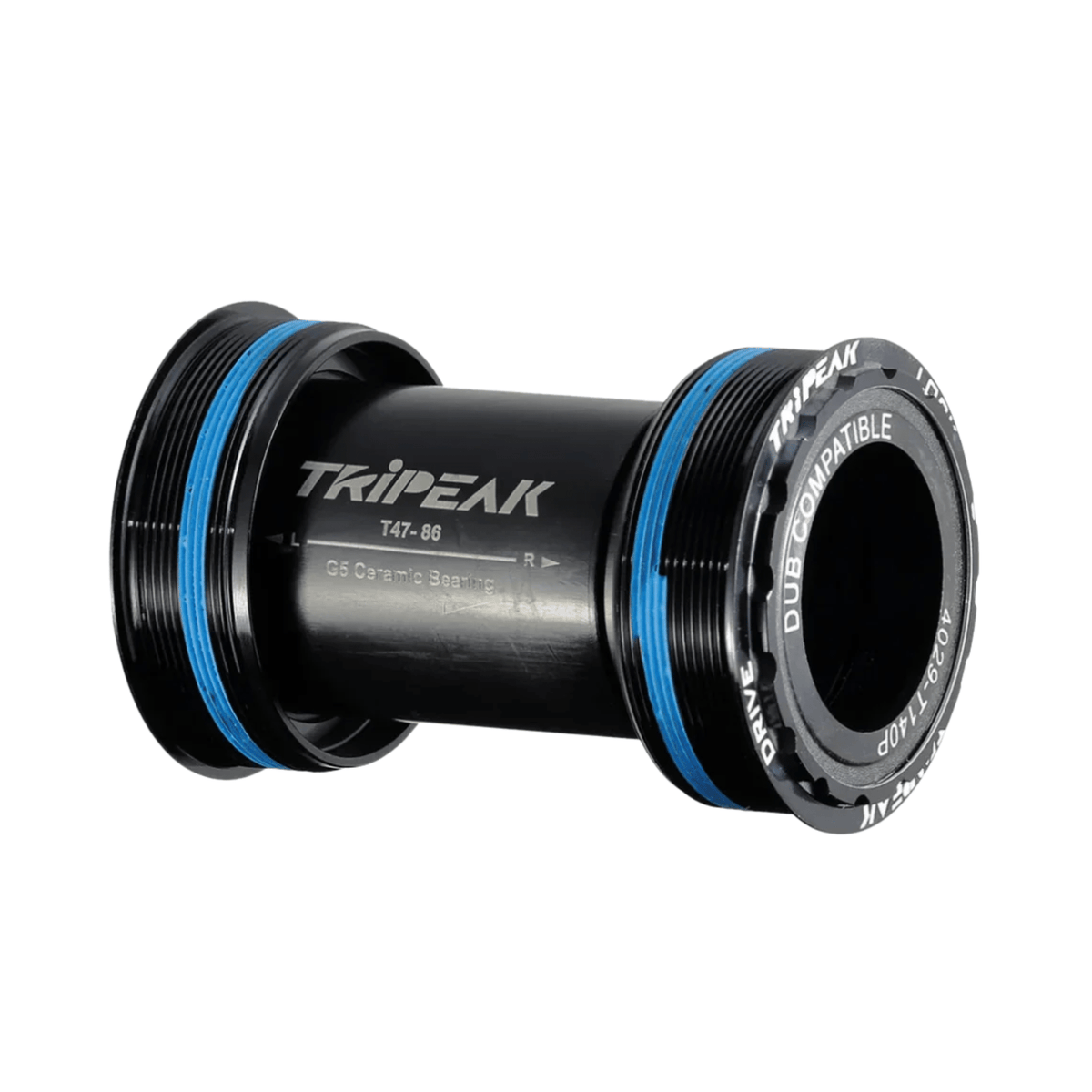

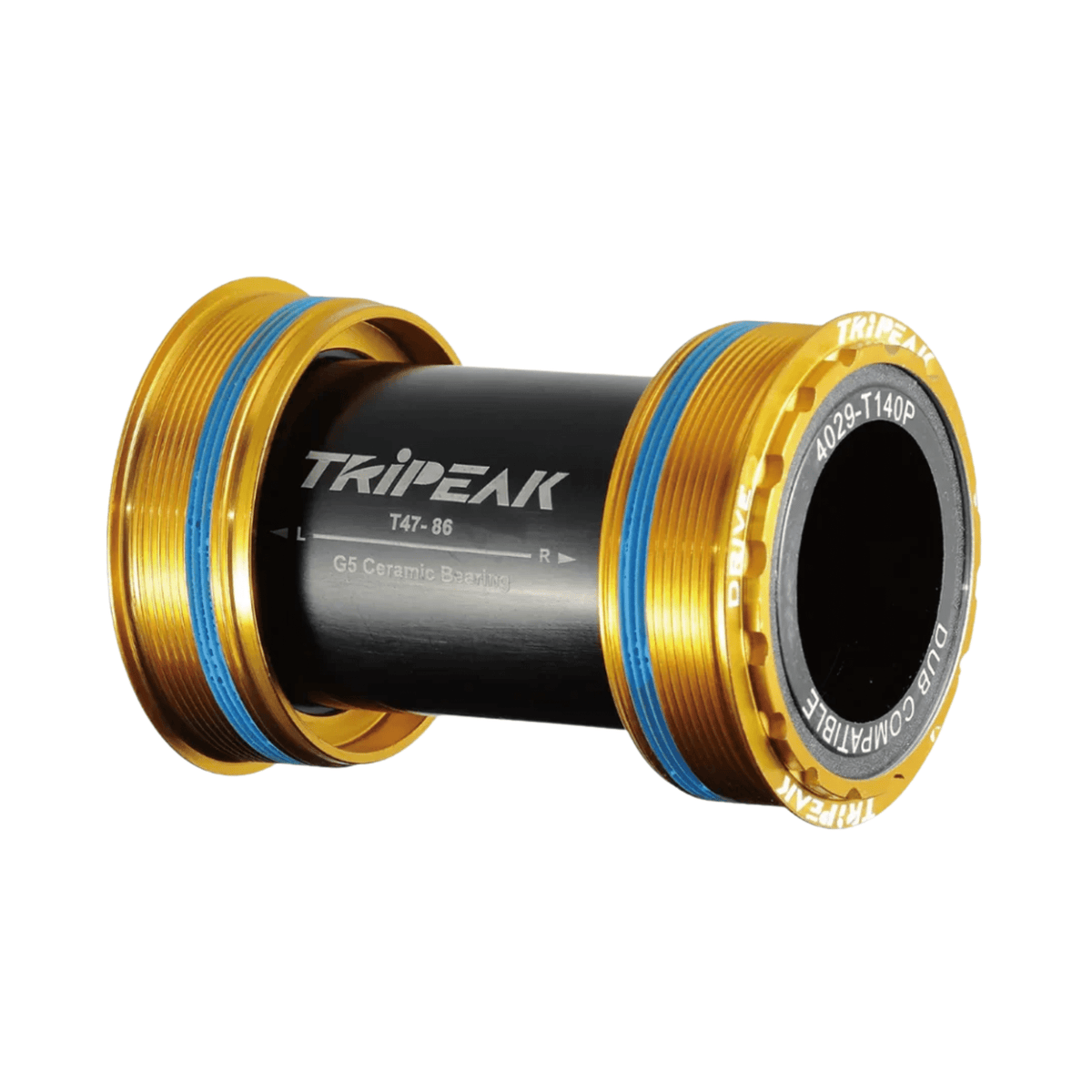

Tripeak T47-86mm (Road) 3-in-1 Core G5 Ceramic Bottom Bracket

One Bottom Bracket, Three Crankset Systems

Threaded

₹10,990

Color: Black

Tripeak T47-86mm (Road) 3-in-1 Core G5 Ceramic Bottom Bracket | The Bike Affair

Earn 218 points when you pay online. How points work

Delivery estimateEnter your pincode for delivery dates

Free shipping over ₹2,000Delivered across India
100% genuineAuthorised dealer, manufacturer warranty
Cash on deliveryOn orders up to ₹20,000
Secure checkoutUPI, cards and net banking

Not sure about size or compatibility? Ask TBA Guide WhatsApp us

The Tripeak T47-86mm (Road) 3-in-1 Core G5 Ceramic Bottom Bracket is designed for cyclists who want flexibility when building, maintaining or upgrading a road bicycle. Its main advantage over a conventional bottom bracket is the ability to accommodate different crankset systems without replacing the entire assembly. This makes it particularly useful for riders who anticipate changing drivetrain components or experimenting with different cranksets. The threaded construction also provides a practical alternative to press-fit assemblies for frames designed around this interface. Rather than purchasing separate bottom brackets for future crankset changes, riders can retain the existing housing and install the appropriate adapters.

Efficient Bearing Operation. The ceramic bearing construction is intended to reduce rotational resistance while supporting consistent crank movement under pedalling loads. Precisely manufactured bearing components help maintain smooth operation, although any improvement over a well-maintained conventional bottom bracket will depend on the condition of the existing assembly. The combination of a rigid outer structure and reinforced internal components provides support for the bearings without introducing unnecessary complexity. This makes the bottom bracket suitable for riders who value both mechanical efficiency and long-term component flexibility.

Compatibility and Maintenance. The frame must have the correct threaded bottom bracket interface, and the appropriate supplied adapters must be installed for the chosen crankset. Compatibility cannot be determined by crank spindle diameter alone, as individual cranksets may have different axle lengths and installation requirements. The complete crankset and frame combination should therefore be checked before assembly. Professional installation is recommended to ensure correct thread engagement, adapter placement and tightening. Periodic inspection is advisable, particularly after prolonged wet-weather riding, to identify bearing contamination or developing roughness.

Product details

Specifications

Recommended Discipline	Road Cycling

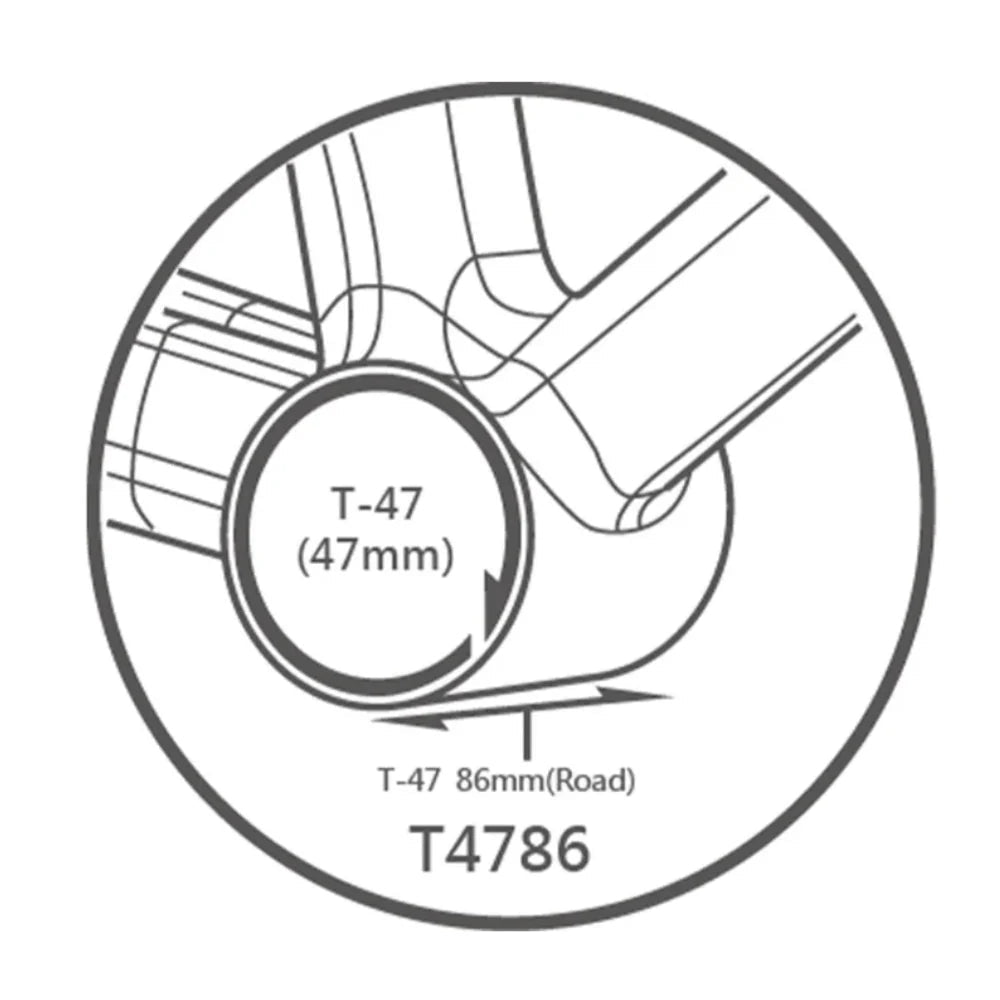

Bottom Bracket Standard	T47-86
Frame Shell Type	Threaded
Frame Shell Inner Diameter	47mm
Frame Shell Width	85.5-86mm
Crankset Compatibility	Shimano Hollowtech II / SRAM Dub / Rotor 3D+
Shimano Crank Spindle Diameter	24mm
SRAM Dub Crank Spindle Diameter	28.99mm
Rotor 3D+ Crank Spindle Diameter	30mm
Core System	3-in-1 Interchangeable Adapter System

Bearing Type	Ceramic Hybrid Bearings
Bearing Grade	G5
Bearing Ball Material	Ceramic
Bearing Race Material	Steel
Bearing Cup Material	AL6061 Aluminium Alloy
Centre Sleeve Material	PA+GF Composite

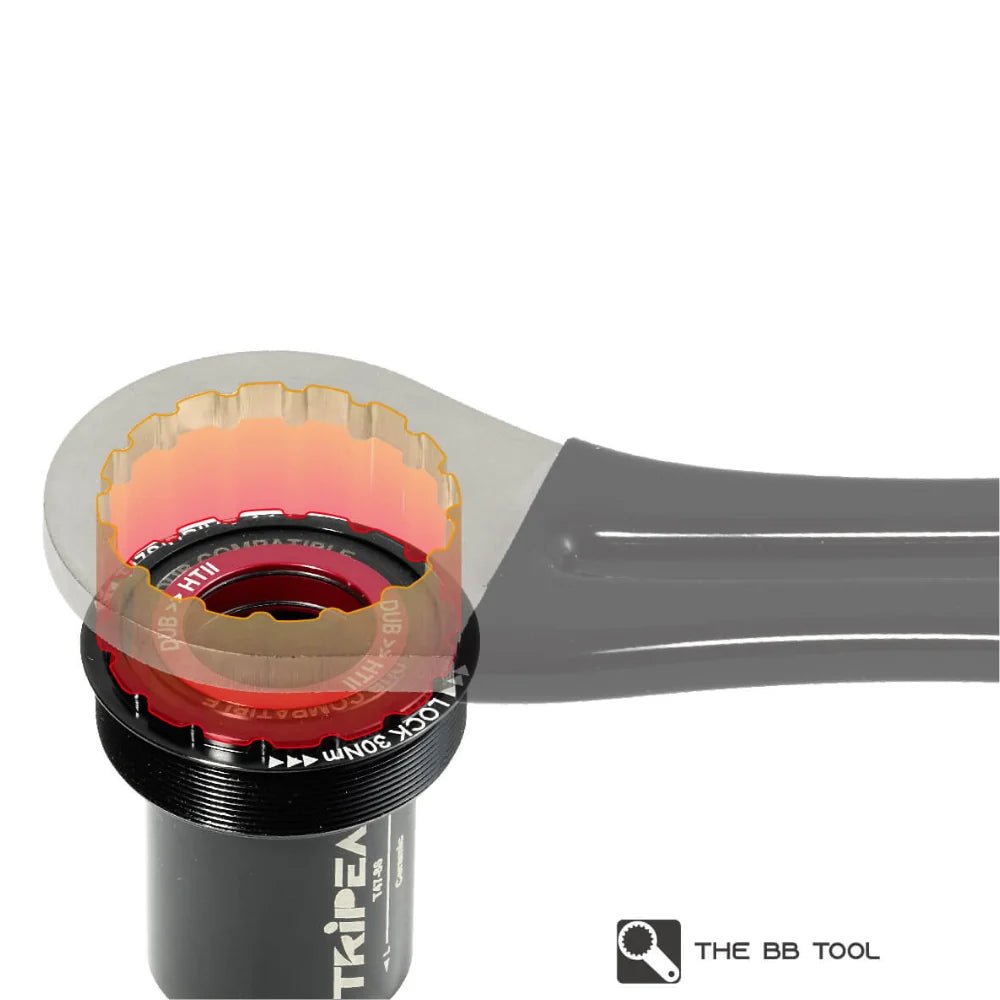

Installation Tool Interface	16-Notch
Installation Tool Outer Diameter	44mm
Color	Blue, Gold, Red
Weight	74 g per Set, Excluding Caps

Features

Crankset Upgrade Flexibility: Allows riders to change between supported drivetrain systems without replacing the complete bottom bracket.
Threaded Installation: Provides positive mechanical engagement with the frame for straightforward fitting and removal.
Low-Friction Operation: Designed to maintain smooth crank rotation while minimising unnecessary drivetrain resistance.
Lightweight Construction: Combines a rigid metal housing with reinforced composite components to limit unnecessary material.

Technologies

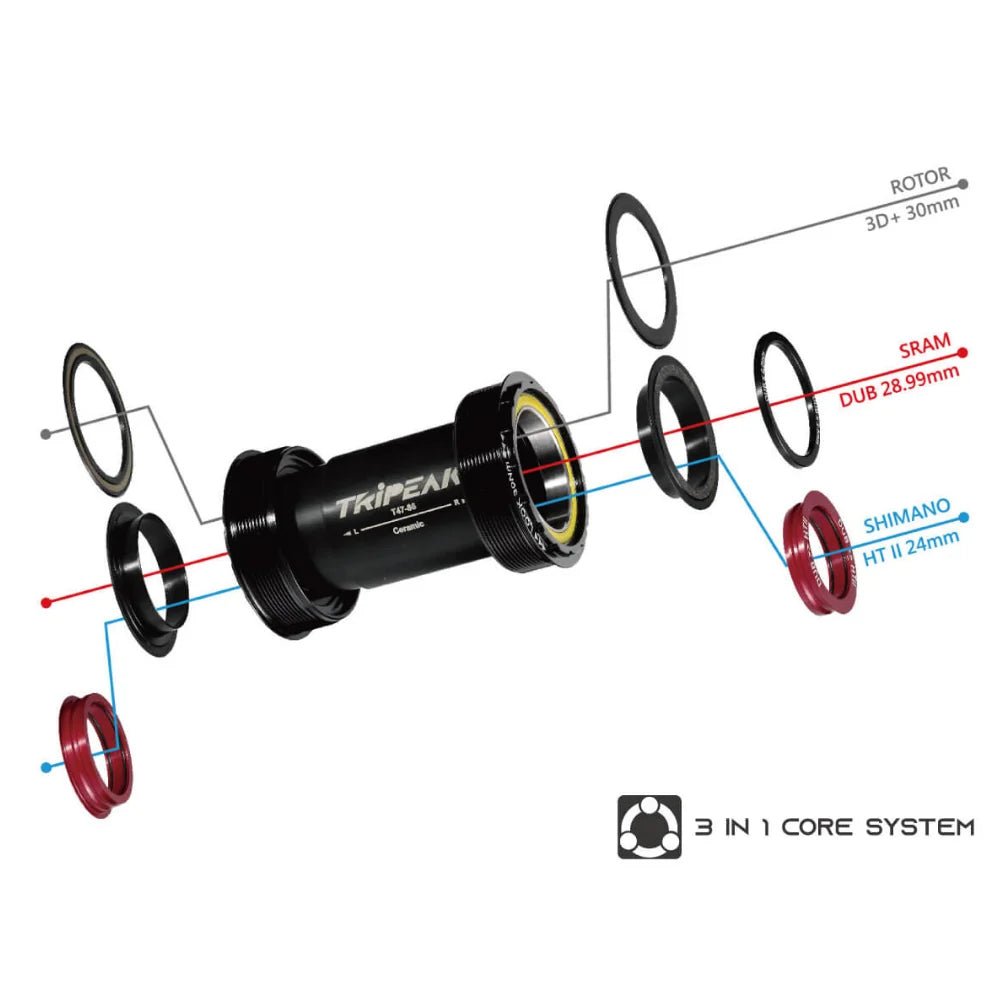

3-in-1 Core System: Tripeak's interchangeable adapter arrangement accommodates Shimano Hollowtech II, SRAM Dub and Rotor 3D+ crank spindle standards within the same bottom bracket assembly.

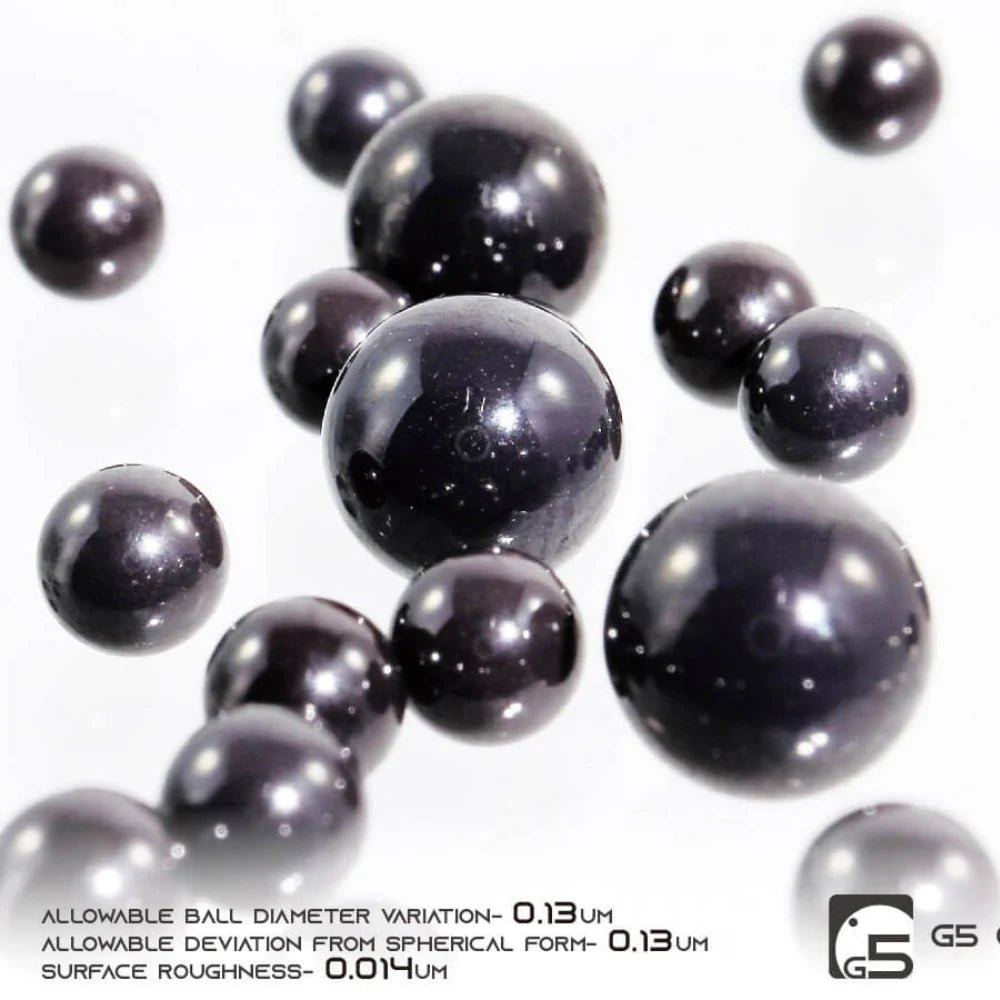

G5 Ceramic Bearings: Precision G5-grade ceramic balls are paired with accurately machined steel bearing races to reduce rotational friction compared with conventional steel-ball bearings.

What's in the box

2x Shimano HTII 24mm Adapters
2x SRAM Dub 28.99mm Caps
1x SRAM Dub 2.5mm Drive-Side Spacer
2x Rotor 3D+ 30mm Caps

How to use

Before Installation

Confirm that the bicycle frame uses the T47-86 threaded bottom bracket standard.
Identify the crankset and select the corresponding adapters and spacers supplied with the bottom bracket.
Remove the existing bottom bracket using the appropriate tool.
Clean and inspect the frame threads for dirt, damage or contamination.

Installation

Apply a suitable thread preparation compound according to the frame and bottom bracket manufacturer's instructions.
Position the appropriate adapters for the selected crankset.
Install the drive-side and non-drive-side bottom bracket cups according to Tripeak's specified thread directions.
Use a compatible bottom bracket tool to tighten the cups to the manufacturer's recommended torque.
Install the crankset following its manufacturer's instructions, including the appropriate spacers and preload adjustments.
Check that the crankset rotates smoothly without excessive axial movement or binding.

Changing Cranksets

Remove the existing crankset.
Remove the currently installed spindle adapters.
Fit the appropriate adapters and spacers for the replacement crankset.
Install the replacement crankset and adjust the bearing preload according to its manufacturer's instructions.
Check crank rotation and lateral movement before riding.

Maintenance

Inspect the bottom bracket periodically for bearing roughness, contamination and abnormal noise.
After prolonged wet-weather riding, check for signs of water ingress.
Avoid directing high-pressure water jets towards the bearing seals.
Have damaged or rough-running bearings inspected by a qualified bicycle mechanic.

Fit and sizing

Fit: Threaded

Between sizes? Ask TBA Guide with your measurements.
