Shimano Dura-Ace Hollowtech II FC-R9200 2x12-Speed Front Chainwheel

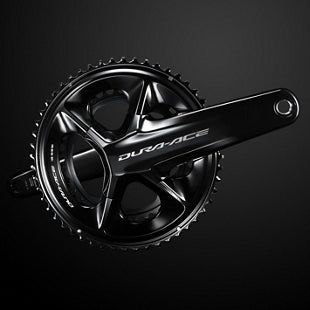

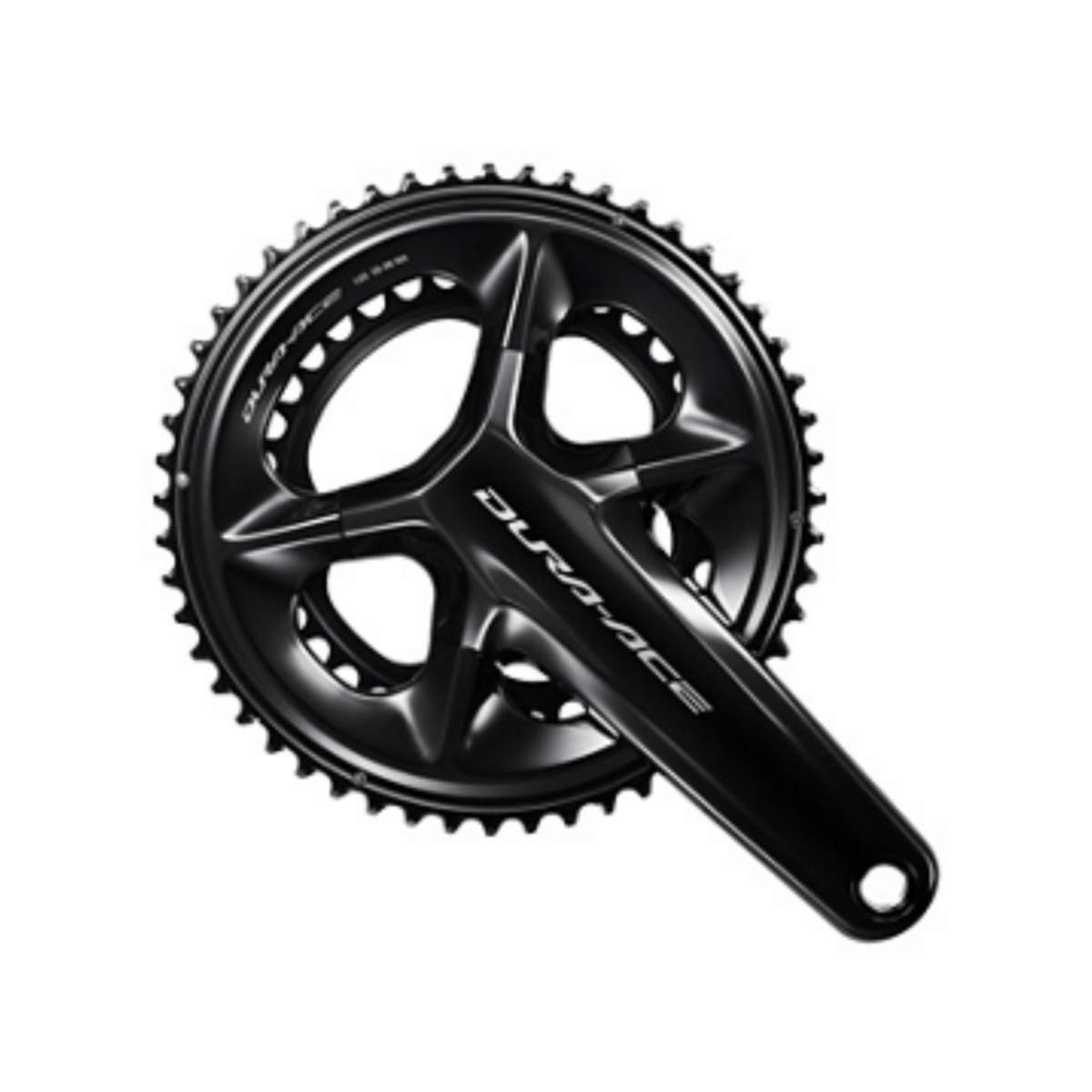

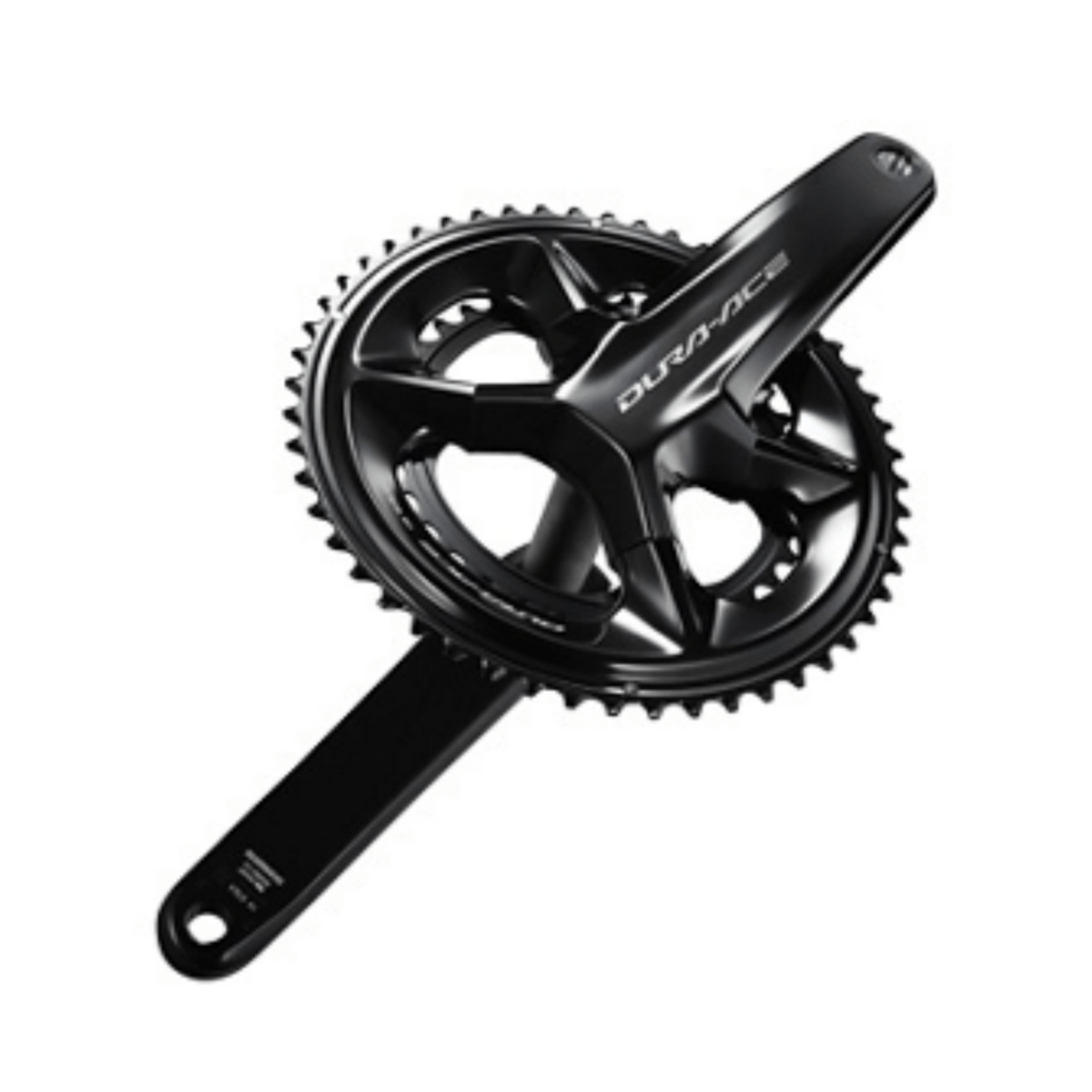

Name: Shimano Dura-Ace Hollowtech II FC-R9200 2x12-Speed Front Chainwheel
Brand: Shimano
SKU: IFCR9200CX04
Price: 51850.0 INR
Availability: InStock

IFCR9200CX04

₹51,850

Length

170mm

Size

50-34T (W/O CG) 52-36T (W/O CG)

Product variants

Race-Ready Crankset with Hollowtech II and HollowGlide Technology

Description

The Shimano Dura-Ace FC-R9200 front chainwheel is built for riders who demand top-tier efficiency and speed. As the core of your drivetrain, it transfers every ounce of pedaling power with minimal loss, while delivering lightning-fast front shifting in every gear scenario.

Optimized with Hollowtech II Technology: Featuring Shimano’s Hollowtech II crank arms, the FC-R9200 balances stiffness and weight for superior pedaling dynamics. This technology ensures rigidity under pressure, reducing flex and maximizing power transfer with every pedal stroke.

HollowGlide Chainring Design for Crisp Shifting: The chainrings use a HollowGlide construction, shaving weight without compromising strength. This enables faster, smoother and more precise front shifting under load. The enhanced design translates to cleaner gear transitions and better drivetrain efficiency—particularly when you're pushing your limits.

Tailored Fit with Expanded Crank Length Options: Shimano has introduced shorter crank arm lengths in the FC-R9200 to better accommodate a wider range of riders. Whether you're seeking a more aero position or an ideal fit for smaller frames, the new sizing options provide greater flexibility without sacrificing performance.

With its refined gear ratios, the Shimano Dura-Ace FC-R9200 front chainwheel allows you to maintain rhythm and efficiency on every terrain.

Features

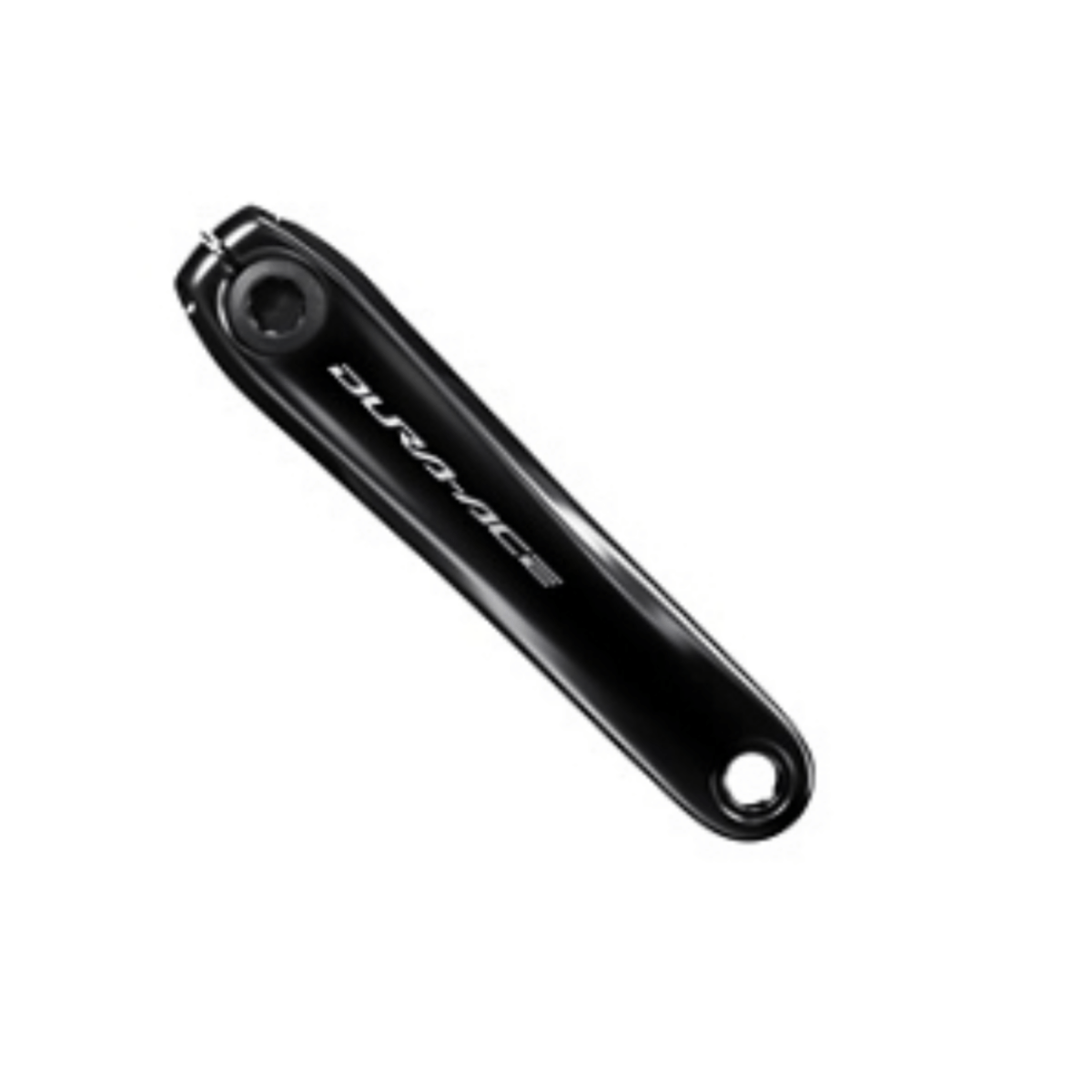

Hollowtech II Crank Arms: Combines light weight and high rigidity for better power transfer and pedaling efficiency under load.
HollowGlide Chainrings: Hollow outer chainrings reduce weight and boost shift precision, even during aggressive sprints.
Expanded Crank Arm Options: Now available in shorter lengths (160–177.5 mm) for improved fit and aerodynamic positioning.
Optimized Gear Combinations: New 54-40T chainring option enhances cadence control and speed on time trials and flat terrain.
Enhanced Sealing: High-precision bearing seals maintain smooth performance and durability over long-distance use.

Technologies

Hollowtech II: Integrates crank arm and bottom bracket axle for an optimal balance of stiffness, weight and power transfer, with excellent bearing durability.
Hollowtech Crank Arm: Forged hollow crankarms offer superior strength-to-weight ratio, reducing rotational mass and improving acceleration.
HollowGlide: High-rigidity hollow outer chainring enhances power transfer while enabling quicker, more precise front shifts.

Specifications

Model No: FC-R9200
Series: Dura-Ace
Color: Series Color
Rear Speeds: 12
Compatible Chain: HG 12-Speed
Chain Line: 44.5 mm
P.C.D.: 110 mm
Spider/Gear Arms: 4
Chainring Combination: 46-36T, 50-34T, 52-36T, 54-40T
Q-Factor: 148 mm
Crank Arm Length (mm): 160, 165, 167.5, 170, 172.5, 175, 177.5
Optional Chain Guard|Without Chain/Bash Guard: Yes
Hollowtech II: Yes
Hollowtech Crank Arm: Yes
HollowGlide: Yes
Compatible Bottom Bracket Type|Outboard: Yes
Recommended Bottom Bracket|Threaded (normal): BB-R9100
Recommended Bottom Bracket|Press-Fit: SM-BB92-41B
Threaded Bottom Bracket Shell Width (mm): 68, 70
Crank Fixing Screw Included: Yes
Average Weight (g): 693 (46-36T), 685 (50-34T), 692 (52-36T), 714 (54-40T)
