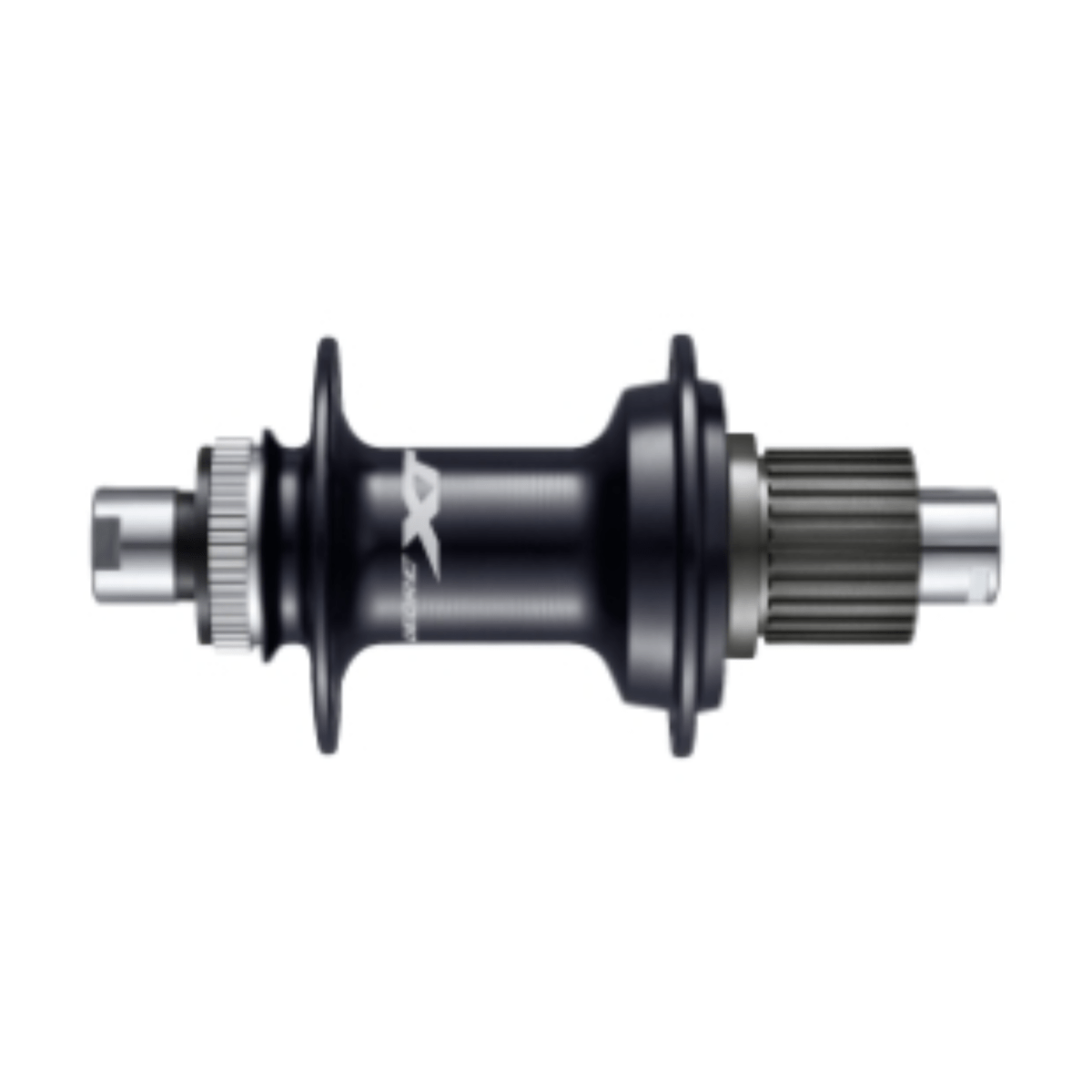

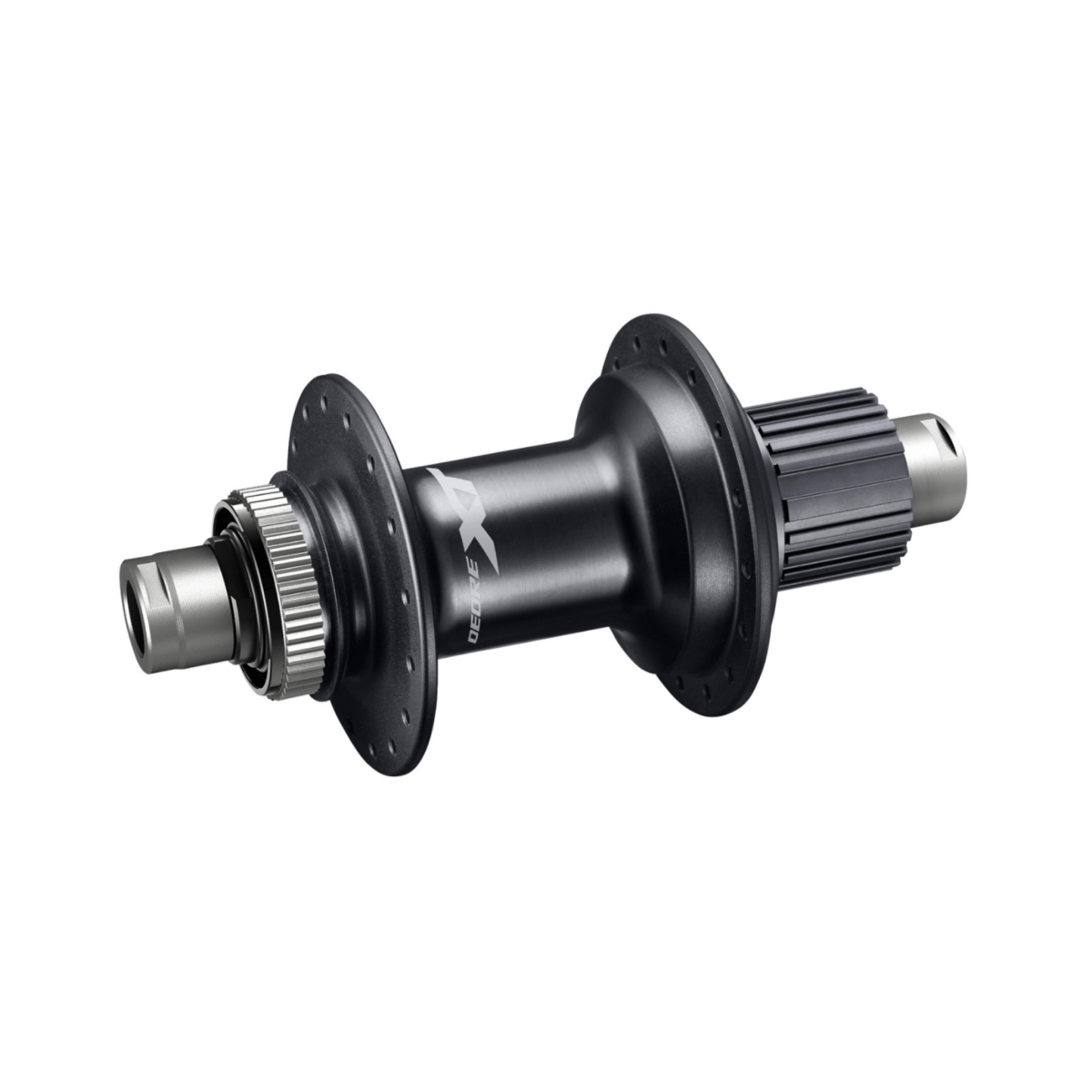

Shimano Deore XT FH-M8110-B Center Lock 12-Speed Disc Brake Rear Freehub

Name: Shimano Deore XT FH-M8110-B Center Lock 12-Speed Disc Brake Rear Freehub
Brand: Shimano
SKU: EFHM8110BC
Price: 10200.0 INR
Availability: InStock

EFHM8110BC

₹10,200

Holes

28H

Product variants

Trail-Ready Micro Spline Rear Hub for 12-Speed Performance

Description

The Shimano Deore XT FH-M8110-B rear freehub is purpose-built for demanding trail conditions and aggressive riding. It’s optimized for 12-speed Micro Spline cassettes, enabling a tighter gear range and faster acceleration. Whether you're tackling steep climbs or descending technical trails, this hub delivers reliable power transfer every time.

Micro Spline Compatibility for Performance Gains: This freehub features a Micro Spline interface that allows the use of a 10T top gear. The smaller spline diameter results in faster pickup and more compact gearing options. The design enhances acceleration, especially useful during punchy climbs or rapid transitions between trail segments.

Boost Spacing for Stability and Rigidity: With a 148 mm O.L.D. Boost spacing, the FH-M8110-B offers better chainline and improved frame clearance. This makes your setup more robust and enhances wheel stiffness, crucial for confident cornering and downhill control. The boost hub standard also ensures compatibility with a growing range of modern mountain bikes.

Effortless Rotor Installation: Thanks to Shimano’s Center Lock technology, installing disc brake rotors is quick and secure. The spline mount with a lock ring streamlines setup and service, while ensuring consistent rotor alignment and braking performance. It’s a system designed for efficiency on and off the trail.

Sealed bearings and Shimano’s proven hub construction offer smooth rotation and low maintenance needs, helping you focus on your ride, not your repairs.

Features

Micro Spline Compatible: Designed for 12-speed Micro Spline cassettes, supporting a 10T top gear for tighter, faster gearing.
Boost Spacing Stability: Features 148 mm O.L.D. Boost spacing for improved chainline, wheel stiffness and frame clearance.
Direct Engagement Drive: Spiral-shaped ratchet interface increases drive rigidity and reduces hub weight using aluminum components.
Quick Rotor Setup: Center Lock system enables easy and secure rotor mounting with spline interface and lock ring.
Low-Maintenance Reliability: Labyrinth+Contact seals and quality hub construction ensure smooth spinning with minimal upkeep.

Technologies

Direct Engagement: Spiral engagement system increases rigidity and reduces weight by using aluminum ratchet components for firmer drive connection.
Micro Spline: Lightweight aluminum Freehub body supports 10T top gear and reduces weight, compatible only with Micro Spline cassettes.
Center Lock: Spline mount and lock ring system allows quick, precise disc rotor installation with enhanced braking rigidity.
Quick Engagement: 18/16 notches and dual pawl system allow fast engagement—ideal for aggressive XC and trail conditions.

Specifications

Model No: FH-M8110-B
Series: Deore XT
Color: Series Color
Color|Hub Shell: Series color
Brake Type: Center Lock Disc Brake
Rear Speeds: 12
O.L.D. (mm): 148
Spoke Hole: 28H, 32H, 36H
10 Tooth Cog Compatible: Yes
External Serration Disc Brake Rotor Lock Ring|Without: Yes
Internal Serration Disc Brake Rotor Lock Ring|Without: Yes
Axle Fixing Method: 12 mm E-Thru
Flange Distance: 62.16 mm
Offset: 6.6 mm
P.C.D. Left / Right: 60 / 61 mm
Flange Diameter Left / Right: 68.8 mm / 69.8 mm
Spline Type|Micro Spline: Yes
Engagement Type|Direct Engagement: Yes
Quick Engagement: Yes (Max 7.0 deg.)
Seal|Hub: Labyrinth+Contact
Seal|Freehub Body: Contact
Average Weight: 307 g
