Magicshine Ray 1600B (W/Remote) Head Light

High-Power Bicycle Front Light with Advanced Features and Versatile Lighting Modes

1600 lumens

₹8,490

Delivery estimateEnter your pincode for delivery dates

Free shipping over ₹2,000Delivered across India
100% genuineAuthorised dealer, manufacturer warranty
Cash on deliveryOn orders up to ₹20,000
Secure checkoutUPI, cards and net banking

Not sure about size or compatibility? Ask TBA Guide WhatsApp us

Introducing the Magicshine Ray 1600B, a powerful and innovative bicycle front light designed to offer unparalleled lighting performance for cyclists. Whether you're navigating busy streets, country paths, or challenging terrain, this headlight ensures maximum visibility and safety with its high-output LED technology and advanced features.

Powerful Illumination: Featuring two high-power LEDs, the Ray 1600B delivers an impressive output of up to 1600 lumens, ensuring exceptional visibility on urban streets and challenging trails alike.

Long Runtime: With a maximum runtime of 12 hours, the Ray 1600B provides reliable illumination for extended rides.

Convenient Charging: The USB-C charger ensures convenient and fast charging, keeping you ready for your next adventure.

Waterproof Design: Built to withstand the elements, the Ray 1600B features an IPX6 waterproof rating, providing peace of mind in any weather conditions.

Advanced Features: Take advantage of enhanced features such as APP customization and wireless remote control, allowing you to tailor your lighting experience to your preferences.

Floodlight & Hybrid Support: Enjoy versatile lighting options with support for floodlight and hybrid modes, adapting to various riding conditions with ease.

Experience the ultimate in illumination and versatility with the Magicshine Ray 1600B Front Light.

Note: For the first time usage, please press the button for 3 seconds to unlock the light. Remember to lock the light by pressing the button for 3 seconds when not using.

Product details

Specifications

Max Lumen	1600 LM
Light Source	SST-40-WCS-F50-P2/N5 *2
Max Throw	140 m
Runtime	12 hours
Lens/Reflector Type	TIR optical lens
Suitable Handlebar	25.4mm, 28.6mm, 31.8mm, aero bar
Brightness Sensor	Support
Vibration Sensor	Support
Remote Option	Support
Beam Intensity	5000 CD
Waterproof Rate	IPX6

Battery Source	3.6V 5200mAh
Charger	USB-C
Charging Time	3.5 hours (5V 2A)
Weight	190 g / 6.7 oz
Dimensions	96 x 41 x 27 mm / 3.78 x 1.61 x 1.06 in
Warranty	2 years
Material	Aluminum alloy

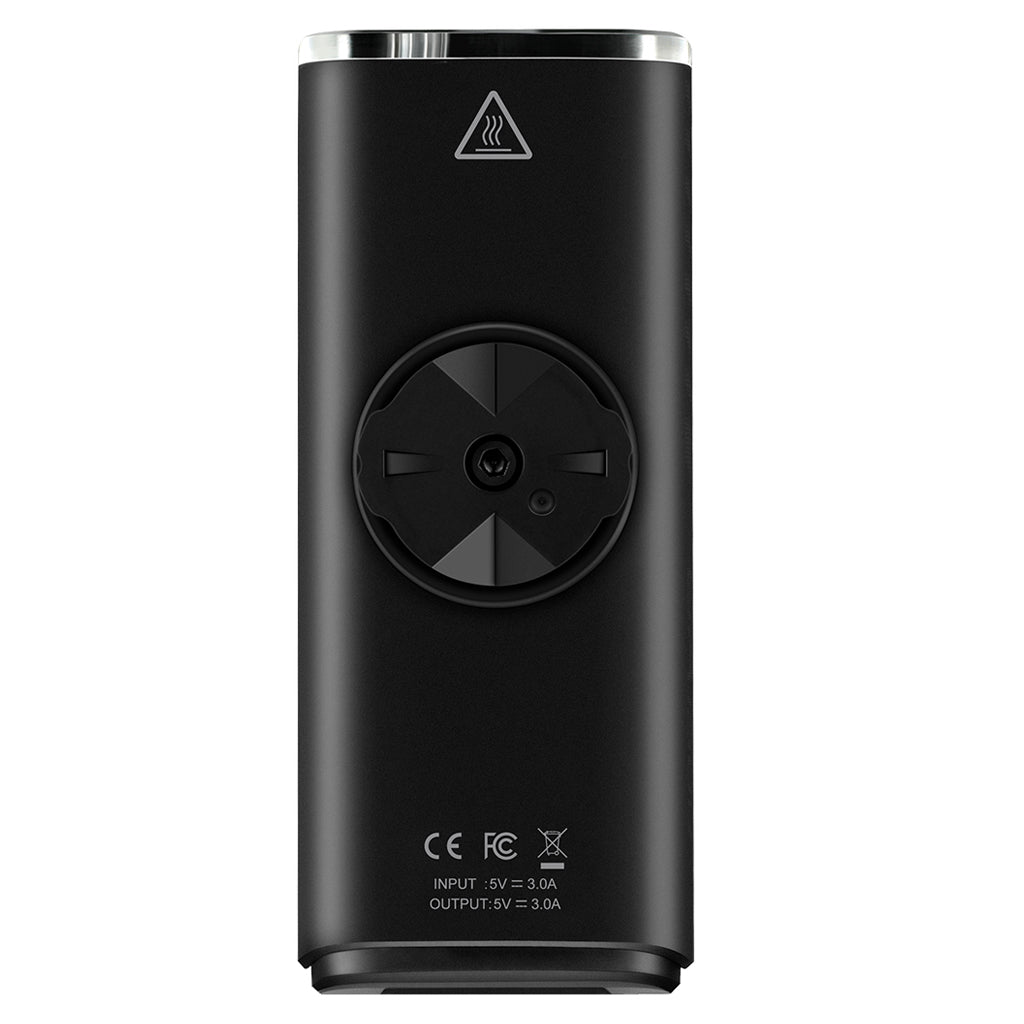

Mounting System	Garmin mount

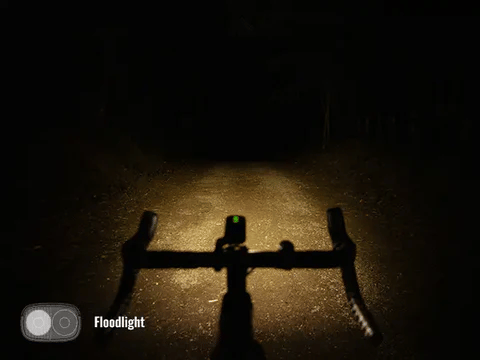

Floodlight Mode	Low 200 LM, 20:00; Medium 400 LM, 08:30; High 800 LM, 04:00
Hybrid Mode	Low 400 LM, 10:30; Medium 800 LM, 04:30; High 1600 LM, 02:12
Flash Mode	Day Flash 0/1600 LM, 11:00; Night Flash 400/1600 LM, 06:00

Features

Illuminate Your Path: Packing an impressive output of 1600 lumens in its dual LED setup, the Ray 1600B ensures exceptional visibility for all riding conditions.

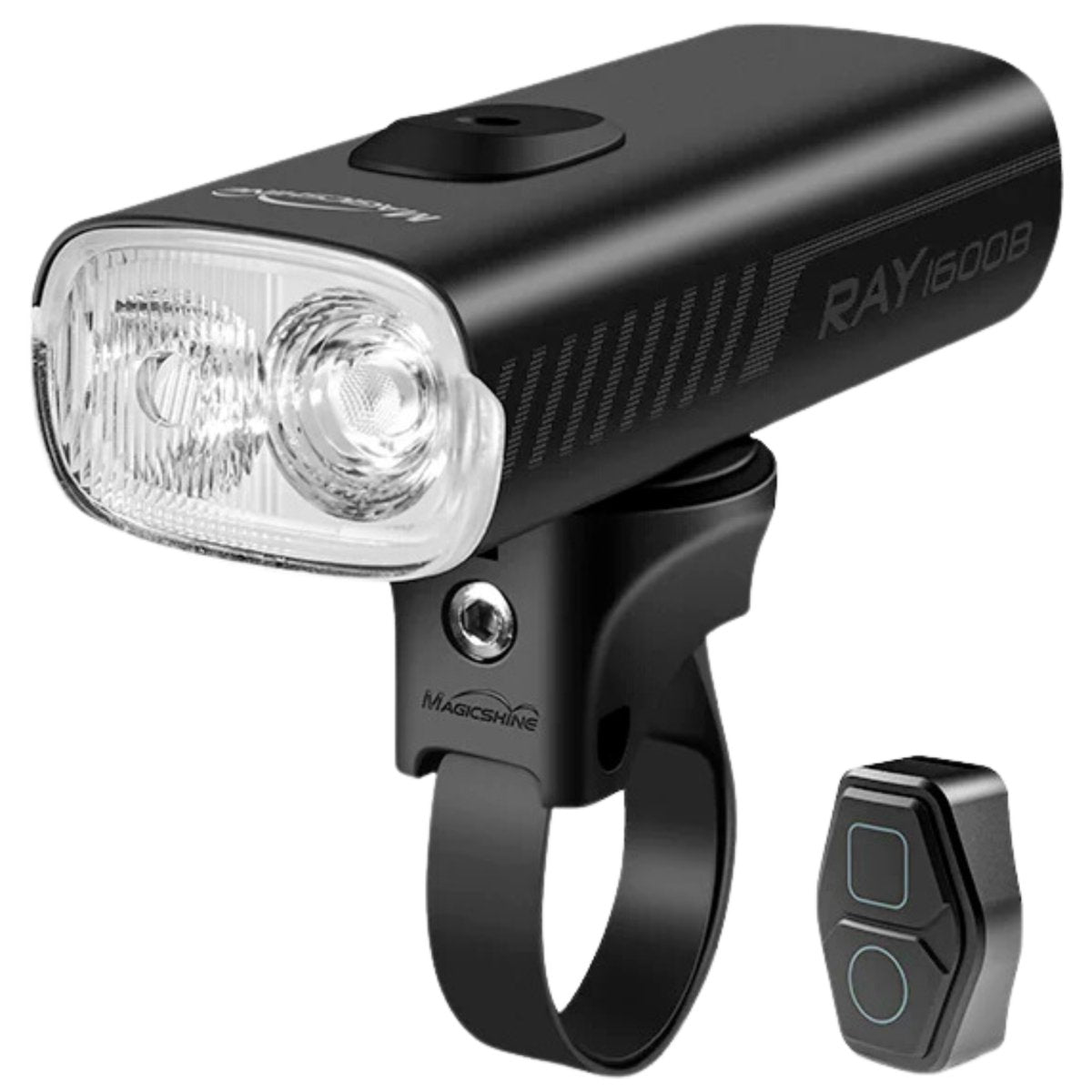

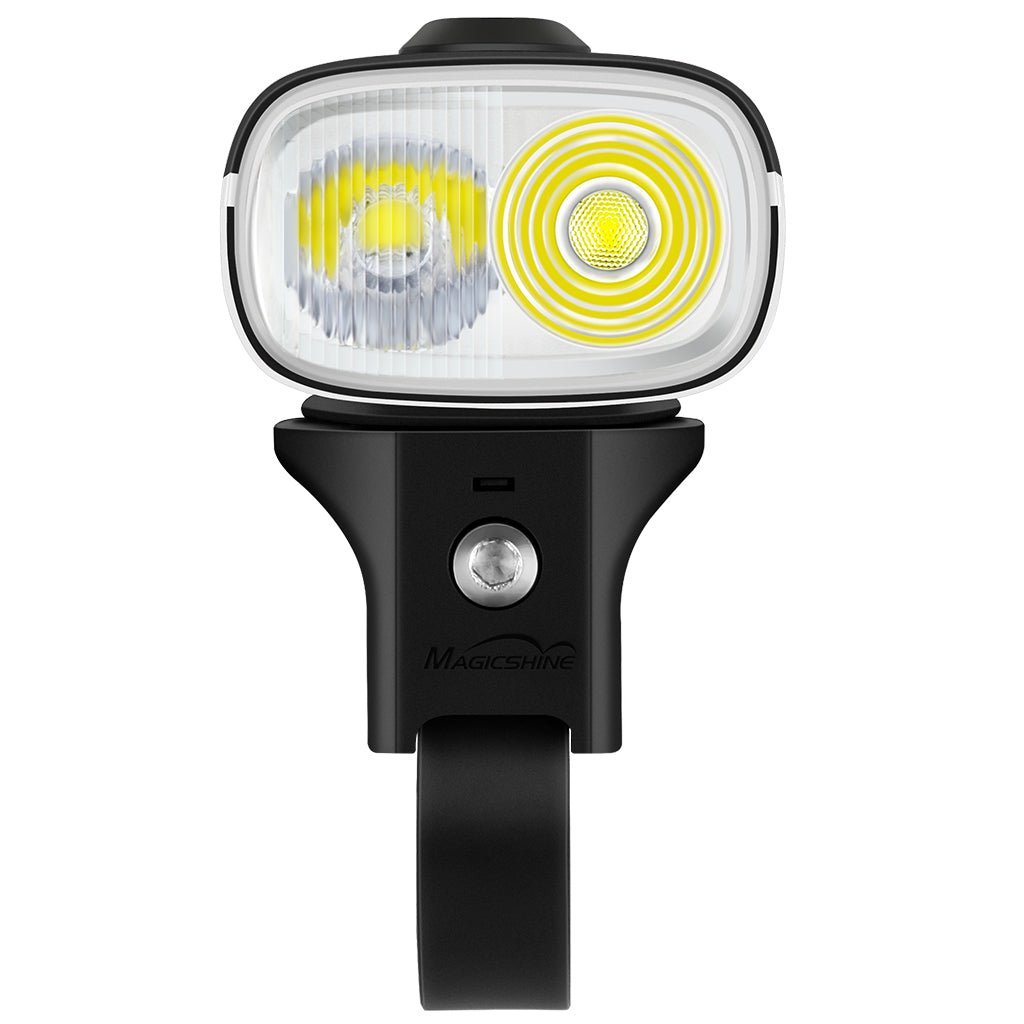

Double Lens System: A new double lens casts an up-close flood beam in conjunction with a far-reaching spot beam, ideal for both road and trail use.

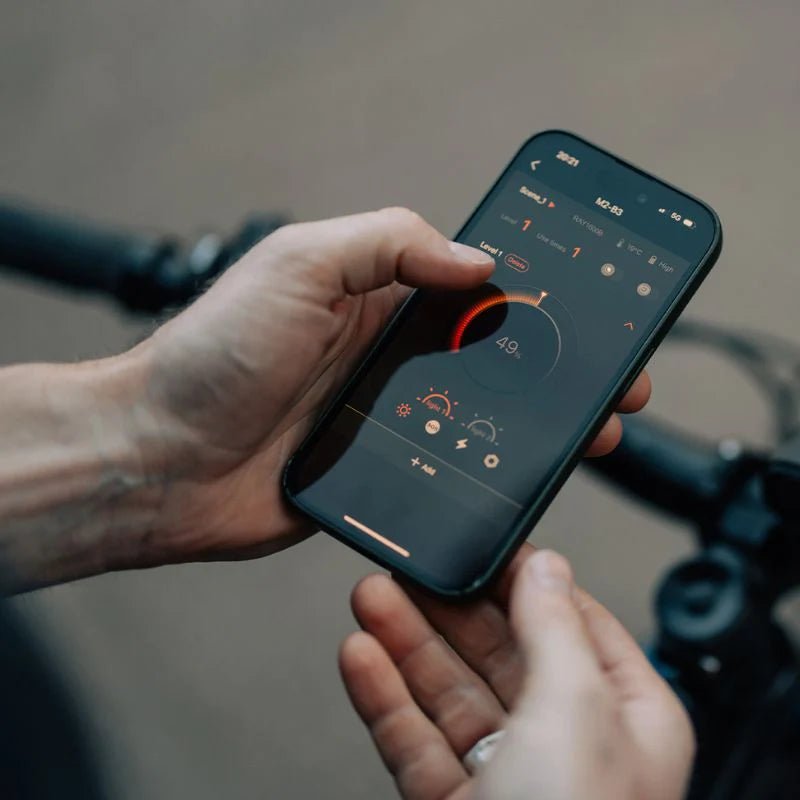

APP Customization: Add new modes and adjust brightness preferences through the Magicshine App, or activate the light/vibration sensor for long rides.
Built-In Smart Sensor: Automatically switches to a brighter beam when entering a tunnel or to sleep mode in a pit stop to conserve power.
Wireless Remote Control: Extends the mode switch function to the handlebars, allowing for seamless operation and focus on the trail ahead.

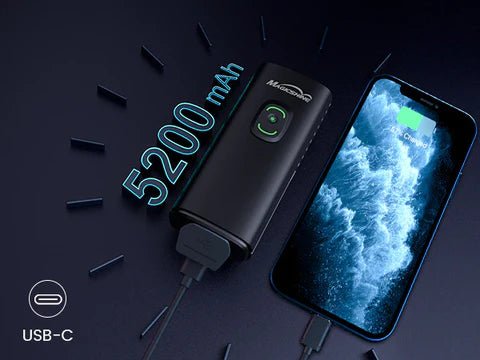

Long-Lasting Battery with USB-C Charging & Discharging: Powered by a 5200mAh battery, supports a dependable runtime of up to 12 hours. USB-C port allows for fast charging and can power other devices.

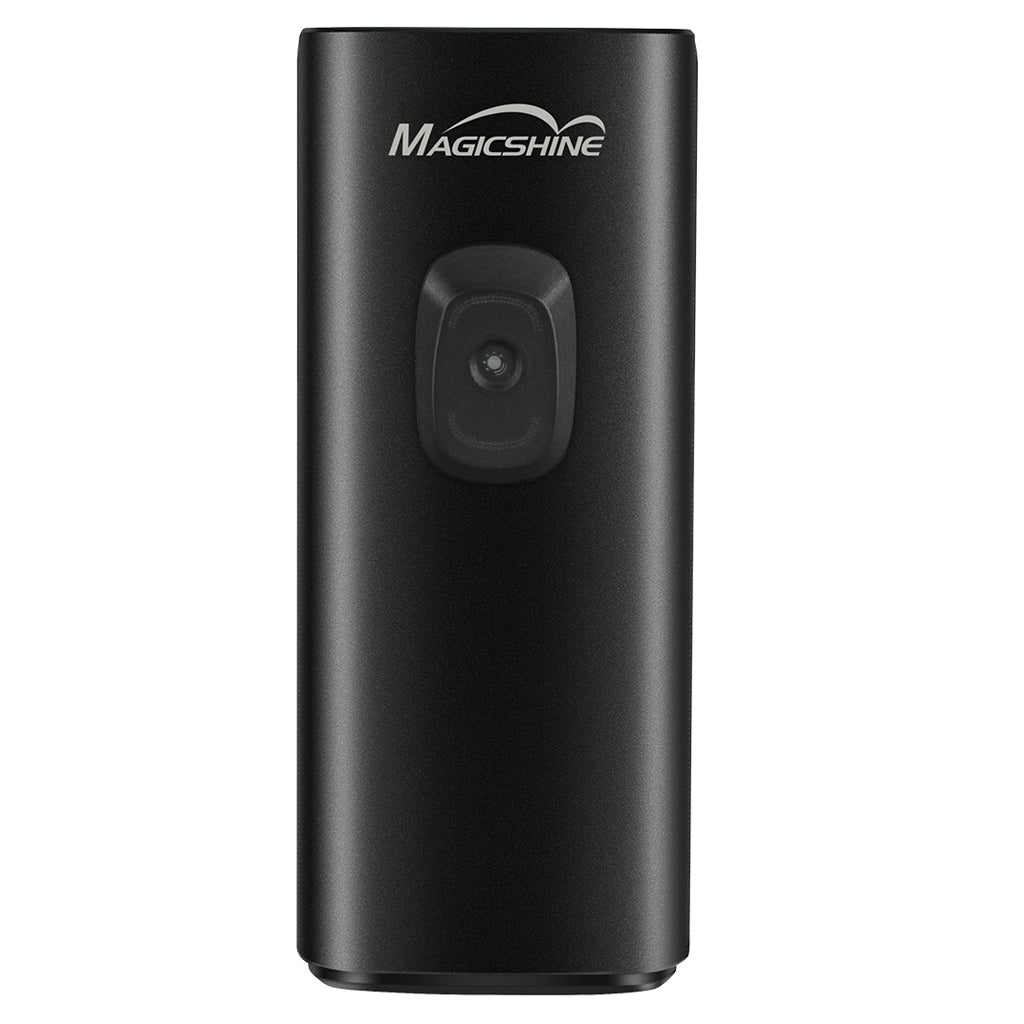

Up-Down Brightness Control Button with Easy-To-Read Indicator: Up-down button simplifies brightness adjustments; indicators show remaining battery capacity.
Excellent Choice as Helmet Light: Can be used as a helmet light, providing extra light sources for safer night rides.

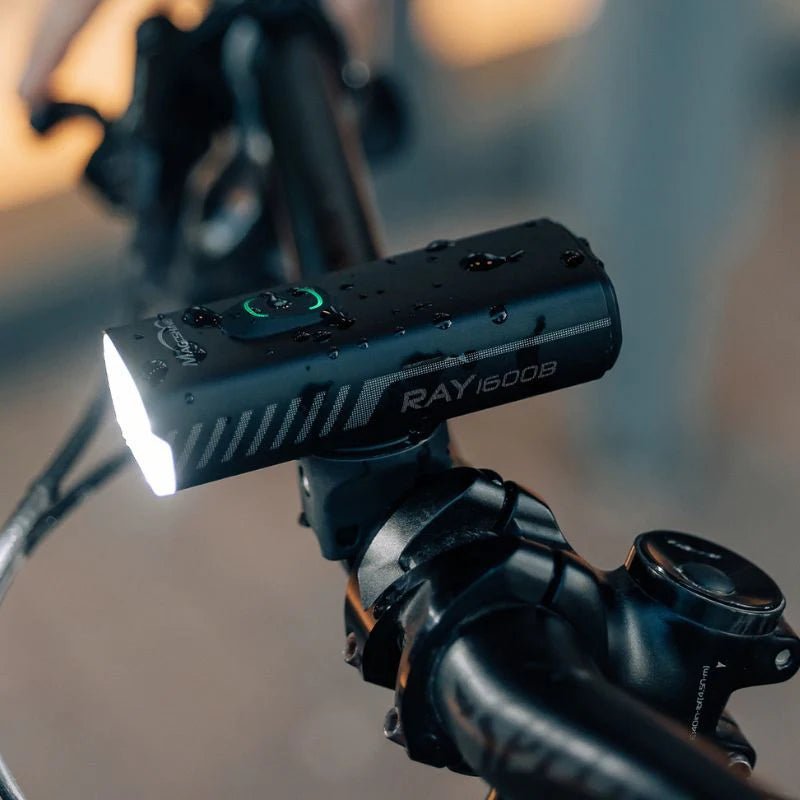

IPX6 Waterproof: Durable and flexible enough to withstand heavy rain, ensuring reliable performance in all weather conditions.

What's in the box

Ray 1600B * 1
Handlebar Mount * 1
GoPro Adapter * 1
MJ-6508 Remote Control (incl. Strap) * 1
Compatible Straps * 4
3mm Hex Key * 1
USB-C Cable * 1
User Manual * 1

How to use

Switch: A switch on the light unit and a wireless remote control all modes and brightness.
On/Off: Press and hold the button to turn the light on/off. The default output is the last mode when turned off.
Adjust Brightness: When the light is on, click the button to change the brightness level. The output brightness of the low beam will cycle through Low→Medium→High→Low...
Mode Selection: When the light is on, double-click the button to change between low beam and high beam.
Full Output Mode: Click the button to change to the full output mode of the high beam (1600LM).
Lock/Unlock: Press and hold the button for 3 seconds to enter lockout mode. To unlock, press and hold the button again for 3 seconds or charge the light.

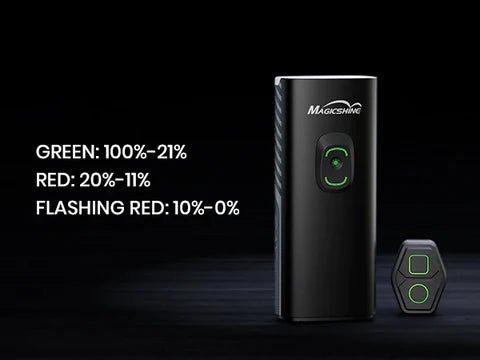

Battery Indicator: Click the power button to display the remaining battery level for 3 seconds.

Green: 100%-21%
Red: 20%-11%
Flashing Red: 10%-1%
