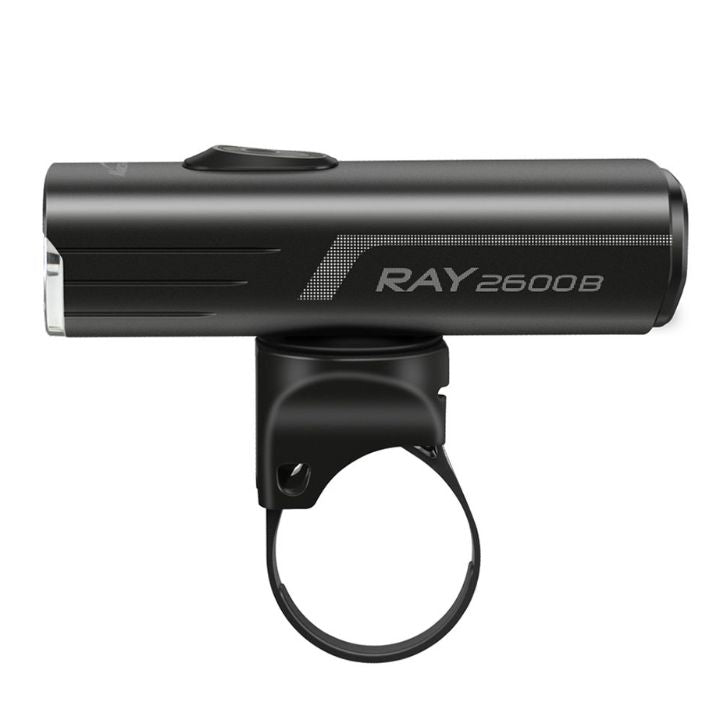

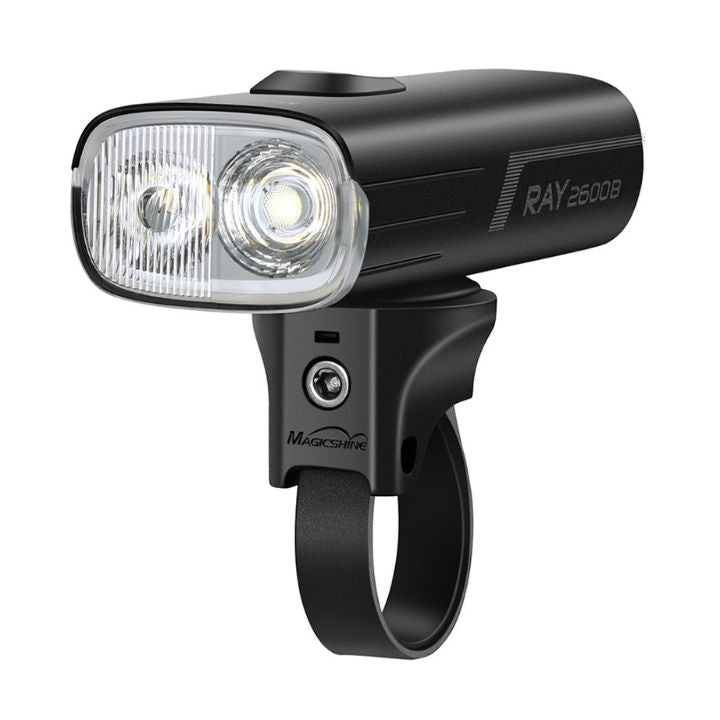

Magicshine Ray 2600B Head Light

The Magicshine Ray 2600B is a formidable bicycle light designed to provide exceptional illumination for various cycling activities.

Powerful Illumination: With a dual LED setup, the Ray 2600B emits an impressive 2600 lumens of light, making it suitable for mountain biking, trail crossing, road cycling, and daily commuting.

Long-lasting Battery: Powered by two 18650 batteries boasting a high capacity of 6700mAh, this light offers an outstanding power-to-weight ratio, delivering a runtime of up to 15 hours on a single charge.

Intelligent Sensors: Activate the light sensor through the dedicated app to enable automatic adjustment to a brighter beam when entering tunnels or low-light areas. The vibration sensor, also accessible via the app, switches the light to sleep mode during pit stops, conserving battery life.

Wireless Remote Control: Enjoy seamless mode and brightness adjustment with the wireless remote control, allowing you to stay focused on the trail ahead. Easily switch to full output mode with a single push.

USB-C Charging and Discharging: The USB-C port enables convenient battery charging and can also power other devices such as bike computers and smartphones while on the go.

IPX6 Waterproof Rating: Designed to withstand heavy rain or wet conditions, the Ray 2600B is nimble enough to light your way in any weather.

Garmin Quarter-turn Mounting System: Versatile mounting options allow compatibility with standard and aero handlebars, as well as helmet and TTA mountable options.

The Magicshine Ray 2600B is a feature-packed bicycle light that caters to the needs of night riders, offering powerful illumination, intelligent sensors, wireless control, versatile mounting options, and reliable performance in various weather conditions.

Features

Features of Magicshine Ray 2600B Head Light

• Two high-power LEDs provide a maximum output of 2600 lumens

• Unique combination of close-range floodlight and far-reaching spotlight beam

• Customize lighting settings for different cycling scenarios through Magicshine App

• Wireless remote control, straight forward to activate maximum output

• Built-in light/vibration sensor, can be turned on/off through the App

• Powered by two 18650 integrated batteries with a capacity of up to 6700mAh
• Up-down brightness control with accurate battery display

• Aluminum housing and internal thermal management system ensure efficient heat dissipation and optimum performance

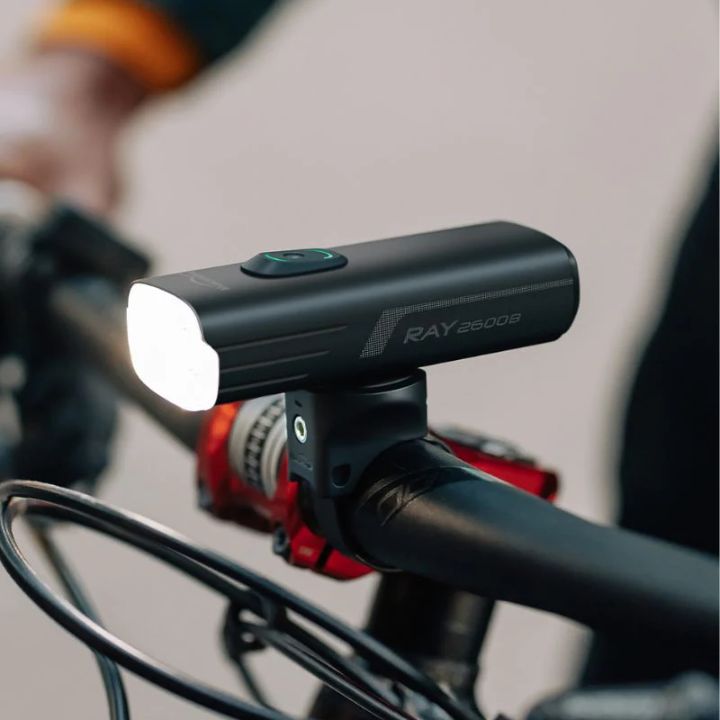

• Universal Garmin quarter-turn mount allows for quick installation and removal
• Illuminate Your Path: With two LEDs pumping out up to 2600 lumens, the RAY 2600B sees you safely through every situation.

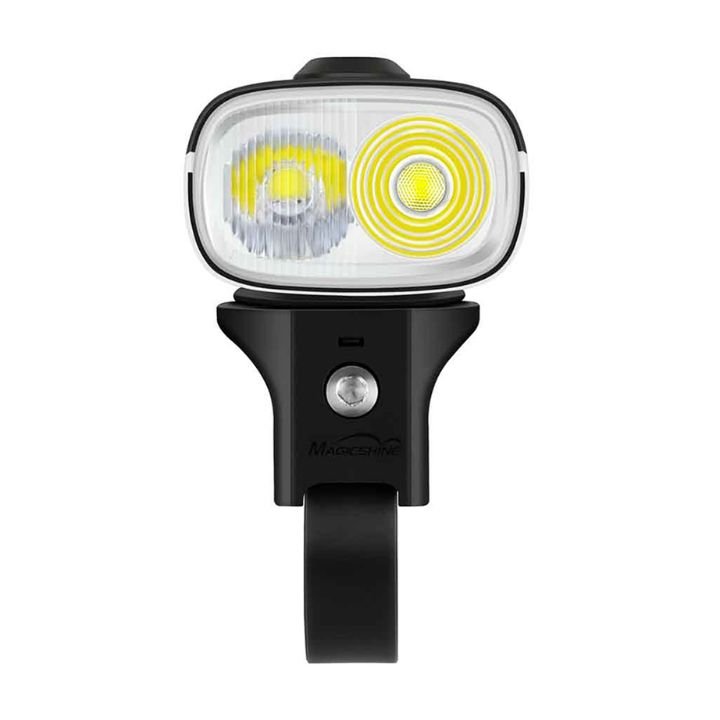

• Combined Floodlight & Hybrid: Close-range floodlight and far-reaching hybrid ensure coverage and distance, more than capable of navigating from city streets to challenging terrain.

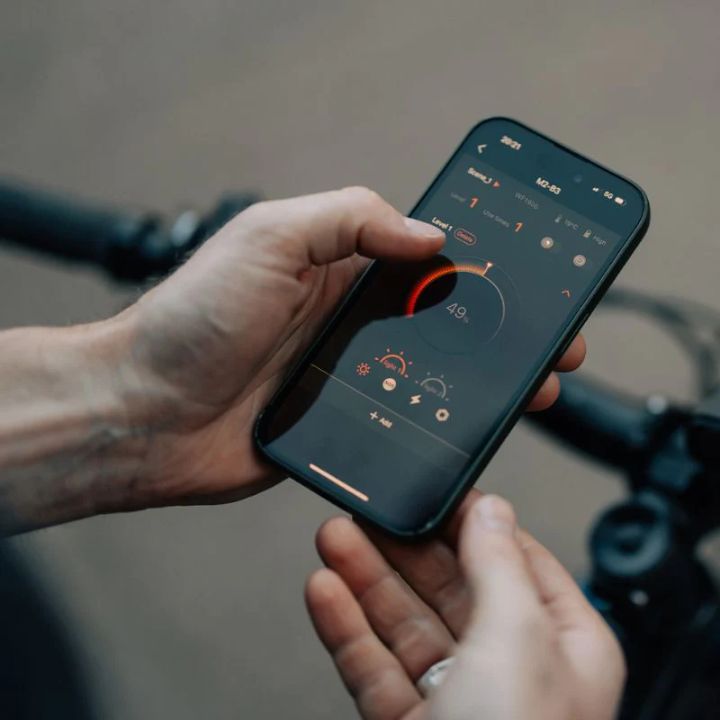

• APP Customization: Connect the light with Magicshine App, add new modes, or adjust brightness preferences to suit your specific needs.
• Built-In Smart Sensor: With the built-in smart sensor, the light will automatically switch to a brighter beam when entering a tunnel, or switch to sleep mode in a pit stop to conserve power.

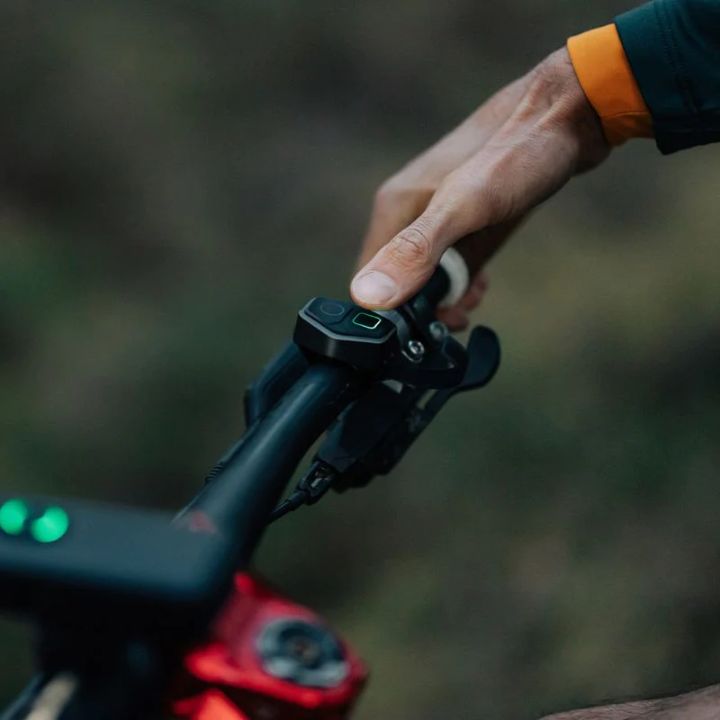

• Wireless Remote Control: With the wireless remote, adjust modes and brightness or instantly skip to full output mode with a push of a button, keeping your hands right where they should be — on the handlebars!
  (For first-time usage, please remove the plastic piece from the button battery.)
• Long-Lasting Battery With USB-C Charging & Discharging: Powered by a 6700mAh battery, the RAY 2600B boasts an impressive runtime of 14.5 hours. With the USB-C charging and discharging port, recharge the battery or juice up your external devices such as bike computers or smartphones while on the go.

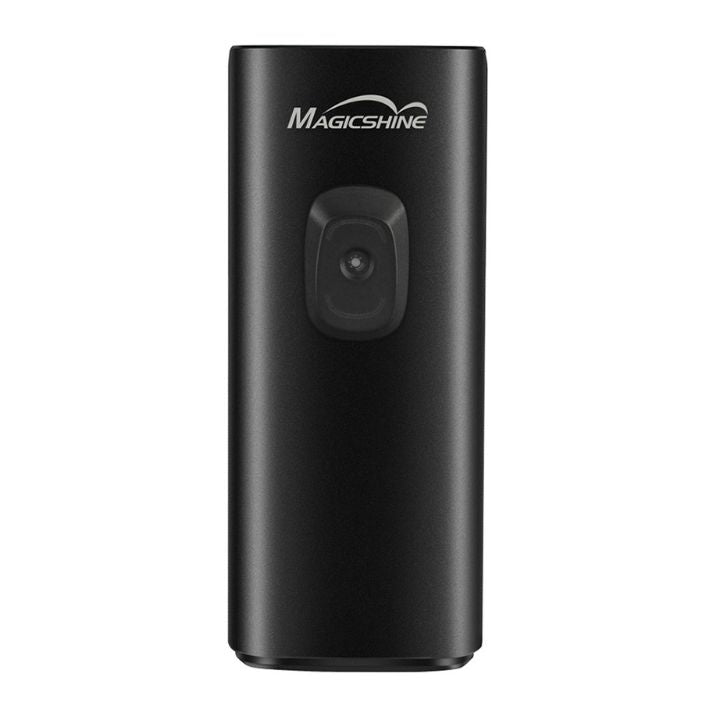

• Up-Down Brightness Control Button With Easy-To-Read Indicator: Get the brightness setting you want via the up-down button on the light unit. And precise indicators on the light unit and remote show you the remaining battery capacity. Mode memory function lets you quickly plunge into your next journey.
• Excellent Choice As Helmet Light: RAY 2600B can also be used as a helmet light which provides extra light sources. This can make you ride safer during the night.

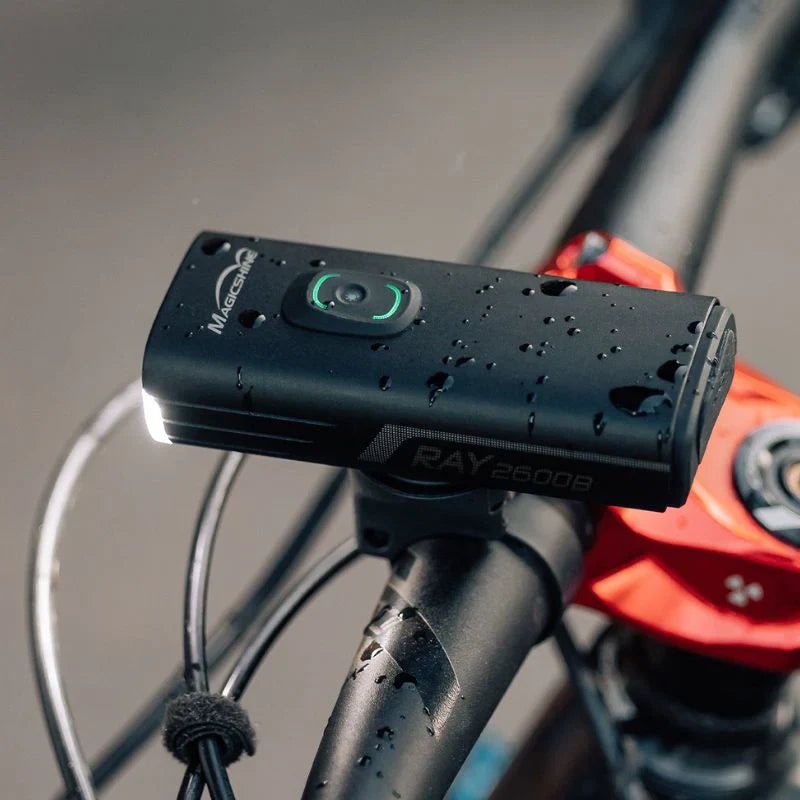

• IPX6 Waterproof: The aluminum housing does well to dissipate heat and resist the elements, and protects the light even in heavy rain or wet conditions.

Specifications

Specifications of Magicshine Ray 2600B Head Light

Operating Instructions

Operating Instructions of Magicshine Ray 2600B Head Light

Switch: A switch on the light unit and a wireless remote control all modes and brightness.

On/Off: Press and hold the button to turn the light on/off. The default output is the last mode when turned off.

Adjust Brightness: When the light is on, click the up/down button to change brightness level.

Change Mode: Double click the button to change between floodlight mode and hybrid mode. (Note: The Day flash and Night flash can only be accessed through the remote control.)

Lock/Unlock: When the light is off, press and hold the button for 3 seconds to enter lockout mode. To unlock the light, you can press and hold the button again for 3 seconds or charge the light.
*In lockout mode, the light will not light up and the indicator flashes red quickly.

Vibration Sensor: The light will turn off automatically after 2 minutes of inactivity and automatically light up with any vibrations. The light will automatically turn off if no vibration is detected within 30 minutes.
*The vibration sensor is off by default, activate it through the App.

Brightness Sensor: During the daytime, the light will automatically turn to Low brightness in floodlight mode. At nighttime, the light will automatically return to the brightness that it's in when turned on.
*The light sensor is off by default, activate it through the App.

Battery Indicator: When the light is off, click the power button to display the remaining battery level for 3 seconds.
Green: 100%-21%, Red: 20%-11%, Flashing Red: 10%-1%

Wireless Remote Control:

• Pairing: Turn on the light, press and hold the "○""□" buttons on the remote for about 10 seconds until the indicator alternately flashes blue to enter pairing mode. Then, put the remote close to the light button until the indicators on the remote and light unit are constantly blue for 2 seconds, confirming a successful pairing.

• On/Off: Press and hold the "○"/"□" button for 1 second

• Adjust brightness: Click the "○" button

• Change mode: Double click the "○" button

• Flash mode: Double click the "□" button

• Full output mode (2600LM): Click the "□" button to go into full output mode and click the "○"/"□" button to return to the previous mode

• The remote control will enter sleep mode if the light is turned off for more than 48 hours without any operation. Click the light's button to activate it or long-press the light's button to turn it on, and the remote control can work normally


Connect with the App:

• iOS users search for "Magicshine" in the "APP Store," and Android users search for "Magicshine" in "Google Play" to download the App.

• Turn on the Bluetooth of your smartphone and open the APP, click "Add New Devices" and find "M2-B0". Click "Add", then click "Connect the device".


App Settings:

• Click "Add" at the bottom to enter the "Device Settings" interface

• Click "Mode 1" or "Mode 2", you can customize "Always On", "SOS", "Blinking", and "Warning" as well as their corresponding brightness

• Up to 20 customized modes are supported.

• When you delete all customized modes in the App, the light will return to the factory default mode


In The Box

Box Contents of Magicshine Ray 2600B Head Light

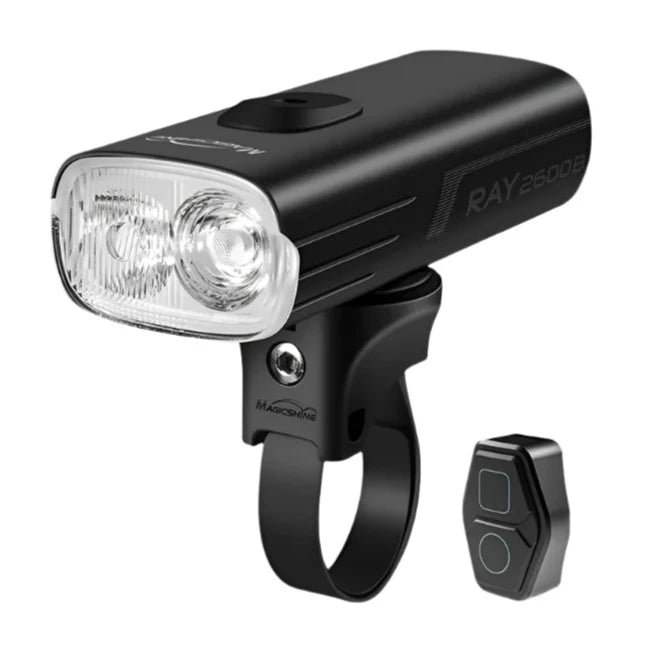

• RAY 2600B *1

• Handlebar Mount *1

• GoPro Adapter *1

• MJ-6508 Remote Control (incl. strap) *1

• Compatible Straps *4

• 3mm Hex Key *1

• USB-C Cable *1
• User Manual *1
