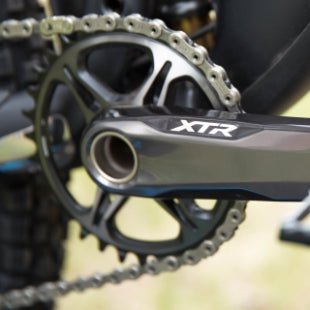

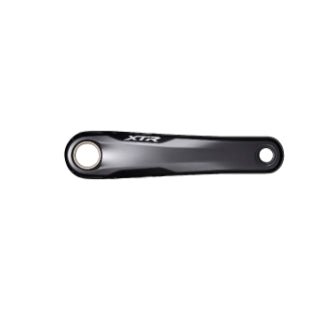

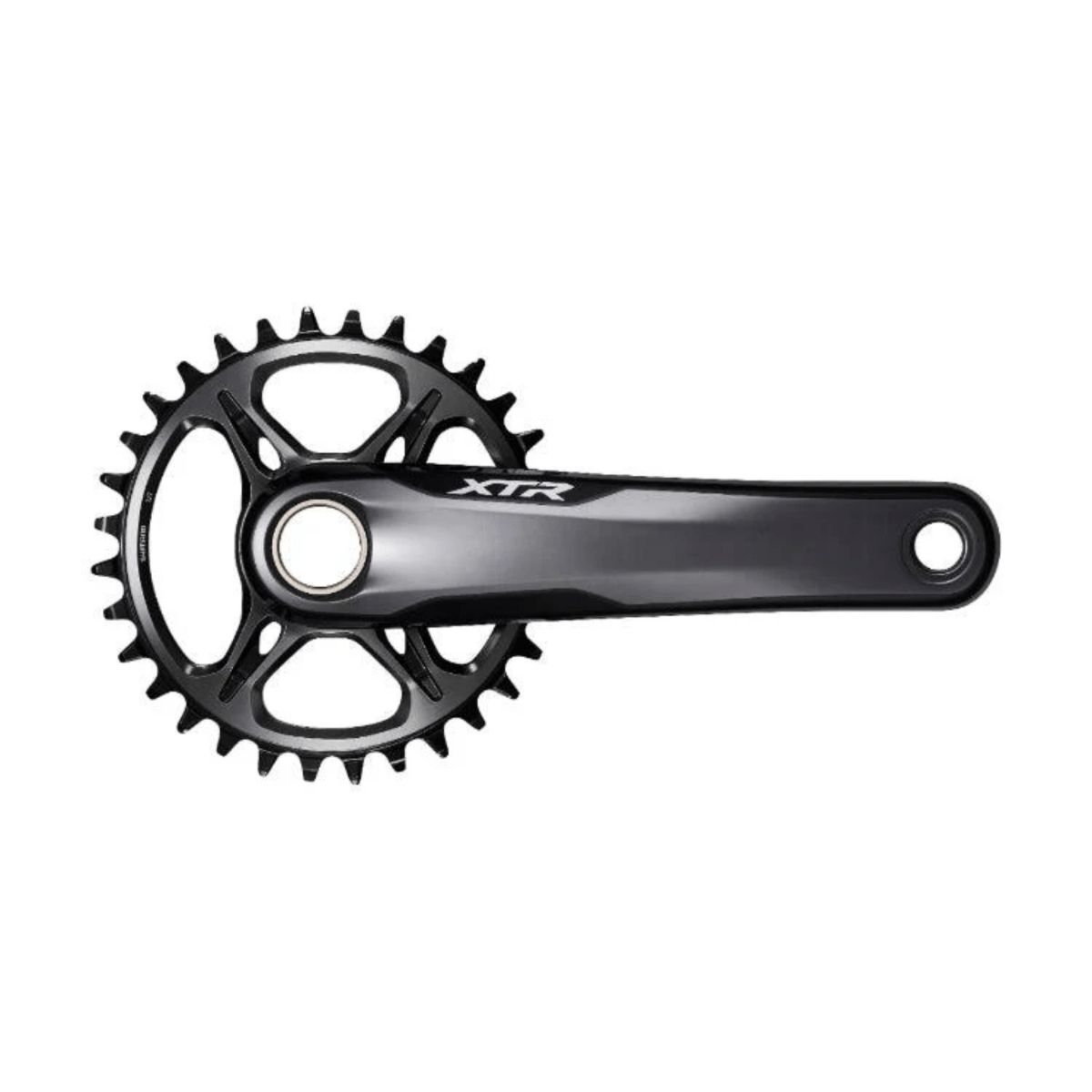

Shimano XTR FC-M9120-1 1x12-Speed Front Chainwheel
Lightweight XTR Crankset for MTB
Shimano XTR FC-M9120-1 1x12-Speed Front Chainwheel - 170mm is backordered and will ship as soon as it is back in stock.
- Free shipping over ₹2,000Delivered across India
- 100% genuineAuthorised dealer, manufacturer warranty
- Cash on deliveryOn orders up to ₹20,000
- Secure checkoutUPI, cards and net banking
Shimano XTR FC-M9120-1 1x12-Speed Front Chainwheel - 170mm is backordered and will ship as soon as it is back in stock.
The Shimano XTR FC-M9120-1 crank is crafted for top-tier mountain biking, offering seamless integration with 1x12-speed systems. Designed to meet the demands of professional riders, it combines precision engineering with outstanding durability for the most challenging trails.
Innovative Direct Mount Design: Featuring an entirely new construction, the FC-M9120-1 uses direct mount chainrings with a special tooth profile for enhanced chain retention. This design ensures optimal power transfer and reduced chain drops, even on rough terrain.
Customizable and Versatile: The crankset is highly versatile, with 30T to 38T chainring options available, making it suitable for a wide range of riding styles and preferences. Its 52mm chainline ensures perfect alignment with the drivetrain, while the narrow 168mm Q-factor supports a comfortable and efficient pedaling stance.
Optimized for Modern Frame Standards: Compatible with both 142mm and 148mm O.L.D. thru-axle systems as well as 135mm and 141mm QR setups, the FC-M9120-1 accommodates a variety of frame geometries. The 2-piece crankset design enhances stiffness while maintaining a lightweight profile.
The absence of a chain guard emphasizes its sleek, minimalist appearance, making it an excellent choice for riders who value performance and aesthetics.
Product details
Specifications
Specifications
| Model No: FC-M9120-1 | |
| Series: XTR | |
| Color: Series Color | |
| Rear Speeds: 12 | |
| Compatible Chain: HG 12-speed | |
| Chain Line (mm): 52 | |
| O.L.D.|Thru (mm): 142, 148 | |
| O.L.D.|QR/Nut (mm): 135, 141 | |
| P.C.D. (mm): Direct | |
| Spider/Gear Arms: 4 | |
| Chainring Combination: 30T, 32T, 34T, 36T, 38T |
| Q-Factor (mm): 168 | |
| Crank Arm Length (mm): 165, 170, 175 | |
| Optional Chain Guard|Without Chain/Bash Guard: Yes | |
| Hollowtech II: Yes | |
| Compatible Bottom Bracket Type|Outboard: Yes | |
| Recommended Bottom Bracket|Threaded (Normal): SM-BB93 | |
| Recommended Bottom Bracket|Press-Fit: SM-BB94-41A | |
| Threaded Bottom Bracket Shell Width (mm): 68, 73 | |
| Crank Fixing Screw Included: Yes | |
| Average Weight (g): 545 (30T), 548 (32T), 562 (34T), 561 (36T), 569 (38T) |
