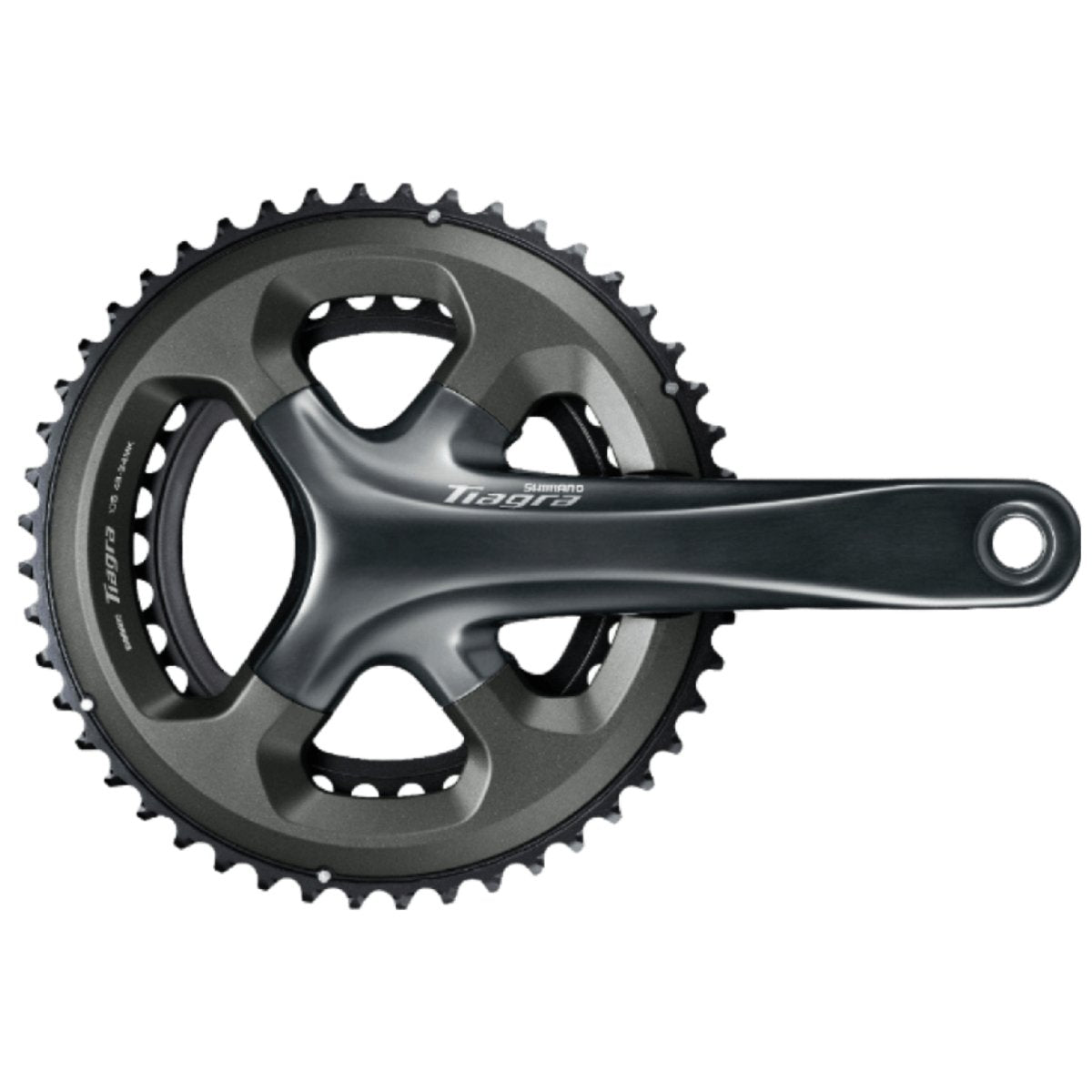

Shimano Tiagra Front Chainwheel FC4700 10 Speed

EFC4700CX04
₹9,590
Size
Length

Balanced and Versatile Crankset for Efficient Road Cycling

Description

Experience the perfect balance of weight, efficiency, and stiffness with the Shimano Tiagra Front Chainwheel FC4700 10 Speed. Designed for road cyclists seeking optimal performance, this 2x10-speed crankset delivers impressive power transfer and reliable shifting without compromising on stiffness. With a variety of chainring options and crank arm lengths, the Tiagra FC4700 crank offers versatility to suit your riding style.

Perfectly Balanced Weight and Efficiency: The Tiagra FC4700 crank is engineered for the ideal balance between weight and efficiency, ensuring a responsive and rewarding cycling experience on the road.

Versatile Chainring Options: Choose from three chainring options - 52-36T, 50-34T, and the new 48-34T - to tailor your gear ratios to your specific preferences and terrain. Enjoy the versatility to conquer various riding scenarios with ease.

Wide Range of Crank Arm Lengths: Select the crank arm length that best complements your riding style and body proportions. The Tiagra FC4700 is available in lengths of 165mm, 170mm, 172.5mm, and 175mm, allowing you to achieve an optimized fit and comfortable pedaling motion.

Experience efficient power transfer and smooth gear shifts on every ride.

Features
  • Optimum Power Transfer: Engineered for efficient energy transfer, maximizing your pedaling power and enhancing overall cycling performance.
  • Balanced Stiffness and Lightweight: Combines stiffness for responsive handling with a lightweight design for easy acceleration and climbing.
  • Versatile Chainring Options: Available in 48-34T, 50-34T, and 52-36T chainring combinations, allowing you to tailor your gearing to various riding conditions and preferences.
  • Wide Range of Crank Arm Lengths: Offers crank arm lengths of 165mm, 170mm, 172.5mm, and 175mm, ensuring an ergonomic fit for different rider sizes and styles.
  • Reinforced 4-Arm Construction: Provides durability and reliability under demanding conditions, making it ideal for both casual and competitive road cycling.
  • Optimized Gear Shape for HG-X Chain: Ensures smooth and precise gear shifts, enhancing your overall riding experience.

Technology

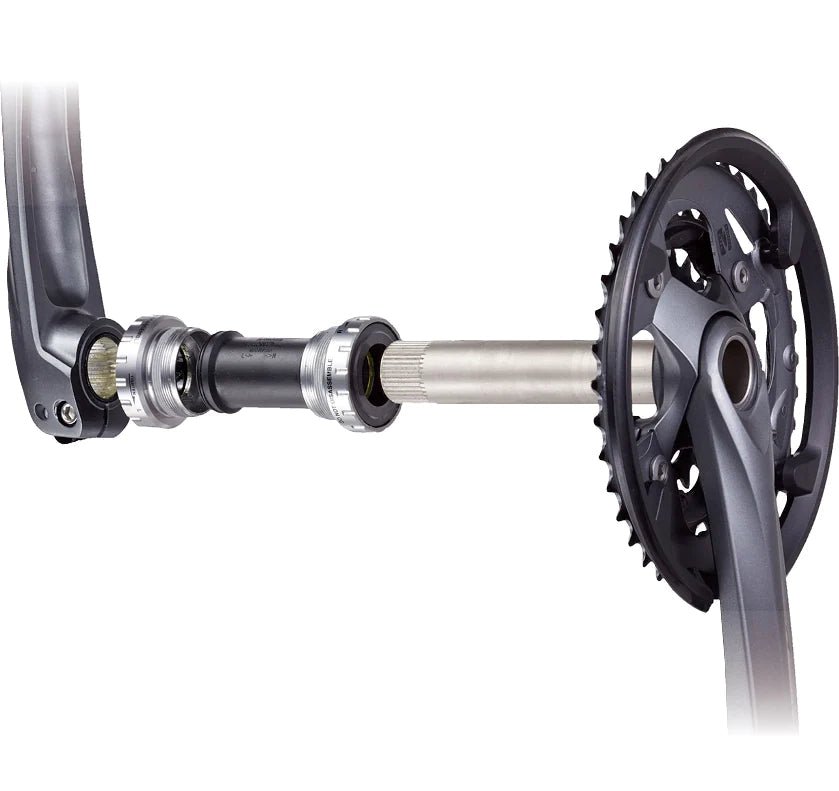

  • 2-Piece Crank Set: Combines an integrated crank arm and bottom bracket for increased rigidity and weight savings, with wider bearing positioning to enhance rigidity and transmit pedaling force efficiently.
  • HG Hyperglide: Features specially designed shift ramps and tooth profiles on the cassette for fast, responsive shifting, ensuring that the chain quickly and directly engages the next sprocket.

Specifications
  • Model No: FC-4700
  • Series: Tiagra 4700 Series
  • Color: Series color
  • Rear Speeds: 10
  • Compatible Chain: HG-X 10-speed
  • Chain Line: 43.5mm
  • P.C.D. (Pitch Circle Diameter): 110mm
  • Spider/Gear Arms: 4
  • Chainring Combination: 48-34T, 50-34T, 52-36T
  • Q-Factor: 150mm
  • Crank Arm Length: 165mm, 170mm, 172.5mm, 175mm
  • Optional Chain Guard: Without Chain/Bash Guard
  • 2-Piece Crankset: Yes
  • Compatible Bottom Bracket Type: Outboard
  • Recommended Bottom Bracket: BB-RS501 (Threaded Normal), BB-RS500-PB (Press-Fit)
  • Threaded Bottom Bracket Shell Width: 68mm, 70mm
  • Crank Fixing Screw Included: Yes
