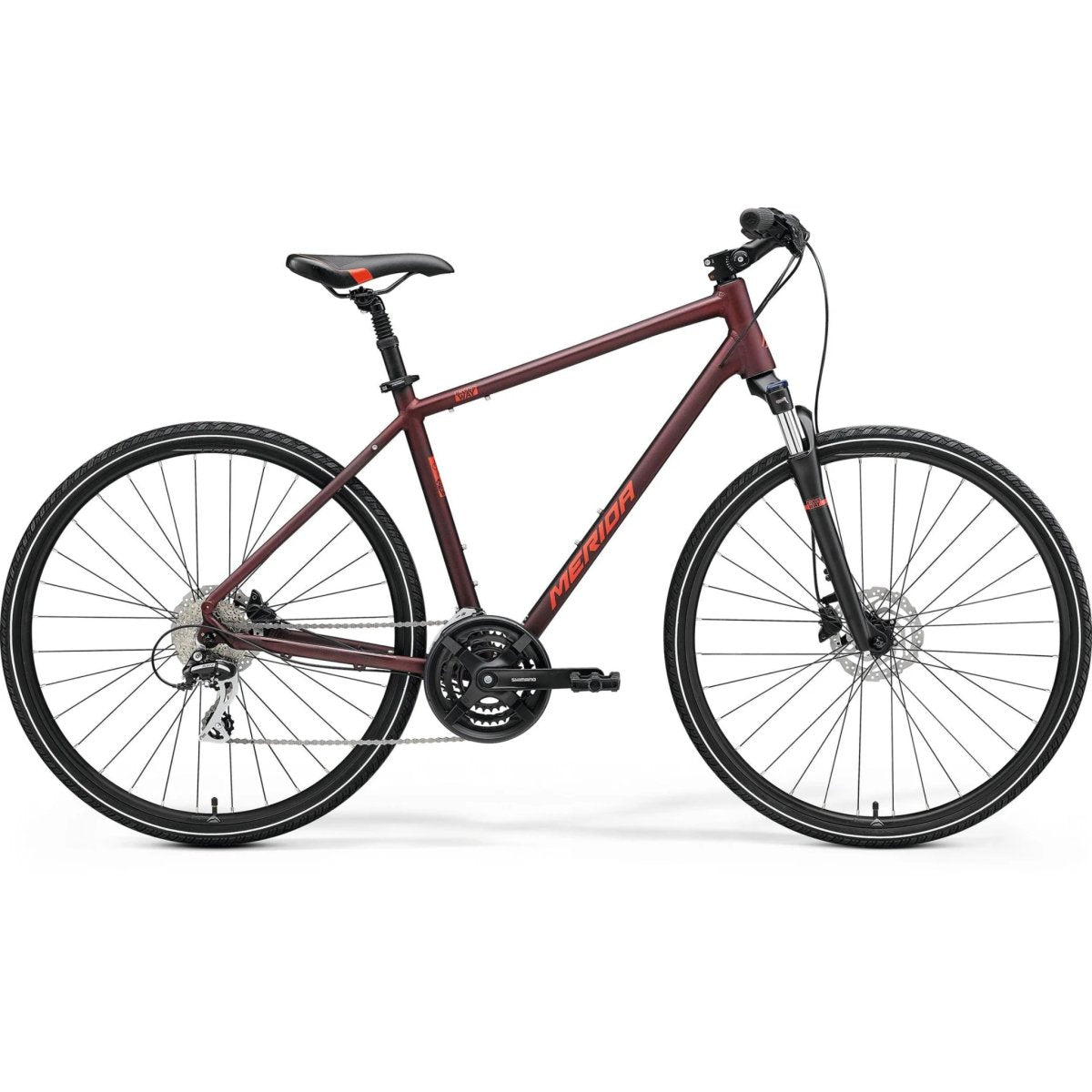

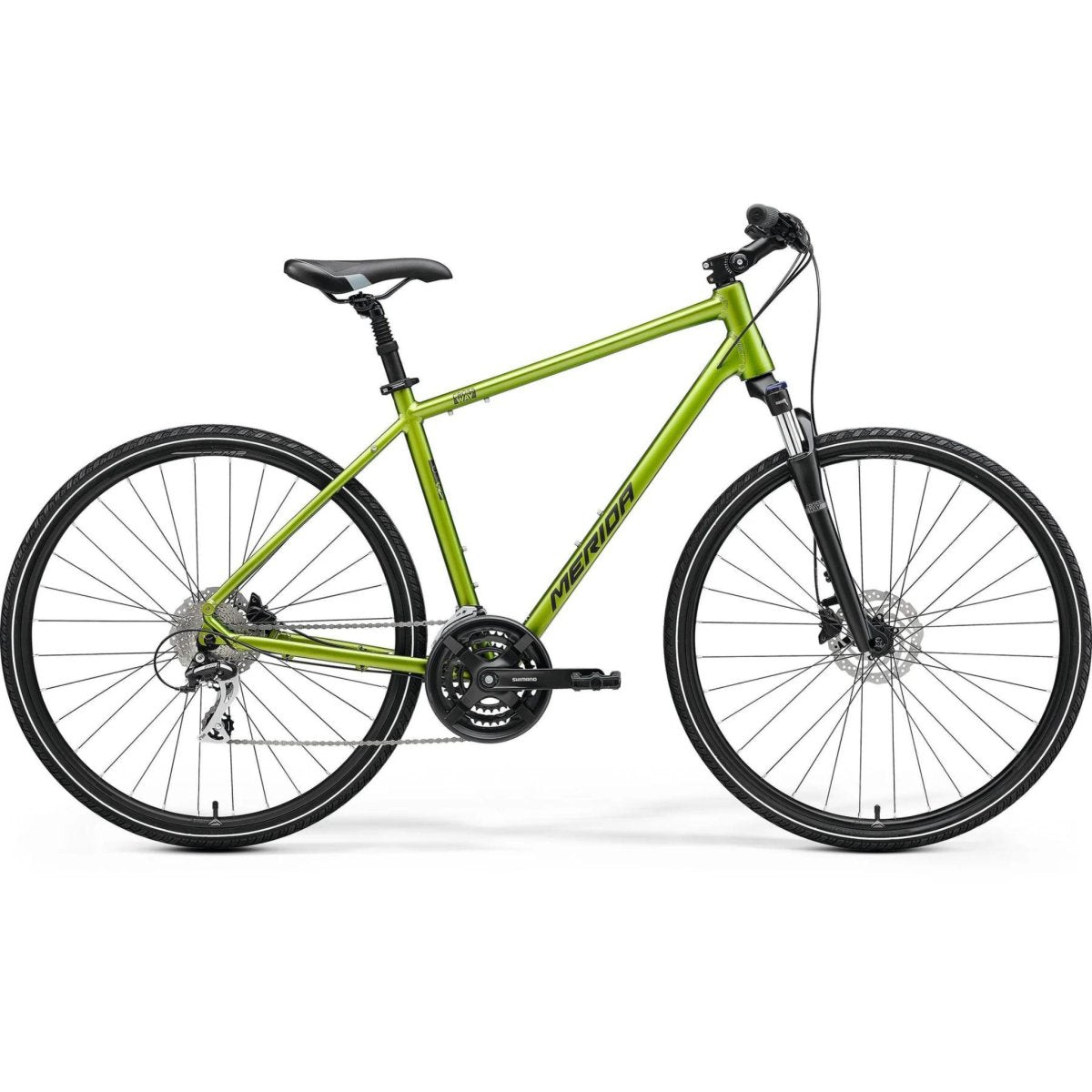

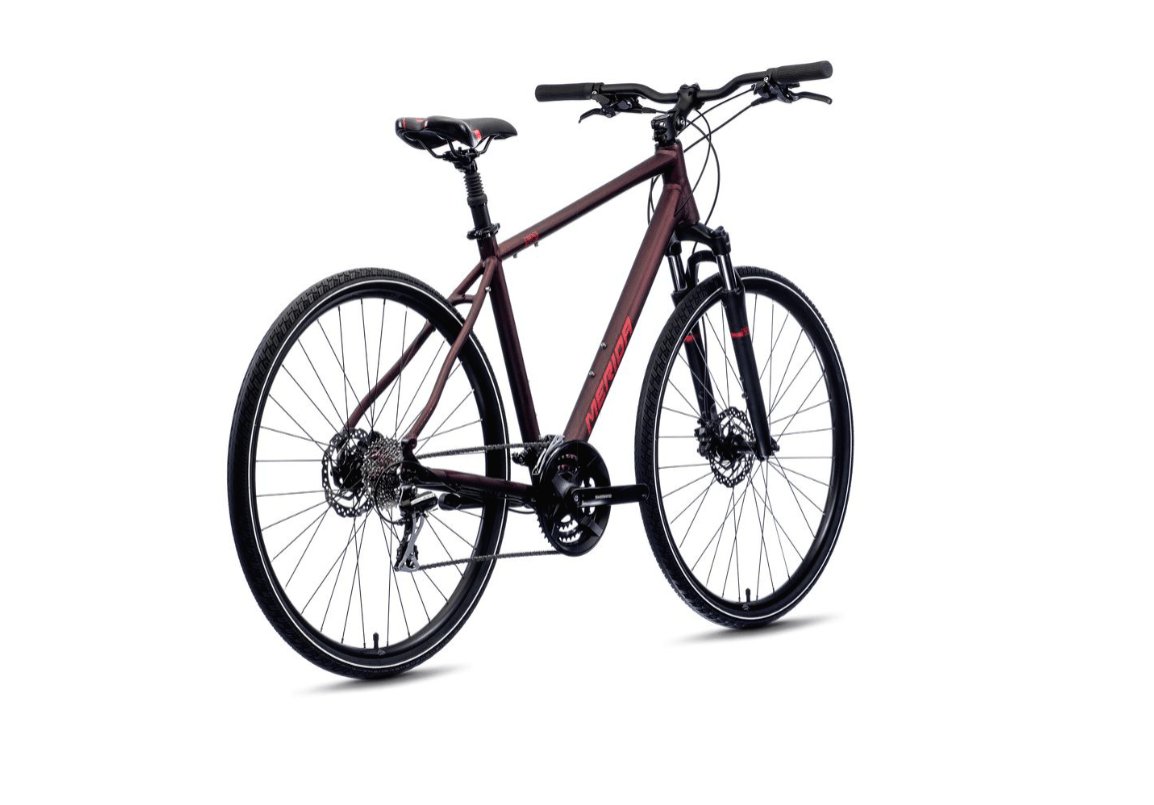

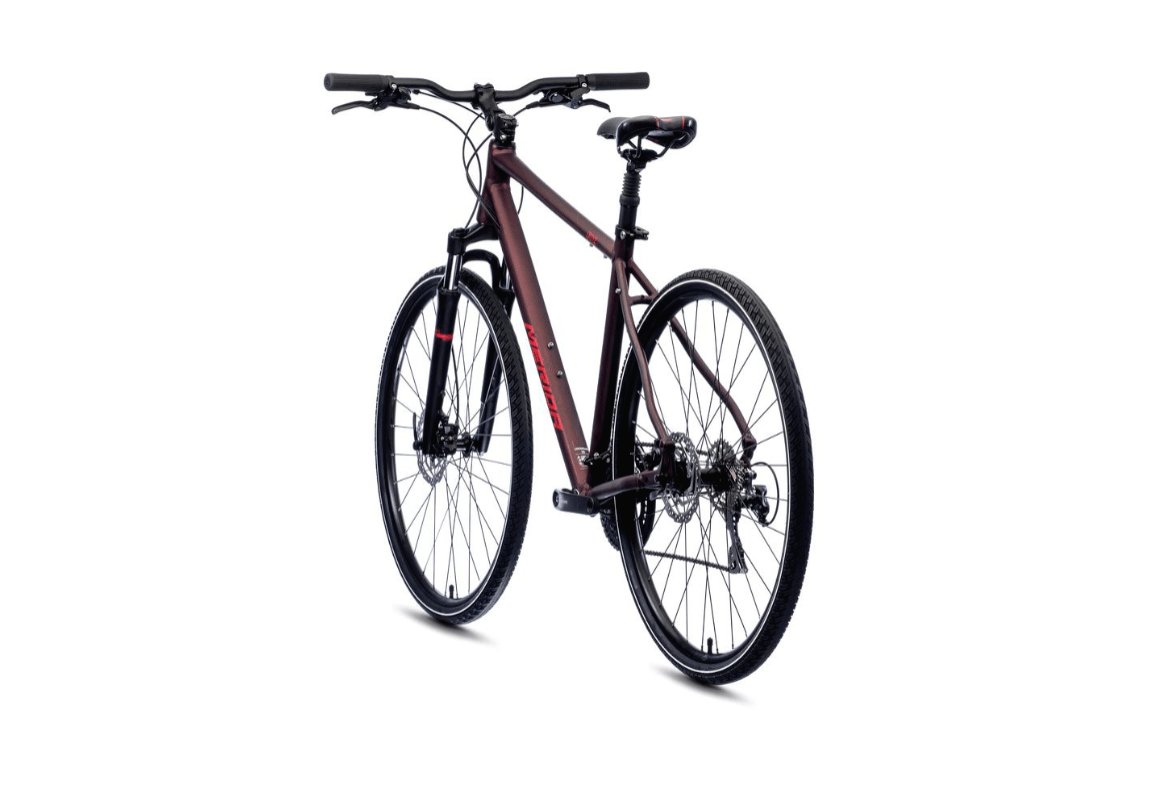

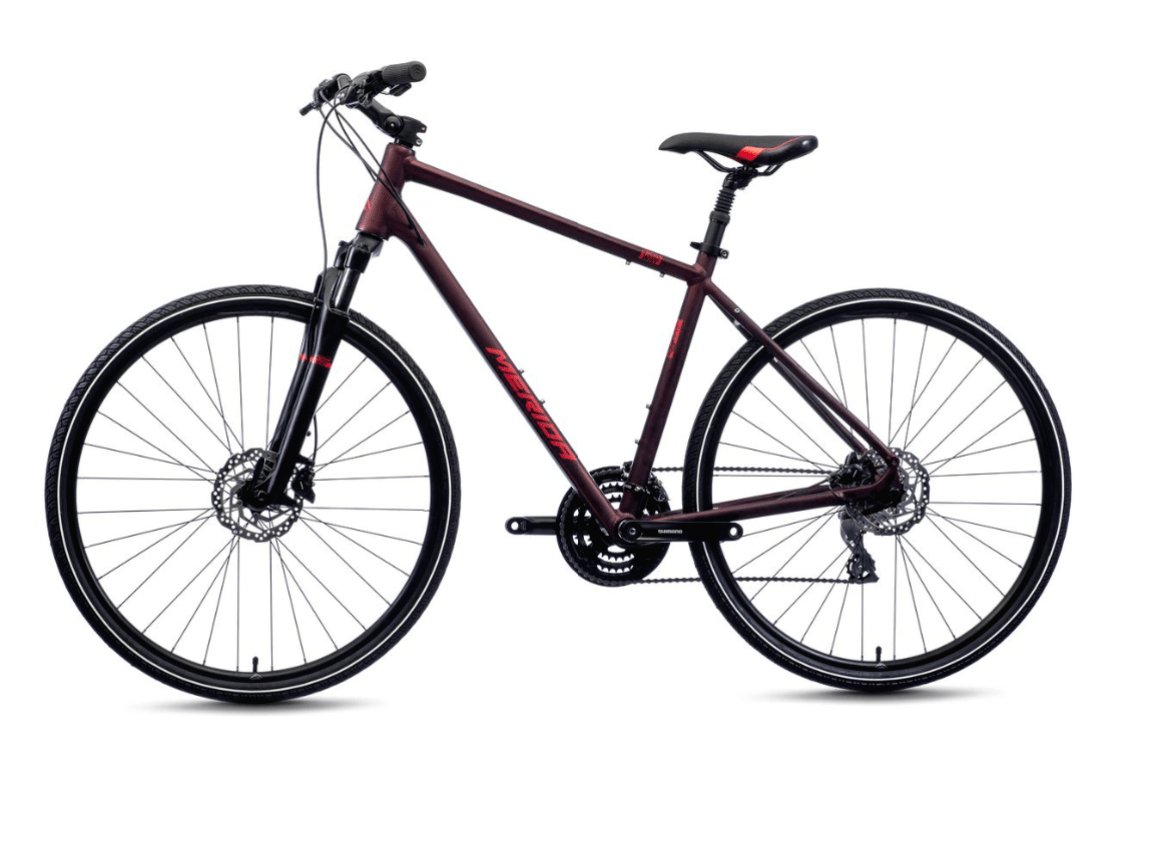

Merida Crossway 20 Hybrid Bicycle
A62211A01734
Frequently Bought Together
Explore the City in Style with the Merida Crossway 20 Hybrid Bicycle
Unmatched Comfort and Control:
- Suspension forks absorb surface bumps for a smooth ride
- Adjustable ahead stems and suspension seat posts offer customizable comfort
- Sportier TFS models for reduced weight and enhanced agility
Unparalleled Safety Features:
- Powerful hydraulic disc brakes for optimal stopping power in any weather
- Maintenance-free and immune to cable issues
Versatility at Its Best:
- Ability to add mudguards for training or commuting needs
- Removable seat stay bridge for a cleaner look and improved mud clearance
Enhanced Visibility on the Road:
- Reflective strips on tire sidewalls improve visibility during night rides
Experience the Crossway Difference:
- Perfect companion for urban adventures and weekend explorations
- High-quality craftsmanship and durable construction
Specifications
Specifications of Merida Crossway 20 Hybrid Bicycle
| Frame | Crossway TFS III (material: aluminum, 700x50c max. Wheelsize, 135x9mm Axle Standard, BSA Bottom Bracket Standard) |
| Fork | Suntour NEX HLO (Coil, 63mm Suspension Travel, Lockout, 700x50c max. Wheelsize) |
| Sizes | XS(43), S(47), M(51), L(55), XL(59) |
| Color | Matt Burgundy Red/Red |
| Bottom Bracket | FSA TH-7420ST-W, Cartridge Bearing |
| No Of Gears | 24-Speed |
| Cassette | Shimano CSM5588AU 11/32T |
| Chain | Sunrace M84 |
| Crankset | Shimano TY301 48/38/28T |
| Shifters | Micro Shift TS39-L / Micro Shift TS39-8R |
| Derailleur | Front: Shimano FD-TY710 & Rear:Shimano RD-M360 |
| Grips/Bartape | Merida EC |
| Handlebar | Merida CC (material: aluminium, 660mm width, 25mm rise) |
| Stem | Merida TK (material: aluminium, 25.4mm diameter, adjustable 100mm) |
| Saddle | Merida Cross Sport |
| Seatpost | Merida TK (27.2mm diameter, 13mm setback, 40mm Seatpost Suspension Travel) |
| Braking System | Hydraulic Disc Brake |
| Brakes | Power DS100 (2 Piston) |
| Wheel Size | 700c |
| Wheels | Front & Rear: Sunrace CSM668,11-32 teeth, 8 speed |
| Tire | Merida K1171, 700x40C wire |
| Rims | Merida CC (17mm inner Width, material: aluminium) |
| Hubs | Shimano TX505 (Front: 100x9mm width front hub, 32 spoke holes, Centerlock; Rear: 135x9mm width rear hub, 32 spoke holes, Centerlock) |
| Pedals | VP VPE-891 |
Geometry
Geometry of Merida Crossway 20 Hybrid Bicycle
| Frame Size | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" |
| ST Seat Tube [mm] | 430 | 470 | 510 | 550 | 590 |
| TT Top Tube [mm] | 565 | 580 | 590 | 610 | 630 |
| CS Chain Stay Length [mm] | 460 | 460 | 460 | 460 | 460 |
| HTA Head Tube Angle [°] | 70.5 | 71 | 71 | 71.5 | 71.5 |
| STA Seat Tube Angle [°] | 74 | 73.5 | 73.5 | 73 | 73 |
| BD Bottom Bracked Drop [mm] | 70 | 70 | 70 | 70 | 70 |
| HT Head Tube [mm] | 130 | 140 | 155 | 175 | 205 |
| FL Fork Length [mm] | 468 | 468 | 468 | 468 | 468 |
| R Reach [mm] | 387 | 393 | 399 | 406 | 418 |
| S Stack [mm] | 620 | 631 | 645 | 667 | 695 |
| WB Wheel Base [mm] | 1081 | 1085 | 1096 | 1104 | 1125 |
| SH Stand Over Height [mm] | 713 | 748 | 782 | 817 | 854 |
Technologies
Technologies of Merida Crossway 20 Hybrid Bicycle
X-Taper Headtube: Steering precision is vital to safe and confident handling, and the X-Taper Headtube allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.
Smooth Welding: This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.
Internal Cable Routing: On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like Smart Entry or Wire Port to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.
Down Tube Exit: Down Tube Exit is a feature seen on some of our frames with internally routed cables. By slightly overlapping the downtube where it connects to the bottom bracket, it leaves a small space that allows cables to exit easily. This means they are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.
Racelite 61 Aluminium: We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.
TFS - Techno Forming System: Manipulating the tube shape and thickness greatly impacts the appearance, weight and functionality of our aluminium frames. One technology that allows us to do that is Techno Forming, where plain aluminium tubes get mechanically formed by using an external form and an internal metal core. The result, beautifully shaped tubes with varying wall thickness, ready to be used to create our technoformed aluminium frames.
F-Mount: Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-Mount equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.
K-Mount: When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-Mount, which makes fitting a Merida kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-Mount is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.
C-Mount: Similar to our F-Mount, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-Mounts are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.
