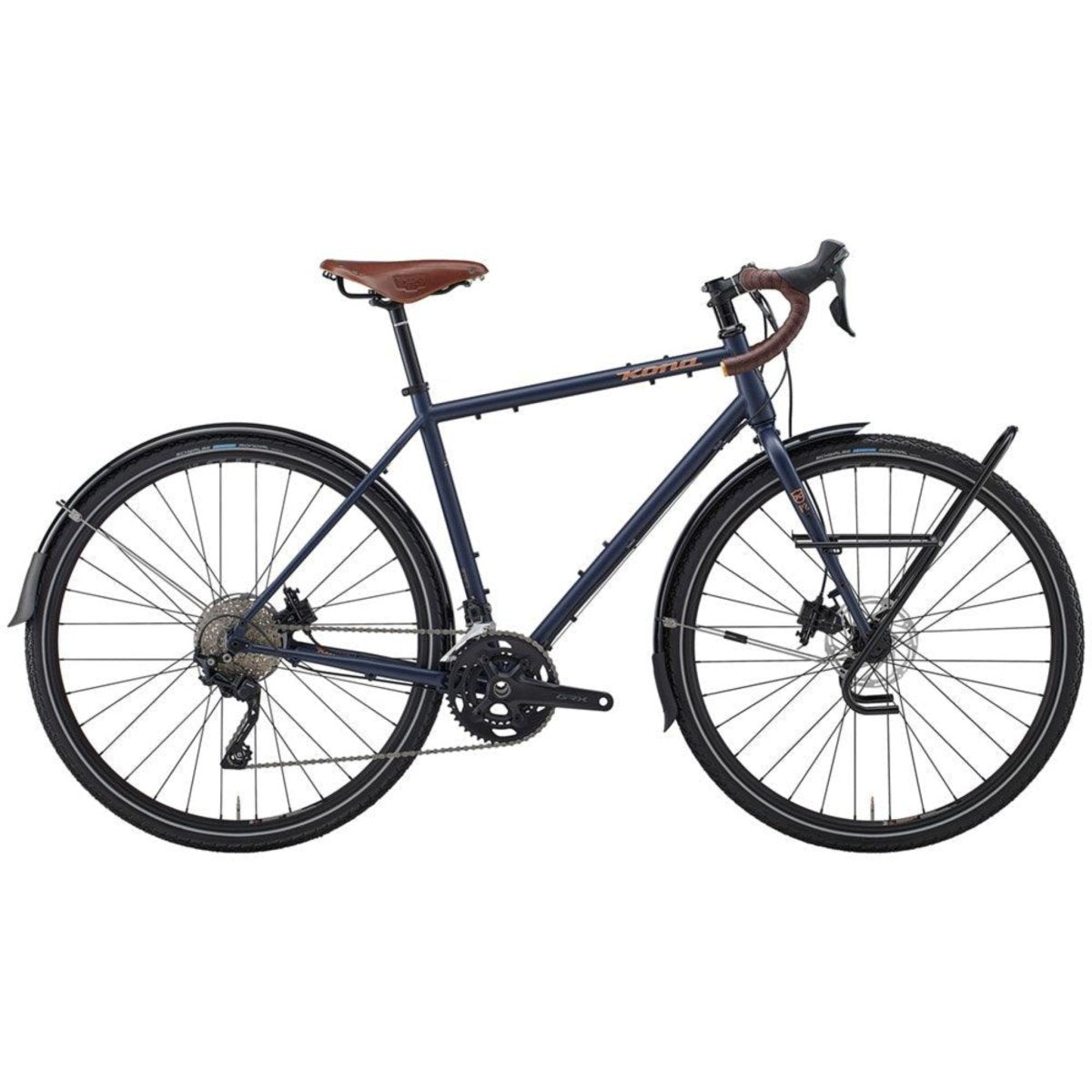

The Kona Sutra Touring Bike is not just a bike; it's a multifaceted marvel. It seamlessly combines functionality, style, and versatility, making it the perfect partner for the bike tour of your dreams. Crafted around our Kona Cromoly steel frame, this bike is a modern interpretation of the classic touring companion, ready to take you on unforgettable journeys.
Classic Steel, Modern Design:
The heart of the Sutra is its Kona Cromoly steel frame, delivering a ride that resonates with the classic feel of steel across pavement. This modern design pays homage to timeless touring bikes, providing a responsive and comfortable experience on every pedal stroke.
Thoughtful Details for Every Ride:

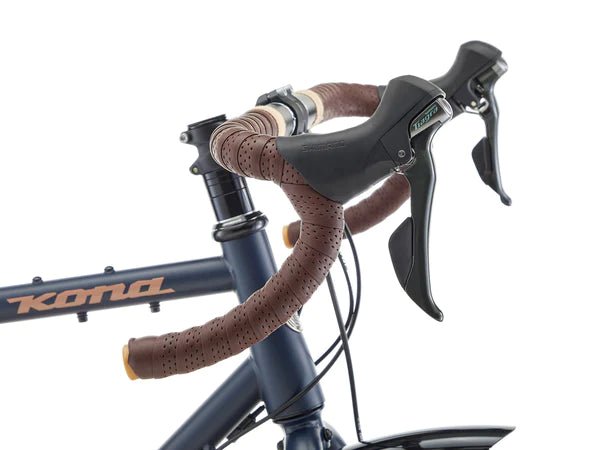

Prepare for a ride filled with thoughtful details. The Sutra comes equipped with a Brooks saddle and matching microfiber bar tape, striking the perfect balance between style and comfort. Integrated shifter/brake levers add to the bike's seamless design, ensuring that every detail contributes to an exceptional riding experience.
Built for the Long Haul:

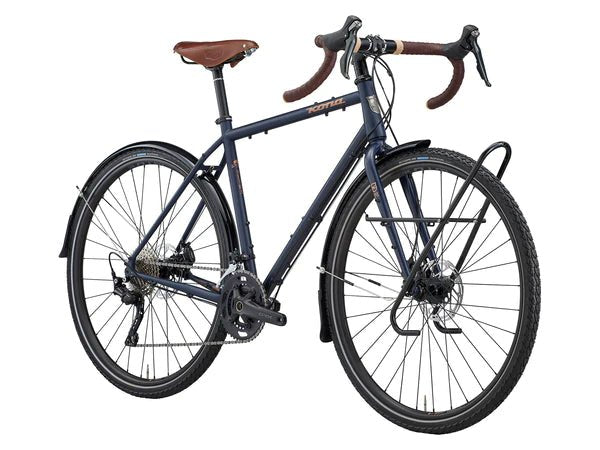

Whether you're embarking on a grand bike tour or running daily errands, the Sutra is up for the challenge. With proper fenders and a real Tubus Tara Big Apple low-rider front rack, it's not just a touring bike; it's a grocery-getter that effortlessly blends practicality with aesthetic appeal.
Versatility Unleashed:
Embrace the versatility of the Sutra. It's not confined to a single role—it's your guide for every ride. From long-distance tours to casual city cruises, this bike adapts to your needs, promising a ride that's as varied as your cycling adventures.
More Than a Bike, a Lifestyle:
The Sutra is not just a means of transportation; it's a lifestyle. It's the feeling of freedom that comes with turning the cranks on extended rides. It's the blend of classic design and modern functionality that makes every ride an exploration.
Elevate Your Cycling Experience:
Experience the joy of cycling with the Kona Sutra Touring Bike. Elevate your rides, explore new horizons, and embrace the freedom that comes with having the perfect companion for your every journey.

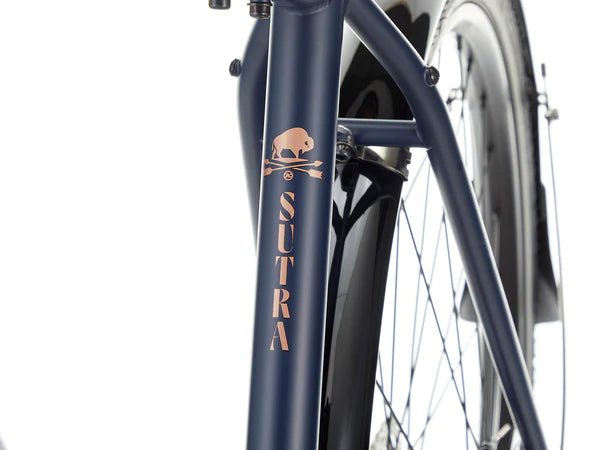

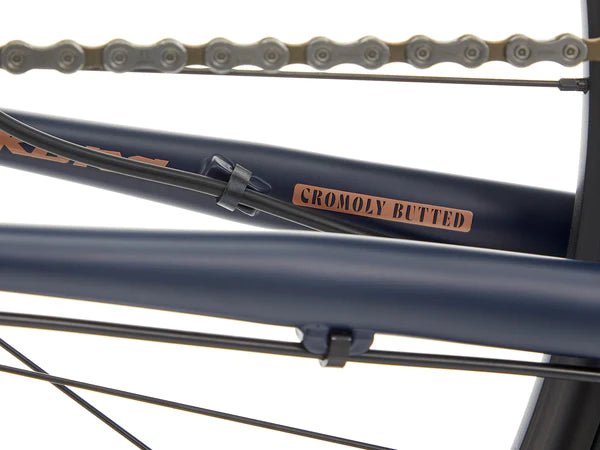

Frame Material | Kona Cromoly Butted |
Sizes | 48, 50, 52, 54, 56 |
Rear Shock | n/a |

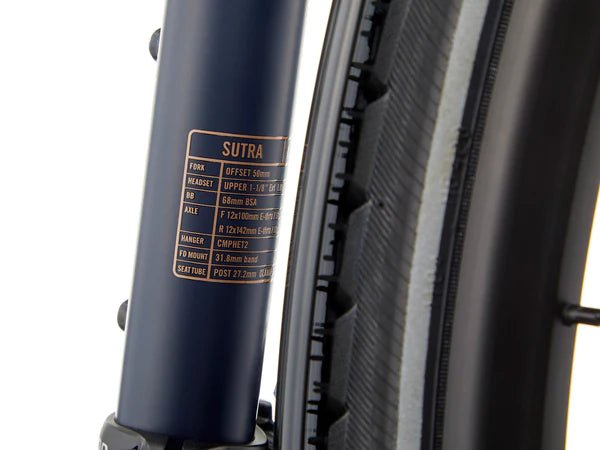

Fork | Kona Project Two Cromoly Disc Touring |

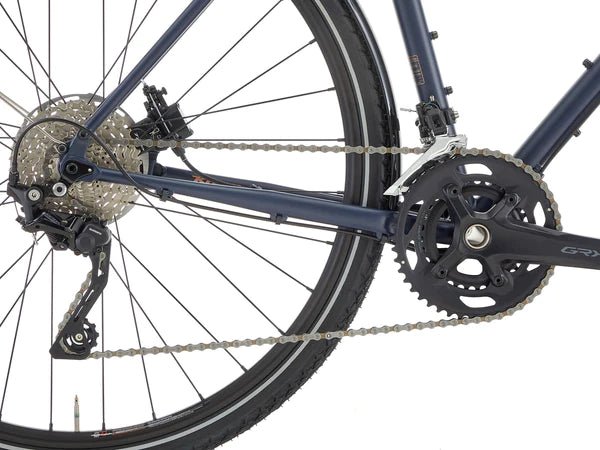

Crankarms | Shimano GRX 600 or Prowheel |
Chainrings | 30/46T |
Bottom Bracket | Shimano 68mm or Prowheel BB68+ |
Pedals | n/a |
Chain | Shimano Deore or KMC X10 |
Cassette | Shimano Deore 11-36T 10spd or Sunrace 11-36T 10spd |
Chain Guide | n/a |
Derailleur | Front & Rear: Shimano GRX 400 |
Shifters | Shimano Tiagra |

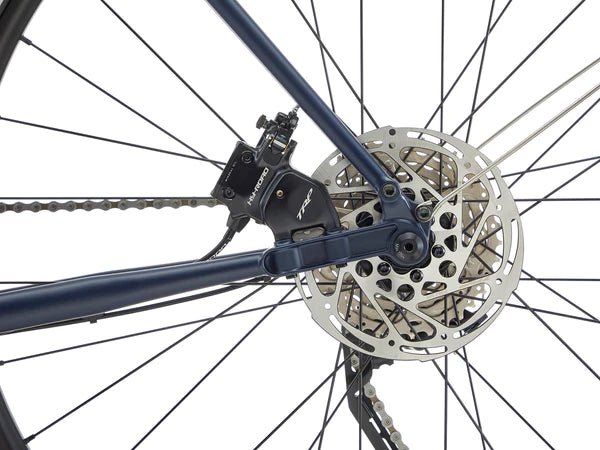

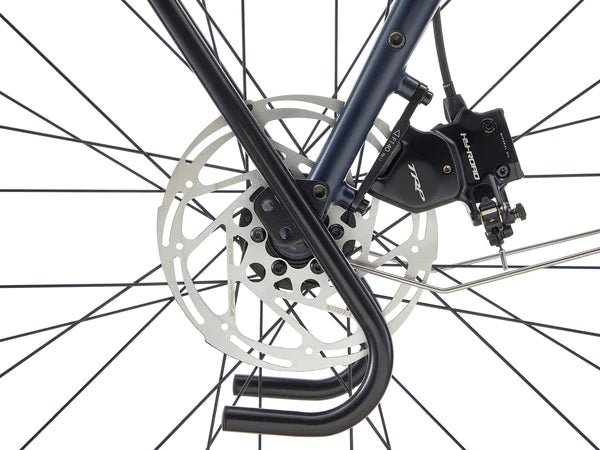

Brake Calipers | TRP HDC711C Mechanical / Hydraulic |
Brake Rotor | Front & Rear: TRP TR160mm |
Brake Levers |
Shimano Tiagra |
Headset | FSA No.1/No.10 |

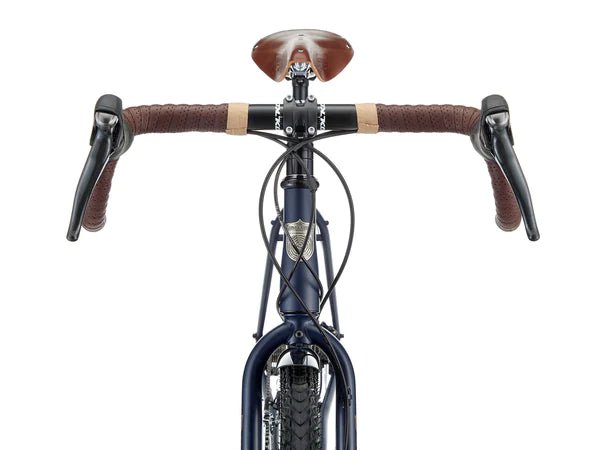

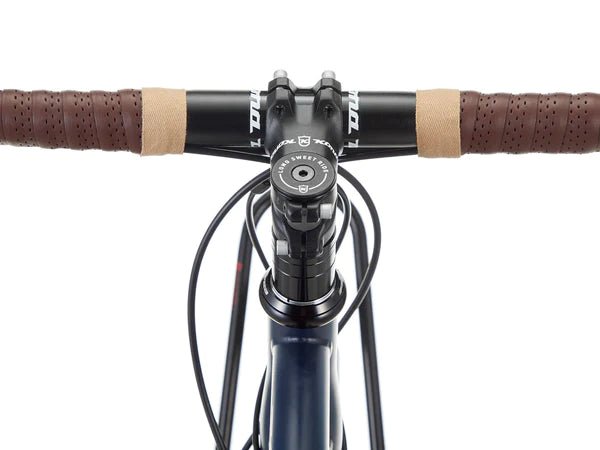

Handlebar | Kona Road |
Stem | Kona Road |
Seatpost | Kona Deluxe Thumb w/Offset 27.2 mm |
Seat Clamp | Kona Clamp |
Grips | Brooks Microfiber Brown |

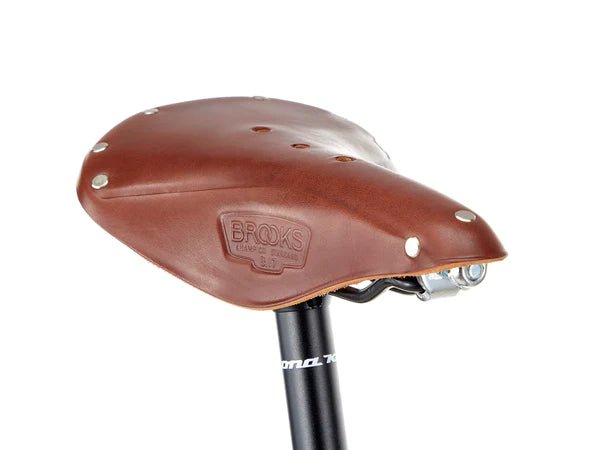

Saddle | Brooks B17 Leather |
Hub | Front: Formula 100x12 mm; Rear: Formula 142x12 mm |
Spokes | Stainless Black 14 g |
Rims | WTB ST i23 TCS 2.0 |
Tire | Front & Rear: Schwalbe Marathon Mondial 700x40c |
Paint Color | Satin Midnight w/ Gloss Bronze Decals |

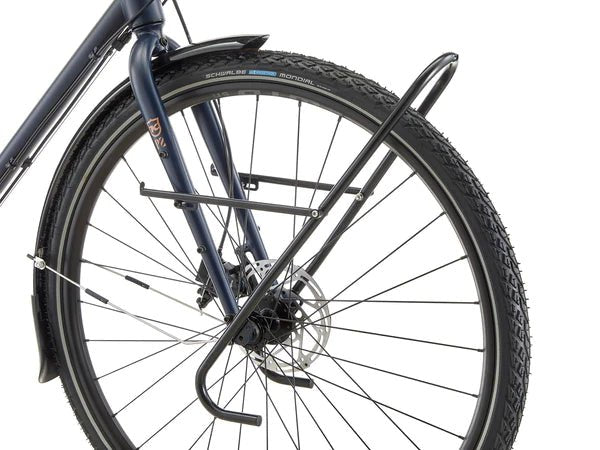

Extras | Fenders w/ Mudflaps, Tubus Tara Big Apple Front Rack |
Size | 48 |
50 |
52 |
54 |
56 |
ST Length | 480 |
500 |
520 |
540 |
560 |
TT Length | 523 |
538 |
555 |
571 |
588 |
Reach | 375 |
380 |
385 |
390 |
395 |
Stack | 551 |
570 |
591 |
610 |
632 |
Standover | 752 |
770 |
794 |
817 |
835 |
HT Angle | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
HT Length | 105 |
125 |
150 |
170 |
195 |
ST Angle | 75.0 |
74.5 | 74.0 | 73.5 |
73.0 |
CS Length | 445 |
445 | 445 | 445 | 445 |
BB Drop | 74 |
74 |
72 |
72 |
70 |
BB Height | 281 |
281 |
283 |
283 |
285 |
Wheelbase | 1036 |
1047 |
1061 |
1073 |
1086 |
Front Center | 602 |
613 |
626 |
638 |
651 |
Fork Length | 415 |
415 | 415 | 415 | 415 |
Fork Offset | 50 |
50 | 50 | 50 | 50 |
