Shimano GRX BL-RS717/BR-RX410 Hydraulic Disc Brake Caliper

IRS7174DLF6SC100
₹24,230
Pad Material
Type

Estimated Shipping Widget will be displayed here!

Clean Setup with Confident Braking

Overview

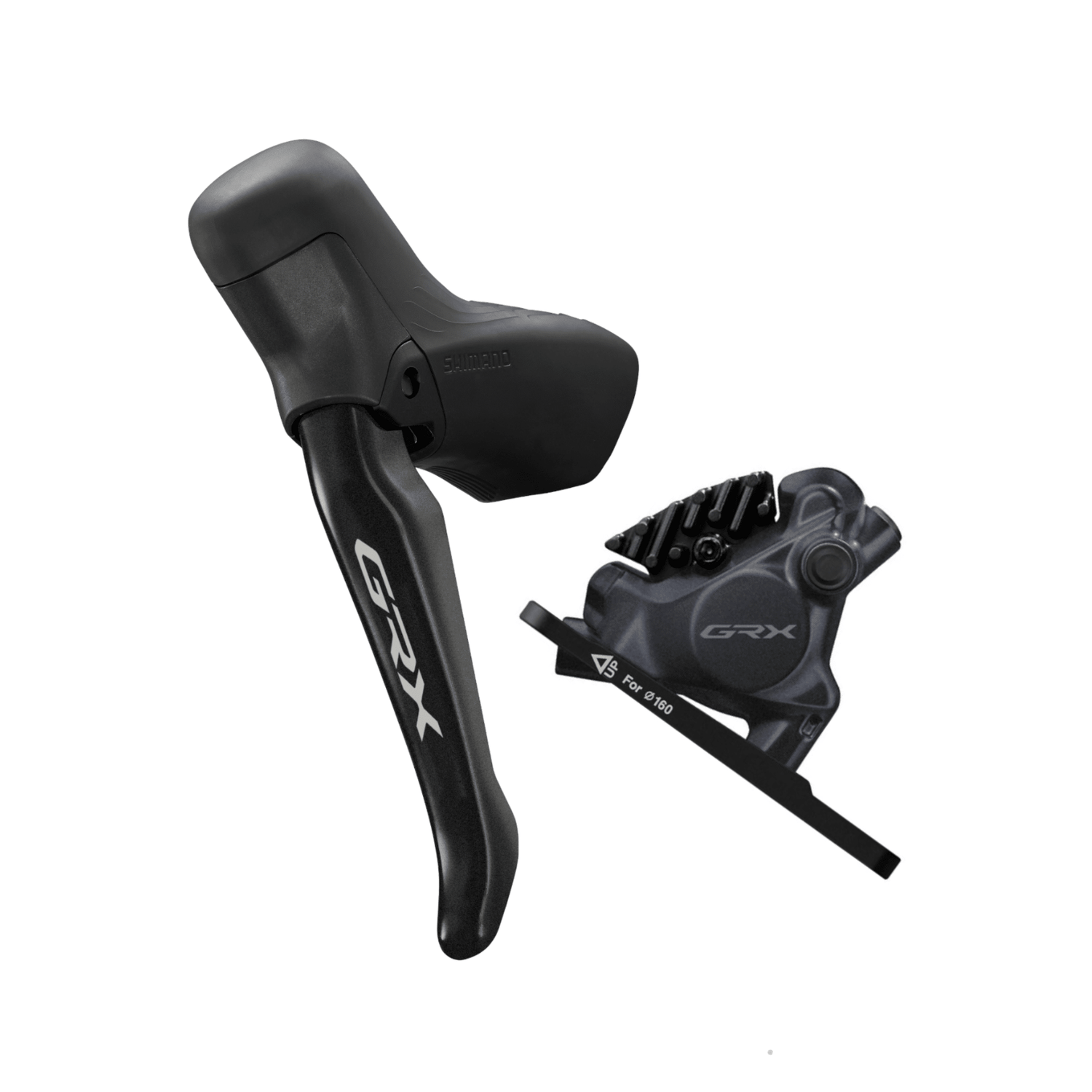

The Shimano GRX BL-RS717/BR-RX410 brake system is designed for riders who prefer simplicity without sacrificing performance. Combining a dedicated left brake lever with a reliable hydraulic caliper, it delivers consistent braking control for gravel and mixed-terrain riding.

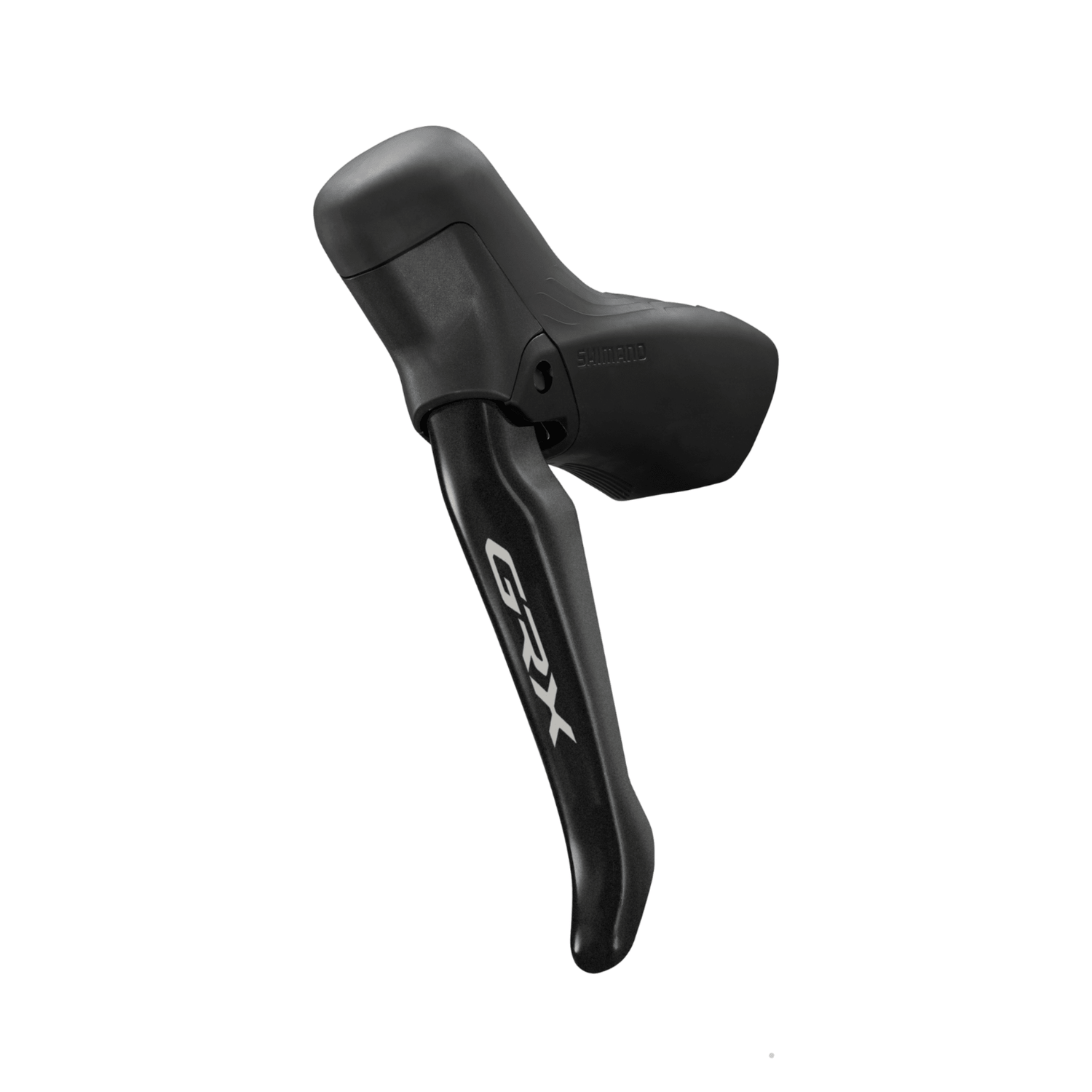

Lightweight Left Lever for Minimal Setups: The BL-RS717 is a Di2-compatible left-only brake lever that removes unnecessary shifting electronics for a cleaner cockpit. It pairs seamlessly with a right-side dual control lever, offering a lighter and more focused braking solution.

Ergonomics Tuned for Comfort and Control: With easy reach adjust, the lever allows you to fine-tune positioning based on your hand size and riding preference. This ensures better control and comfort, especially during long rides and technical sections.

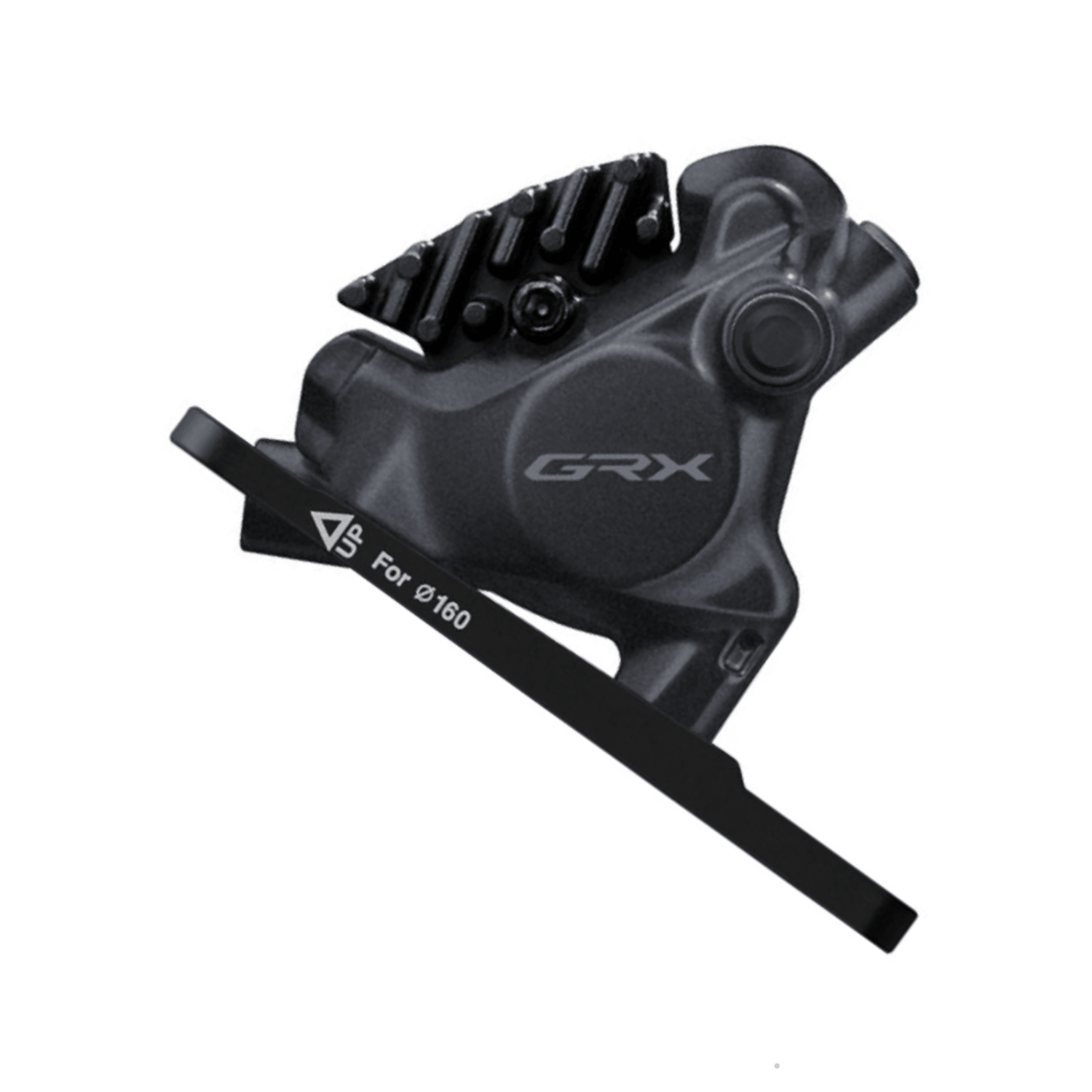

Confident, Quiet and Controlled Braking: The BR-RX410 hydraulic caliper delivers strong braking with improved modulation and a quicker initial bite. A 10% wider pad clearance reduces brake noise, while Shimano’s One Way Bleeding and Easy Hose Joint System make maintenance simple and hassle-free.

The Shimano GRX BL-RS717/BR-RX410 Hydraulic Disc Brake Caliper offers dependable performance with a clean, low-maintenance design.

Features

  • Minimal Left Lever Design: Dedicated Di2 brake lever removes shifting clutter for a cleaner cockpit setup.
  • Customizable Reach Control: Adjustable lever positioning ensures comfort and control across varied riding conditions.
  • Strong Braking Response: Hydraulic system delivers powerful stopping with smooth and predictable modulation.
  • Reduced Brake Noise: Wider pad clearance minimizes rubbing and enhances quiet performance on rough terrain.
  • Low-Maintenance System: Designed for easy bleeding and consistent reliability during long-term use.

Technologies

  • One Way Bleeding: Streamlined oil routing prevents air bubbles, enabling quick, clean and efficient hydraulic bleeding with minimal effort.

Specifications

Model No: BL-RS717-L

  • Series: GRX
  • Brake Type: Hydraulic Disc Brake
  • Bracket Cover Color: Standard
  • Brake Hose (Kit): SM-BH90-JK-SSR
  • Hose Joint: Straight
  • Brake Hose Color (Kit): Black
  • Reach Adjust|Tool: Yes
  • Free Stroke Adjust: Yes
  • Clamp Band|Diameter (mm): 23.8-24.2
  • Recommended Brake Caliper: BR-RX410
  • Oil: Shimano Mineral
  • Funnel Bleeding: Yes

Model No: BR-RX410-F

  • Series: GRX
  • Color: Series Color
  • Brake Type: Hydraulic Disc Brake
  • Brake Hose (Kit): SM-BH90-J-SSR SM-BH90-JK-SSR
  • Hose Joint: Straight
  • Brake Hose Color (Kit): Black
  • J-Kit Spec (For OEM): Yes
  • Ice Technologies Pad Compatible Caliper: Yes
  • Pad|Standard 1: K05S-RX Resin (w/o Fin)
  • Pad|Standard 2: L05A-RF Resin (w/ Fin)
  • Pad|Option 1: L04C-MF Metal (w/ Fin)
  • Recommended Brake Lever: ST-RX610 ST-RX715 BL-RS717
  • Recommended Disc Brake Rotor: RT-CL700 SM-RT64
  • Oil: Shimano Mineral
  • One Way Bleeding: Yes
  • Mount Type: Flat Mount
  • Piston: 2
  • Caliper Fixing Screw|Tool Size: 4 mm
  • Caliper Fixing Screw|Anti Loosen Method: Screw Fix Pin+Snap Ring
  • Pad Mount: Pad Axle
  • Remarks: Front Spec With Adaptor
